NE70W
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

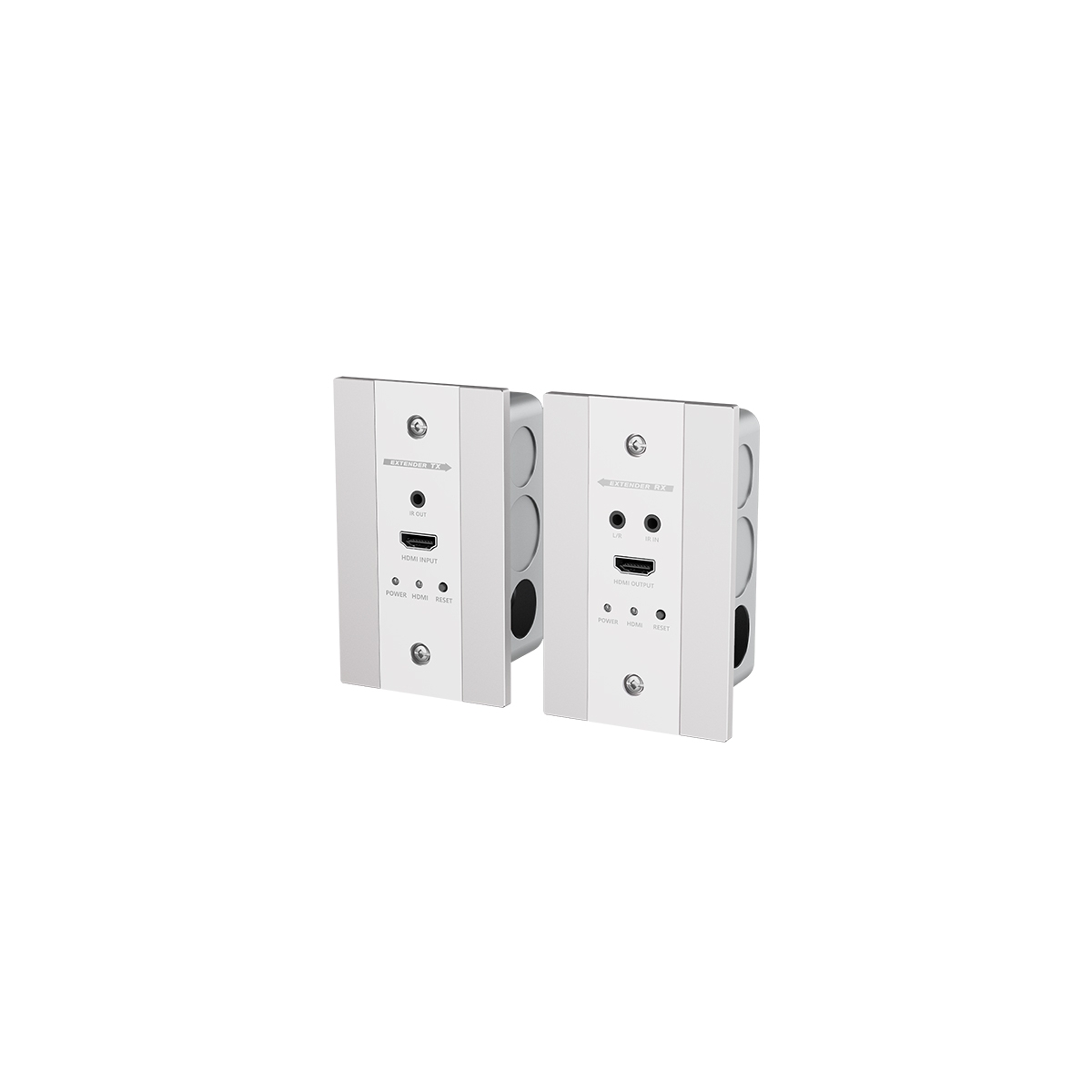

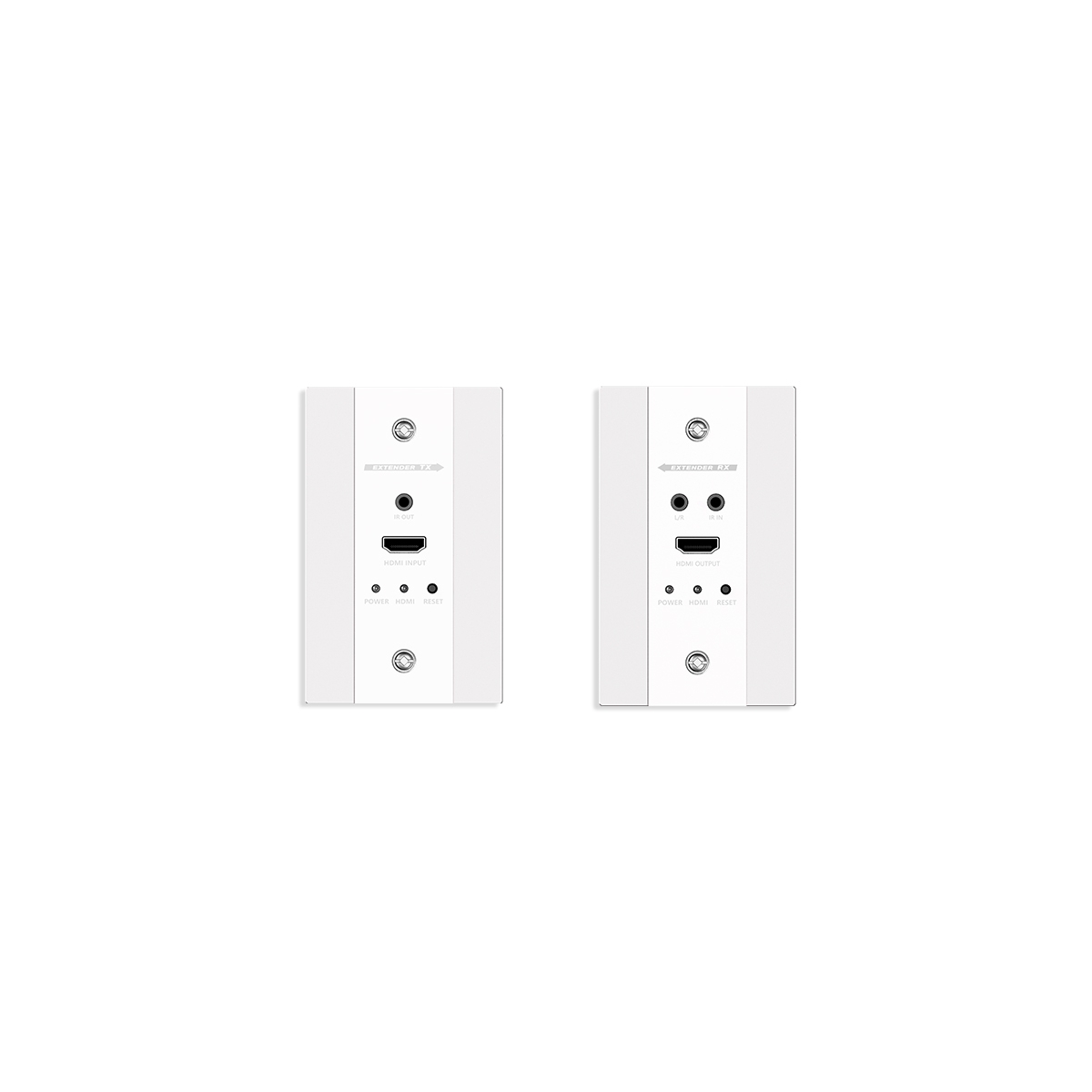

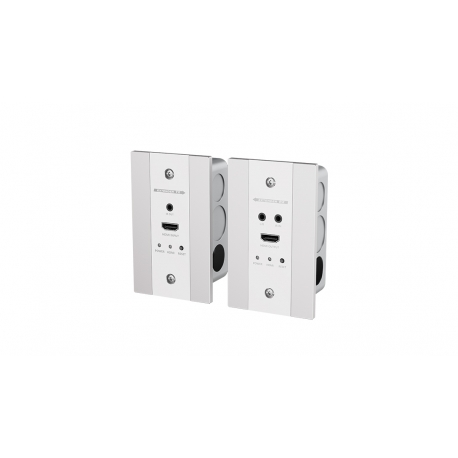

70m 4K@60Hz HDR HDMI™ Wall-Plate Extender (AC Power Supply)
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

ความหน่วงเป็นศูนย์ (Zero-latency): รับชมภาพได้ลื่นไหลแบบเรียลไทม์ ไม่มีการดีเลย์ของสัญญาณ
ความละเอียดคมชัดสูง: รองรับความละเอียดสูงสุดถึง 4K@60Hz ให้ภาพที่คมชัดสมจริง
ส่งสัญญาณได้ไกล: ขยายระยะการส่งสัญญาณได้สูงสุด 70 เมตร ผ่านสาย LAN (CAT6 ขึ้นไป)
รองรับระบบ PoC (Power over Cable): สะดวกในการติดตั้ง เพราะสามารถจ่ายไฟให้อุปกรณ์ผ่านสายแลนได้เลย ไม่ต้องเดินสายไฟแยก
ควบคุมระยะไกลได้: รองรับการควบคุมผ่านสัญญาณ IR (Infrared) ช่วยให้กดรีโมทควบคุมเครื่องเล่นจากฝั่งตัวรับได้
แยกเสียงแยกต่างหาก: มีช่องต่อ 3.5mm Audio Output สำหรับแยกสัญญาณเสียงไปเข้าลำโพงหรือแอมพลิฟายเออร์
ดีไซน์แบบ Wall Plate: ติดตั้งฝังผนังได้สวยงาม ช่วยให้การวางระบบสายสัญญาณในห้องดูสะอาดตาและเป็นระเบียบ
| Video Performance | |
| Resolutions | 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz, 1080i/p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1920x1200, 1600x900, and more. |
| Compatibility | HDMI 2.0 (Deep color, 4K, HDR, YUV4:4:4), HDCP 2.2, HDCP 1.4 |
| Maximum Transfer Rate | 18Gbps |
| Maximum Bandwidth | 600MHz |
| Features | EDID passthrough support |
| Transmission Range | |
| HDMI Cable Distance | ≤ 5m |
| Network Cable Distance | CAT6 / 6A / 7 up to 70m |
| Audio | |
| Audio Formats | LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1CH, Dolby Atmos |
| Control & Power | |
| IR Frequency | 20KHz ~ 60KHz (Receiving range ≤ 5m) |
| Power Supply | TX: AC 110~240V / RX: PoC (Powered by TX) |
| Power Consumption | Tx + Rx < 7W |
| Physical Properties | |
| Housing Material | Aluminum alloy + Iron |
| Color | Silver |
| Weight | TX: 270g / RX: 250g |
| Dimensions (L x W x H) | 70.0 x 114.0 x 51.0 mm (Both TX and RX) |
| Environment & Protection | |
| Operating Temperature | 0°C ~ 60°C (Storage: -30°C ~ 70°C) |
| Humidity | 0 ~ 90% RH (No condensation) |
| Protection Levels | ESD Protection (Contact ±4KV / Air ±8KV), Lightning Protection, Surge Protection |
