TLM-170VM
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

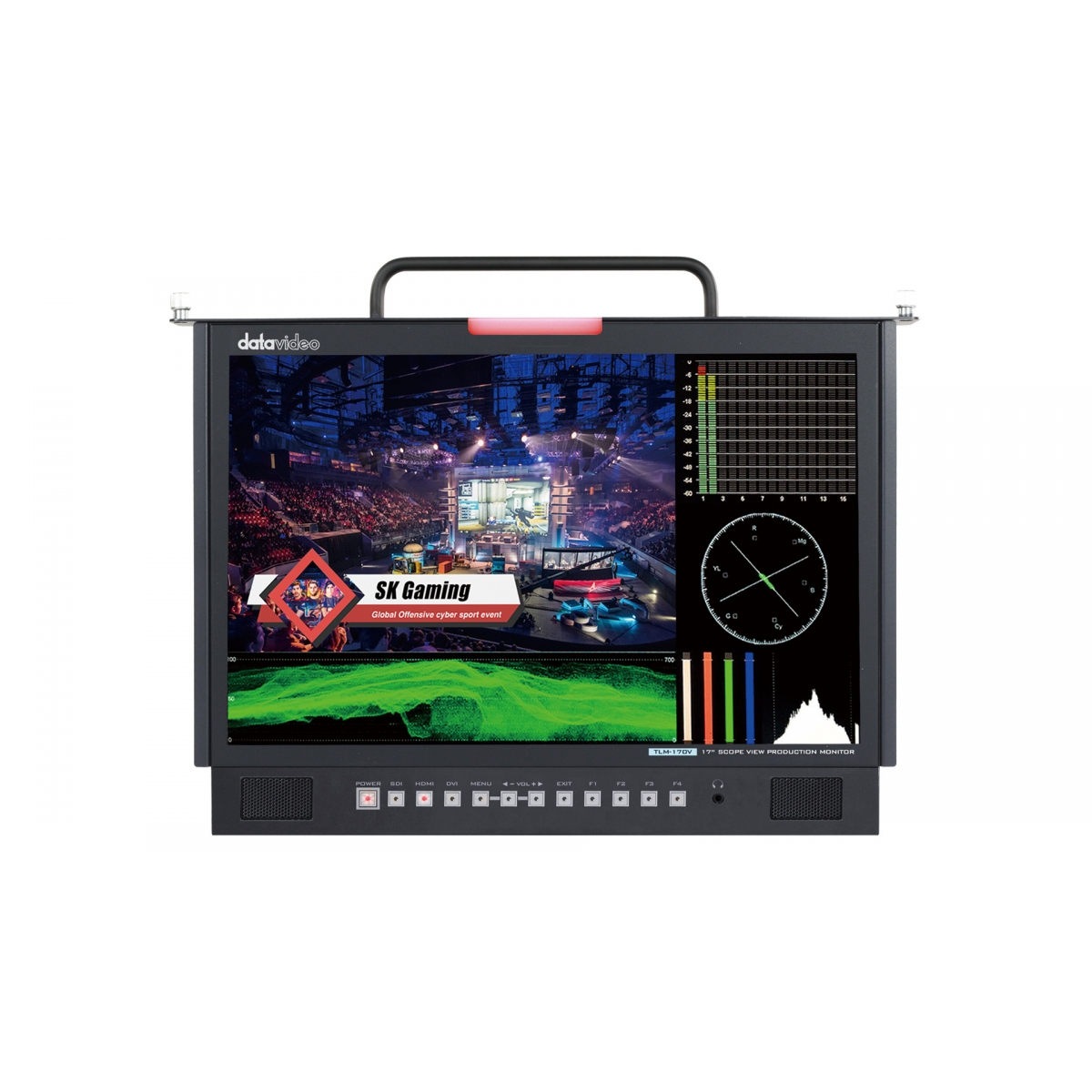

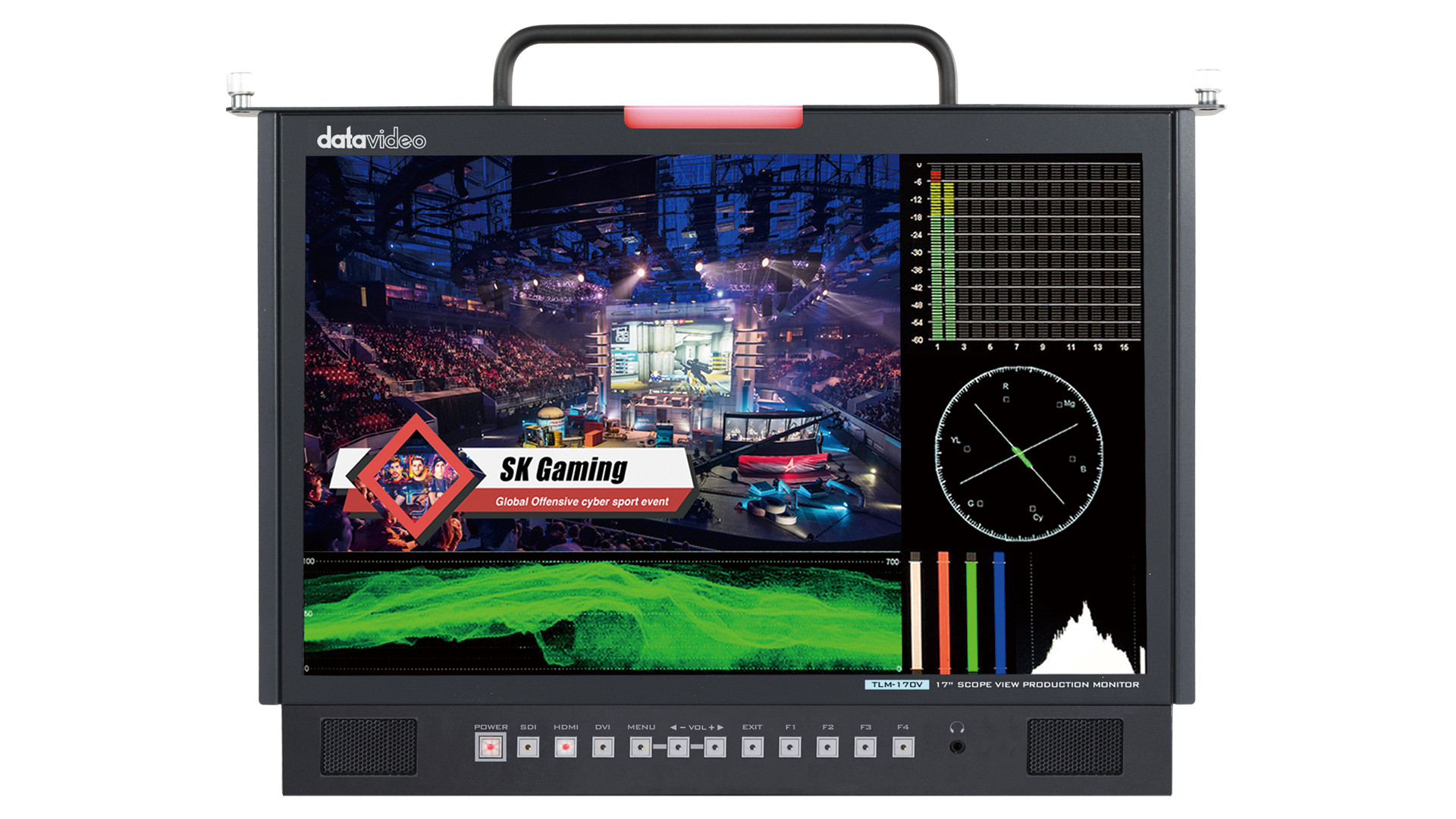

17" ScopeView Production Monitor-Pull-Out
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก


Supports 3G/HD/SD 1920x1080 panel resolution.

1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through

The TLM-170VM can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field

Tally light included. Best use for live production.
Screen | 17.3" LED Backlit |

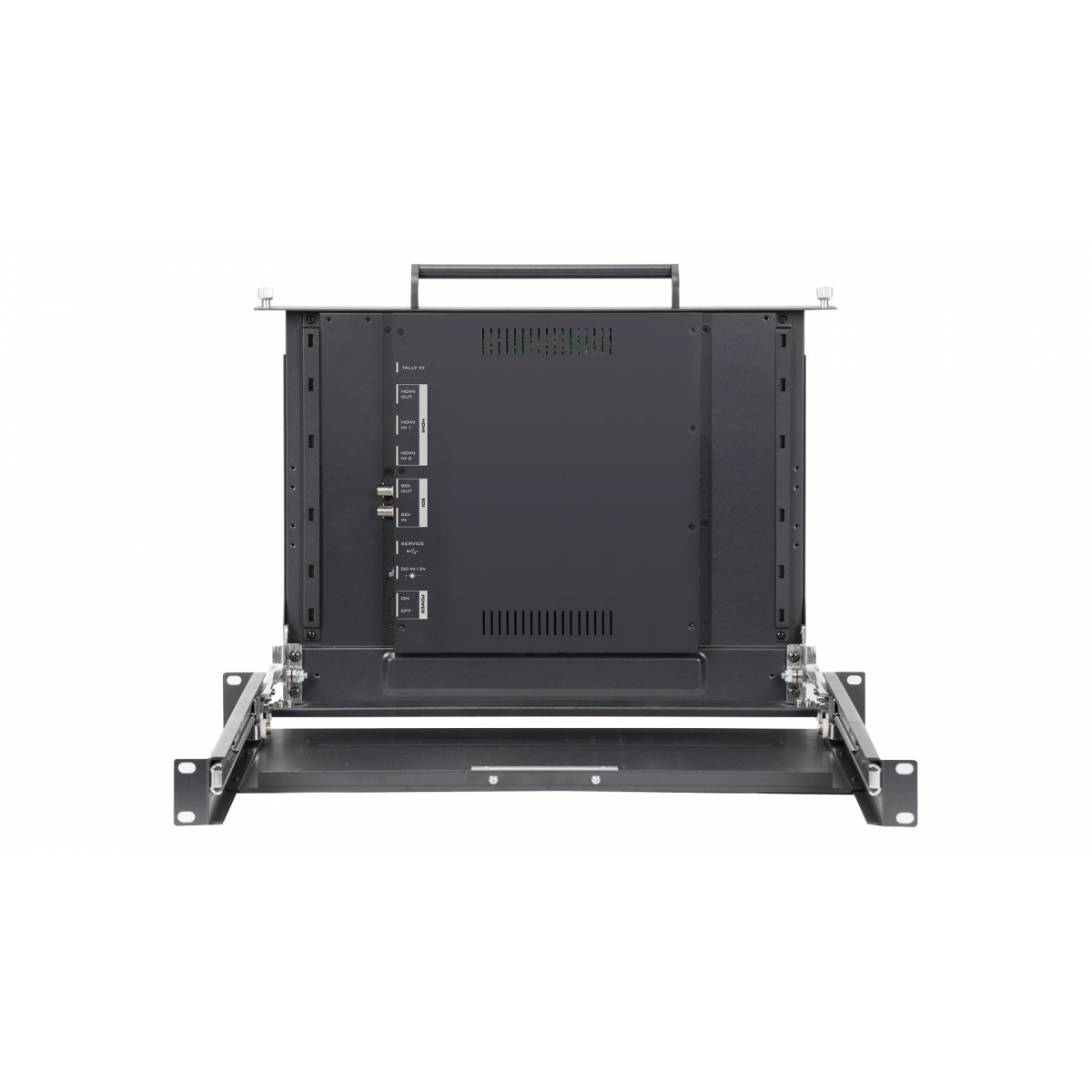

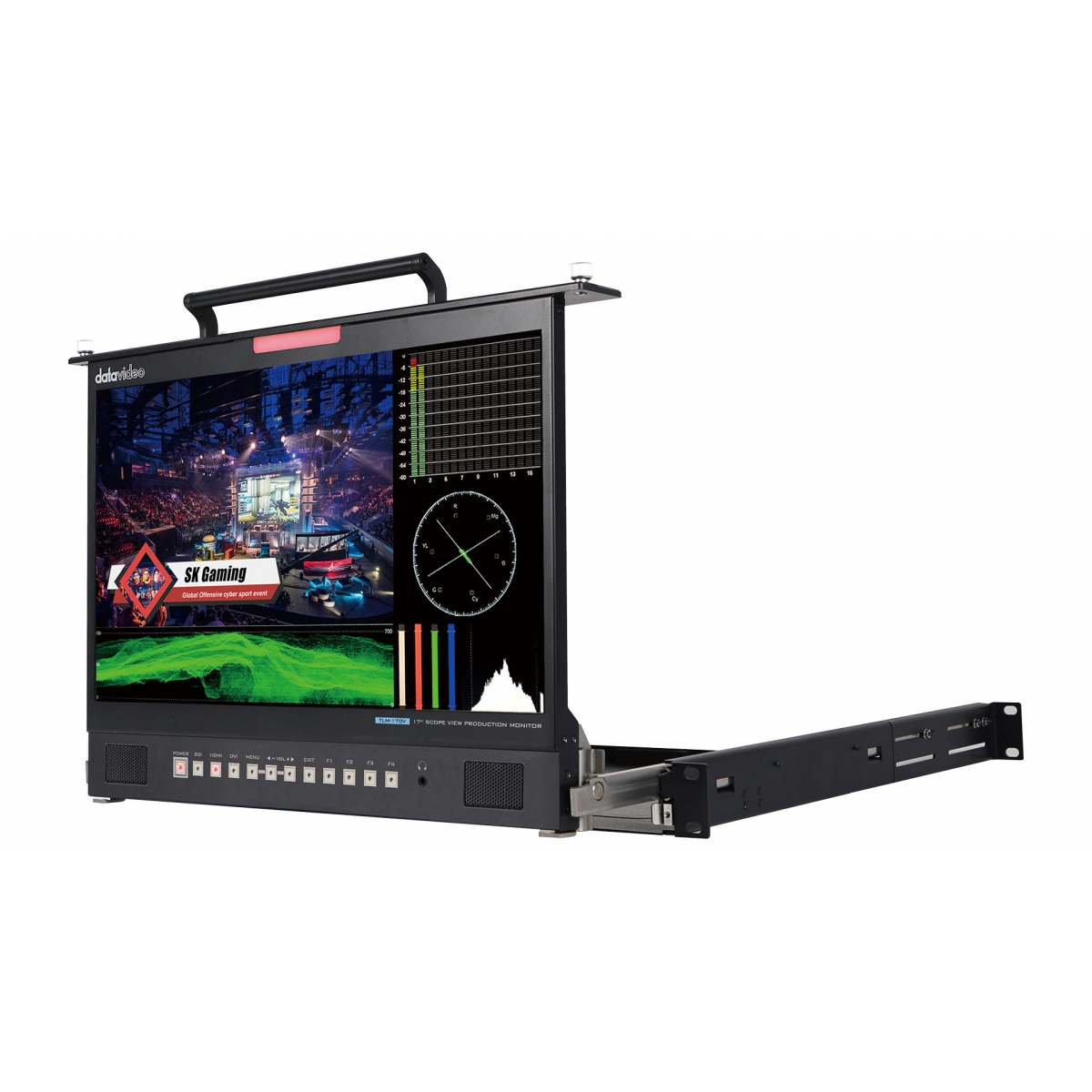

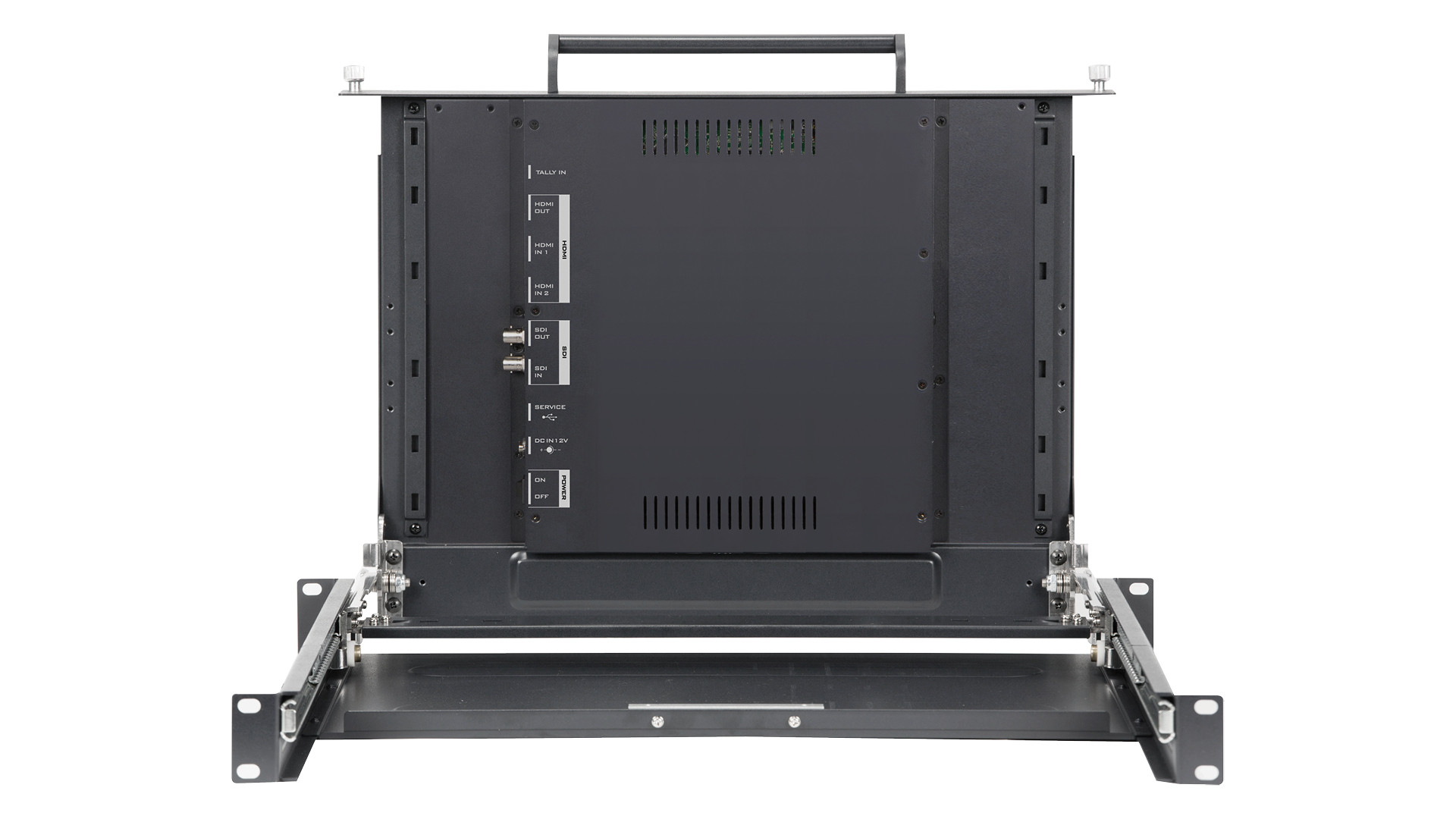

Chassis | 1RU Pull-Out |
Resolution | 1920x1080 |
Viewing Angle | (H) +89/-89° (V) +89/-89° |
Luminance/Contrast | 300cd/m² 700:1 |
Video Inputs | 1x 3G/HD/SD-SDI |
Loop Through | 1x 3G/HD/SD-SDI |
Supported Input Resolutions | 1080p(23.98/24/25/29.97/30/50/59.95/60Hz) |
Aspect Ratio | 16:9, 4:3 |
Aspect Marker | YES |
Safty Marker | YES |
Tally LED | Live (Red) Cued (Green) |
Audio In/Out | 2x Speaker |
| Special Features | SDI and HDMI cross conversion, |
Dimension (WxHxD) | 485.8 x 492.7 x 44.5 mm |
Weight | 6.7 kg |
Operating Temp. Range | 0~40 °C |
Power | DC 12V, 21.9W |
What's in the Box | 1 x TLM-170V product |
