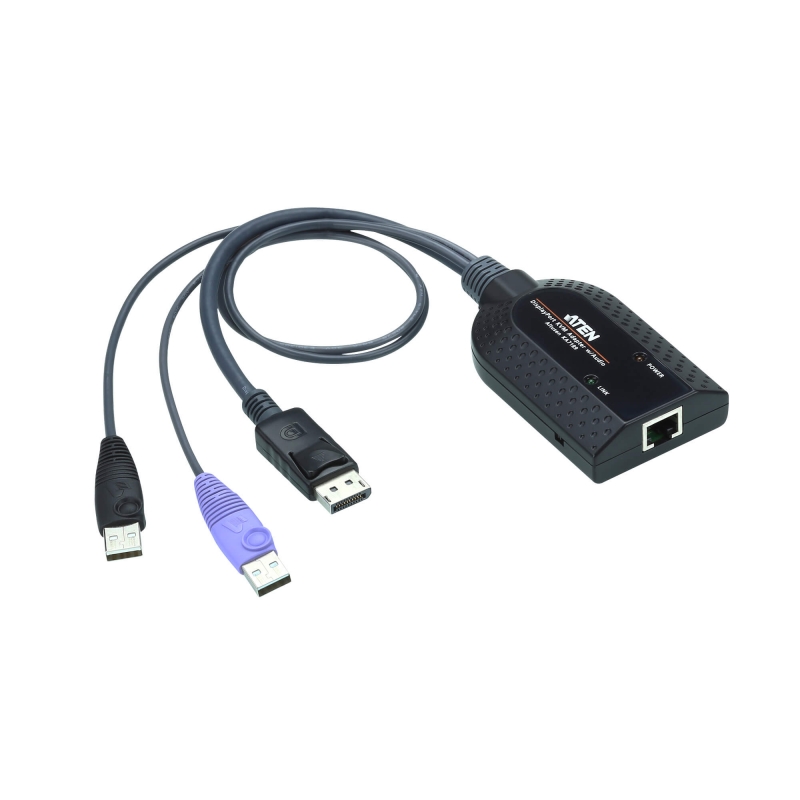

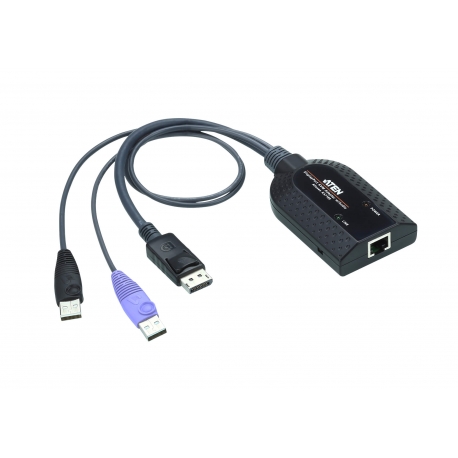

KA7189

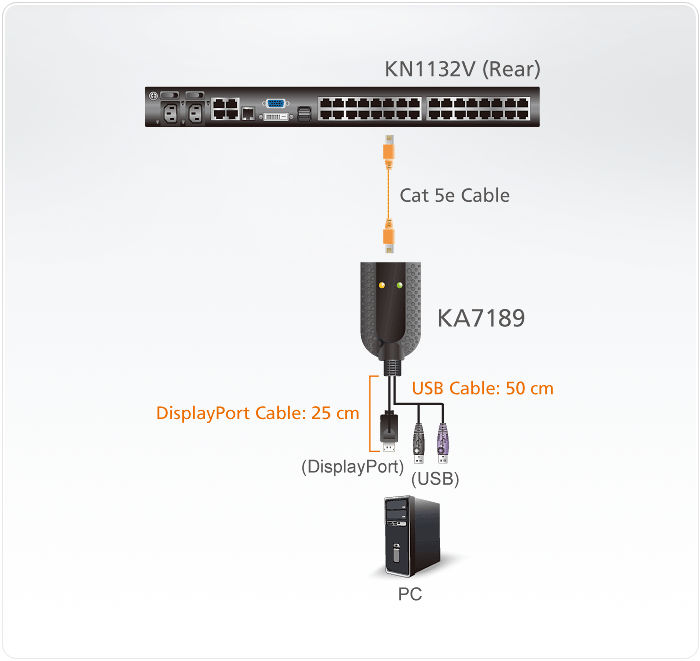

KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer. Supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.
The KA7189 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer.* The KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.**
The KA7189 supports Audio De-Embedder, which extracts the audio from a DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.
Note:
*Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power.
**Please refer to the webpage of KVM Adapter Cable Compatibility List (http://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches

| Connectors | |
| Link | 1 x RJ-45 Female |
| Computer | 2 x USB Type A Male 1 x DisplayPort Male |
| LEDs | |
| Link | 1 (Green) |
| Power | 1 (Orange) |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.11 kg ( 0.24 lb ) |
| Dimensions (L x W x H) | 9.10 x 5.60 x 2.14 cm |
