AP106
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

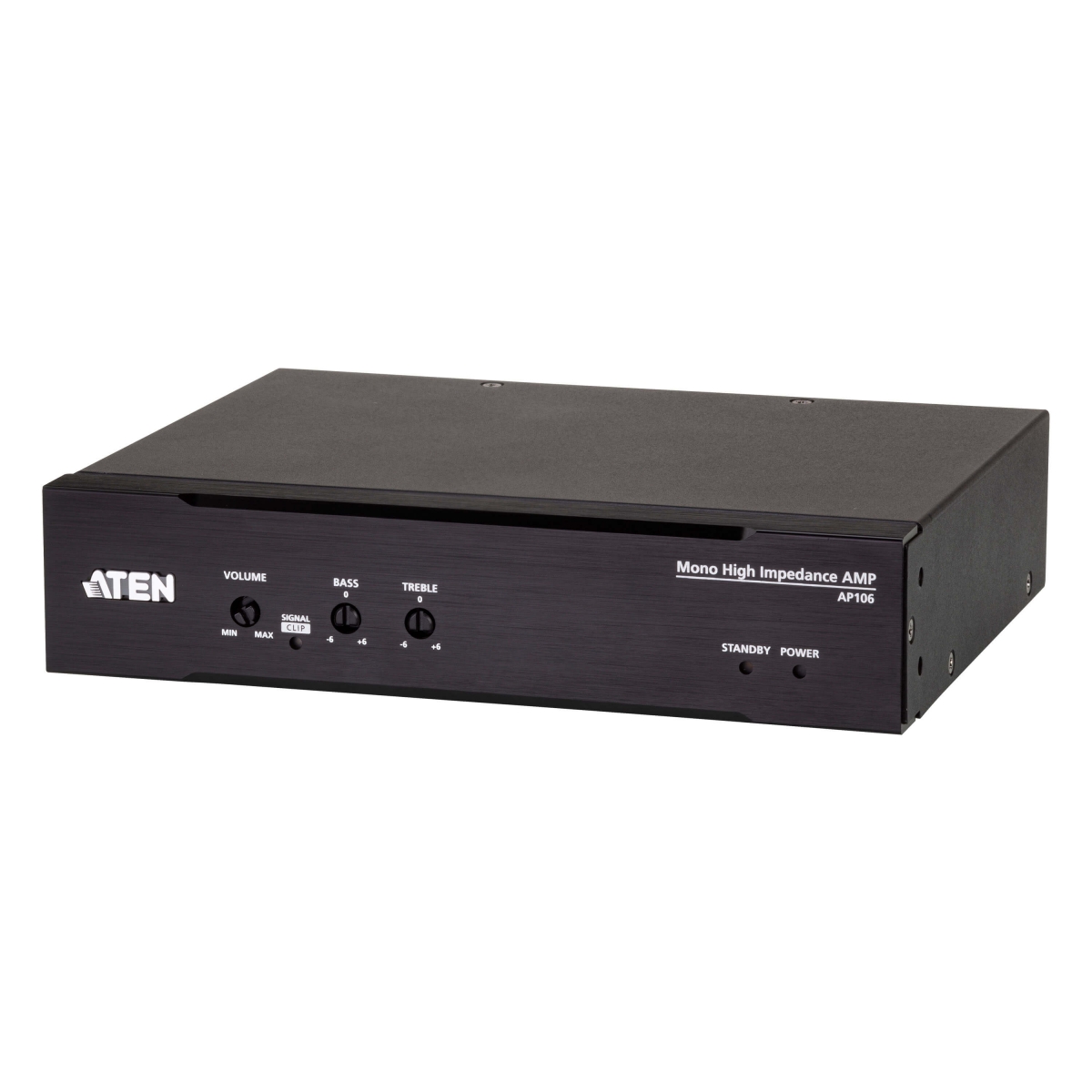

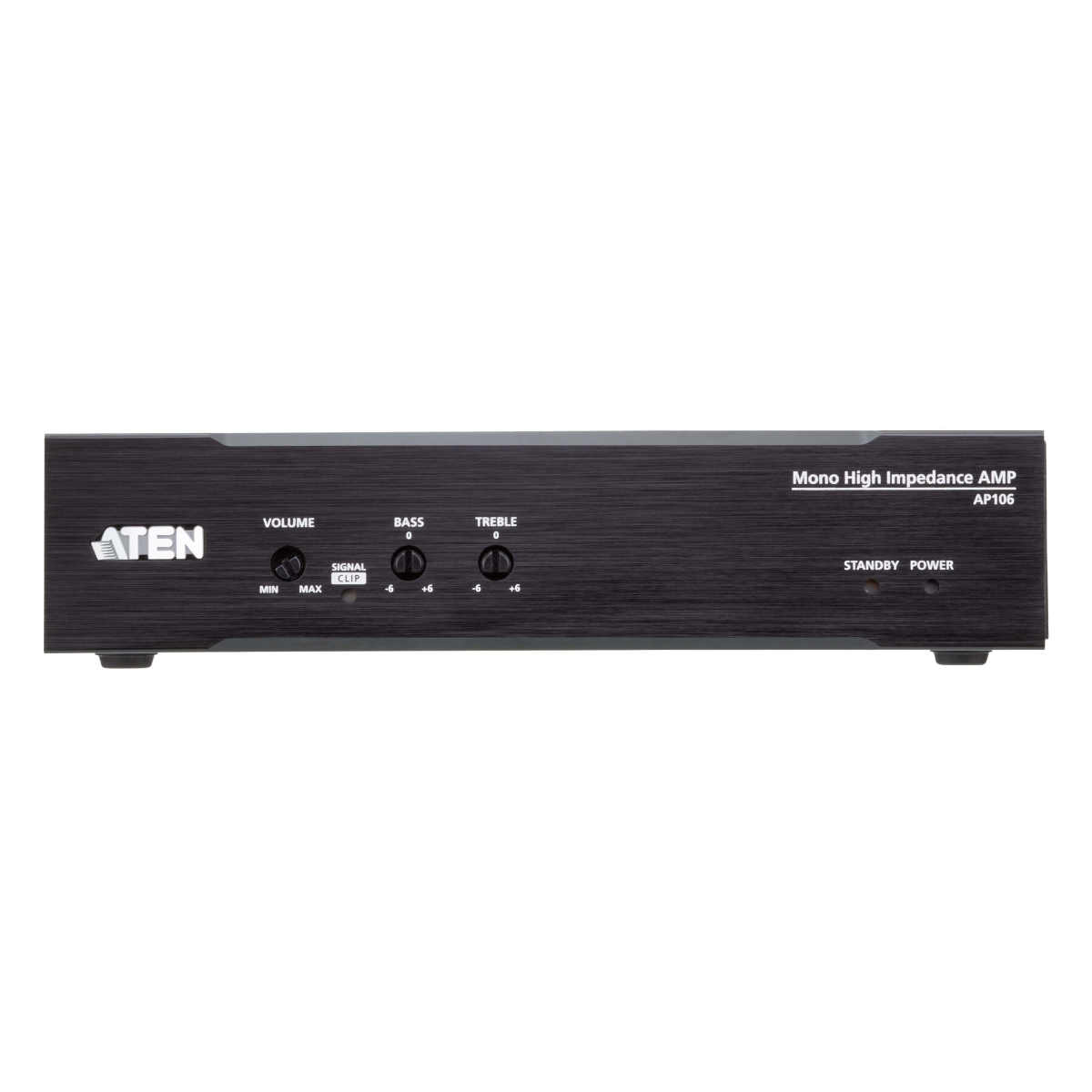

60W Mono Hi-Z Power Amplifier
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
System Specification | |
Rated Power | 60Wrms/ 120Wpeak |
Distortion | THD+N: <0.1%, 1kHz, 3dB before clipping |
Frequency Response | 80~20kHz, 0/-3dB @70V, 1W |
Sensitivity | Balanced: +4dBu Unbalanced: -10dBV (0dBu=0.775Vrms, 0dBV=1Vrms) |
Amplifier Type | Class D |
HPF | 80Hz, -12dB/Oct |
Audio Inputs | |
Interfaces | 1 x 5-pin 3.5mm Euroblock (Bal/Unbal Line In) 1 x 3.5mm TRS Unbalanced Phone Jack (Priority) |
Impedance | Balanced: 20kΩ Unbalanced: 10kΩ |
Detect Threshold | -50dBu |
Audio Outputs | |
Interfaces | 1 x 2-pin 5.08mm Euroblock |
Impedance | Minimum Load 70V: 80Ω 100V: 160Ω |
Audio Effects | 2-band Shelf EQ, +/-6dB |
Protection | Output Shortcut AMP Output over/under voltage High Frequency Overload Thermal Protect |
Communication | |
RS-232 | Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
Power | |
Power Consumption | 100-240V~, 50/60Hz, 1A |
Compliance | |
Certification | FCC, CE, UKCA |
Environmental | |
Operating Temperature | 0~40℃ |
Humidity | 0-80% RH, Non-Condensing |
Storage Temperature | -20~60℃ |
Physical Properties | |
Weight | 1.23 kg ( 2.71 lb ) |
Housing | Metal |
Dimensions (L x W x H) | 20.00 x 15.72 x 4.40 cm (7.87 x 6.19 x 1.73 in.) |
Note | Rack/surface mount kits are sold separately. |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
