Item Name

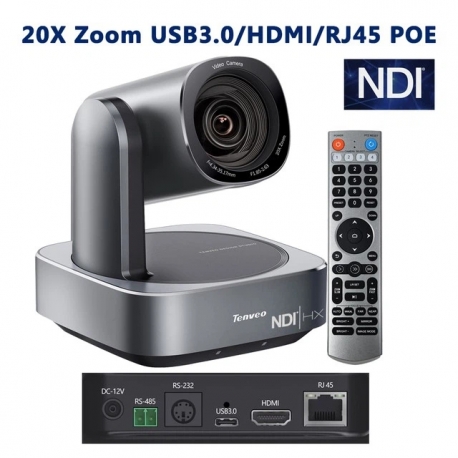

USB3.0/HDMI PTZ Camera with 20x Zoom

Model No.

TEVO-VL20N(NDI)

Image Sensor

Sony IMX327 1/2.8" CMOS

Effective Pixels

2.07MP, 16:9

Lens

f=5.5mm-110mm

Aperture

F1.6 ~ F3.5

Video Format

HDMI
(1080P@60/50/30/25fps,
720P@60/50/30/25fps)

USB3.0
(1920x1080P@60fps,
1920x1080P@30fps,
1280x720P@30fps,
640x480P@30fps,
320x240P@30fps
YUY2/H264/H265/MJPG)

Optical Zoom

20x zoom

AI Support

Yes

AI Mode

Auto Framing/ Presenter Tracking

Horizontal angle

55.8°(W)-3.2°(T)

Vertial angle

32.2°(W)-1.8°(T)

Diagonal angle

61°(W)-3.64°(T)

SNR

>50dB

Focus

Auto/Manual

Digital Noise Reduction

2D & 3D Noise Reduction

Exposure

Auto/Manual

Backlight Compensation

Support

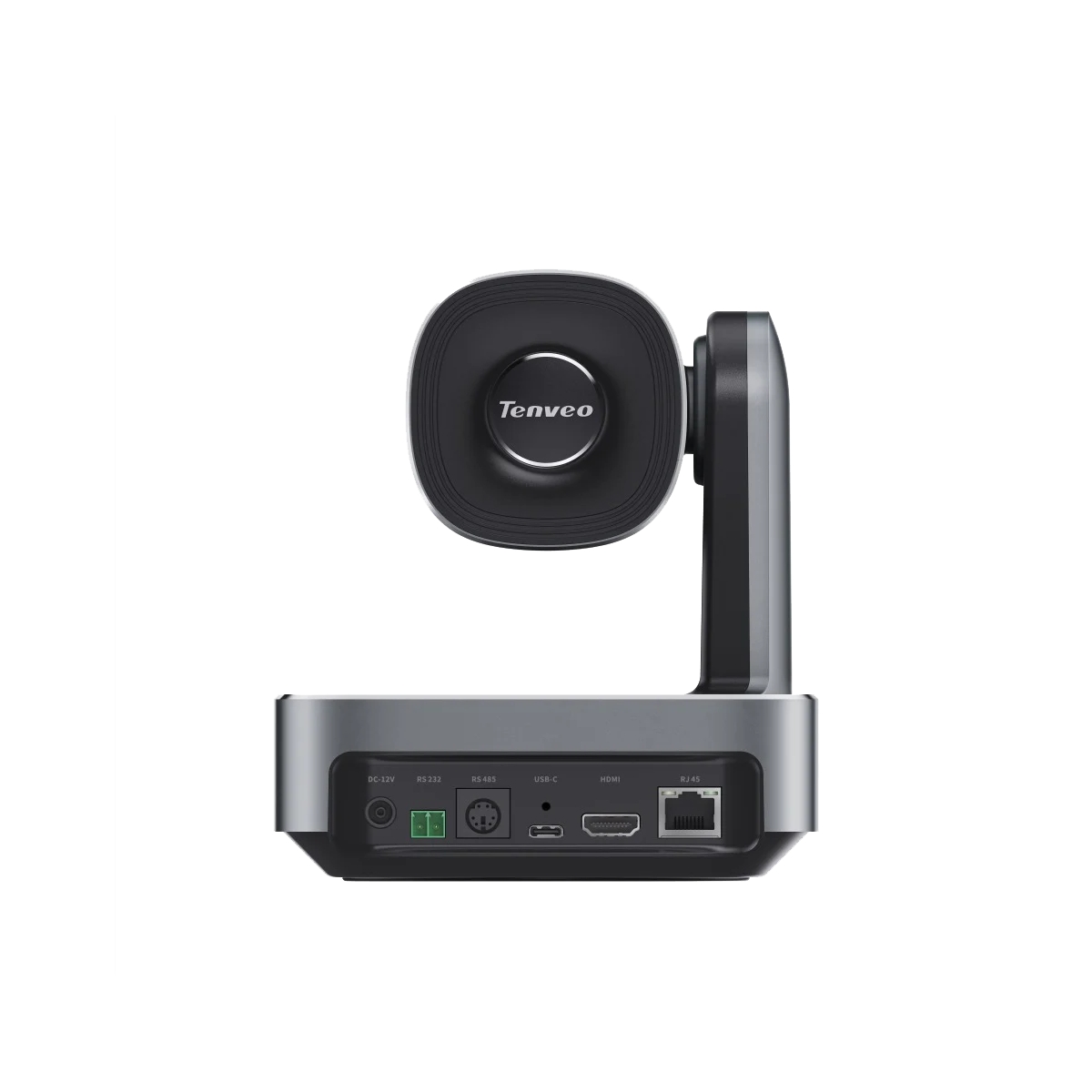

I / O Interface

Video Interfaces

HDMI, TYPE-C, RJ45

Video Compression Format

H.264, H.265, MJPG, YUY2

LAN

10M/100M adaptive Ethernet port, Support POE

Network Protocol

NDI HX2, RTSP, RTMP, ONVIF, GB28181

Control Protocol

VISCA/Pelco-D/Pelco-P; Baud Rate: 2400/4800/9600/38400

Control Interface

RS232 (input only), RS485, TYPE-C (UVC1.1)

PTZ Parameter

Pan/Tilt Rotation

±175°,-90°～+90°

Pan Control Speed

0.1 -80°/sec

Tilt Control Speed

0.1-60°/sec

Preset Number

255 presets by Pelco-D, 32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller)

General Parameter

Operation Systems

Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)

Input Voltage

DC 12V

Input Current

2.0A (Max.)

Power Consumption

13W (Max.)

Store Temperature

-20°C to 60°C

Store Humidity

20%～90% RH

Working Temperature

0℃ to 40°C

Working Humidity

20%～80% RH

Dimension（W*H*D）

171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)

N.W. / G.W

1.35kg/ 2.05kg (Net/ Gross weight)

Accessory

1 x Camera; 1 x USB Cable; 1 x Power Adapter; 1x IR remote control; 1 x Wall Mount; 1 x Manual
