Product Name

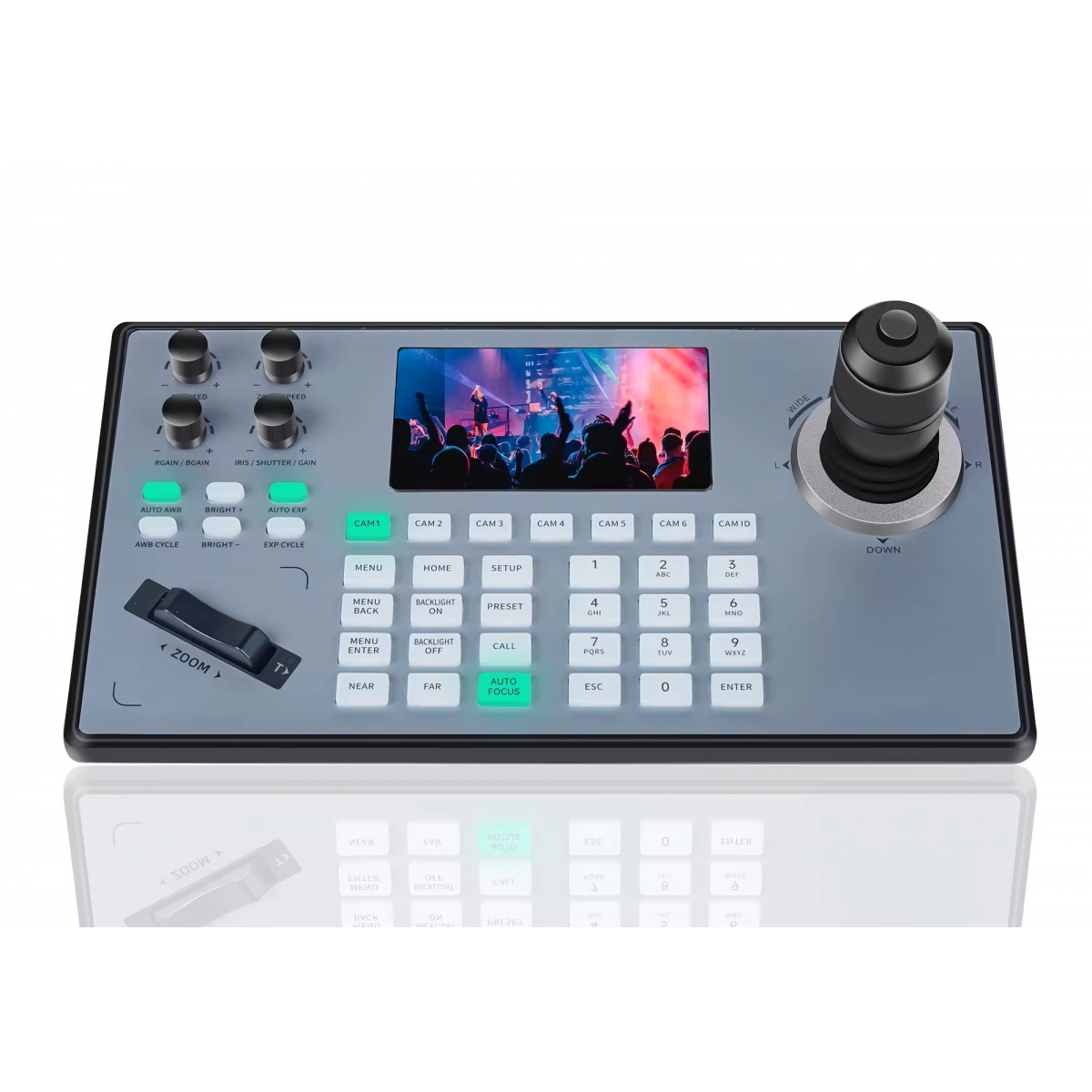

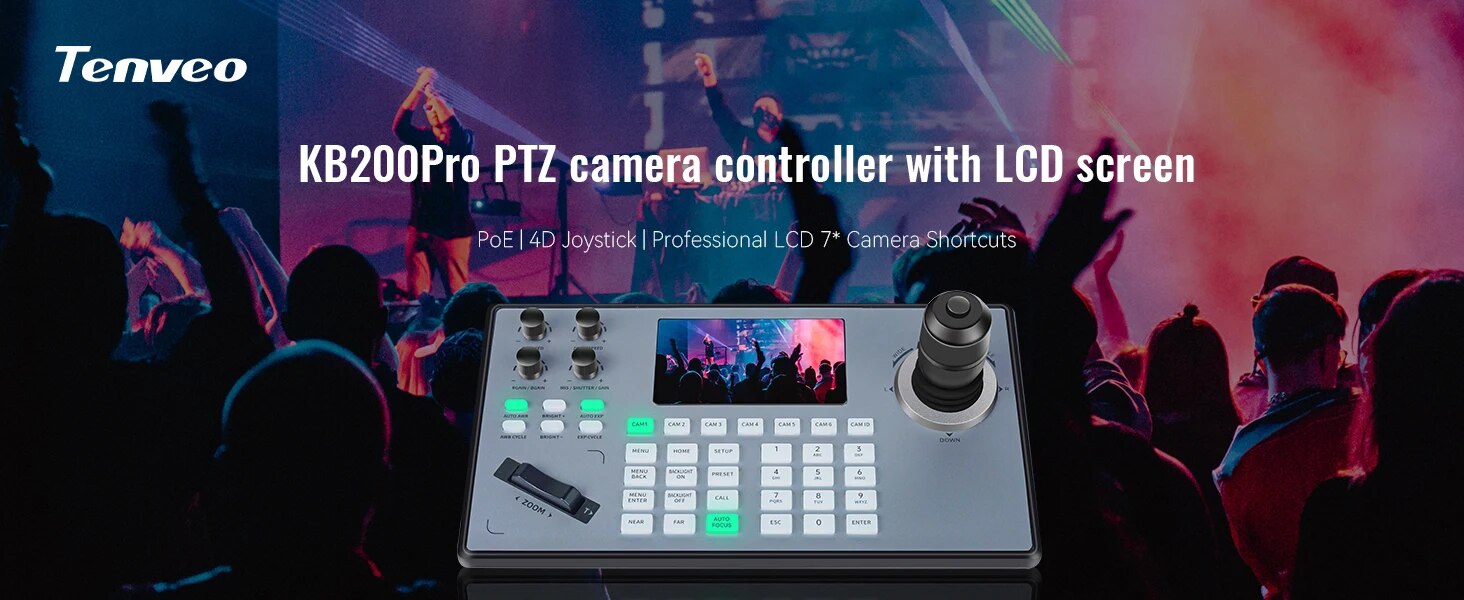

PTZ joystick keyboard controller

Model No

KB200pro

CHIP

HIS3536DV100

SYSTEM

Linux

Max equipment

255

Decoding

H.265, H.264

RESOLUTION

MAX 1080P for 1 channel:1920*1080@30fps

PROTOCOL

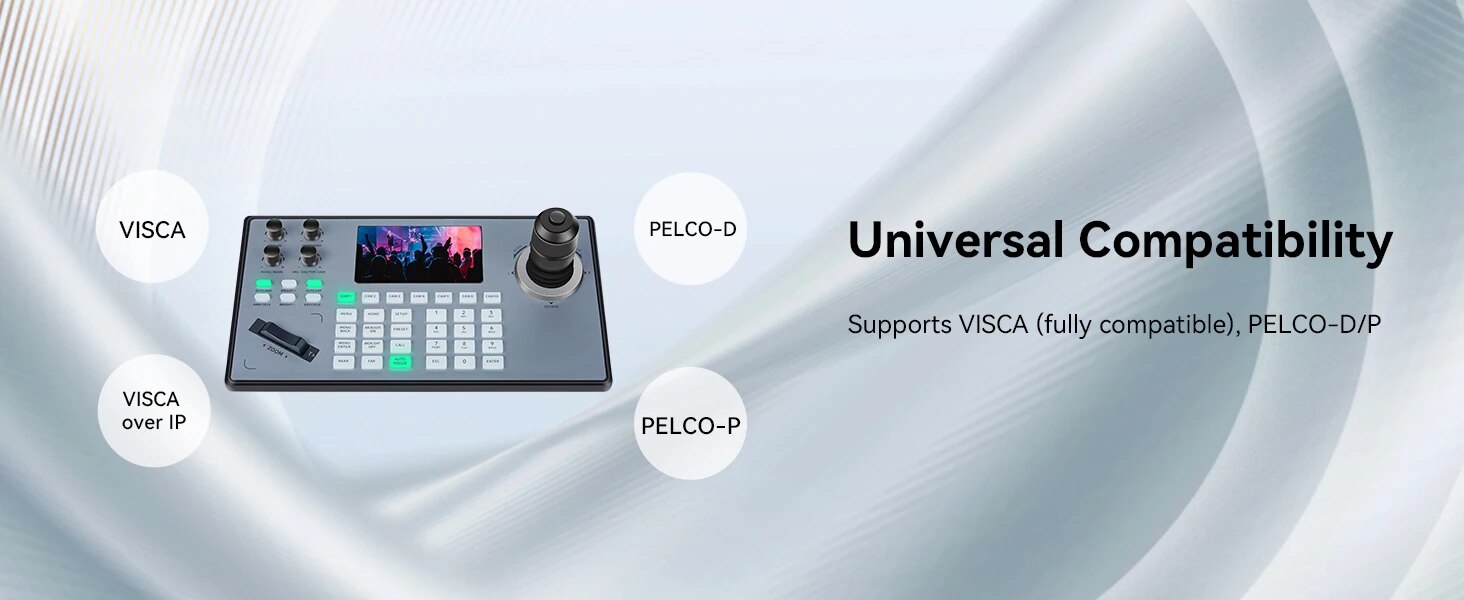

VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF

Camera Control

Exposure Selection: YES
White Balance: YES
Backlight Control: YES
Display status of WB, Iris, Gain, Shutter, Focus: YES
Focus Model Selection: YES
Auto Focus/Manual Focus: YES

User Interfaces

Display: LED
Speed Control: YES
Zoom Rocker: Yes
Joystick Zoom Ring: Yes

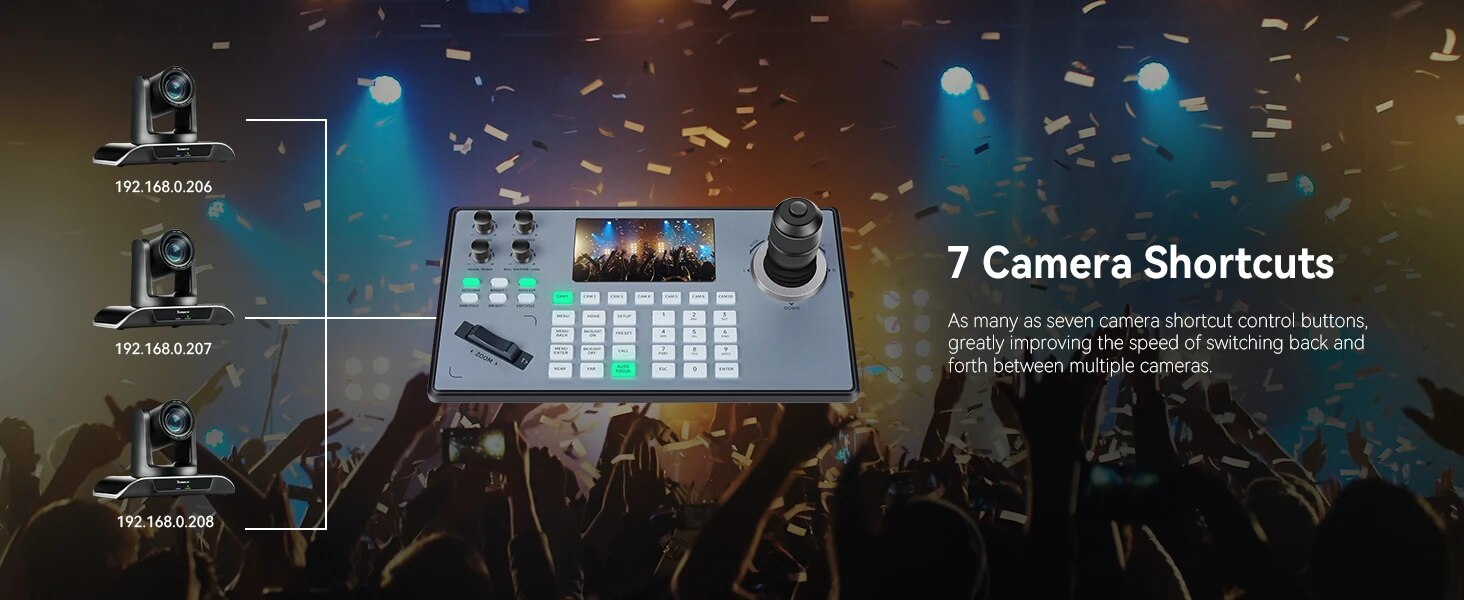

Programmable function buttons: 6

Joystick

4D

Output

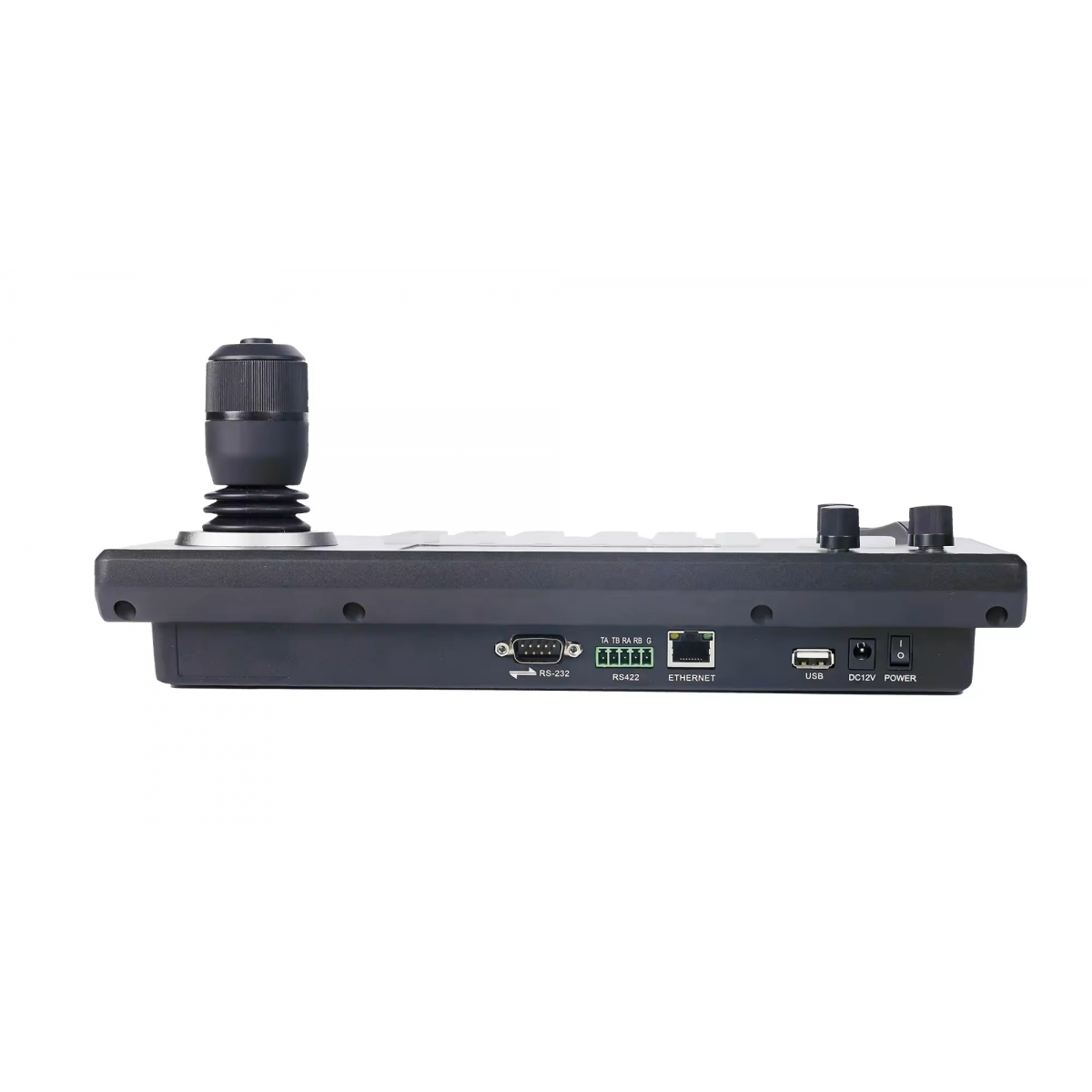

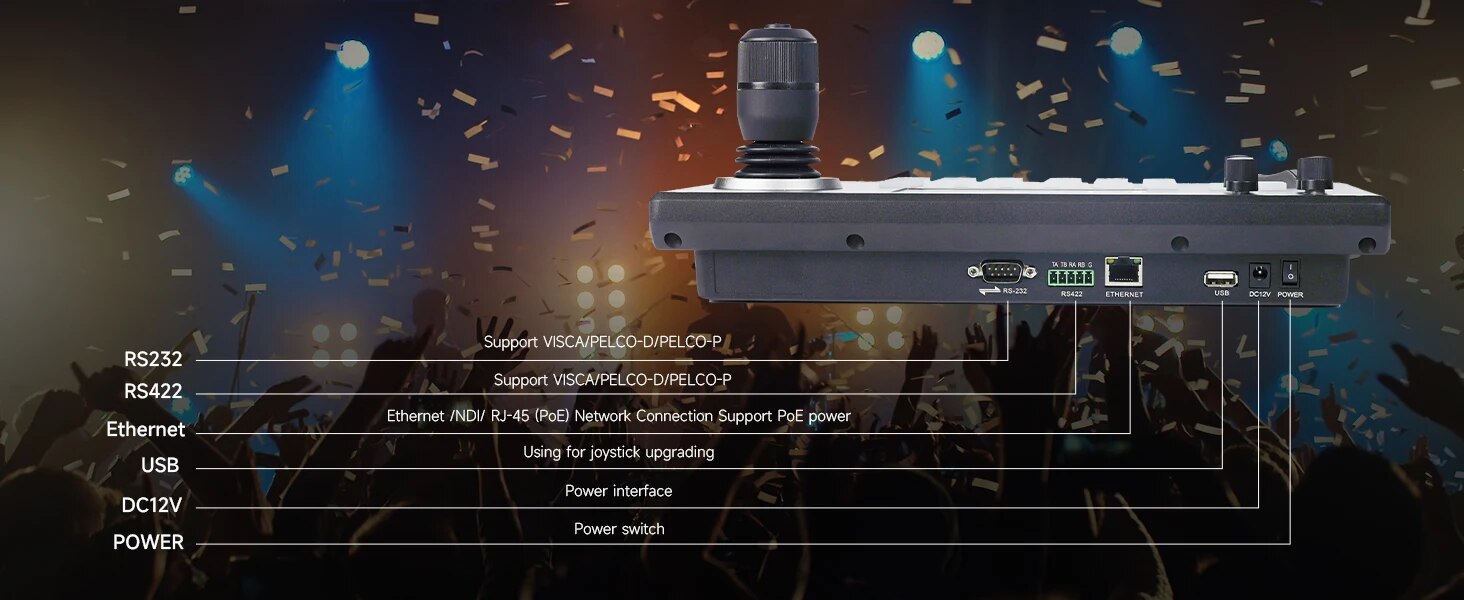

RS422(Reserved), RS232(Development port), RJ45

Accessories

Knob, Silicone button

Beep

On/off

Display

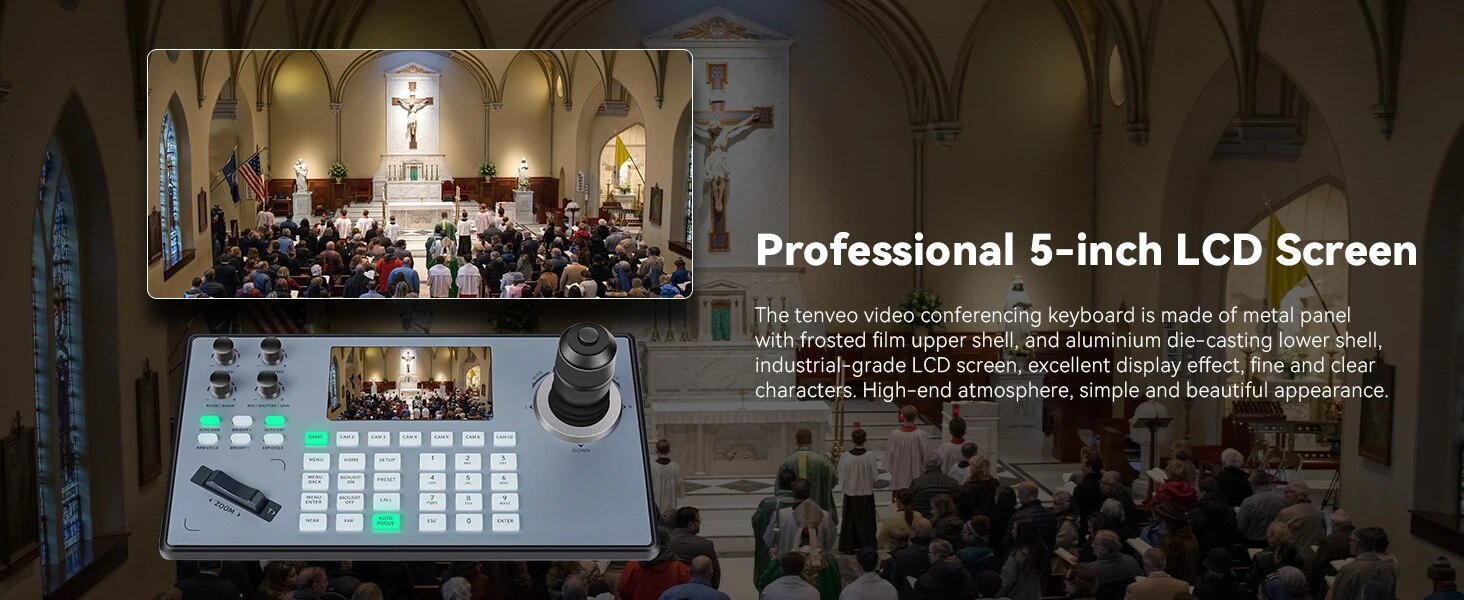

TFT LCD  720*1280

Max camera control

Max 255 with multiple protocols including NDI/IP

Power consumption

≤5W

POWER

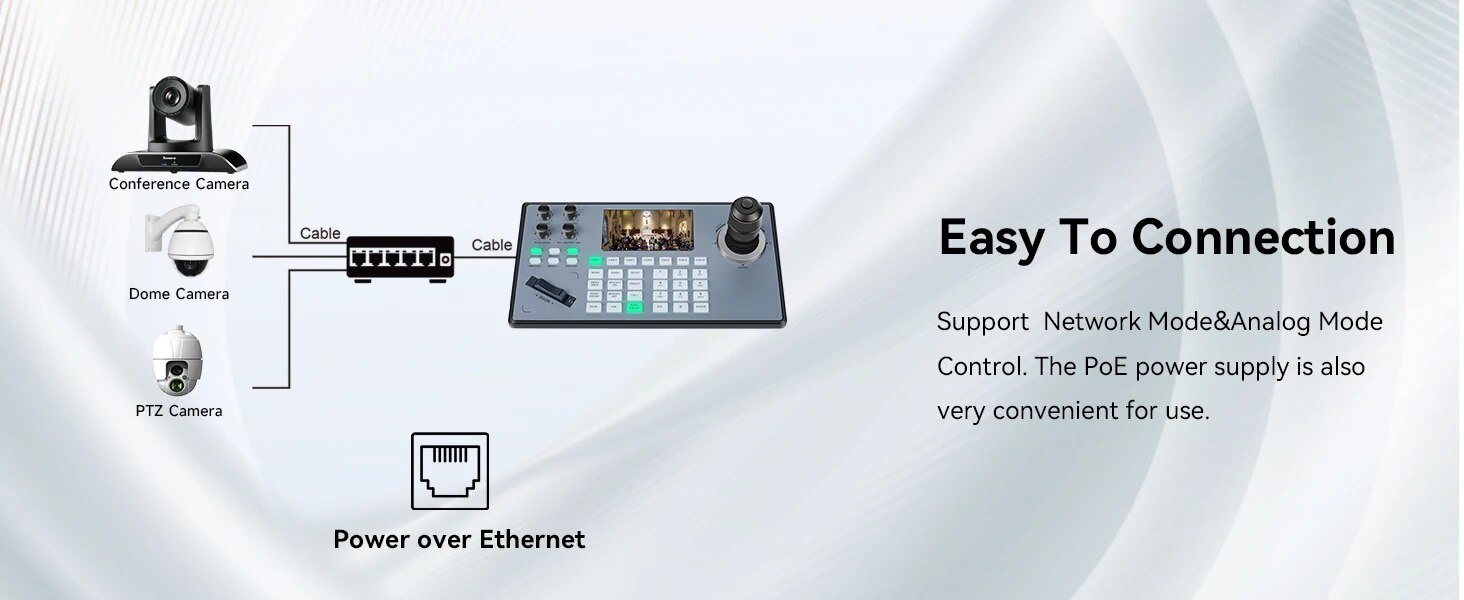

DC12V-2A  POE

Storage Condition

Work temperature

-10℃~55℃ / 14°F~131°F

Work humidity

20%~80%frostless

Storage temperature

-10℃~60℃ / 14°F~140°F

Storage humidity

0~90%frostless

Product Size

321*181*116mm/354*221*135mm (before/after packing)

Product Weight

1.83kg/2.45kg( (net / gross weight))
