CS74E
Desktop KVM switch 4 พอร์ต VGA D-sub PS/2 คีย์บอร์ด+เม้าส์ ไม่ต้องใช้ power adapter
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

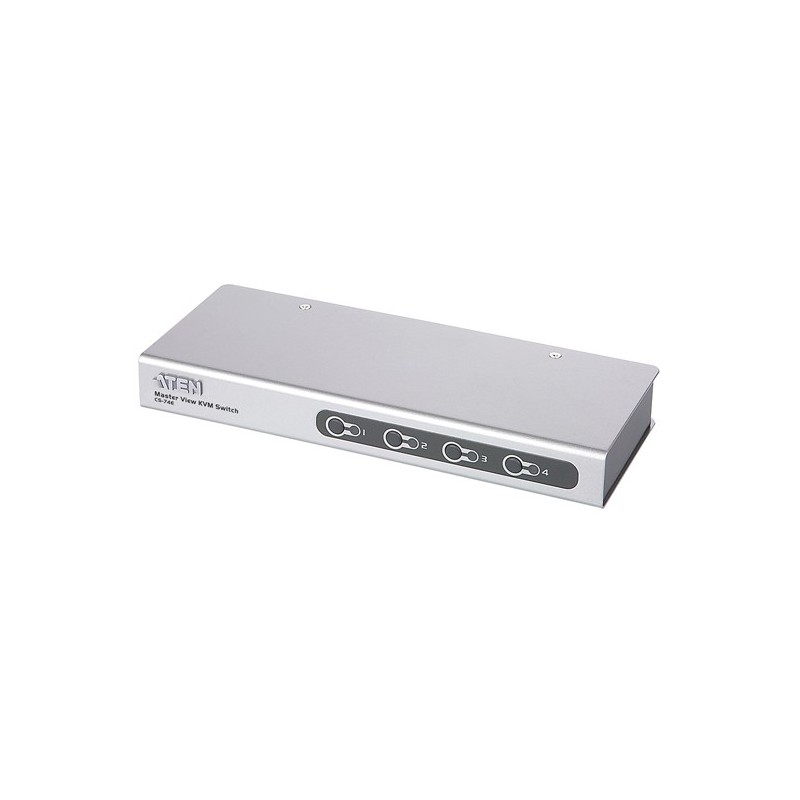

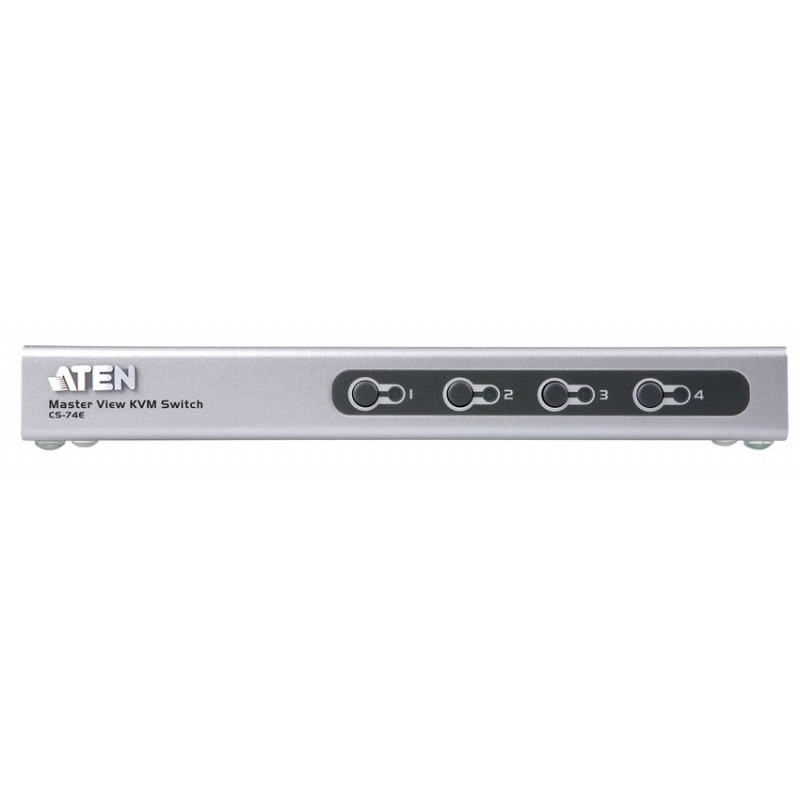

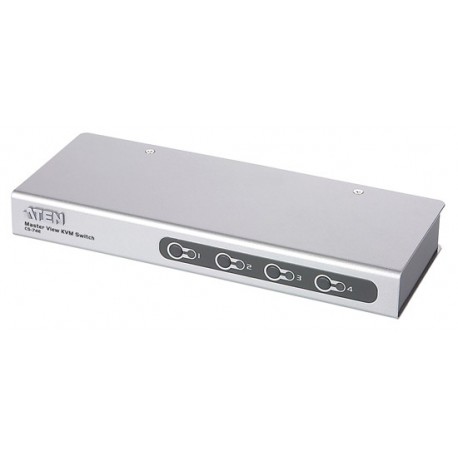

4-port PS/2 KVM Switch
Desktop KVM switch 4 พอร์ต VGA D-sub PS/2 คีย์บอร์ด+เม้าส์ ไม่ต้องใช้ power adapter
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

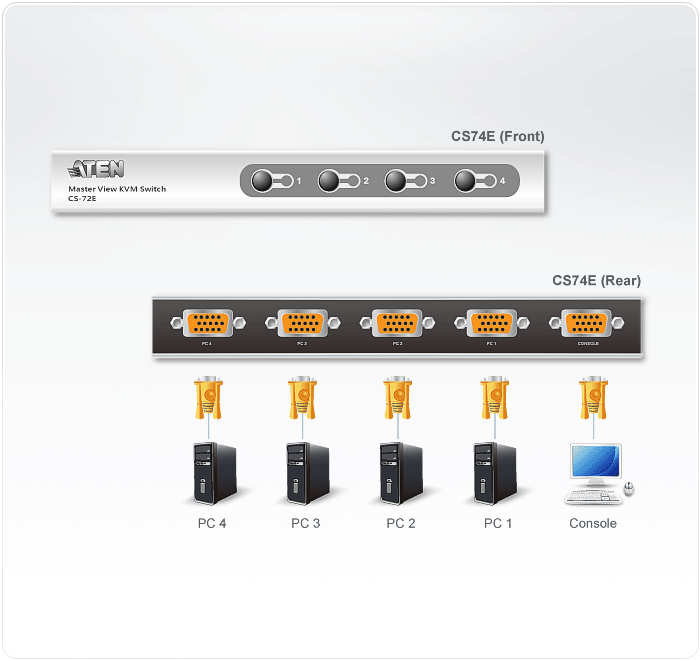

The KVM (Keyboard, Video, Mouse) switch เป็นอุปกรณ์ควบคุม (control unit) ช่วยให้ผู้ใช้งานสามารถ access ควบคุมคอมพิวเตอร์ 4 เครื่อง ผ่านหน้าจอชุดเดียว console (มอนิเตอร์+คีย์บอร์ด+เม้าส์) ด้วยสายเคเบิ้ลแบบพิเศษช่วยลดจำนวนพอร์ตเชื่อมต่อ โดยรวมสัญญาณ PS/2 และ VGA(D-sub) ไว้ในสาย custom SPHD-15 male เส้นเดียว

| Computer Connections | 4 | ||
| Port Selection | Hotkey, Pushbutton | ||
| Connectors | Console Ports | Keyboard | 1 x SPHD-15 Male (Yellow) |
| Video | |||
| Mouse | |||

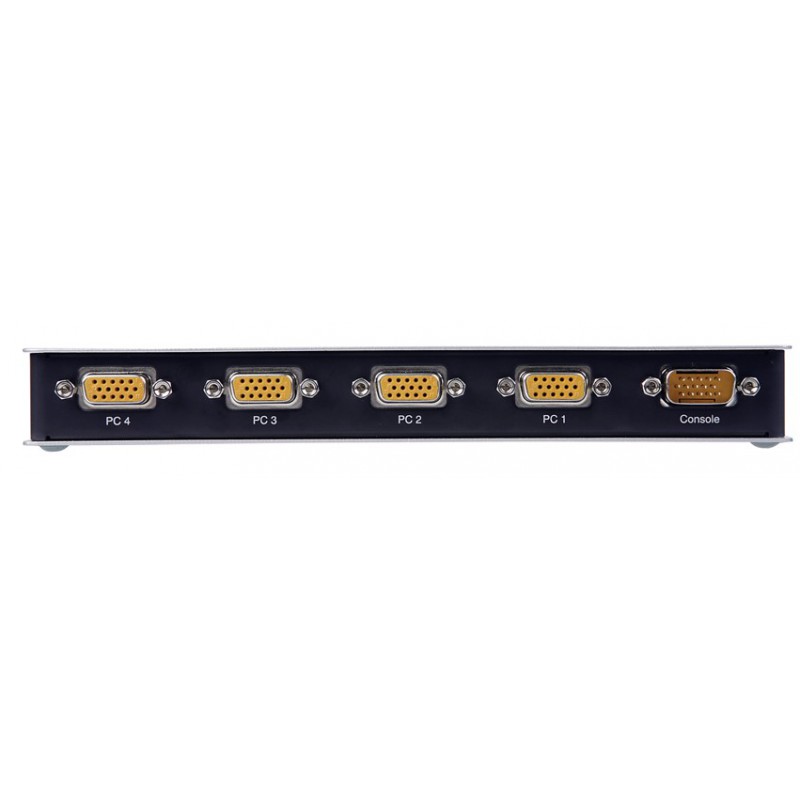

| KVM Ports | Keyboard | 4 x SPHD-15 Female (Yellow) | |
| Video | |||
| Mouse | |||
| Power | 1 x DC Jack (Black) | ||
| Switches | Port | 4 x Pushbutton | |
| LEDs | Selected | 4 (Green) | |
| Emulation | Keyboard/ Mouse | PS/2 | |
| Video | 2048 x 1536; DDC2B | ||
| Scan Interval | 5 Seconds | ||
| Power Consumption | DC9V, 0.9W | ||
| Environment | Operating Temp. | 0-50 C | |
| Storage Temp. | -20-60 C | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.49 kg | ||
| Dimensions ( L x W x H ) | 20.00 x 8.00 x 2.50 cm | ||

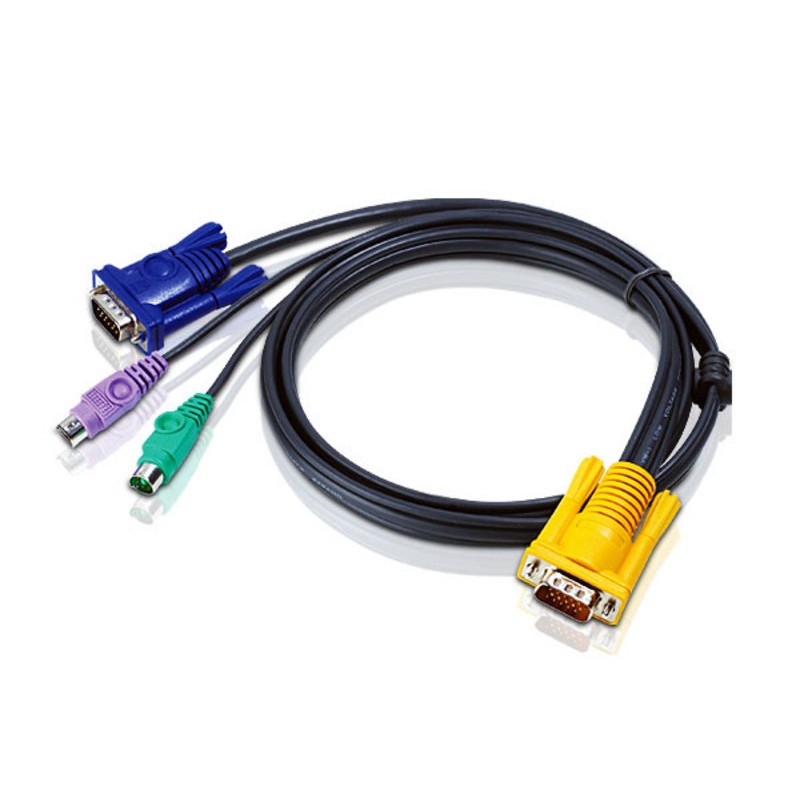

4 Port KVM SW SingleConsole with Cable(Case Metal) PS/2 bottomAuto scan, with 1.2m cable x 2, 1.8m cable x 2
4-Port PS/2 KVM Switch, OSD menu support, Resolution up to 1920 x 1440; DDC2B. OS support Win, Linux, FreeBSD (Rack Mount Kit included)
