HD Block Camera
BC-80

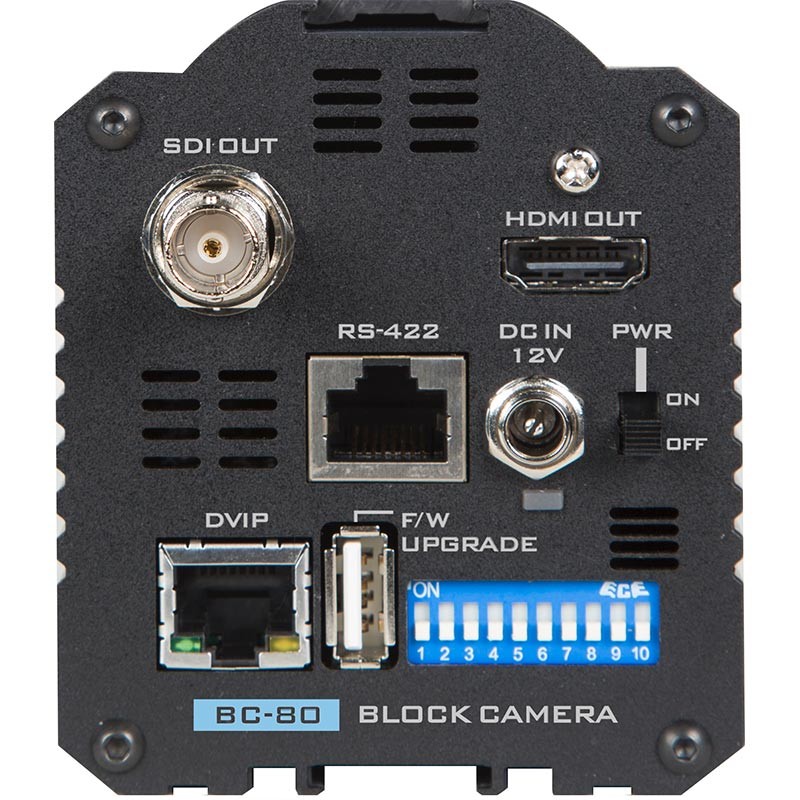

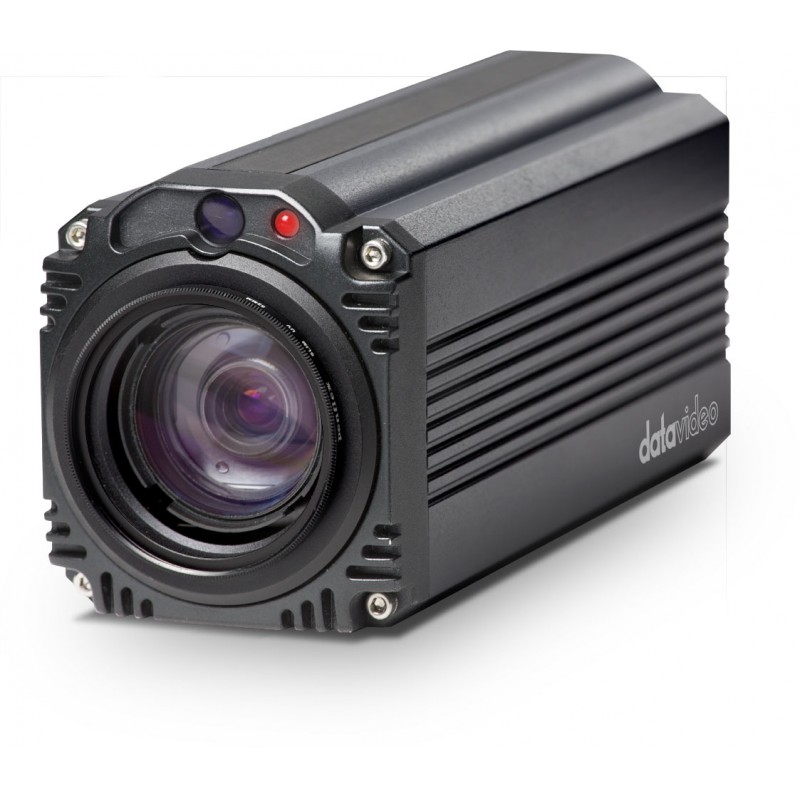

The BC-80 Block Camera is a small HD camera with an infra-red remote control. It can be used for HD high quality shooting within a limited space and supports resolutions up to 1080p60. The BC-80 provides 30x optical zoom and the image output interfaces are SDI and HDMI.
HD Block Camera
Excellent HD resolution
1/2.8 inch CMOS sensor. 1080p HD resolution
30x optical zoom with digital noise reduction
The BC-80's 30x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.
Controllable by VISCA/DVIP
The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.
Metal housing
Rugged metal housing for use in the roughest conditions
Tally light
Tally LED Design to make your live video production much easier
Specifications
| BC-80 HD Block Camera | |
|---|---|
| Video format |
1080p 59.94/50/29.97/25 |
| Image Sensor |
1/2.8” type progressive scan CMOS sensor |
| Effective Pixels (approx.) |
2.14 Mega pixels |
| S/N Ratio |
50 dB |
| Min. Illumination |
Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) |
| Electronic Shutter |
1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec |
| Zoom Ratio |
30x Optical Zoom |
| Gamma Control |
Off / Normal / Standard Mode 1-4 |
| Iris Control |
Auto / Manual |
| Digital Noise Reductions |
Yes |
| On-Screen Display (OSD) |
English |
| White Balance |
AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent |
| AGC / Gain Control |
Auto / Manual (0 to 28 step) |
| Mirror / Flip Image |
Yes |
| Focus Mode |
Auto / Manual |
| Preset |
10 Position |
| Focal Length |
f=4.3 mm (WIDE) to 129 mm (TELE) |
| Field of View (Horizontal, Wide) |
Approx. 63.7° (WIDE END) / 2.3° (TELE END) |
| Image Compensation |
Day & Night function |
| Video Output |
HDMI (V1.3) x 1 |
| Tally LED |
Dual color (Red, Green) |
| Filter |
M52.0 x 0.75 Thread with UV Protection |
| Protocol |
VISCA / DVIP Protocol |
| Remote Control Interface and Transmit Distance |
RS-422: Transmit up to 1000m |
| F/W Update |
USB |
| IR Control |
Yes |
| Camera Control Unit |
RMC-180/RMC-300C |
| Tripod Mount |
1/4-20 UNC |
| Options |
PTR-10 |
| Color |
Dark blue |
| Dimension (LxWxH) |
71 x 202 x 83 mm |
| Weight |
0.7 kg |
| Operating Temp. Range |
0~40 °C |
| Power |
DC 12V 15W |
| What's in the Box |
1 x BC-100 Main Unit |
