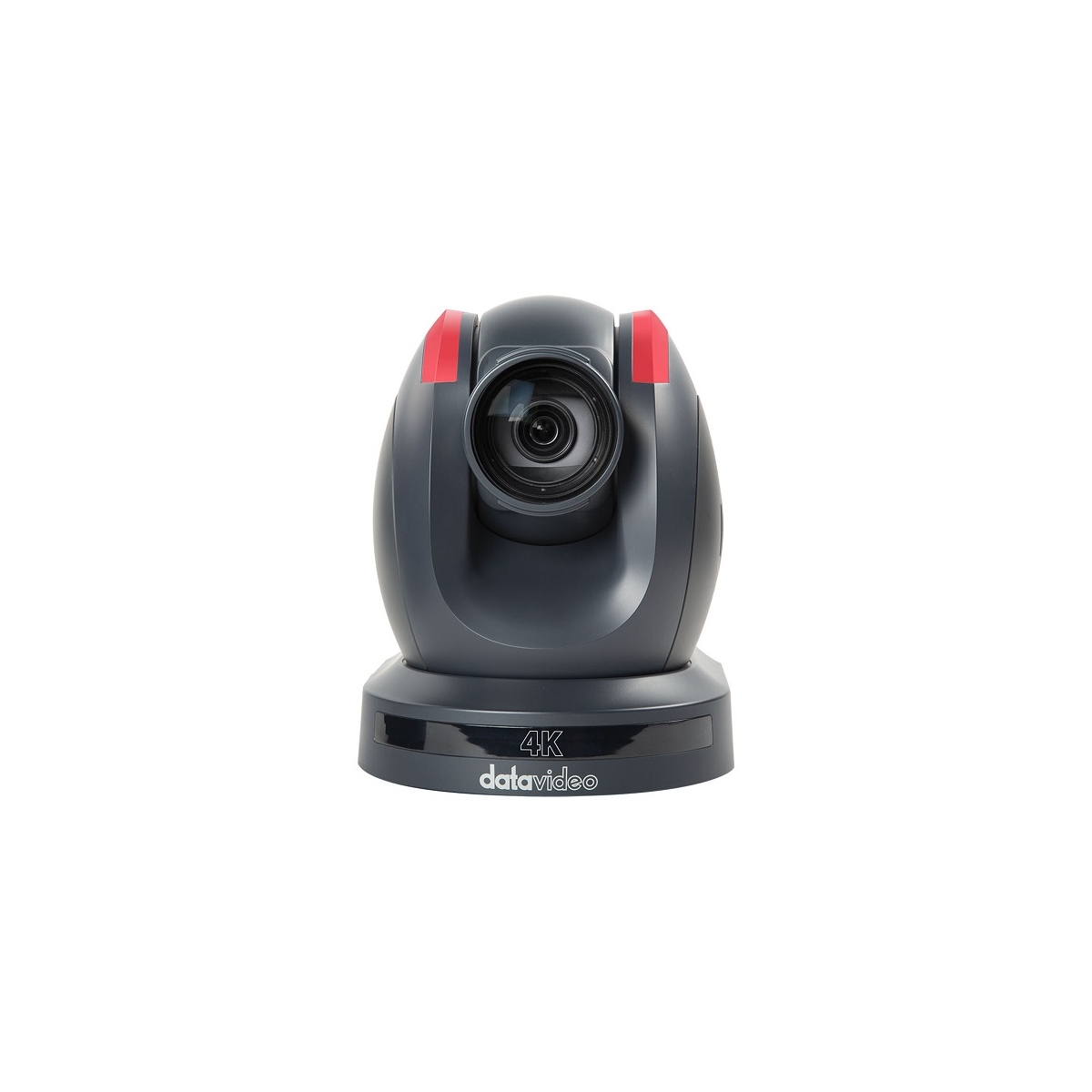

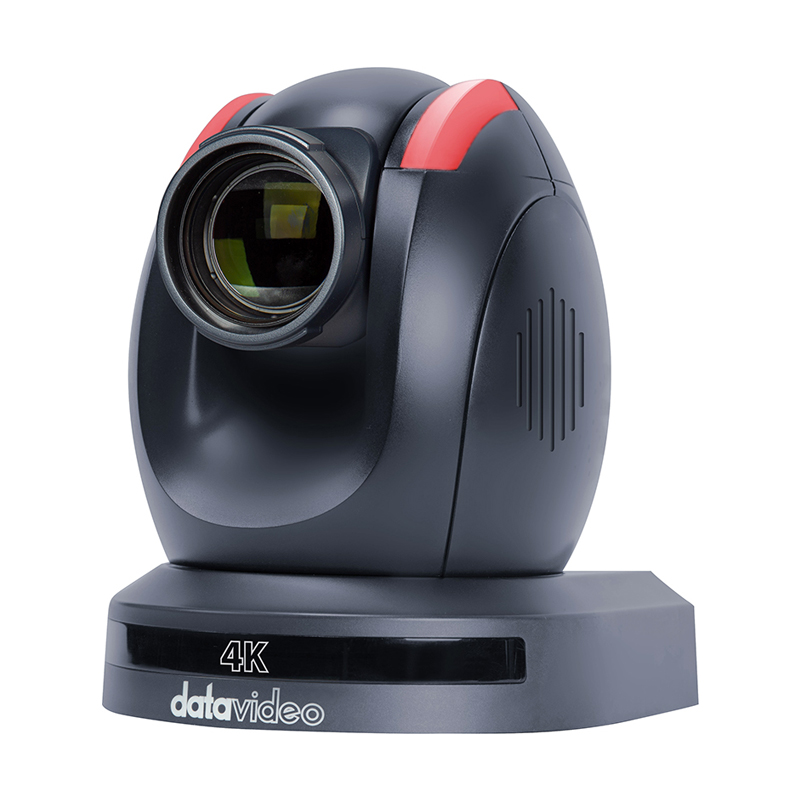

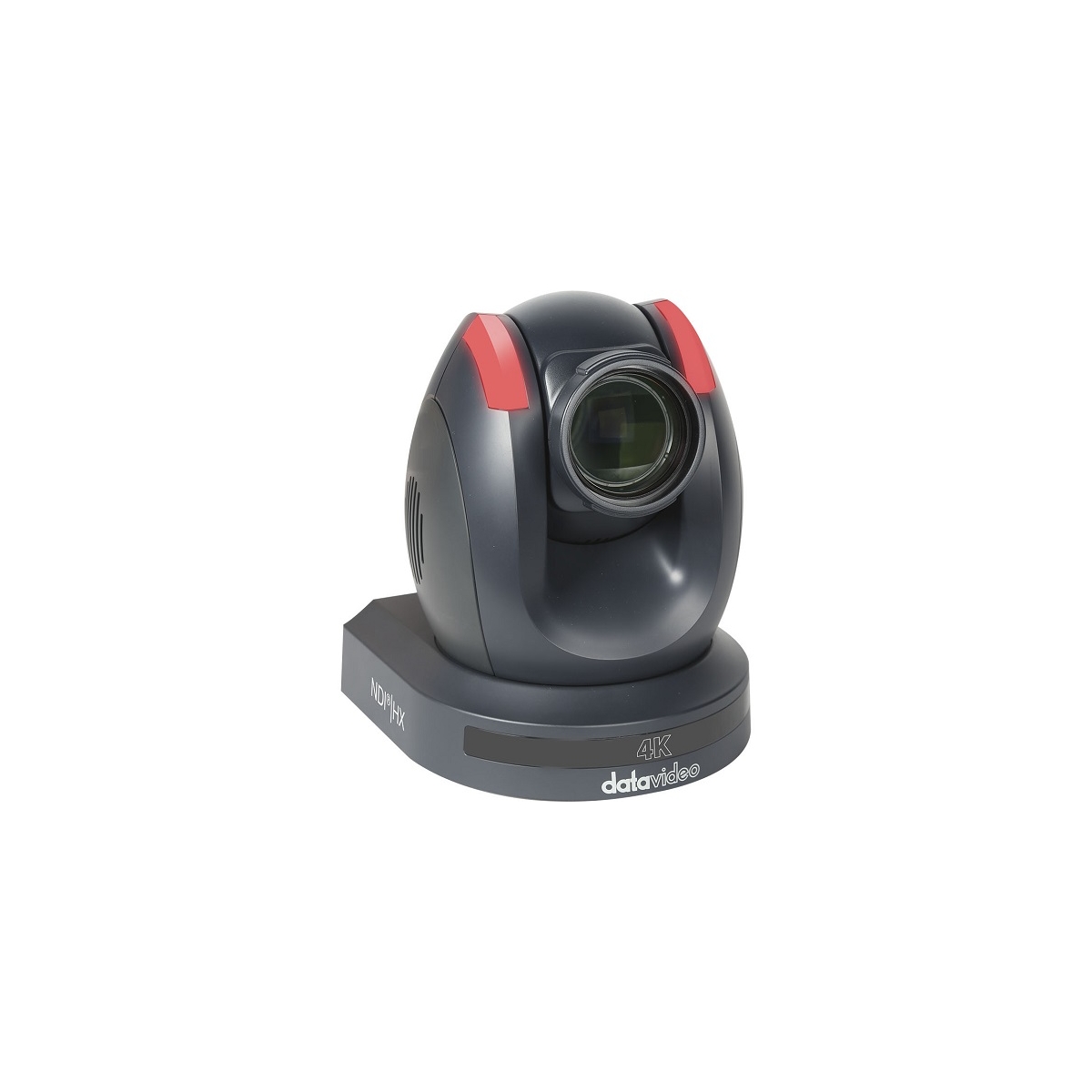

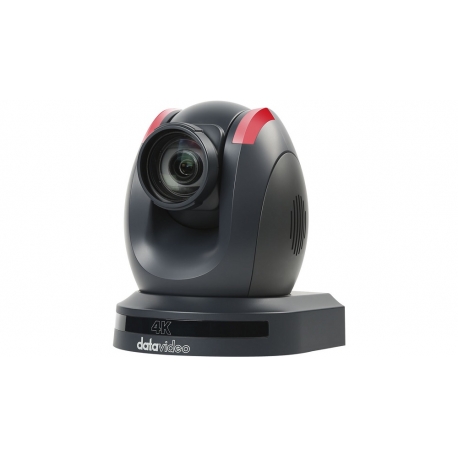

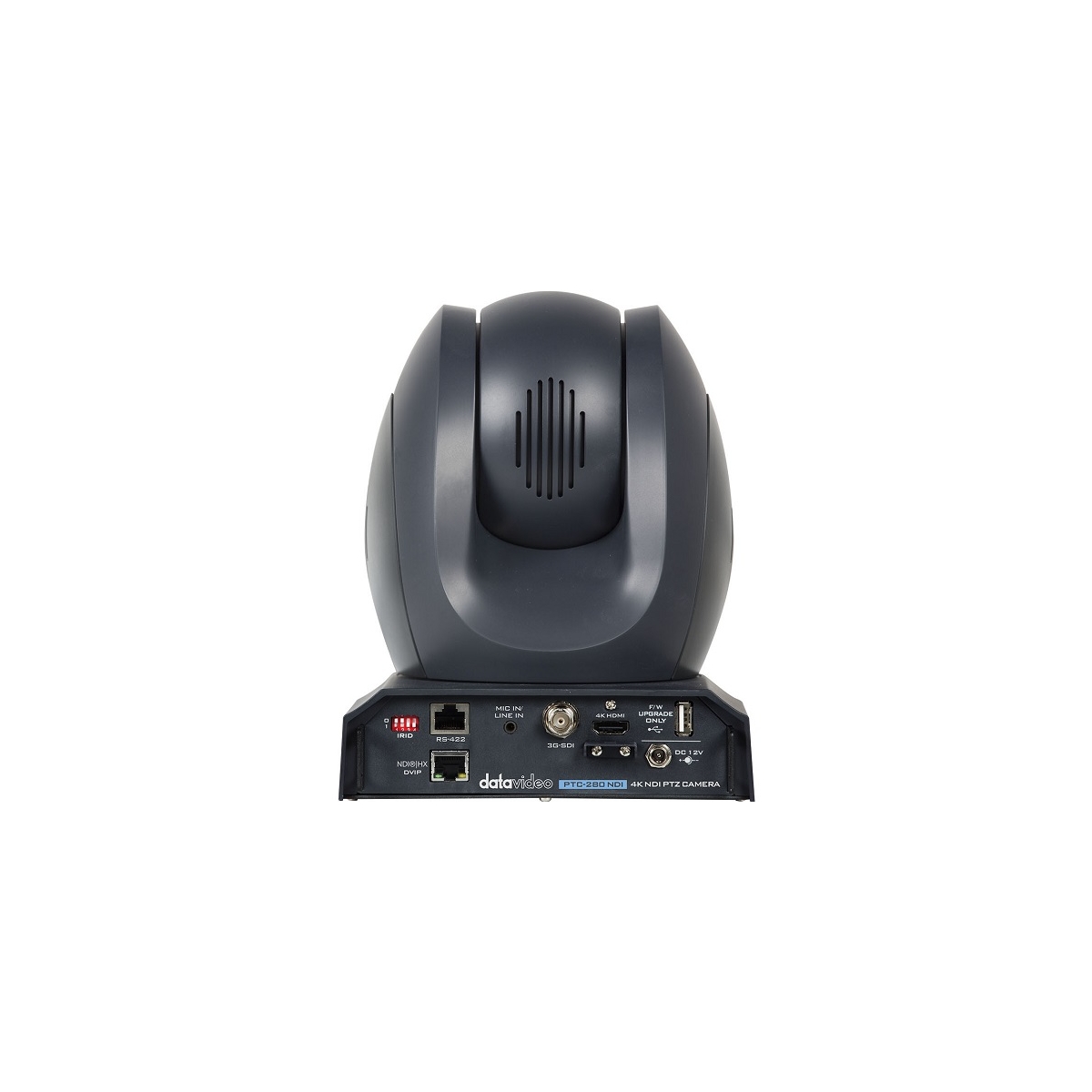

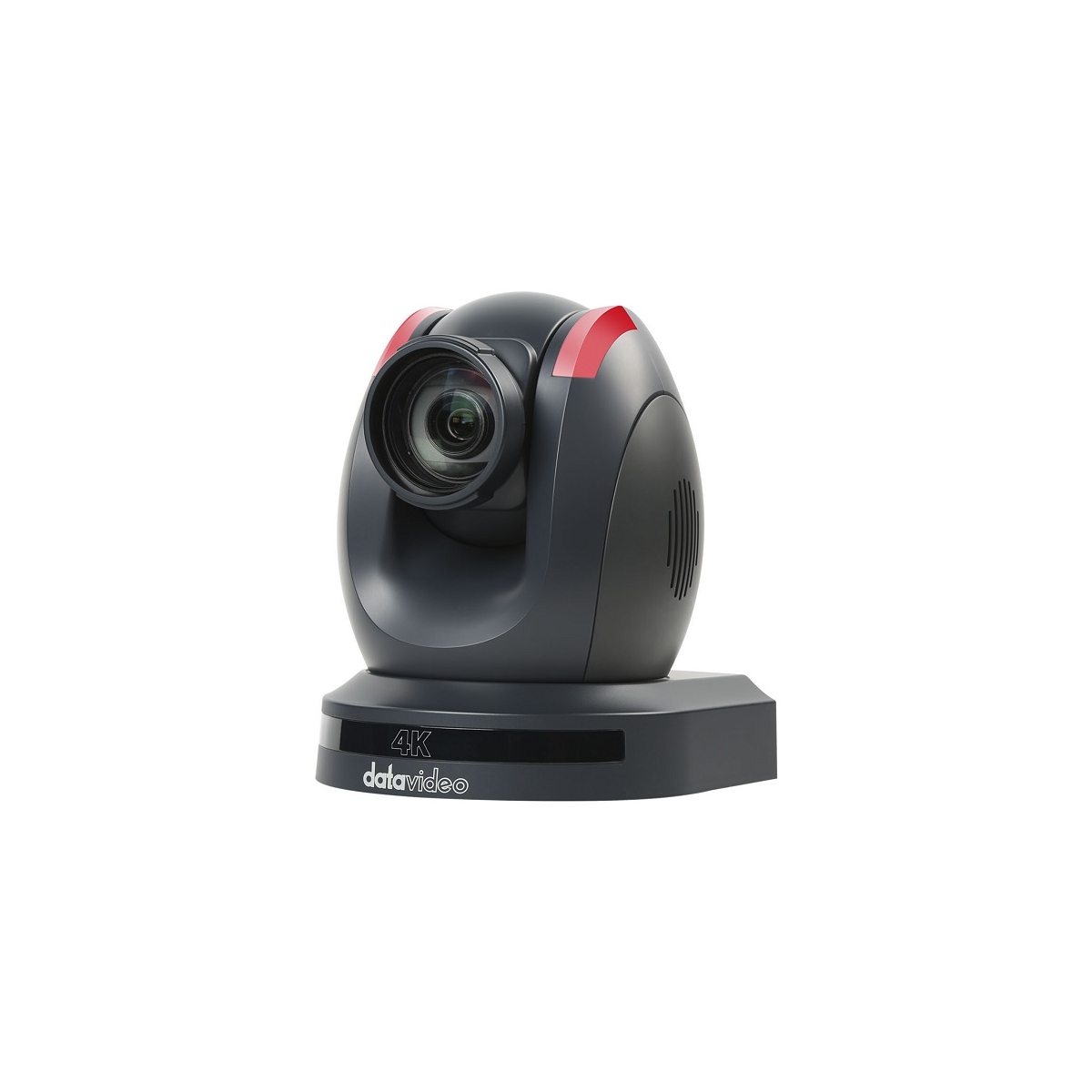

4K NDI | HX2 PTZ Camera
PTC-280NDI
กล้อง PTZ ระดับ 4K@60 12x Optical zoom รองรับการควบคุมทั้งจาก IR Remote, Ethernet และ Serial และรองรับ เทคโนโลยี NDI|HX2
NDI HX2 รองรับการสตรีมได้สูงสุดที่ 4K30
เฉพาะ Camera Module รับประกัน 1 ปี
Manual4K PTZ Camera
Brand New 4K PTZ Camera with NDI feature
Datavideo is introducing the NDI 4K50/60p PTZ camera PTC-280NDI, professional NDI PTZ cameras help you capture your event. PTC-280NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol), Sony VISCA over IP or any NDI controller.
This brand new 4K NDI camera supports dual streaming output for A/V market application, you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

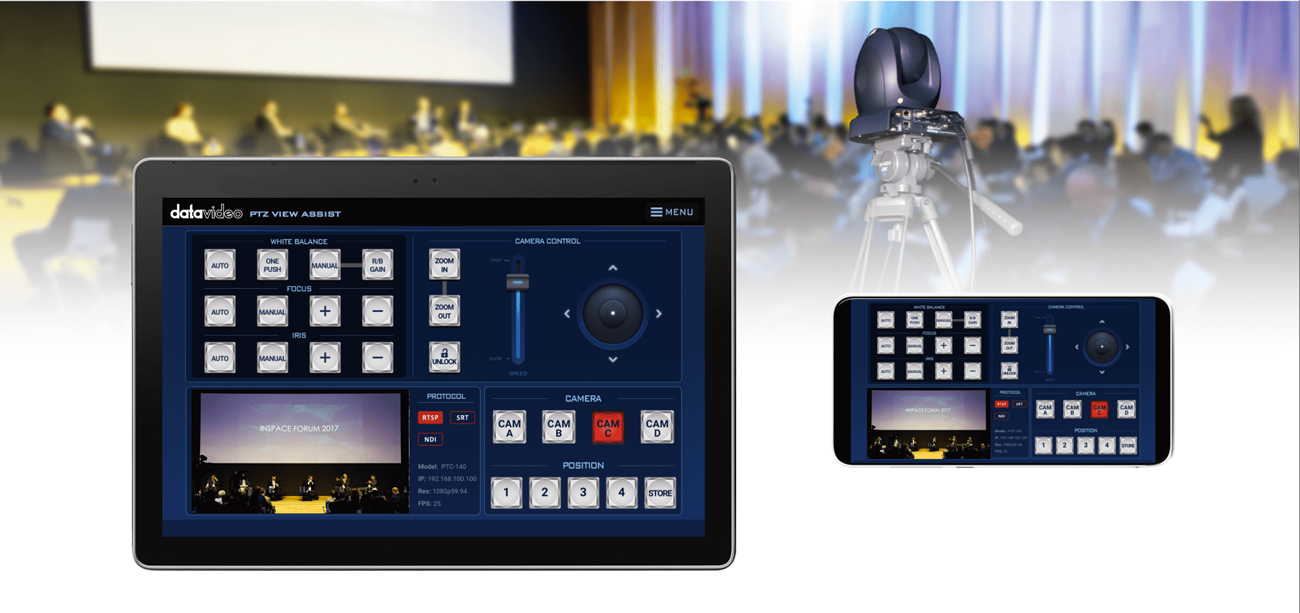

PTZ View Assist: Control up to four cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-280NDI and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS. The app is able to decode the live streaming via RTSP, SRT, and NDI (only RTSP is available now), Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!
Low Noise in Low Light
Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

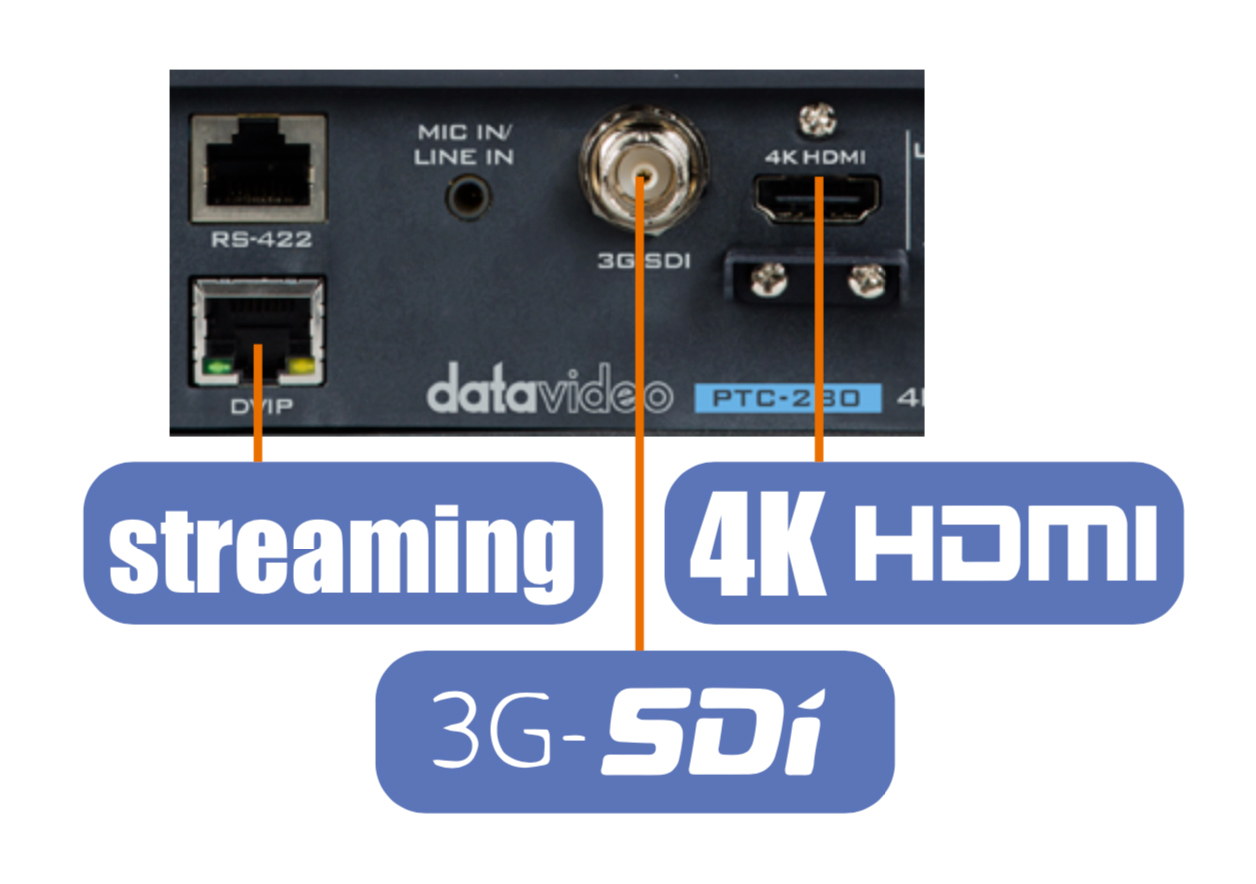

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
Supports H.264/H.265 Video Compression
Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

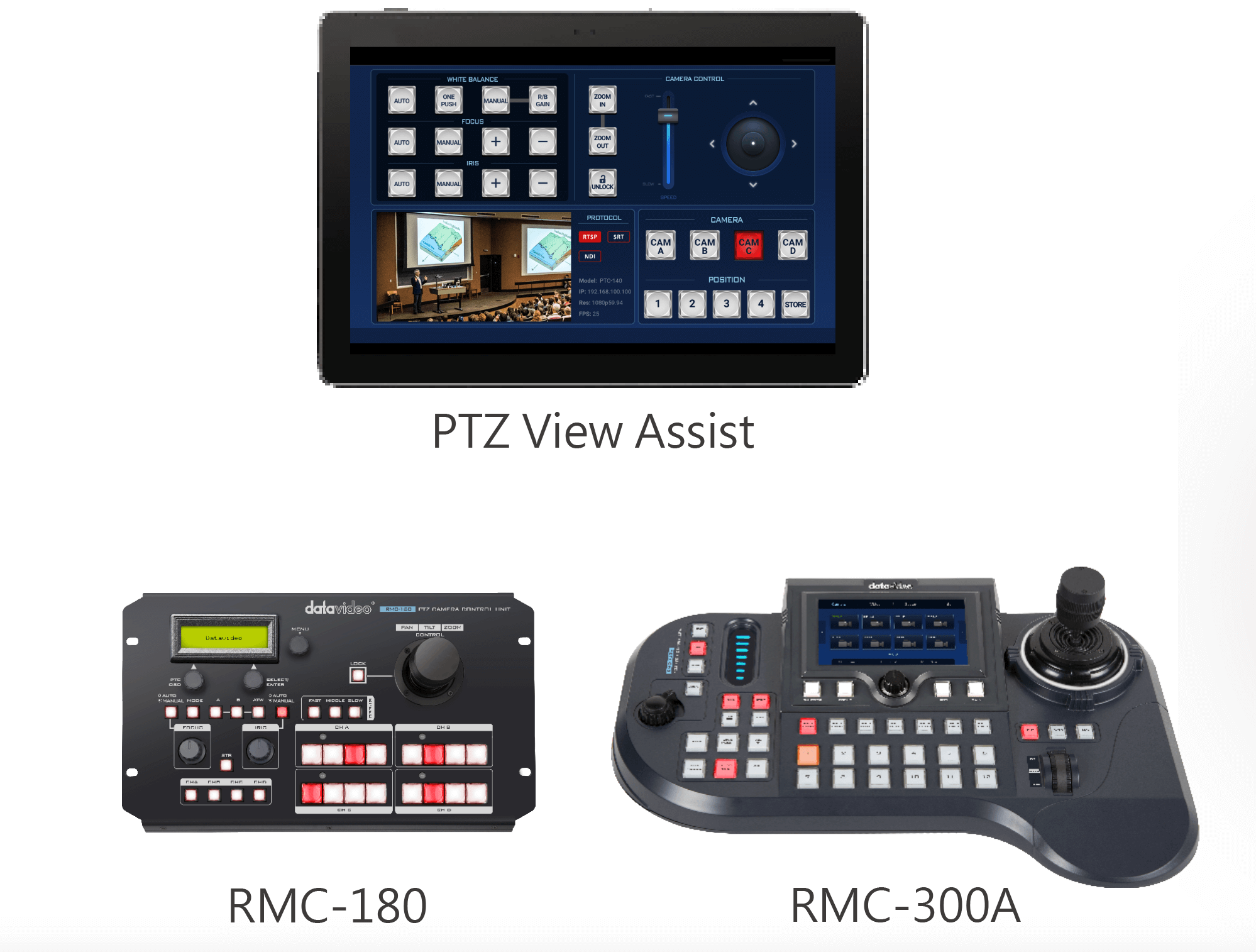

Compatible with Various Controller

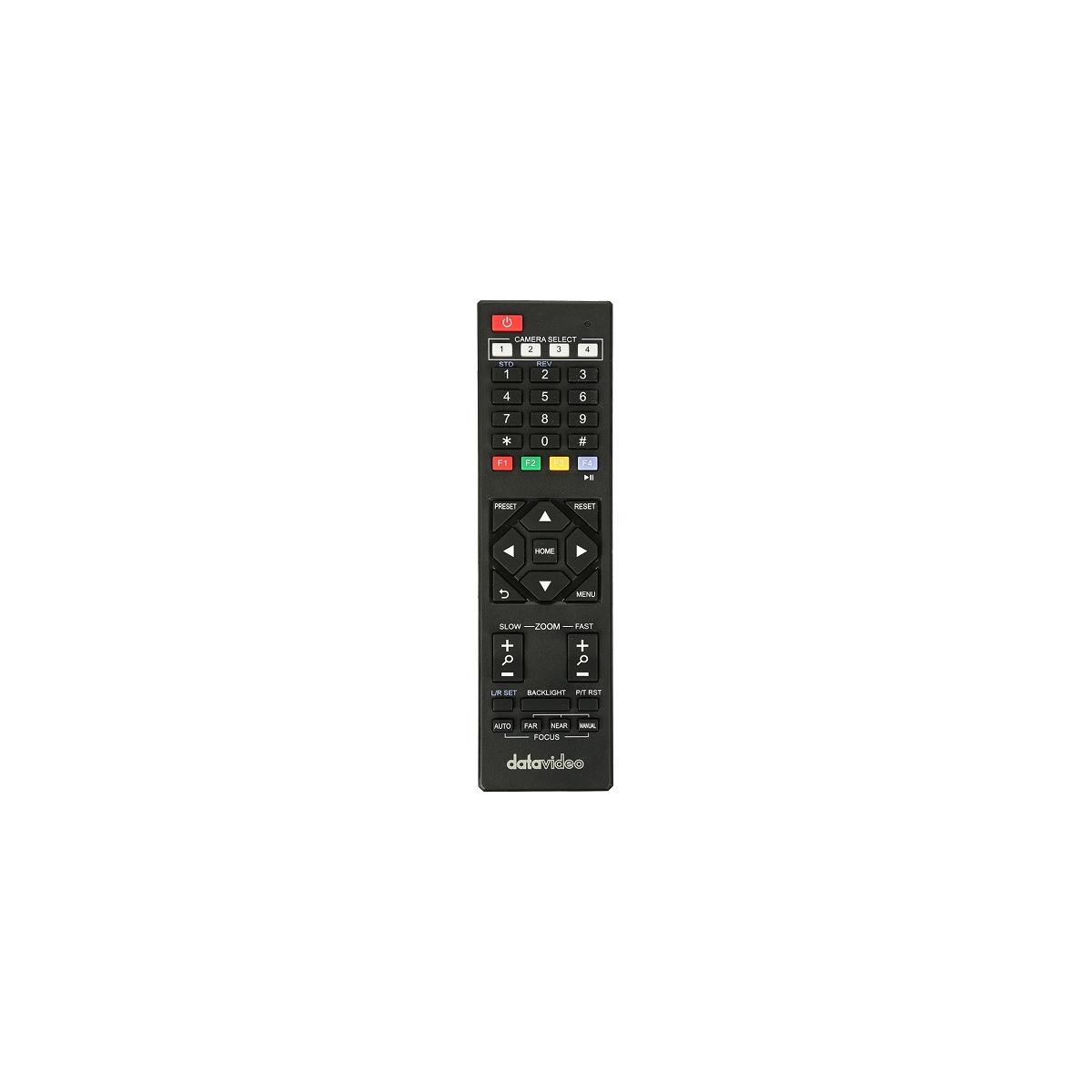

Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

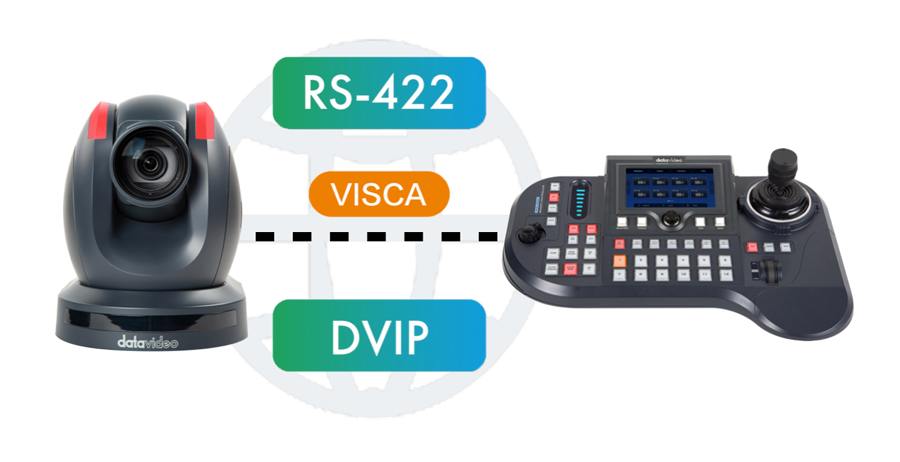

RS-422, DVIP and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

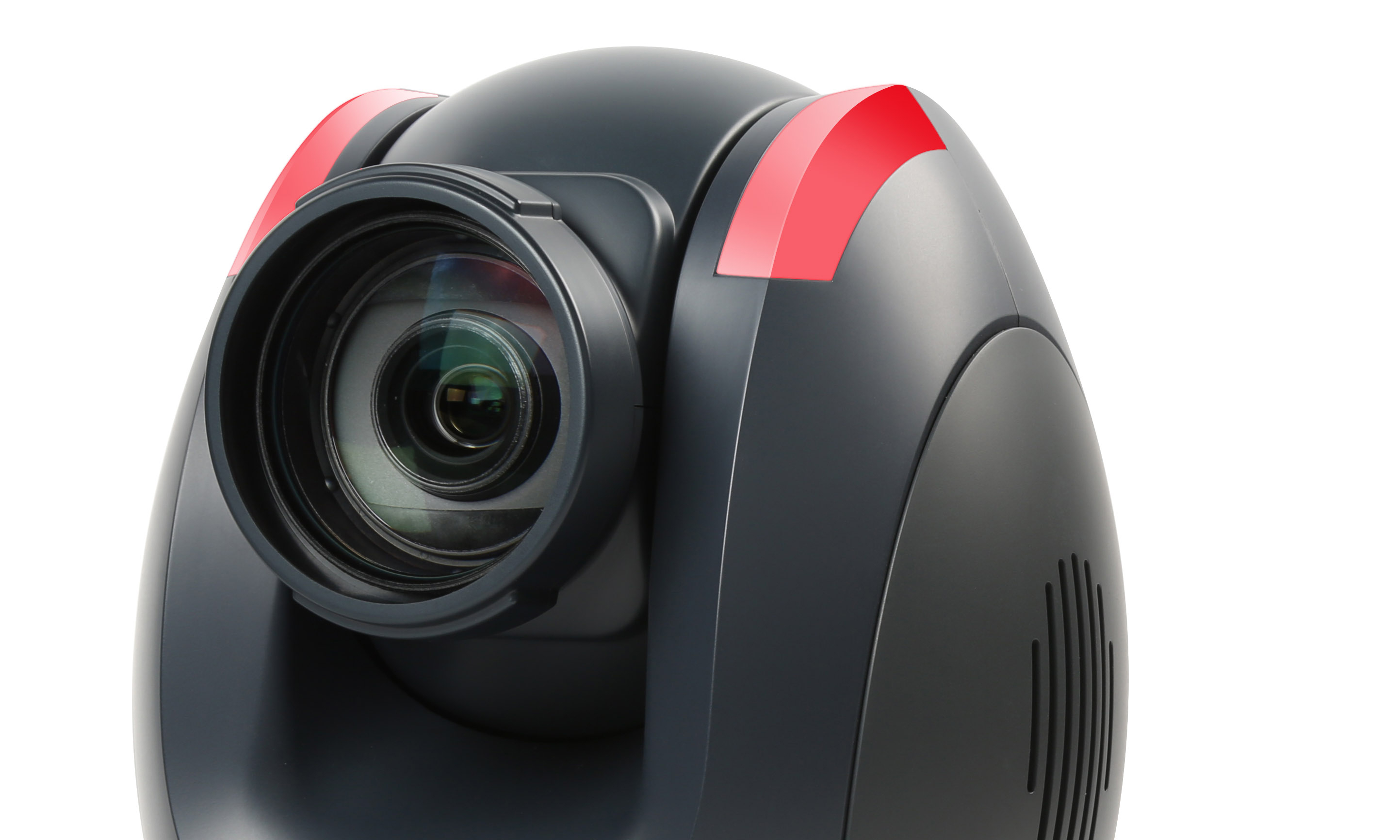

Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.

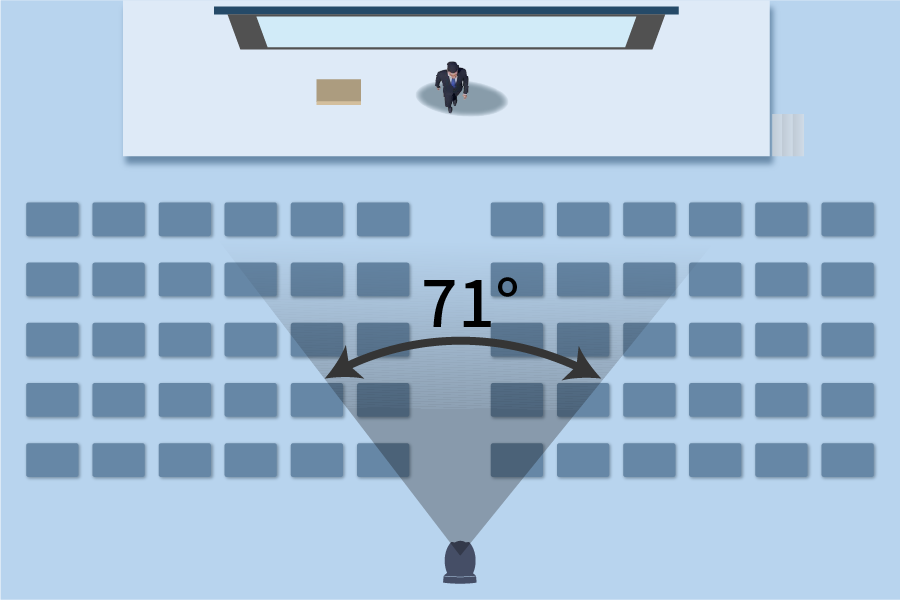

Wide 71° Field of View
PTC-280NDI provides a wide Field of View of 71°, easily shooting all the scenes in the field.
One Ethernet Cable with NDI® | HX Technology
There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.
NDI® is a registered trademark of Newtek, Inc.
NDI® Virtual Input
Present PTC-280NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

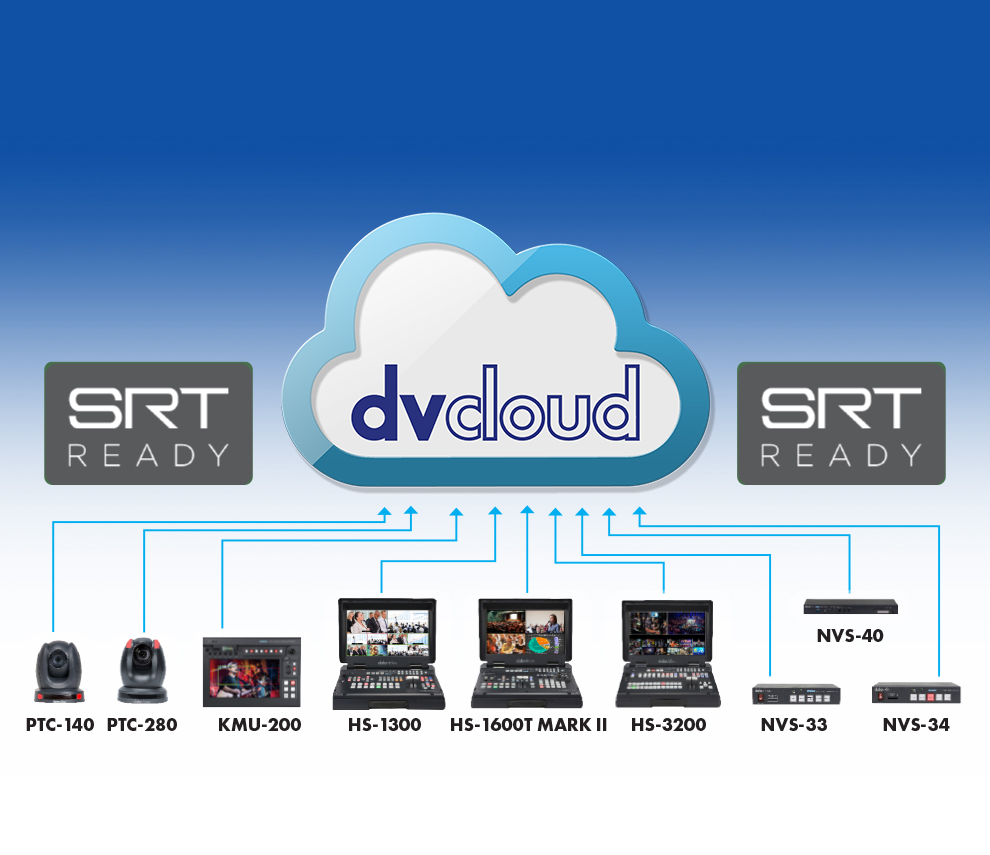

Build a reliable SRT live streaming workflow with all Datavideo products
Specification
PTC-280NDI 4K PTZ Camera | |
|---|---|
| Video format Resolution |
HDMI: |
| Image Sensor |
1/2.5" CMOS |
| Effective Pixels (approx.) |
8.51Mega Pixels |
| S/N Ratio |
≥55dB |
| Min. Illumination |
0.5 Lux @ (F1.8, AGC ON) |
Electronic Shutter |
1/30s ~ 1/10000s |
| Zoom Ratio |
12x Optical, 16x Digital Zoom |
| Gamma Control |
Off / Normal |
| Iris Control |
Auto / Manual |
| Digital Noise Reductions |
2D/3D Noise Reductions |
| On-Screen Display (OSD) |
English/Simplified Chinese/Traditional Chinese |
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual |
| AGC / Gain Control |
Yes |
| Mirror / Flip Image |
Yes |
| Focus Mode |
Auto/Manual |
| Panning/Tilting Range |
Pan: 300° |
| Panning/Tilting Speed |
Pan: 0.876°/s~43°/s |
| Preset |
255 |
| Focal Length |
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Field of View (Horizontal, Wide) |
71° |
| Image Compensation |
Back light compensation |
| Video Output |
HDMI 2.0 x1 |
| Audio Input |
3.5 mm x1 |
| Tally LED |
Yes |
| Filter |
N/A |
| Protocol |
Pelco-D, Peldo-P, |
| Remote Control Interface |
IR |
| F/W Update |
Via Web UI or USB 2.0 |
| IR Control |
Yes |
| Camera Control Unit |
RMC-180,RMC-300A, RMC-300C |
| POE |
IEEE802.3af |
| Video Compression |
H.264/H.265/MJPEG |
| Video Stream |
Dual Stream |
| First Stream Supported Resolution |
3840x2160 , 1920x1080 , 1280x720 , 1024x576 960x540 , 640x480 , 640x360 |
| Second Stream Supported Resolution |
1280x720 , 1024x576 , 720x576 (50Hz) , 720x480 (60Hz) 720x408 , 640x360 , 480x270 , 320x240 |
| Video Bitrate |
32Kbps ~ 50Mbps (Single Stream) |
| Video Bitrate Mode |
VBR, CBR |
| Encoding Framerate |
50Hz: 1-50fps 60Hz: 1-60fps |
| Audio Compression |
AAC |
| Audio Bitrate |
96Kbps, 128Kbps, 256Kbps |
| Supported Protocols |
TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast |
| Power |
DC 12V |
First Stream Supported Resolution |
3840x2160 |
Second Stream Supported Resolution |
1280x720
1024x576 720x576 (50Hz) 720x480 (60Hz) 720x408 640x360 480x270 320x240 |
| Power Consumption |
DC 12V |
| Operating Temperature |
0°C ~ 40°C |
| Storage Temperature |
-40°C ~ 60°C |
| Dimension (mm) |
173 (W) x 219 (H) x 189.08 (D)
|
ระยะ Zoom ที่ 12x, 20x, 30x Optical Zoom
