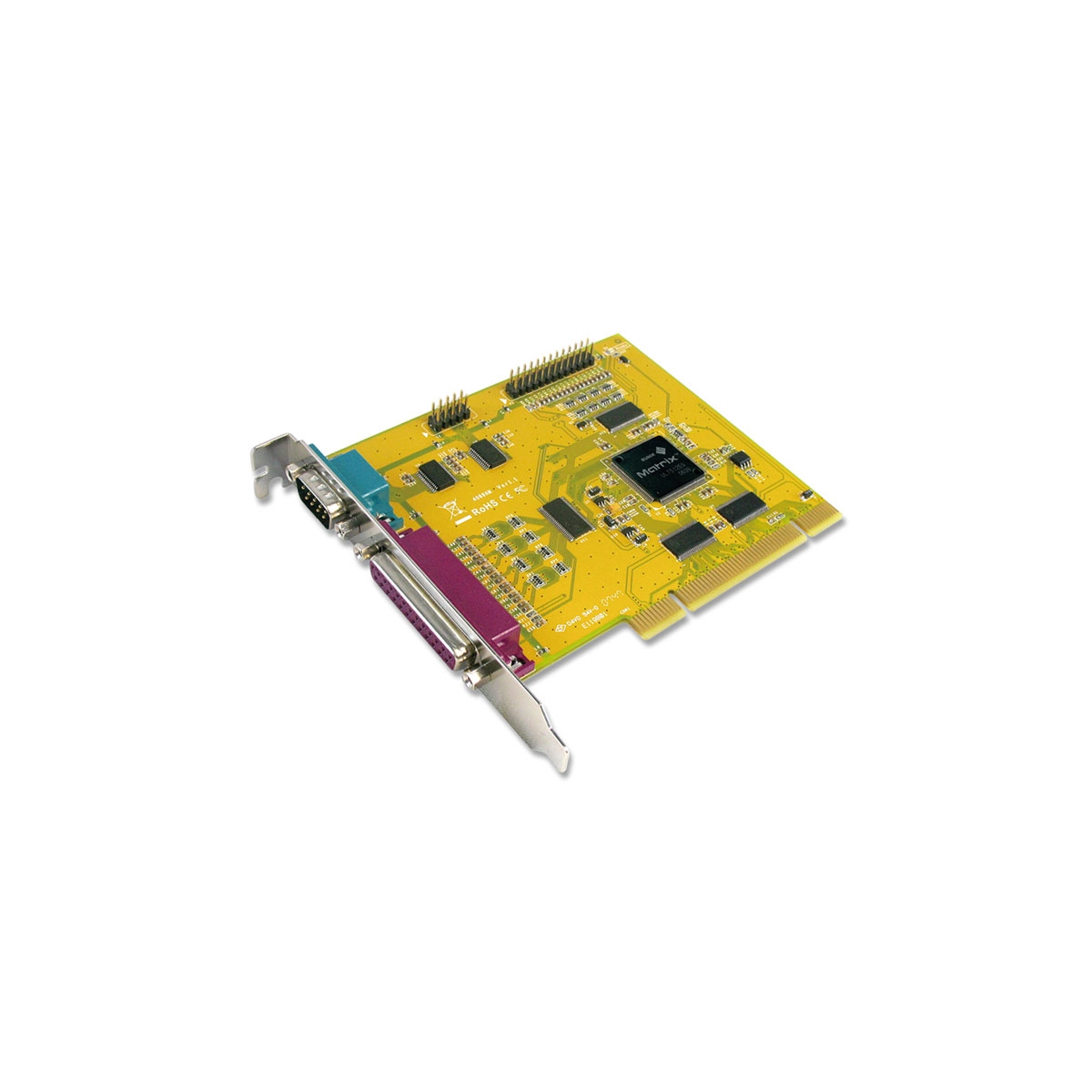

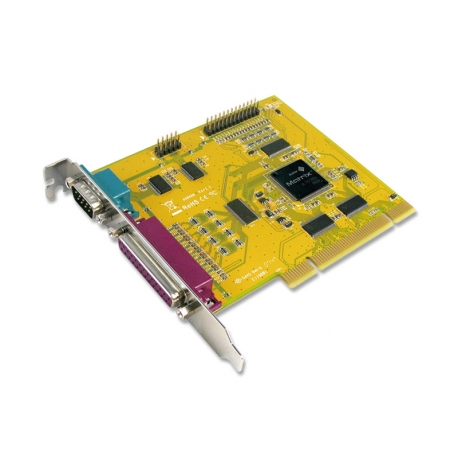

SUNIX RS232 and Parallel

SUNIX RS232 and Parallel

รุ่น MIO4089AM

2 ports RS-232 & 2 ports Parallel PCI Board

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน
ส่งให้เพื่อน

SUNIX RS232 and Parallel
2 ports RS-232 & 2 ports Parallel PCI Board
ผู้รับ: :
ชื่อเต็มของเพื่อน ^* :
ที่อยู่อีเมลเพื่อนของคุณ ^* :
^* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
พิมพ์

Spec sheet

Manual

MIO4089AM

2 ports RS-232 & 2 ports Parallel PCI Board

Introduction

The majority of today’s motherboards is not equipped with any RS-232 or parallel port. With SUNIX MIO4089AM Multi I/O board, users can expand 2 RS-232 and 2 IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO4089AM is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO4089AM Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, WinCE, Linux 2.2.x ~ 2.6.x kernels, making it the best and most economical solution for commercial and industrial applications

Features

Expands 2 ports RS-232 and 2 ports IEEE1284 interface on system.
Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
High reliability SUNIX UL7522EQ 16C750 compatible MultiIO controller on-board.
Expands two RS-232 serial ports with communication speeds up to 230.4Kbps.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ±15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
Support IEEE 1284-1994 parallel port standard
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by RoHS CE, FCC ClassB approval.
Support DOS, Linux, Microsoft 3.x, 9x, Me, NT, 2000, XP, 2003 and Vista.
Ready for the Intel® and AMD® 32/64-bit operation system.

Specifications

Description
Product Description	2 ports RS-232 & 2 ports Parallel PCI Board
Controller	SUNIX UL7512EQ (16C650 UART Compatible)
Bus Interface	Universal PCI 64/32bit 3.3V/5V, PCI Ver 2.3/2.2/2.1
IRQ & IO	Assigned by System
PCB connector	DB9 Male & DB25 Female
Serial Communication
Interface	RS-232
No. of Port	2-port
FIFO	32 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Baud rate	50 bps to 115.2 Kbps
Data bit	5,6,7,8
Stop bit	1,1.5,2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (Hardware) , XON/XOFF(Software)
Protection	±15KV Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge
Parallel Communication
Interface	IEEE1284
No. of Port	2-Port
Connector	DB25 Female
Mode	SPP/ECP/EPP/BPP(PS2)
Speed	Maximum 2.7MBps
FIFO	16 byte (Hardware)
Driver Support
Windows Client	XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server	2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded	XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux	Linux 2.x / 3.x / 4.x / 5.3
DOS	DOS
*UNIX	FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2	WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.
Regulatory Approvals
Hardware	CE, FCC, VCCI, BSMI
Software	Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
Environment
Operating Temperature	0 to 60 °C ( 32 to 140 °F )
Operating Humidity	5% to 95% RH
Storage Temperature	-20 to 85 °C ( -4 to 185 °F )
Connection Cable
Cable	Pin Header to DB9 Male & DB25 Female Connector Bracket Set
Dimension(Unit = mm)
PCB Dimension	120 x 100
Bracket	Standard 121

Note:

* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.

Download Driver

Driver	SUN1999Driver V9.2.2.0(WHQL)
Version	V9.2.2.0
Update	2021-01-05 09:27:46
Size	9.4MB
OS	Windows 10 20H2 (20H2) 32/64 bit Windows 10 20H1 (2004) 32/64 bit Windows 10 19H2 (1909) 32/64 bit Windows 10 19H1 (1903) 32/64 bit Windows 10 RS5 (1809) 32/64 bit Windows 10 RS4 (1803) 32/64 bit Windows 10 RS3 (1709) 32/64 bit Windows 10 RS2 (1703) 32/64 bit Windows 10 RS1 (1607) 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows 10 Enterprise 2019 LTSC 32/64 bit Windows 10 Enterprise 2016 LTSB 32/64 bit Windows 10 S 32/64 bit
