HDMI to VGA Converter with Scaler
VC812

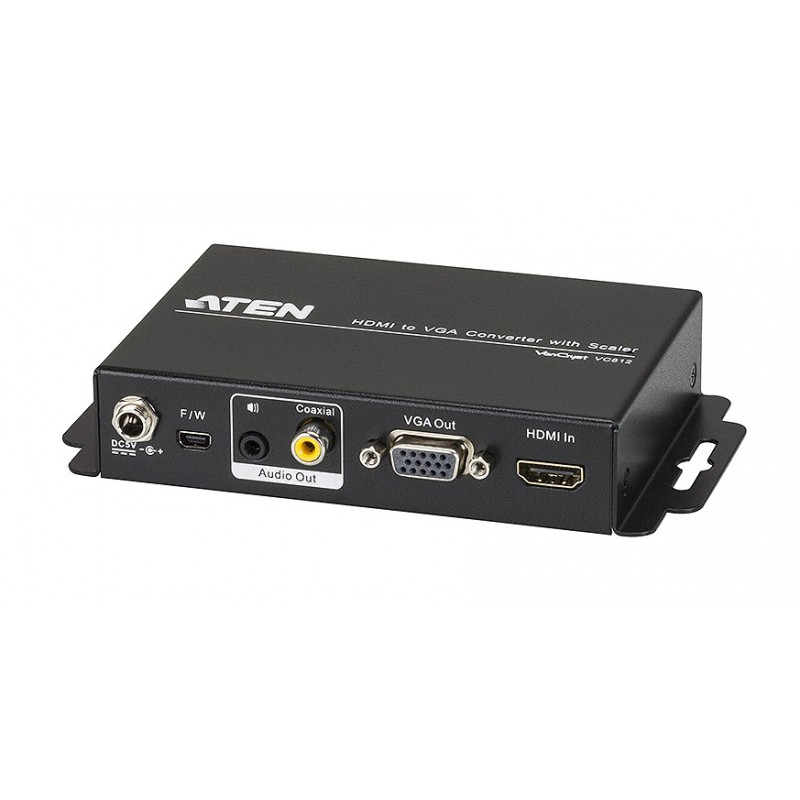

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA).
รับประกัน 3 ปีเต็ม
Spec SheetThe VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

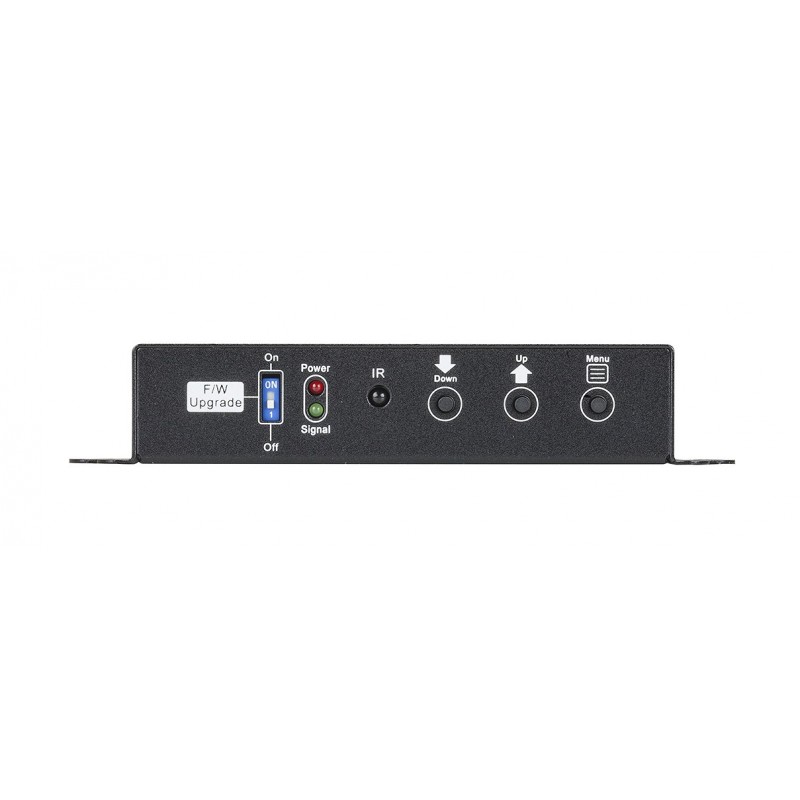

You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.
Features
- Converts HDMI signals to VGA output
- Supports analog stereo audio output
- Superior video quality – up to 1080p; 1920 x 1200
- Features a built in high-performance scaler function for best image quality
- Features a superior de-interlacer function for smooth video playback quality
- Built-in OSD function for video and system settings configuration
- Integrated superior video noise reduction
- Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
- Automatically detects video input signals
- LED indication of power status and source device
- No software required – eliminates incompatibility and installation issues
Diagram
Specification

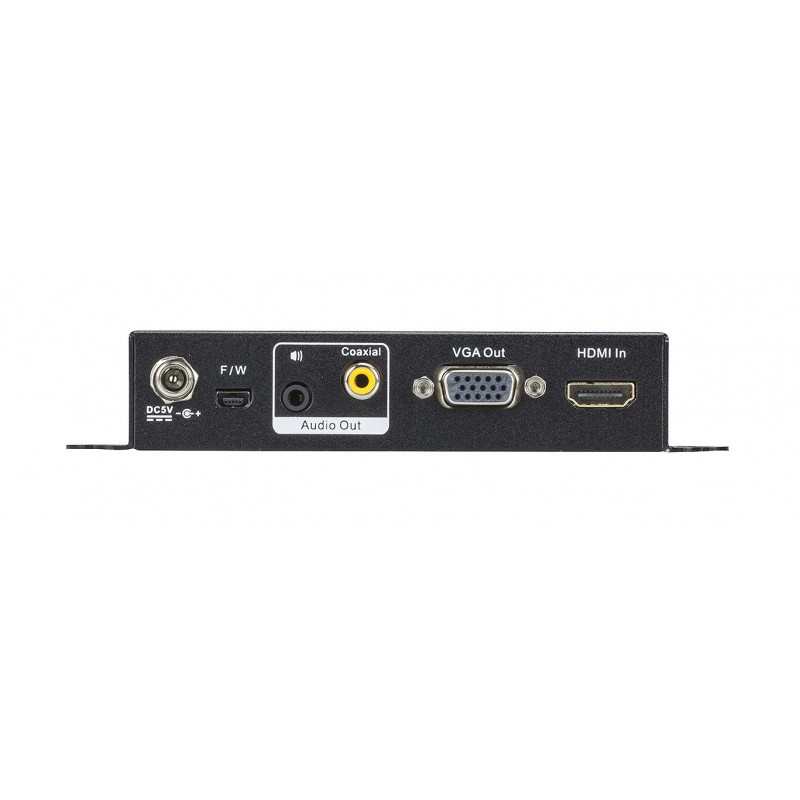

| Connectors | Input | HDMI In | 1 x HDMI Type A Female (Black) | |
| Output | Video Out | 1 x HDB-15 Female (Black) | ||
| Digital | Coaxial Audio | 1 x RCA female (Yellow) | ||
| Analog | Stereo Audio | 1 x mini stereo jack (Black) | ||
| Power | 1 x DC Jack | |||
| Switches | Firmware Upgrade | 1 x Dip Switch | ||
| LEDs | Power | 1 (Red) | ||
| On Line | 1 (Green) | |||
| Video | 1920 x 1080 | |||
| Power Consumption | DC5V, 10W | |||
| Environment | Operating Temp. | 0-40°C | ||
| Storage Temp. | -20-60°C | |||
| Humidity | 20–90% RH, Non-condensing | |||
| Physical Properties |
Housing | Metal | ||
| Weight | 0.29 kg | |||
| Dimensions (L x W x H) |
11.00 x 8.30 x 2.80 cm | |||
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
Package Content
- 1x VC812 HDMI to VGA Converter with Scaler
- 1x Power Adapter
- 1x Software CD
- 1x User Instructions
