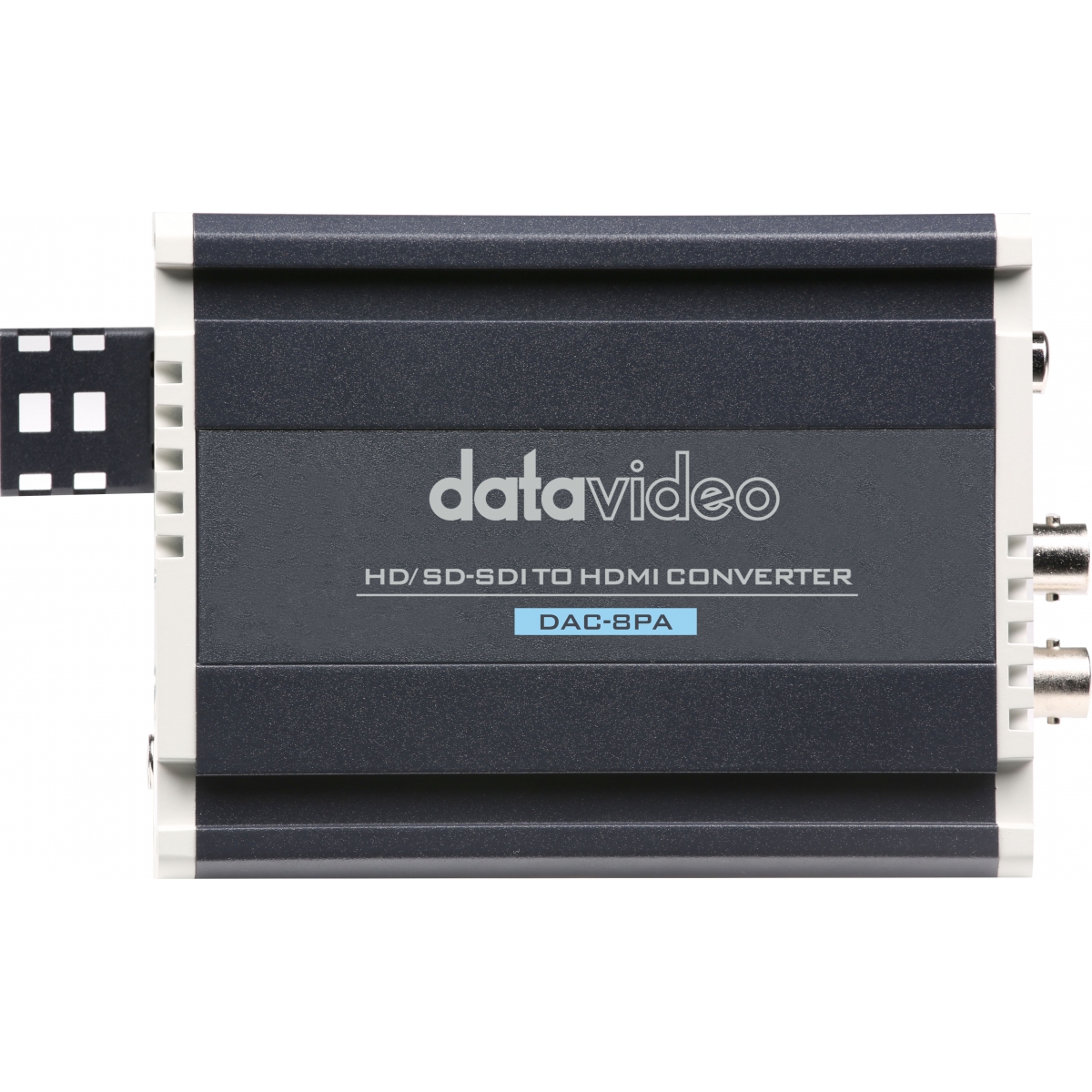

SDI to HDMI Converter with audio de-embedding
DAC-8PA
อุปกรณ์แปลงสัญญาณ SDI to HDMI Converter มีช่องแยกสัญญาณเสียงดิจิตอลออกจาก SDI เป็น Analog Stereo ในตัว ตัวเครื่องแข็งแรงด้วยอลูมิเนียมอัลลอย
ManualSDI to HDMI Converter
Convert SDI to HDMI with audio de-embedding options
The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.
Supports 1080p 50/60
Automatic input signal and color depth detection with support for Deep Color
Supports SDI Loop-Through Output
Simultaneous SDI loop-through with HDMI output
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Specification
| DAC-8PA SDI to HDMI Converter | |
|---|---|
| Conversion |
3G/ HD/SD-SDI to HDMI |
| Video Inputs |
1x 3G/HD/SD-SDI |
| Loop Through |
1 |
| Video Outputs |
1x HDMI |
| Audio Inputs |
2x SDI Audio embedded |
| Audio Outputs |
2x RCA (Stereo Pair) |
| Supported Video Input Formats |
1080p (23.98/24/25/29.97/30/50/59.94/60Hz), |
| Output Resolutions |
Automatically matches the SD, HD and 3G SDI video input |
| Equalizer |
Yes |
| Reclock |
Yes |
| SDI Cable Drive |
Yes |
| Dimension (LxWxH) |
112 x 85 x 45 mm |
| Weight |
0.4 kg |
| Operating Temp. Range |
0~40 °C |
| Power |
DC 12V, 4W |
| What's in the Box |
1 x DAC-8PA product |
