PE1216G

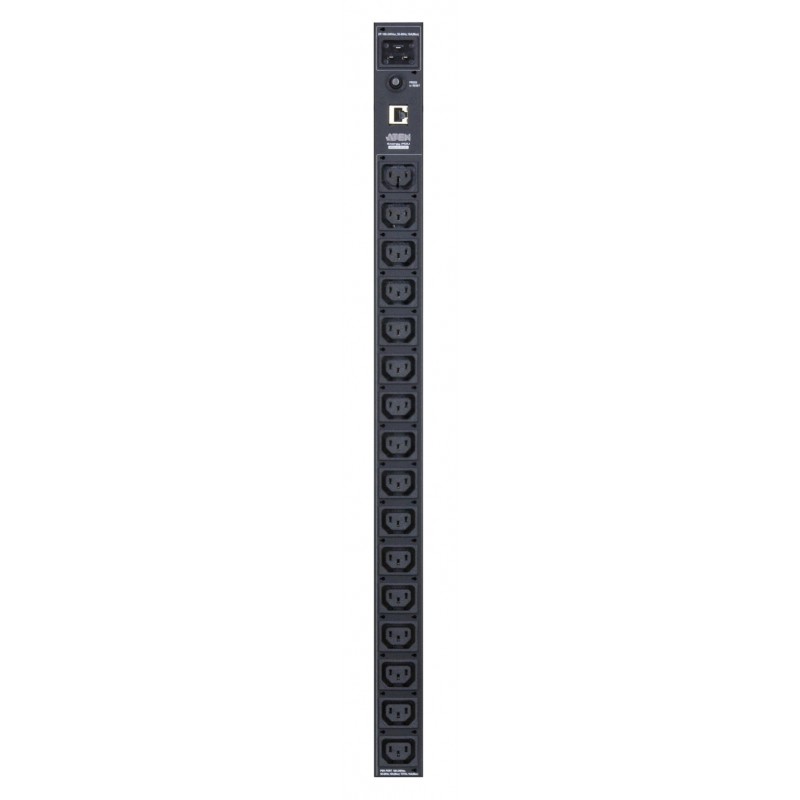

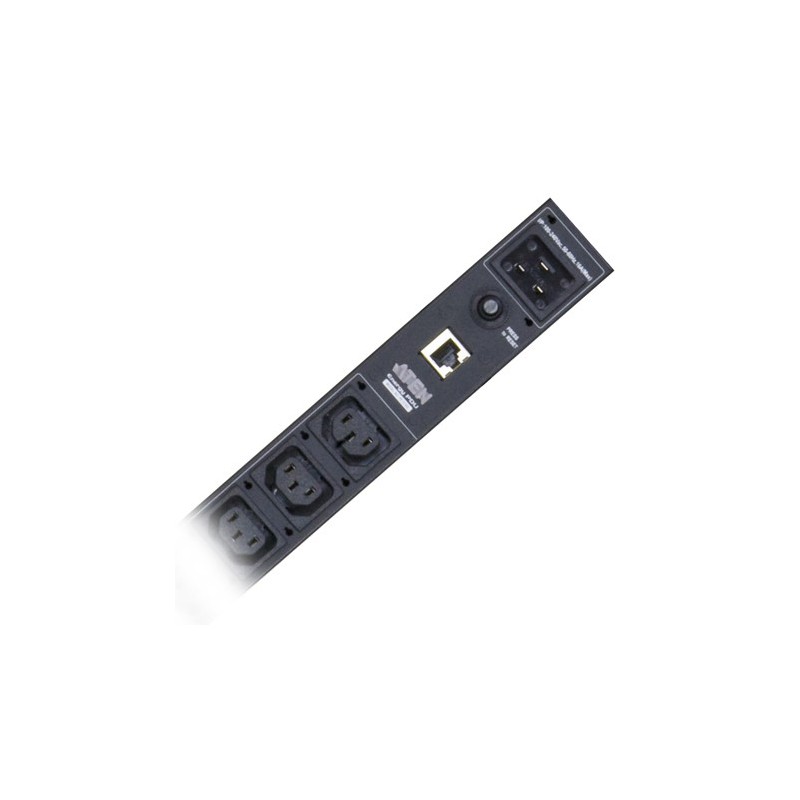

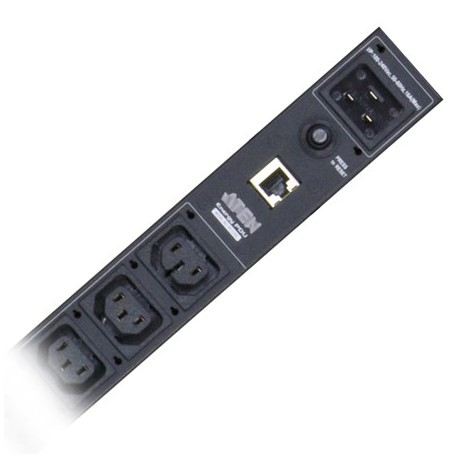

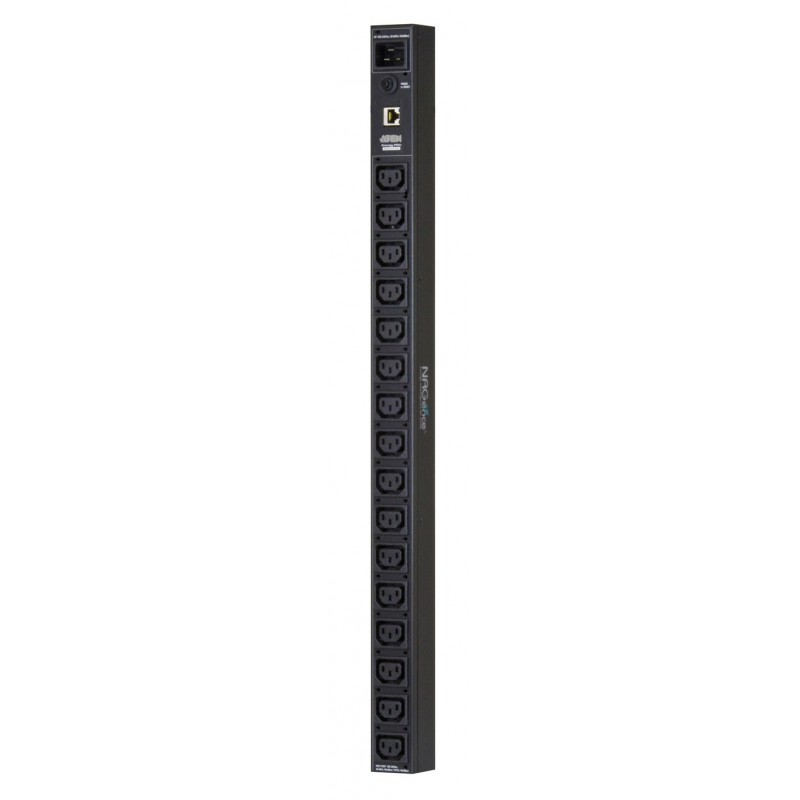

The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
![]()
The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
The PE1216 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.
| Function | PE1216G | |
| Power Outlets | Direct | 16 x IEC C13 |
| Connectors | Inlet | 1 x IEC60320 C20 |
| Energy Sensor Port |
1 x RJ-45 Female | |
| Nominal Input Power | 100-240V~, 50/60Hz,16A(Max) |
|
| Nominal Output Power | 100-240V~,50/60Hz Per Outlet 10A (Max) Total : 16A(Max) | |
| Environment | Operating Temp. | 0 - 50°C |
| Storage Temp. | -20 - 60°C | |
| Humidity | 0-80% RH Non-condensing | |
| Physical Properties | Housing | Metal |
| Weight | 1.23 kg | |
| Dimensions ( L x W x H ) |
68.00 x 4.40 x 4.40 cm | |
![]()
