This splitter can receive uncompressed audio/video and data over a single run of CAT5e/6/7 cable, from a Transmitter, up to distances of 100m. รับประกัน 3 ปี !!!
กรุณาสอบถามทาง Line @macrocare
This splitter can receive uncompressed audio/video and data over a single run of CAT5e/6/7 cable, from a Transmitter, up to distances of 100m. It has the added benefit of simultaneous dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and 2 bidirectional LAN serving connections, allowing devices such as Smart TVs or games consoles to share a Internet connection. The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations.

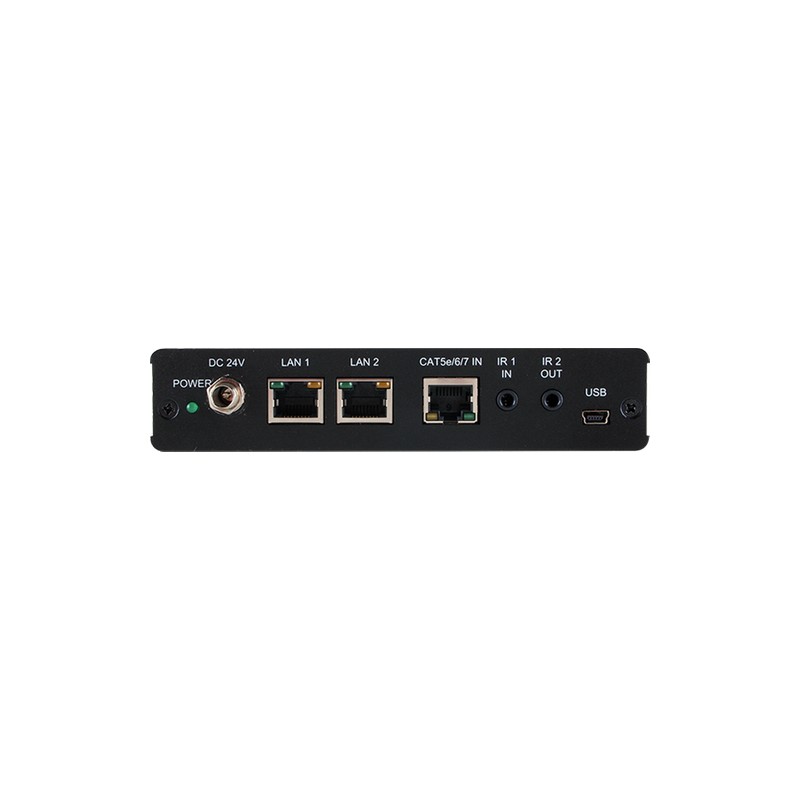

|Inputs||1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
1x USB Mini-B [1x SERVICE Propriety Data]

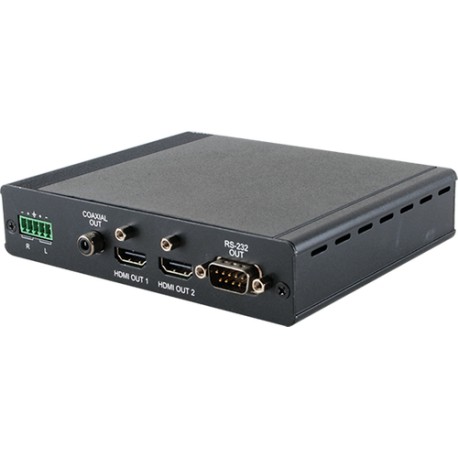

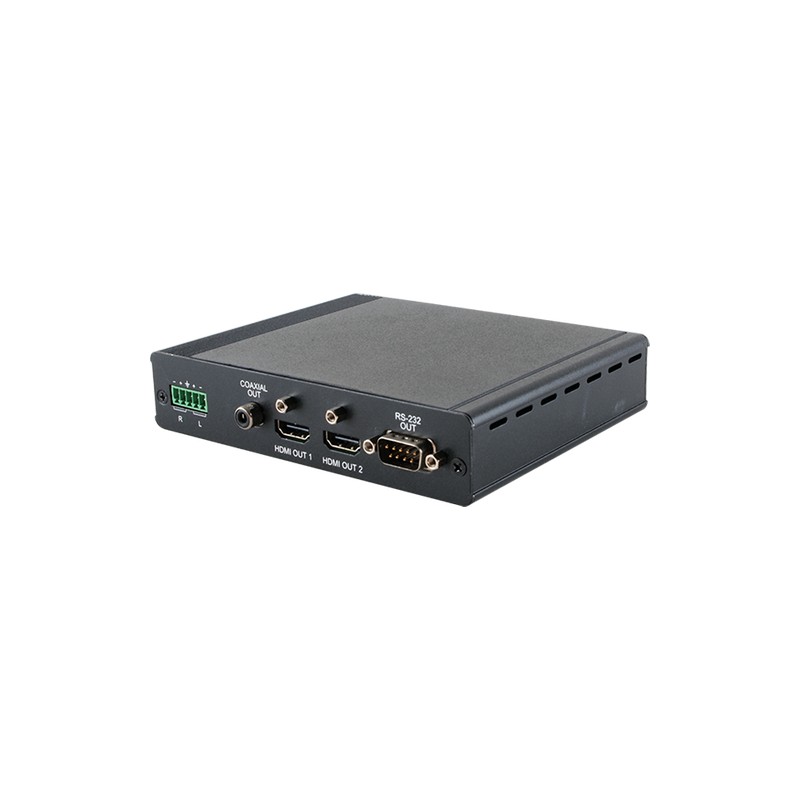

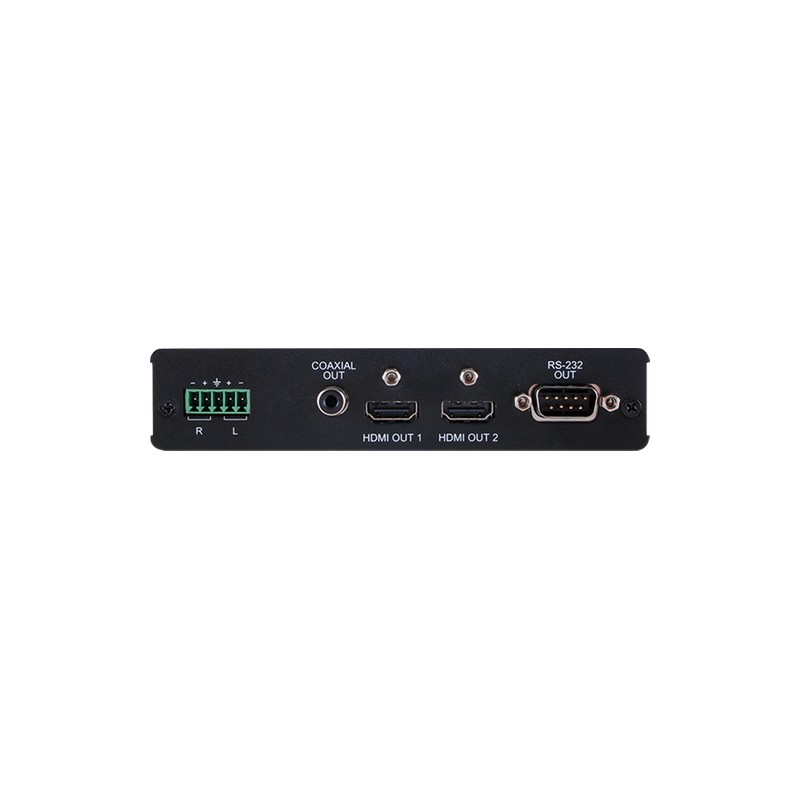

|Outputs||2x HDMI [2x Uncompressed AV and Data]
1x RCA [1x COAX 2 Channel LPCM]
4x 1-Pin Terminal Block [1x Stereo (Balanced)]
2x RJ45 [2x LAN Serving]
1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
1x 9-pin D-sub [1x RS-232 Data]
|Dimensions||145mm [W] x 128mm [D] x 30mm [H]|
