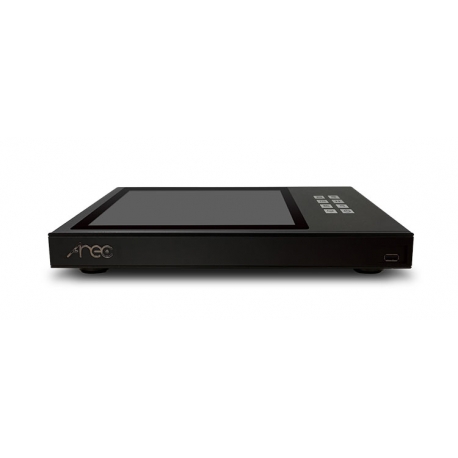

Portable Media Station

รุ่น KL-3

Portable Design for Easy Move. With 10.1” LCD screen, lightweight, and all-in-one Media Station.

รายละเอียดเพิ่มเติม

ส่งให้เพื่อน

ส่งให้เพื่อน

Portable Media Station
Portable Design for Easy Move. With 10.1” LCD screen, lightweight, and all-in-one Media Station.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Spec sheet
Manual

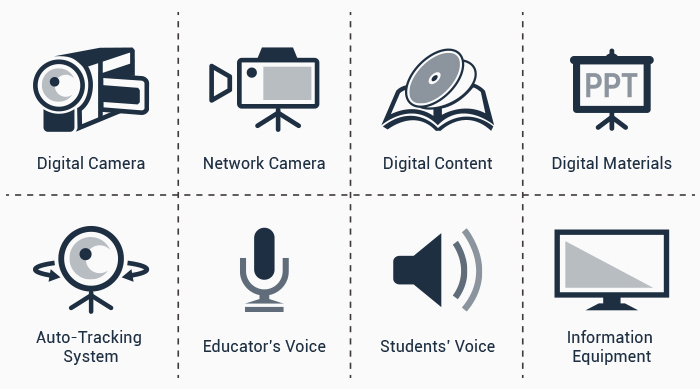

CAPTURE UP TO 3 VIDEO SOURCES AT THE SAME TIME

KL-3 supports capturing up to 3 video sources through HDMI / VGA/ RJ45 interfaces at the same time, it is compatible with network cameras, laptops, PCs, digital microscopes, wireless microphones etc. With audio support, LS-300 can mix audio via HDMI, 3.5mm stereo and AREC wireless microphone.

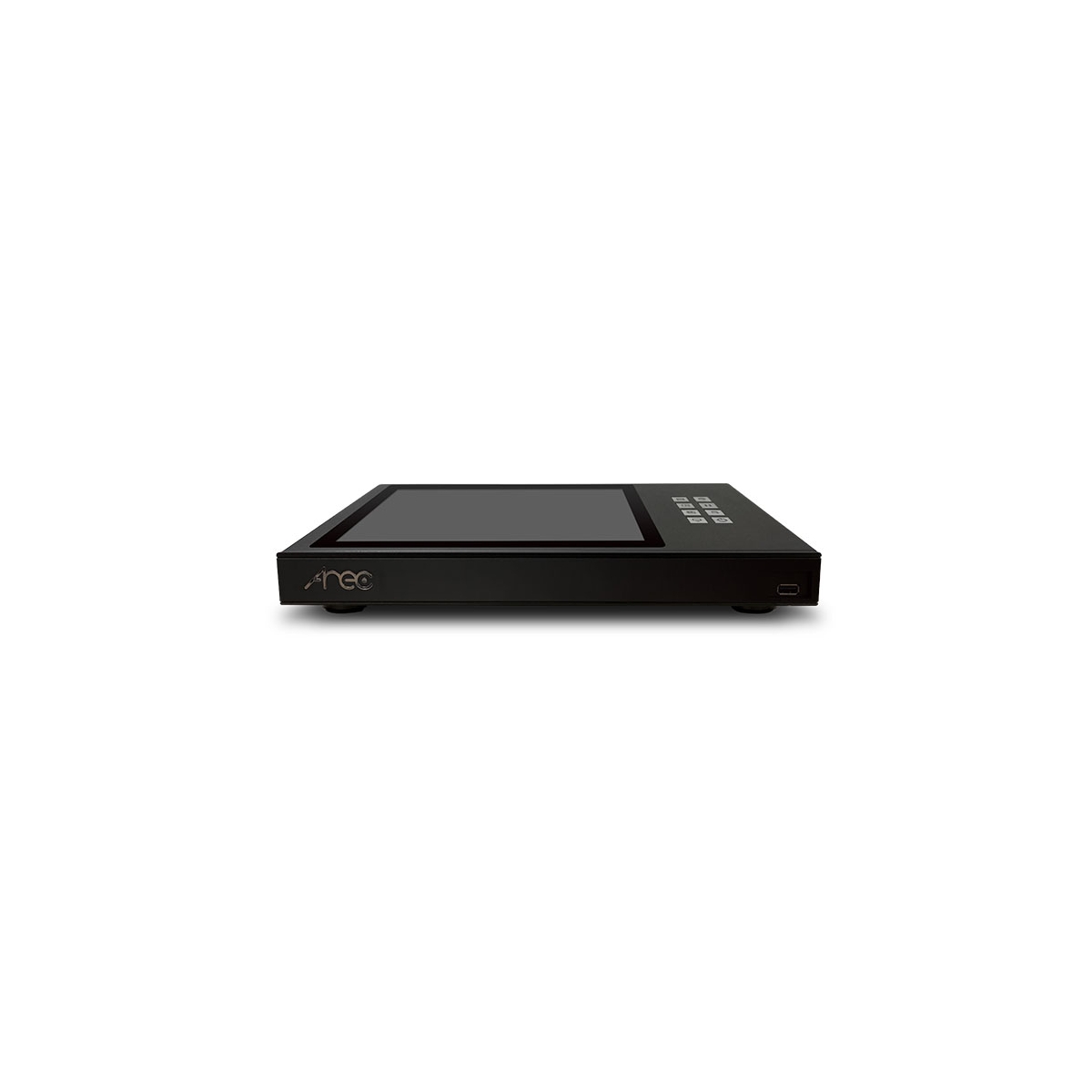

PORTABLE DESIGN FOR EASY MOVE

With 10.1” LCD screen, AREC KL-3 is a portable and all-in-one Media Station, allowing users to simultaneously capture, switch, mix, stream and record live/multi-sources events in demanding portable applications*.

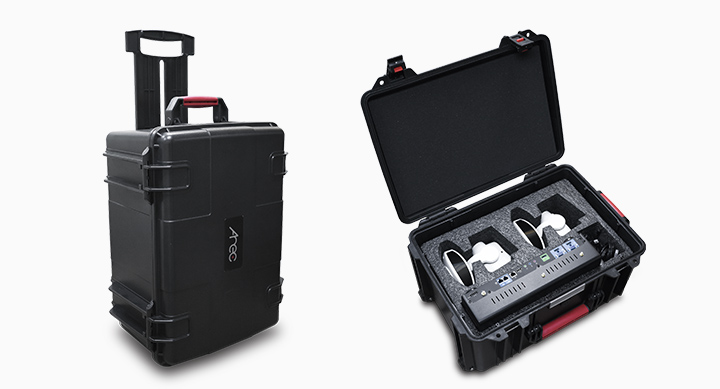

*KL Travel Case เป็นอุปกรณ์เสริม ไม่รวมใน package

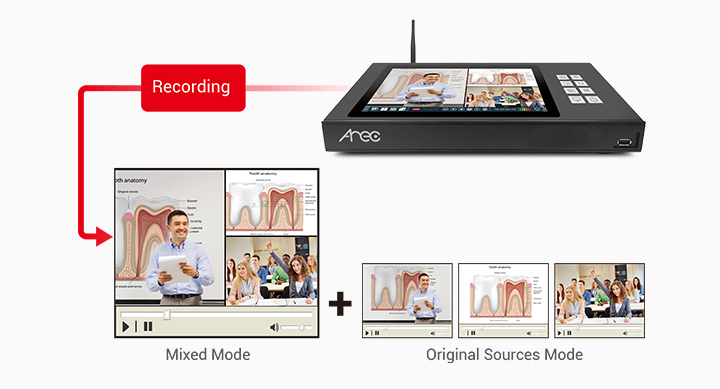

FLEXIBLE 3-CHANNEL-IN AND 4 RECORDING VIDEO FILES DESIGN

AREC KL-3 supports up to 3-input sources capturing and up to 4 recording video outputs. Users can choose mixed recording mode or mixed plus original sources mode respectively. The mixed plus original sources recording mode provides 1 mixed video and 3 individual synchronized source videos for flexible use.

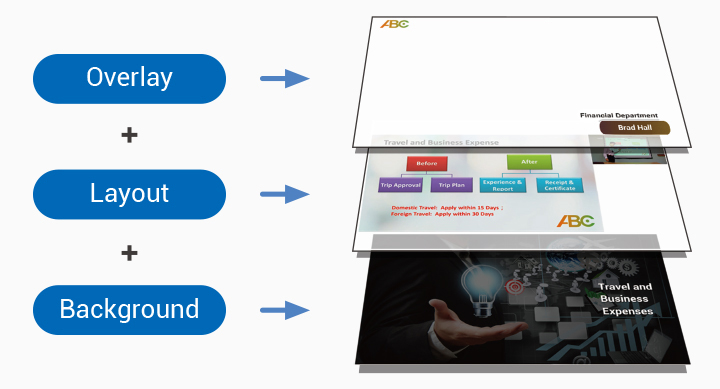

REAL-TIME ASSISTANT IN VIDEO MAKING

With AREC Online Director, KL-3 allows users to be in control of their recording/streaming. It also makes users easily switch between sources, add or remove backgrounds/overlays, and change layouts/themes.

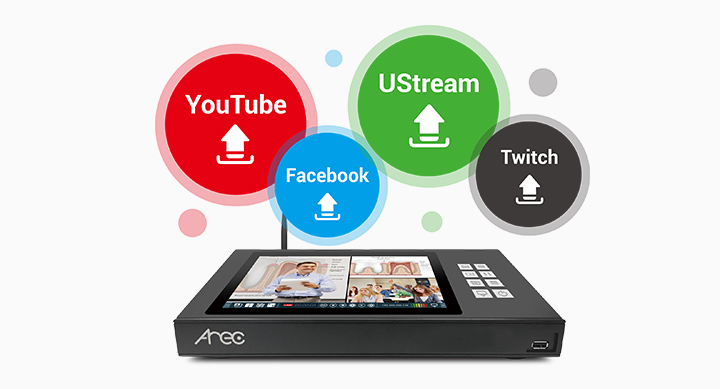

BROADCAST YOUR MIXED VIDEO

KL-3 can stream mixed video to up to 2 platforms simultaneously, such as YouTube, Facebook, Twitch and other live broadcasting websites.

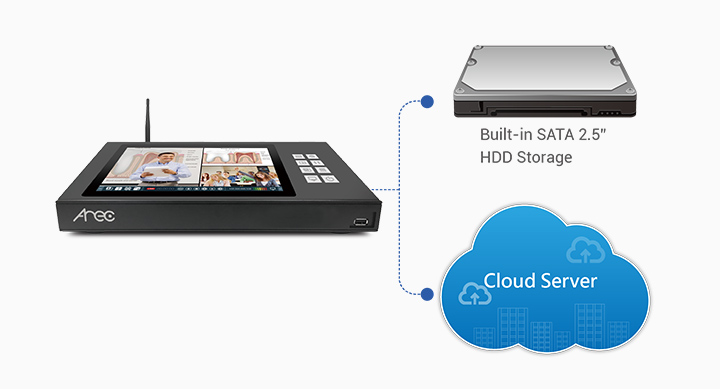

BUILT-IN HARD DRIVE STORAGE & BACKUP

KL-3 allows saving recording videos on the internal 1TB hard drive. To increase security, KL-3 can automatically backup/upload recordings to AREC MediaCenter, FTP, SFTP, Opencast, Panopto, and Kaltura.

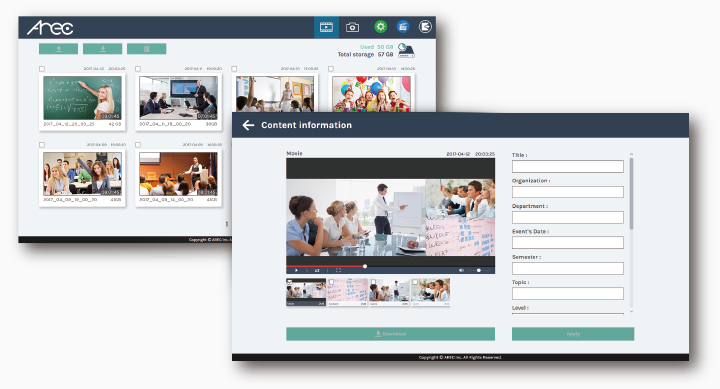

REMOTE MANAGEMENT. SIMPLE TO INTEGRATE

With the built-in Video Manager, videos stored in the AREC Media Station can be managed remotely. Designed to work in network environment, AREC Media Station has an HTTP API that provides access to many functions in Media Station. All of the video content, metadata, and thumbnail can be delivered seamlessly for the server software integration.

SPECIFICATIONS

MODEL NAME	AREC KL-3
MAX. VIDEO-IN CHANNELS	3

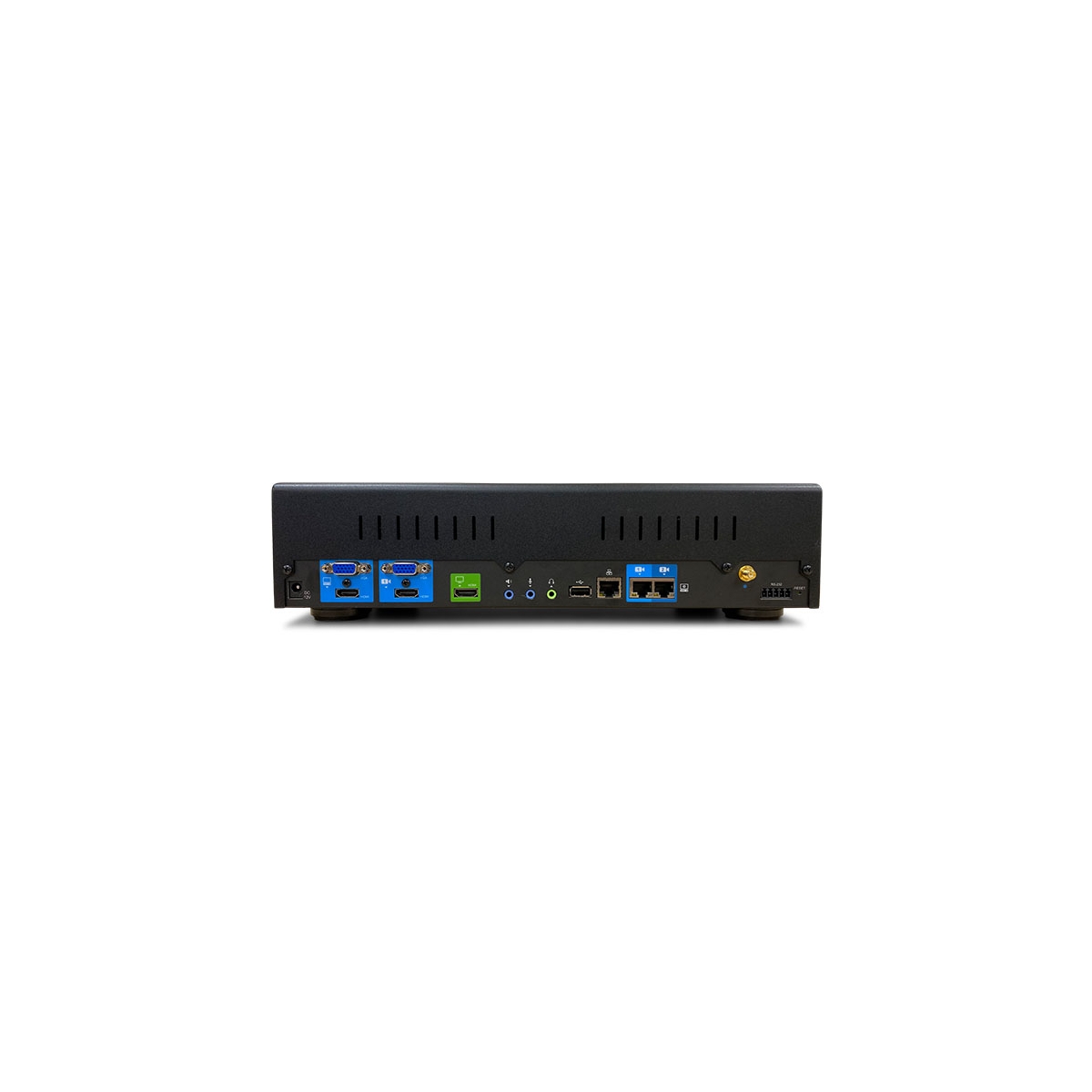

VIDEO INPUT INTERFACE	HDMI2 / VGA2 / RJ-45*2
AUDIO INPUT INTERFACE	3.5mm Stereo: 2 channels; Wireless Mic: 1 channel; HDMI: 2 channels
VIDEO ENCODING RESOLUTION	Max. 1080p (640x360 ~ 1920x1080). A variety of resolution can be selected
VIDEO OUTPUTS FOR LOCAL DISPLAY	HDMI*1 (supports VGA output with bundled HDMI to VGA adapter)
AUDIO OUTPUTS	3.5mm Stereo line out: 1 channel; HDMI: 1 channel
LOCAL STORAGE	1TB 2.5” SATA ⅢHard Drive
LOCALLY STORED FILE FORMAT	MP4
RECORDING MODES	1 mixed + 3 individual original
BACKUP AND INTEGRATION	FTP/ SFTP/ Opencast/ Panopto/ Kaltura/ AREC MediaCenter
LIVE STREAMING (RTMP/RTMPS)	2
VIDEO SWITCHER	Yes, through AREC Online Director (web-based and desktop applications, on-screen GUI via USB mouse control)
VIDEO MANAGER	Yes, through web-based AREC Video Manager platform
RS-232 CONTROL AND HTTP NETWORK API	Yes
