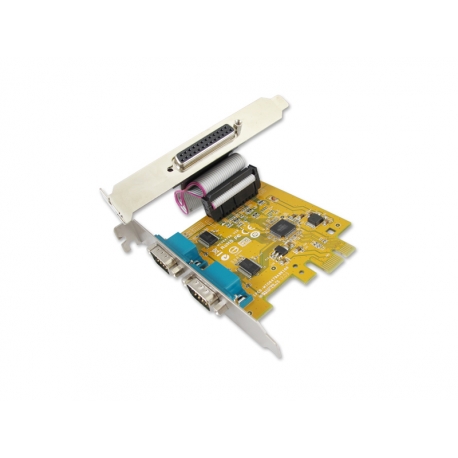

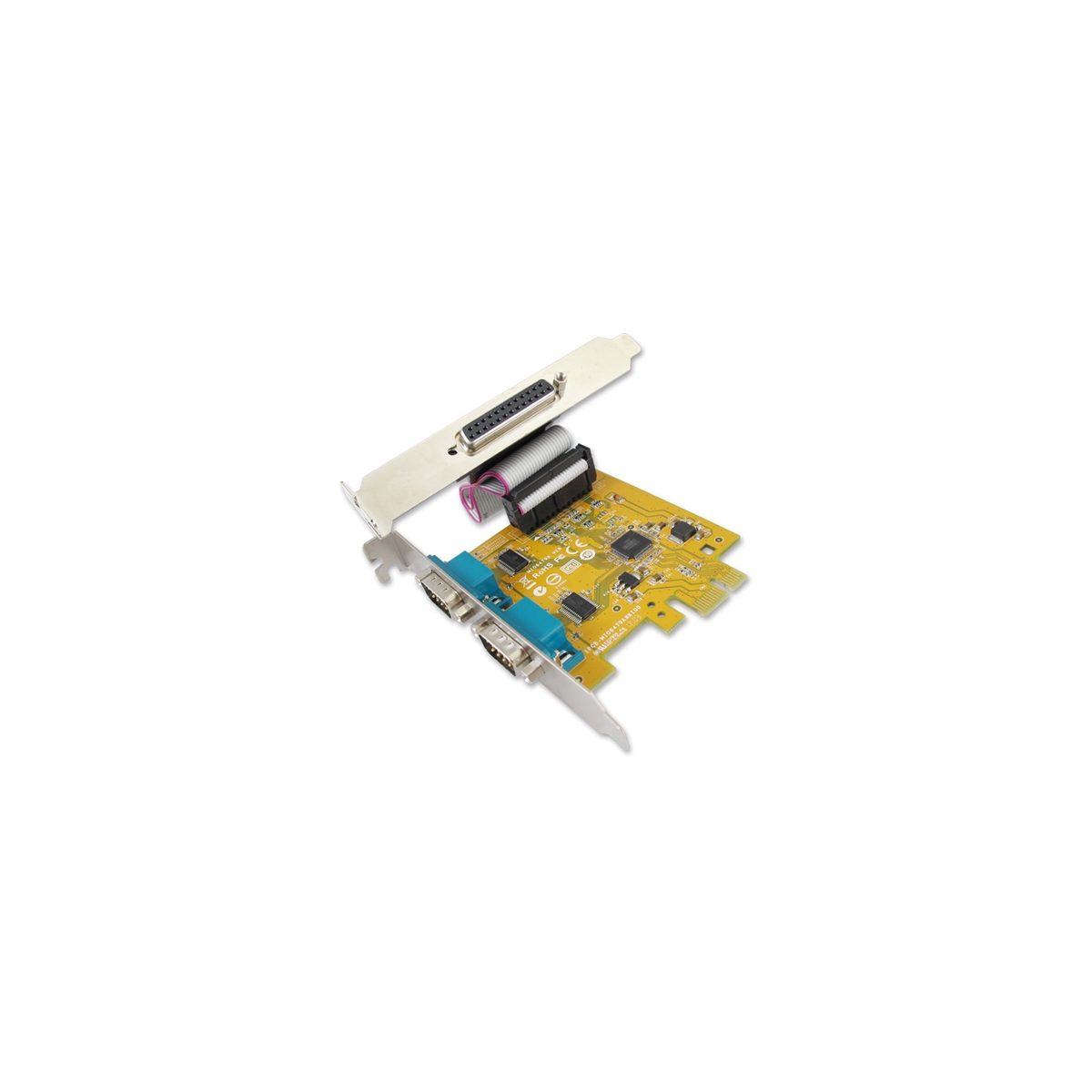

2-port RS-232 & 1-port Parallel PCI Express Multi-I/O Board

2-port RS-232 and 1-port Parallel PCI Express Multi-I/O Board

MIO6479A

SUNIX MIO6479A Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด


pdf.gif Spec Sheet

pdf.gif Manual

Introduction

The majority of today’s motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6479A Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any PC system. SUNIX MIO6479A built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.


Features

    • Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
    • With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
    • Designed to meet PCI Express Base Specification Revision 2.0.
    • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
    • On-chip hardware auto flow control to guarantee no data loss.
    • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
    • Support IEEE 1284-1994 parallel port standard.        ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port).

  •        SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.


Specifications

General

Interface RS-232 and IEEE1284
Controller SUNIX SUN2410 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Parallel Communication

Interface IEEE1284
No. of Port 1-port
Mode SPP / ECP / EPP / BPP
FIFO 16byte Hardware
Speed Maximum 1.8MBps
PCB Connector DB25 Female

Driver Support

Microsoft Client XP/Vista/7/ 8 (X86/X64)
Microsoft Server 2000/2003/2008 / 2008R2 (X86/X64)
Linux Linux 2.4.x/2.6.x/3.x
DOS DOS

Regulatory Approvals

Hardware CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8 (X86/X64)
Microsoft Server: 2000 / 2003 / 2008 (X86/X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 78 x 85 mm
Bracket Standard 121 mm
Bracket Space 1

Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.

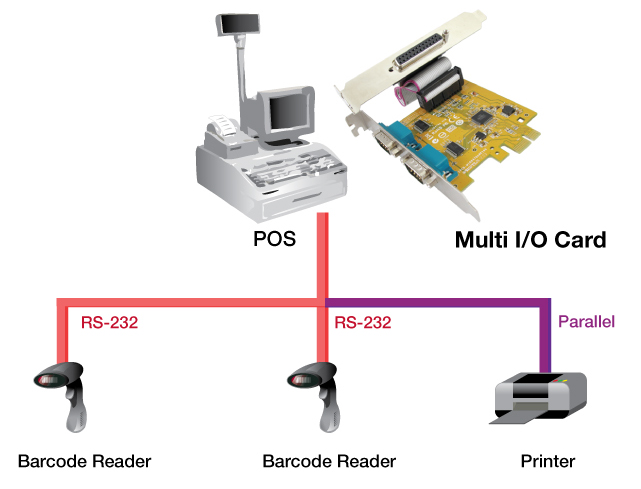

Applications

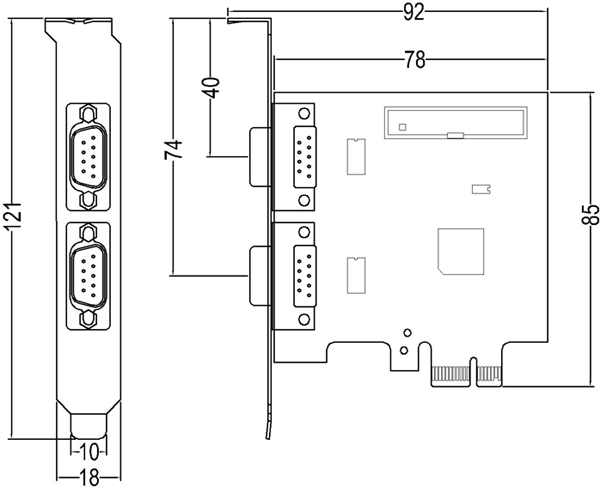

Mechanical Drawings (Unit = mm)



Pin Assignment

Serial


DB9M PIN
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI

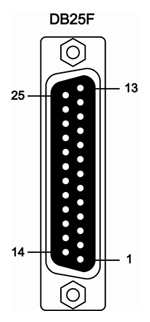

Parallel


DB25F PIN DB25F PIN
1 STROBE 14 AUTO FEED
2 DATA0 15 ERROR
3 DATA1 16 INT
4 DATA2 17 SELECT INPUT
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACKNOWLEDGE 23 GND
11 BUSY 24 GND
12 PAPER EMPTY 25 GND
13 SELECT


Package Content

  • MIO6479A- 2-port RS-232 & 1-port Parallel PCI Express Multi-I/O Board.
  • Quick Installation Guide.
  • Software CD Driver
  • 13x2 Pin Header to DB25F Flat Cable With Standard Bracket
    Part Number: 1WDB-25F04026G1001


Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL) icon_download.jpg
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
