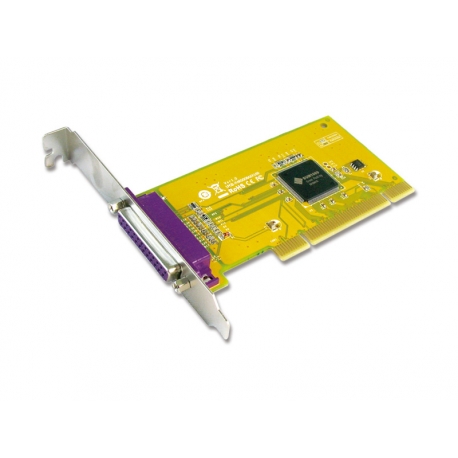

IEEE1284 Parallel PCI card

1-port IEEE1284 Parallel Universal PCI Board

PAR5008A

การ์ด PCI เพิ่มพอร์ต Parallel

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


 Spec sheet

 Manual

Introduction

SUNIX PAR5008A PCI Parallel card enables users to add or expand one additional ECP/EPP/SPP/BPP communication port on their PC-based system for connecting their parallel devices. It is ideal for printers, IC programmers, ZIP Drives, or any Parallel devices*. SUNIX PAR5008A card is designed with SUNIX high performance and realizable parallel connectivity controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.

Features

  • High reliability SUNIX SUN1989 Parallel controller on-board.
  • Expand single IEEE1284 Parallel port on system.
  • Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
  • Compliance with PCI 33MHz Version 3.0/2.3/2.2/2.1 specification.
  • Support IEEE 1284-1994 parallel port standard
    * ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
    * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Specifications

Description

Product Description 1-port IEEE1284 Parallel Universal PCI Board

Parallel Communication

Interface IEEE1284
Controller SUNIX SUN1989
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 1-port
IRQ & IO Assigned by System
FIFO 16 byte (Hardware)
Signal SPP/ECP/EPP/BPP
Speed Maximum 1.8MBps
PCB connector DB25 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 61 mm
Bracket Standard 121 mm
Bracket Space 1


Note:
* Do not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378 ISA address under Windows nor Linux operation systems, but only DOS mode.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.



Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL) icon_download.jpg
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
