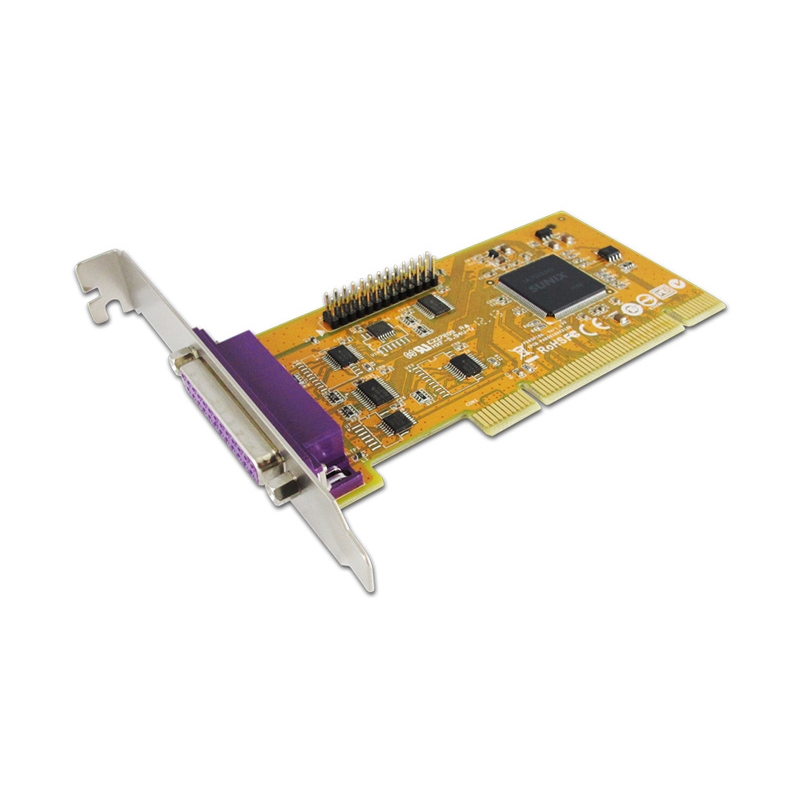

2-port IEEE1284 Parallel PCI Board
PAR5018A
SUNIX PAR5018A PCI Parallel card enables users to add or expand two additional ECP/EPP/SPP/BPP communication LPT ports on their PC-based system for connecting their parallel devices.
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX PAR5018A PCI Parallel card enables users to add or expand two additional ECP/EPP/SPP/BPP communication LPT ports on their PC-based system for connecting their parallel devices. SUNIX GoldenIO card series is designed with SUNIX high performance and realizable parallel connectivity controller, UL7502AQ and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.
Features
- High reliability SUNIX UL7502AQ Parallel controller on-board.
- Expands two IEEE1284 Parallel port on system.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Support IEEE 1284-1994 parallel port standard
- * ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
- * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
- Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
General
| Interface | IEEE1284 |
| Controller | SUNIX UL7502AQ |
| BUS | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| IRQ & IO | Assigned by System |
Parallel Communication
| Interface | IEEE1284 |
| No. of Port | 2-port |
| FIFO | 16byte Hardware |
| Mode | SPP / ECP / EPP / BPP |
| Speed | Maximum 1.8MBps |
| PCB Connector | DB25 Female & 13 x 2 Pin Header |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 120 x 61 mm |
| Bracket | Standard 121mm |
| Bracket Space | 2 |
Note:
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS | Windows 10 20H2 (20H2) 32/64 bit Windows 10 20H1 (2004) 32/64 bit Windows 10 19H2 (1909) 32/64 bit Windows 10 19H1 (1903) 32/64 bit Windows 10 RS5 (1809) 32/64 bit Windows 10 RS4 (1803) 32/64 bit Windows 10 RS3 (1709) 32/64 bit Windows 10 RS2 (1703) 32/64 bit Windows 10 RS1 (1607) 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows 10 Enterprise 2019 LTSC 32/64 bit Windows 10 Enterprise 2016 LTSB 32/64 bit Windows 10 S 32/64 bit |
