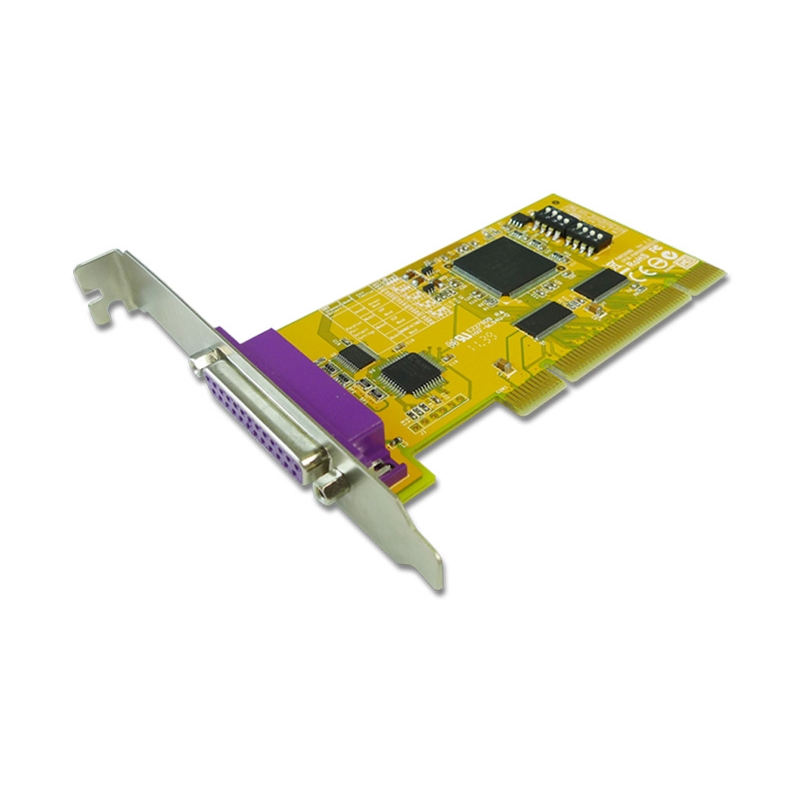

1-port Remap IEEE1284 Parallel Universal PCI Board
PAR5008R
SUNIX PAR5008R PCI Remap Parallel card enables users to expand one additional real ECP/EPP/SPP/BPP communication LPT port on their PC-based system for connecting their parallel device.
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX PAR5008R PCI Remap Parallel card enables users to expand one additional real ECP/EPP/SPP/BPP communication LPT port on their PC-based system for connecting their parallel device. This board can be installed as a fully featured I/O mapped parallel port as 278, 378, and 3BC legacy ISA address under Microsoft Windows and DOS operation systems. Besides, there’re some software (hardware) could not switch operation mode automatically, and user has to require changing LPT settings to the particular mode. SUNIX PAR5008R can force setting SPP, Bi-Directional, EPP, or ECP mode by jumper settings!
With legacy ISA address and Parallel operation mode selectiveness feature, SUNIX PAR5008R simulates onboard native parallel port operation completely. User can connect traditional software protection dongles, JTAG chip programmers, data acquisition, machine process control, scientific measurement systems, and other parallel devices as well as computer's native parallel port. SUNIX PAR5008R Remap card is designed with SUNIX high performance and realizable Parallel connectivity controller, UL7502AQ and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.
Features
- High reliability SUNIX UL7502AQ Parallel controller on-board.
- Expand single IEEE1284 compatible DB-25 type Parallel LPT port on system.
- Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
- Compliance with PCI 33MHz Version 3.0/2.3/2.2/2.1 specification.
- Support IEEE 1284-1994 parallel port standard with user configuration
- * ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
- * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port)
- Support legacy ISA address (278, 378, 3BC) or standard PCI Plug-n-Play modes.
- Install as a fully featured I/O mapped and operation configured as computer's native parallel LPT port.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
Parallel Communication
| Interface | IEEE1284 |
| BUS | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| Controller | SUNIX UL7502AQ JiWen |
| IO | 378, 278, 3BC or PCI Plug-n-play Assigned by System |
| No. of Port | 1-port |
| Speed | Maximum 1.8MBps |
| Mode | SPP/ECP/EPP/BPP ( Auto-switching or User-Defined) |
| FIFO | 16byte Hardware |
| PCB Connector | DB25 Female |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows • Windows Client: XP/Vista/7/8/8.1 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 120 x 61 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
Note:
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
|
