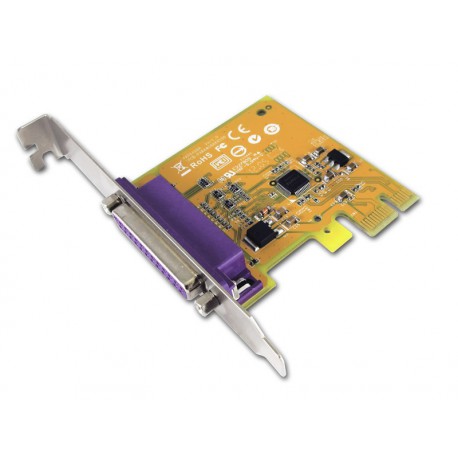

1 port IEEE1284 Parallel PCI Express Card

1 port IEEE1284 Parallel PCI Express Card

PAR6408A

การ์ดเพิ่มพอร์ต Parallel 1 port ให้กับเครื่อง PC แบบ PCI Express ได้ทั้งแบบ x1, x2, x4, x8 และ x16 รองรับทั้ง Windows และ Linux

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


 Spec sheet

 Manual

SUNIX PAR6408A IEEE1284 Parallel communication board meets the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane bus, allowing it to be installed in any PC-based system structure. With SUNIX PAR6408A IEEE1284 Parallel board, users can expand single parallel LPT port to their system to use parallel devices further. It is ideal for printers, IC programmers, ZIP Drives, or other Parallel devices*. SUNIX PAR6408A built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.

Features

  • Expands single IEEE1284 Parallel LPT port on system.
  • High reliable SUNIX SUN2212 native PCI Express IEEE1284 controller on-board.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Full single-lane (or x1) PCI Express throughput.
  • Support IEEE 1284-1994 parallel port standard
    * ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
    * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval. ( ข้อมูลเพิ่มเติม)
  • Support Microsoft Windows, Linux, and DOS.

Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.

Specifications

General

Interface IEEE1284
Controller SUNIX SUN2212
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Parallel Communication

Interface IEEE1284
No. of Port 1-port
FIFO 16byte Hardware
Mode SPP / ECP / EPP / BPP
Speed Maximum 1.8MBps
PCB Connector DB25 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 /11 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 65 x 69 mm
Bracket Standard 121mm
Bracket Space 1

Download Driver

Driver SUN1999Driver V10.2.1.0(WHQL) icon_download.jpg
Version 10.2.1.0
Update 2023-01-16 15:30:54
Size 10.1MB
OS
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL) icon_download.jpg
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL) icon_download.jpg
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL) icon_download.jpg
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0 icon_download.jpg
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver SUN1999/2000 Linux Inbox Driver User Guideline icon_download.jpg
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.0.7.0 icon_download.jpg
Version 2.0.7.0
Update 2022-05-31 16:13:41
Size 83.6KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006 icon_download.jpg
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
