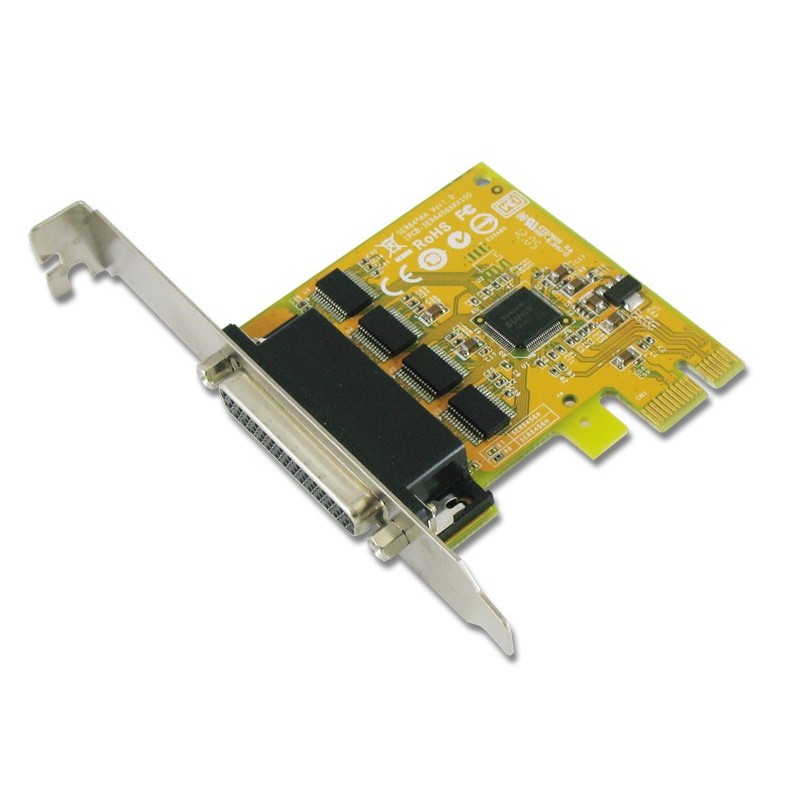

4-port RS-232 High Speed PCI Express Card
SER6456H
เพิ่มพอร์ต Serial 4 port ให้กับเครื่อง PC ติดตั้งบน PCI Express ได้ทั้งแบบ x1, x2, x4, x8 และ x16 รองรับทั้ง Windows 8, 7, Vista, XP, 2000, 2003, 2008 และ Linux
รับประกัน 3 ปีเต็ม
Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด
SUNIX SER6456H, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add four serial ports to their system, allowing them to use serial devices further. SUNIX SER6456H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2410 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features
- Expands 4 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
General
| Interface | RS-232 |
| Controller | SUNIX SUN2410 (16C950 UART Compatible) |
| BUS | PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO | Assigned by System |
Serial Communication
| Interface | RS-232 |
| No. of Port | 4-port |
| FIFO | 128byte Hardware |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate | 50bps ~ 921.6Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB Connector | DB44 Female |
Driver Support
| Microsoft Client | XP/Vista/7/ 8 (X86/X64) |
| Microsoft Server | 2000/2003/2008 / 2008R2 / 2012 (X86/X64) |
| Microsoft Embedded | Windows CE4.2/5.0/6.0 XP Embedded / POS Ready 2009 / Embedded System |
| Linux | Linux 2.4.x/2.6.x/3.x |
| DOS | DOS |
| FreeBSD | FreeBSD 5.3~5.5 / 6.0~6.4 |
| QNX | QNX 6.3.2/6.4.0 |
Regulatory Approvals
| Hardware | CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software | Microsoft WHQL Windows Microsoft Client: XP / Vista / 7 / 8 (X86/X64) Microsoft Server: 2000 / 2003 / 2008 / 2012 (X86/X64) |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 65 x 69 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
