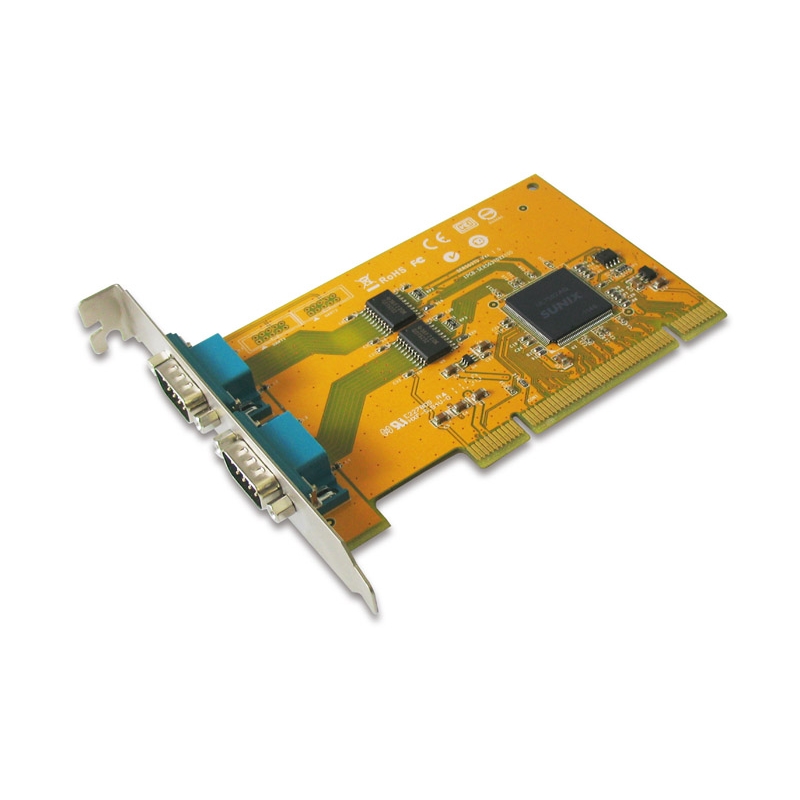

2-port RS-232 Universal PCI Serial Remap Board

2-port RS-232 Universal PCI Serial Remap Board

SER5037D

SUNIX SER5037D, Universal PCI serial communication board, allows users to add or expand dual RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด


 Spec sheet

 Manual

SUNIX SER5037D, Universal PCI serial communication board, allows users to add or expand dual RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5037D card has 32-bytes onboard FIFO buffer and compatible with 16C650 UART specification. Besides users can remap to legacy ISA address 2E8, 3E8, 2F8, 3F8 address under DOS and Win9x/NT O.S. SUNIX GoldenIO card series is designed with SUNIX UART controller, UL7512EQ and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

  • Expands 2 independent RS-232 serial port with communication speeds up to 115.2Kbps.
  • High speed SUNIX UL7512EQ 16C650 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver 2.2 & 2.1 specification.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 2KV ESD protection for all serial signals.
  • Supports legacy ISA address 2E8, 3E8, 2F8, 3F8 mapping under DOS and Win9x/NT OS.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WQHL approval. ( ข้อมูลเพิ่มเติม)
  • Support Microsoft Windows, Linux, and DOS.

Note:
Because of PCI plug-n-play rule and Windows operation system limitation, remap function can NOT run under Windows 2000, XP, 2003, Vista, 7, 2008 and 8. Users can remap to legacy ISA address 2E8, 3E8, 2F8, 3F8 address under DOS, and Win9x/NT O.S only.

Specifications

Serial Communication

Interface RS-232
Controller SUNIX UL7512EQ BiXi (16C650 UART Compatible)
BUS Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 2port
IRQ & IO Assigned by System
FIFO 32byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±2KV ESD protection for each signal Human Body Model (HBM)
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 78 mm
Bracket Standard 121mm
Bracket Space 1

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL) icon_download.jpg
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
