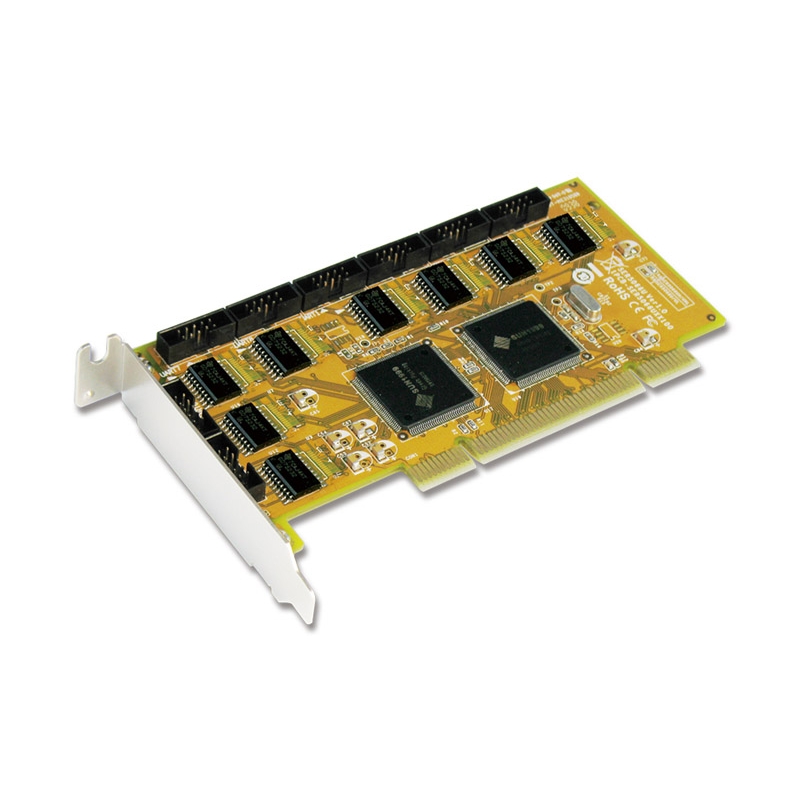

8-port RS-232 Universal PCI Serial Embedded Type Low Profile Board

8-port RS-232 Universal PCI Serial Embedded Type Low Profile Board

Name: 8-port RS-232 Universal PCI Serial Embedded Type Low Profile Board
Brand: Sunix
SKU: SER5066UL

รุ่น SER5066UL

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน

ส่งให้เพื่อน

8-port RS-232 Universal PCI Serial Embedded Type Low Profile Board

SUNIX SER5066UL, Universal PCI serial communication board, allows users to add or expand eight RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด

Spec sheet

Manual

SUNIX SER5066UL, Universal PCI serial communication board, allows users to add or expand eight RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5066UL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

Expands 8 independent RS-232 serial port with communication speeds up to 115.2Kbps.
High reliability SUN1999 16C950 compatible UART controller on-board.
Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
Ideal for embedded computing applications.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 2KV ESD protection for all serial signals.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Low profile bracket design idea for slim or portable PC.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval. ( ข้อมูลเพิ่มเติม)
Support Microsoft Windows, Linux, and DOS.

Download Driver

Driver	SUN1999Driver V9.2.2.0(WHQL)
Version	V9.2.2.0
Update	2021-01-05 09:27:46
Size	9.4MB
OS	Windows 10 20H2 (20H2) 32/64 bit Windows 10 20H1 (2004) 32/64 bit Windows 10 19H2 (1909) 32/64 bit Windows 10 19H1 (1903) 32/64 bit Windows 10 RS5 (1809) 32/64 bit Windows 10 RS4 (1803) 32/64 bit Windows 10 RS3 (1709) 32/64 bit Windows 10 RS2 (1703) 32/64 bit Windows 10 RS1 (1607) 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows 10 Enterprise 2019 LTSC 32/64 bit Windows 10 Enterprise 2016 LTSB 32/64 bit Windows 10 S 32/64 bit
