1-port RS-232 PCI Express Board

1-port RS-232 PCI Express Board

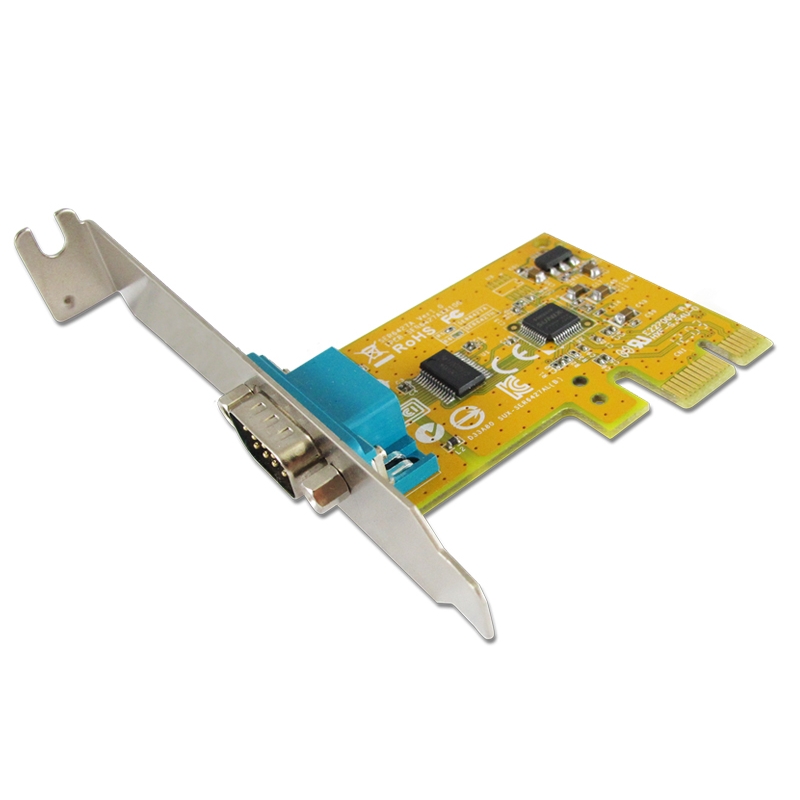

Name: 1-port RS-232 PCI Express Board
Brand: Sunix
SKU: SER6427A

รุ่น SER6427A

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน

ส่งให้เพื่อน

1-port RS-232 PCI Express Board

SUNIX SER6427A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด

Spec sheet

Manual

SUNIX SER6427A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add one serial port to their system, allowing them to use serial devices further. SUNIX SER6427A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2212 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

Expands one independent RS-232 serial port with communication speeds up to 115.2Kbps.
With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
Designed to meet PCI Express Base Specification Revision 2.0.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval. ( ข้อมูลเพิ่มเติม)
Support Microsoft Windows, Linux, and DOS.

Specifications

General

Interface	RS-232
Controller	SUNIX SUN2212 (16C950 UART Compatible)
BUS	PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO	Assigned by System

Serial Communication

Interface	RS-232
No. of Port	1-port
FIFO	128byte Hardware
Signal	DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate	50bps ~ 115.2Kbps
Stop bit	1, 1.5, 2
Parity	even, odd, none, mark, space
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge
PCB Connector	DB9 Male

Driver Support

Windows Client	XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server	2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded	XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux	Linux 2.x / 3.x / 4.x / 5.3
DOS	DOS
*UNIX	FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2	WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware	CE, FCC, VCCI, BSMI
Software	Microsoft WHQL Windows Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension	65 x 52 mm
Bracket	Standard 121 mm
Bracket Space	1

Download Driver

Driver	SUN1999Driver V9.2.2.0(WHQL)
Version	V9.2.2.0
Update	2021-01-05 09:27:46
Size	9.4MB
OS	Windows 10 20H2 (20H2) 32/64 bit Windows 10 20H1 (2004) 32/64 bit Windows 10 19H2 (1909) 32/64 bit Windows 10 19H1 (1903) 32/64 bit Windows 10 RS5 (1809) 32/64 bit Windows 10 RS4 (1803) 32/64 bit Windows 10 RS3 (1709) 32/64 bit Windows 10 RS2 (1703) 32/64 bit Windows 10 RS1 (1607) 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows 10 Enterprise 2019 LTSC 32/64 bit Windows 10 Enterprise 2016 LTSB 32/64 bit Windows 10 S 32/64 bit
