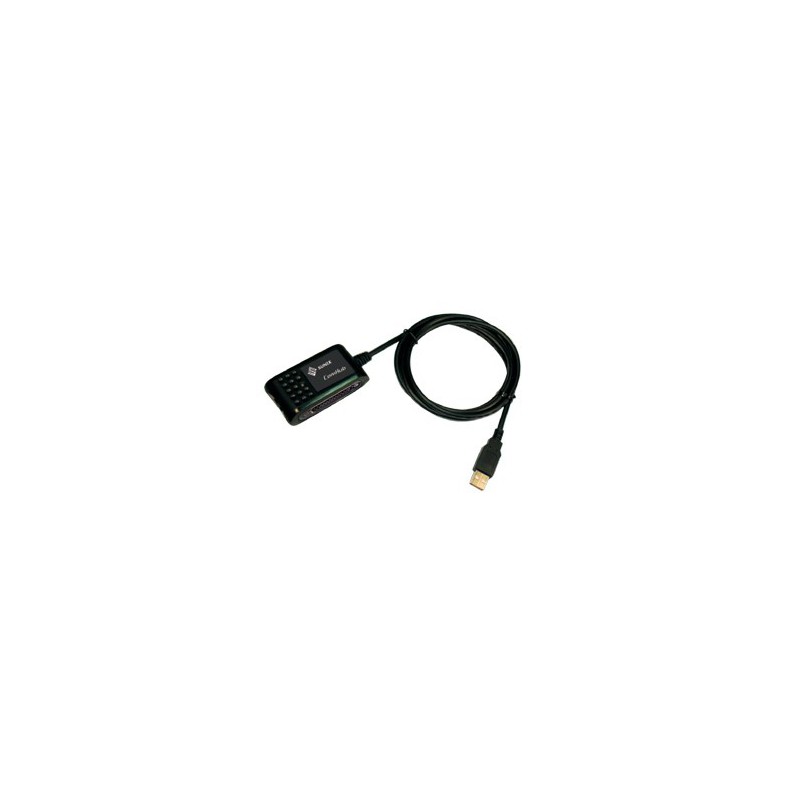

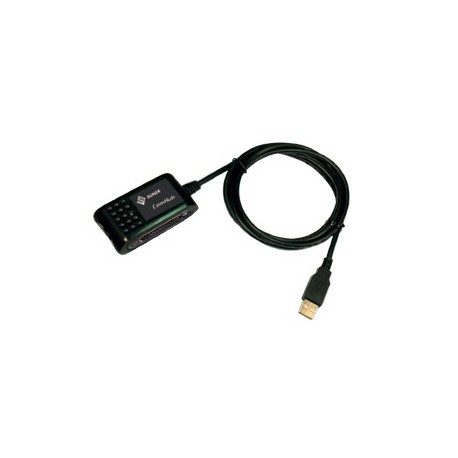

USB to 1 port Serial / 1 port Parallel Adapter
UTM1925B
เพิ่มพอร์ตสำหรับเชื่อมต่ออุปกรณ์ RS-232 Serial และ 1 port Parallel Adapter
สินค้าตกรุ่น
แนะนำสินค้าทดแทน : UTM1925C
รับประกัน 3 ปีเต็ม
Sunix's UTM1925B offers user the ability to connect a serial device and a parallel device simultaneously. The UTM1925B only require one USB port for connection of two devices, therefore free up your other USB port for more connection. The serial port provides data transfer speed up to 115 Kbps and the parallel port gives you 2.7 MB/sec speed. The adapter is versatile that you can use it on desktop or laptop.
FEATURES
- Compatible with USB 2.0 and 1.1
- Supports wake-on-line & power management function
- No IRQ, DMA, I/O Address resources required
- Dual data buffers for upstream and downstream data flow
- Hot swappable
- Easy plug & play
- Serial high speed transfer up to 115 Kbps
- Parallel port support SPP mode
- Parallel transfer speed up to 2.7 MB/sec
- Supports Windows O.S.
HARDWARE
| Type | Multi I/O Communication cable |
| Chipset | MOSCHIP MCS7715 |
| Interface | Universal Serial Bus (USB) |
| Mode | Serial: Hand-Shaking / Parallel: SPP |
| UART | 16C550 compatible UART |
| Parallel | IEEE1284C standard compatible |
| Port | Serial 1 Port / Parallel 1 Port |
| Connector | DB9M / DB25F |
| FIFO | 16 byte hardware FIFO |
| BAUD Rate | Serial: 115 Kbps / Parallel: 2.7 MB/s |
| OS Support | Windows 98SE/ ME/ 2000/ XP/ 2003/Vista/7/CE, Linux /8 |
