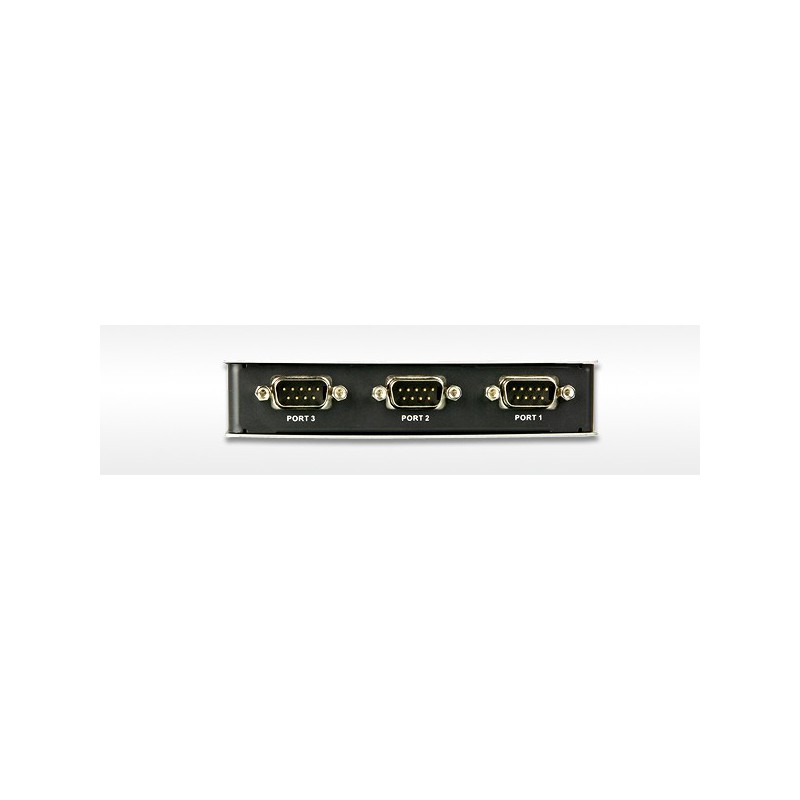

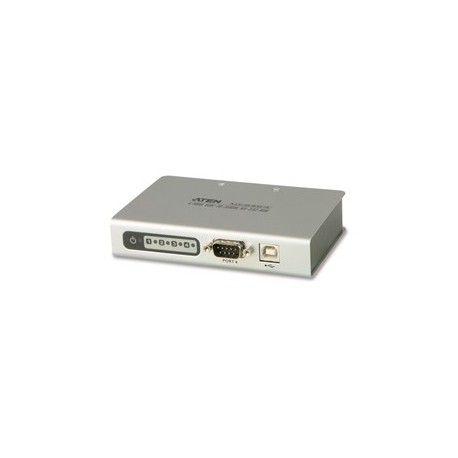

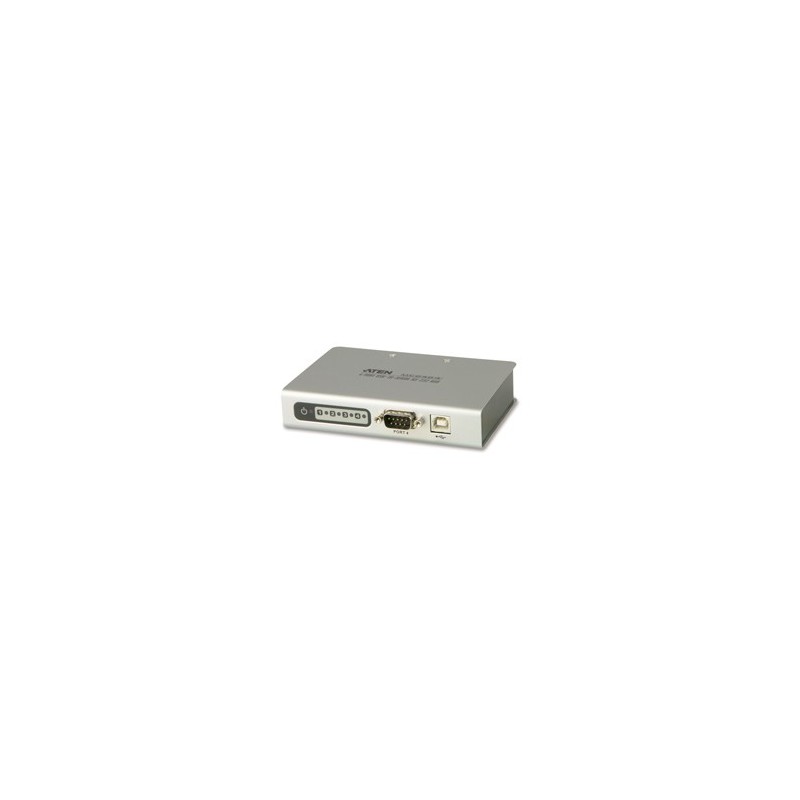

UC2324
USB to Serial RS232 x4 port
USB 2.0 compatible Hot-swap / Plug-and-Play

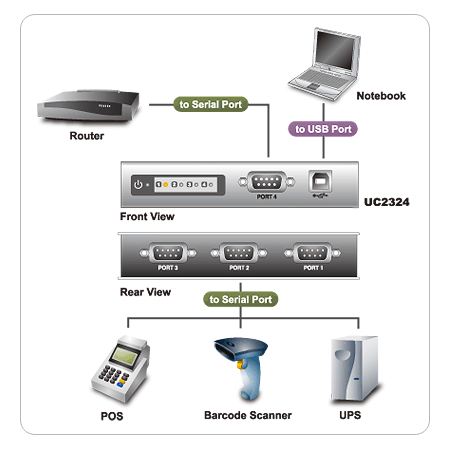

ต่ออุปกรณ์ serial ต่างๆด้วยพอร์ต USB ช่องเดียว ไม่ต้องใช้ Power-Adapter
อุปกรณ์ในชุดประกอบด้วย

| Function | UC2322 | UC2324 | |
| Device Connections | 2 | 4 | |
| Connectors | USB | 1 x USB Type B Female (White) | |
| Serial | 2 x DB-9 Male (Black) | 4 x DB-9 Male (Black) | |
| Power | 1 x DC Jack | ||
| LDEs | Port Status | 2 (Green) | 4 (Green) |
| Power | 1 (Orange) | ||
| Data Transfer Rate | 115.2 Kbps (max.) | ||
| FIFO | 16 byte Hardware FIFO | ||
| USB Specification | USB 1.1 Compliant; USB 2.0 Compatible | ||
| RS-232 Signal | TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND | ||
| Data Bit | 5, 6, 7, 8 | ||
| Stop Bit | 1, 1.5, 2 | ||
| Power Mode | Bus Powered; use of Power Adapter is optional | ||
| Power consumption | 0.5W | 0.6W | |
| Environment | Operating Temp. | 0-50˚C | |
| Storage Temp. | -20-60˚C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties |
Housing | Metal | |
| Weight | 0.30 kg | 0.32 kg | |
| Dimensions ( L x W x H ) |
12.50 x 8.15 x 2.50 cm | ||
ตัวแปลงพอร์ตเชื่อมต่อ USB เป็น RS-232 (COM port) สำหรับต่ออุปกรณ์ serial ต่างๆ
