UC232C
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

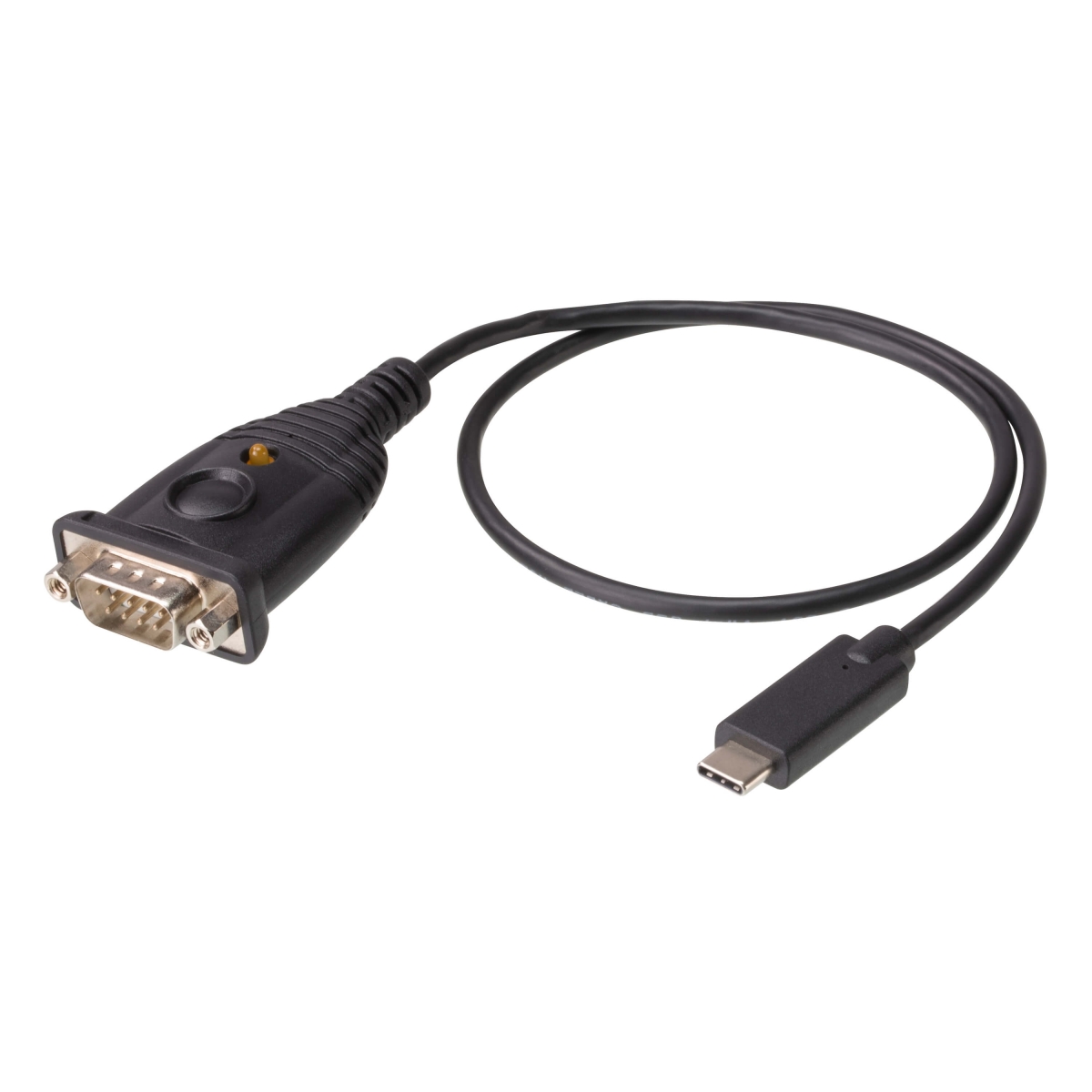

USB-C to RS-232 Adapter
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

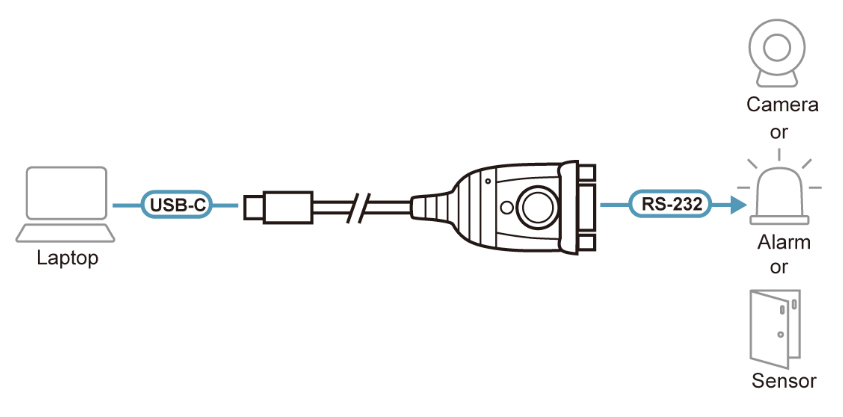

UC232C คือ อุปกรณ์แปลง USB-C เป็น RS-232 ช่วยให้เชื่อมต่ออุปกรณ์ serial ผ่าน laptops / PCs ที่ไม่มี port COM หรือช่อง DB-9 serial รองรับการใช้งานร่วมกับระบบปฏิบัติการทั้ง Windows และ Mac ส่งถ่ายข้อมูลด้วยความเร็ว 921.6 Kbps, เหมาะสำหรับการใช้งานใน ระบบทางอุตสาหกรรมอัตโนมัติ, เครื่องมือทางวิทยาศาสตร์, ระบบจุดขาย, และการใช้งานเฉพาะทางอุตสาหกรรมและผู้บริโภค.

| Connectors | |
| USB Port | 1 x USB Type C Male |
| Serial | 1 x DB-9 Male |
| Data Rate | Up to 921.6 Kbps |
| Cable Length | 45cm |
| LEDs | Power (Orange) |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0–40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 6.59 x 3.40 x 1.60 cm (2.59 x 1.34 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Option | USB to RS-232 Adapter (FTDI) | USB to RS-232 Adapter (35cm) | 1M USB to RS-232 Converter | USB-C to RS-232 Adapter |
|---|---|---|---|---|
| Number of Device Port | 1 | 1 | 1 | 1 |
| Input Interface | USB Type-A | USB Type-A | USB Type-A | USB Type-C |
| Output Interface | RS-232 | RS-232 | RS-232 | RS-232 |
| Data Transfer Rate | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps |
| Legacy OS | ✔ | N/A | N/A | N/A |
| Cable Length | 1.2 m | 0.35 m | 1 m | 0.45 m |
| USB Standard | 2.0 | 2.0 | 2.0 | 2.0 |
*หมายเหตุ: รุ่นที่ใช้ชิป FTDI จะให้การส่งสัญญาณที่ดีกว่าบน Windows OS รุ่นเก่า (Windows XP, 7, 8, 8.1)
