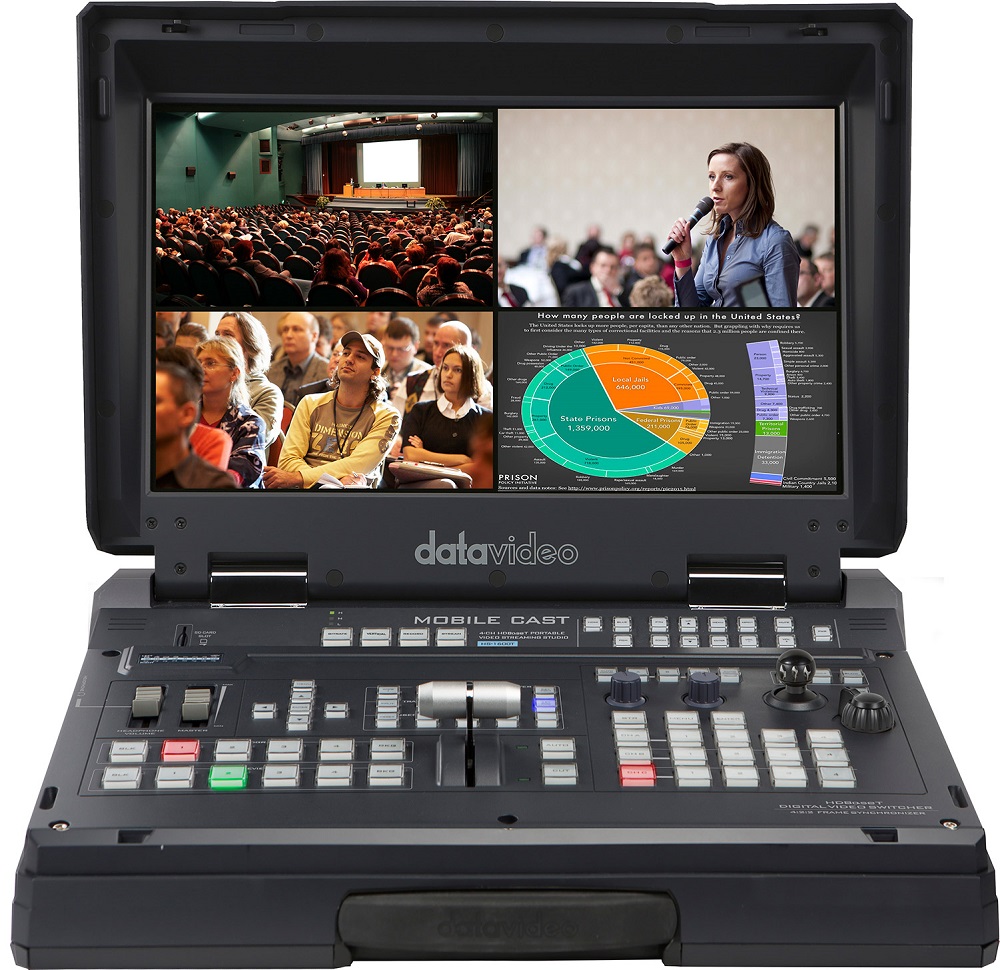

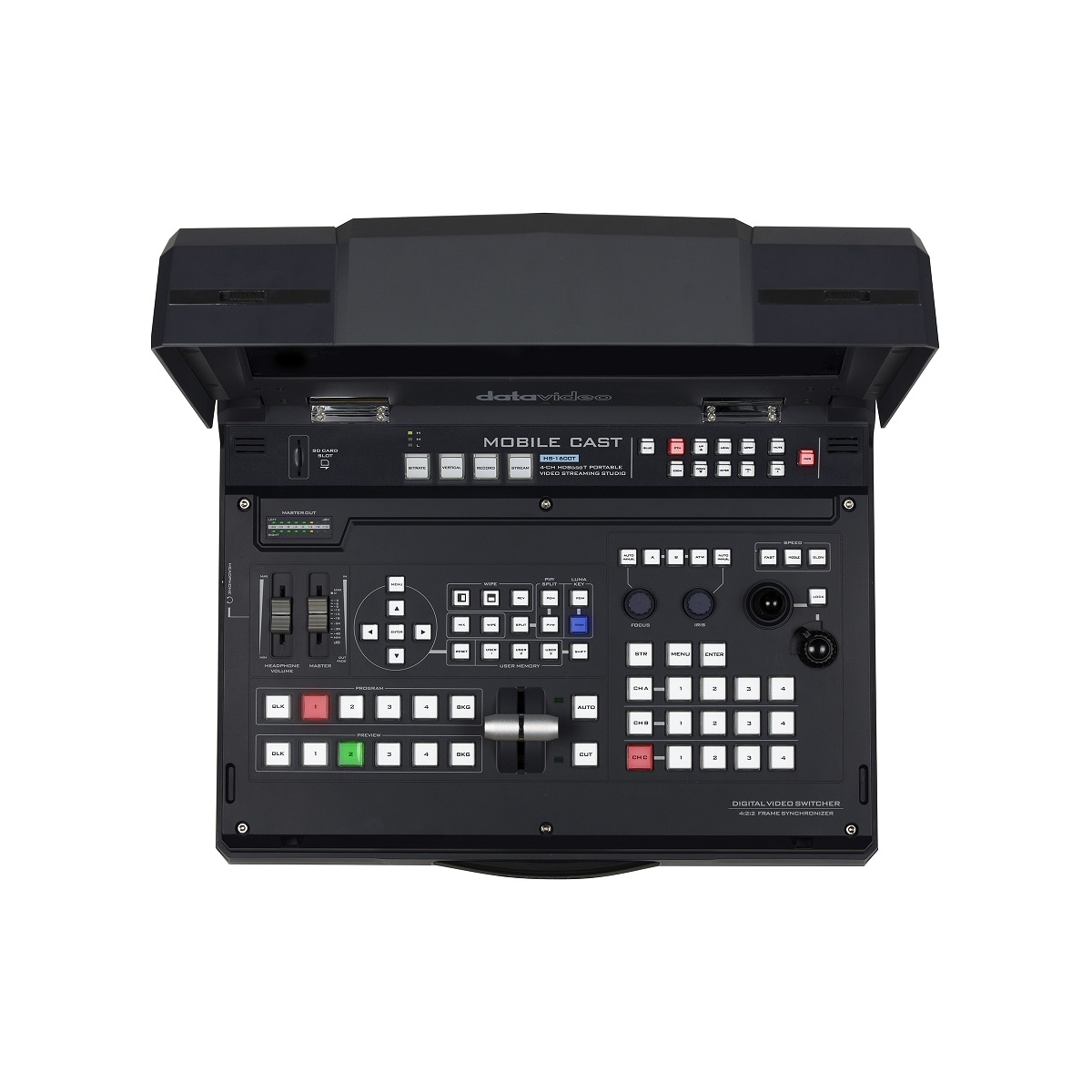

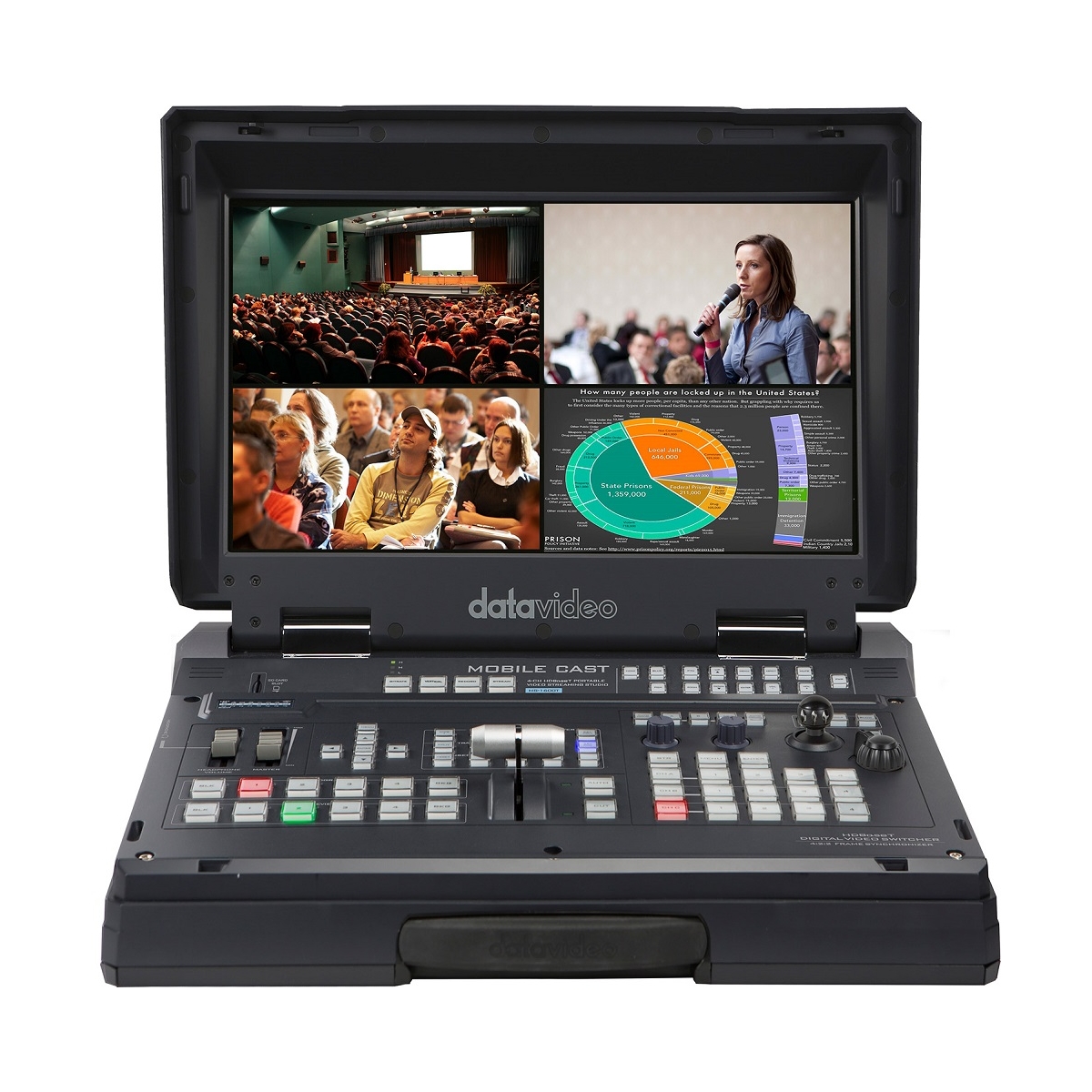

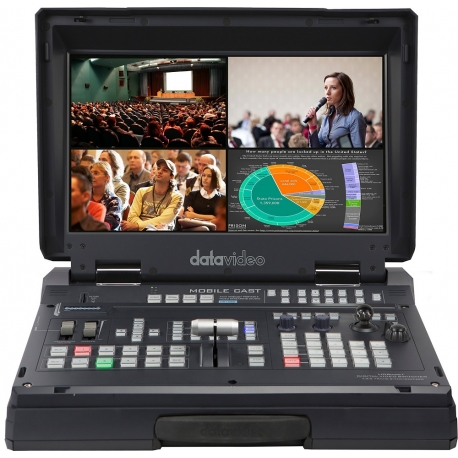

4-Channel HD/SD HDBaseT Portable Video Streaming Studio
HS-1600T Mark II
Mobile Switcher สวิทช์เชอร์แบบพกพา 4 video inputs ที่รองรับ HDBaseT , Video Sampling in 4:4:4 10-bit
Manual
Made for mobility. Made for the web.
The HS-1600T MARK II brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.
Variety of video (4:4:4 10-bit) and audio inputs/outputs

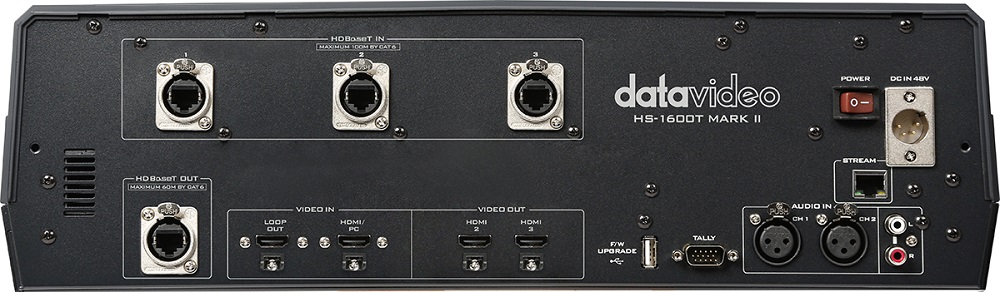

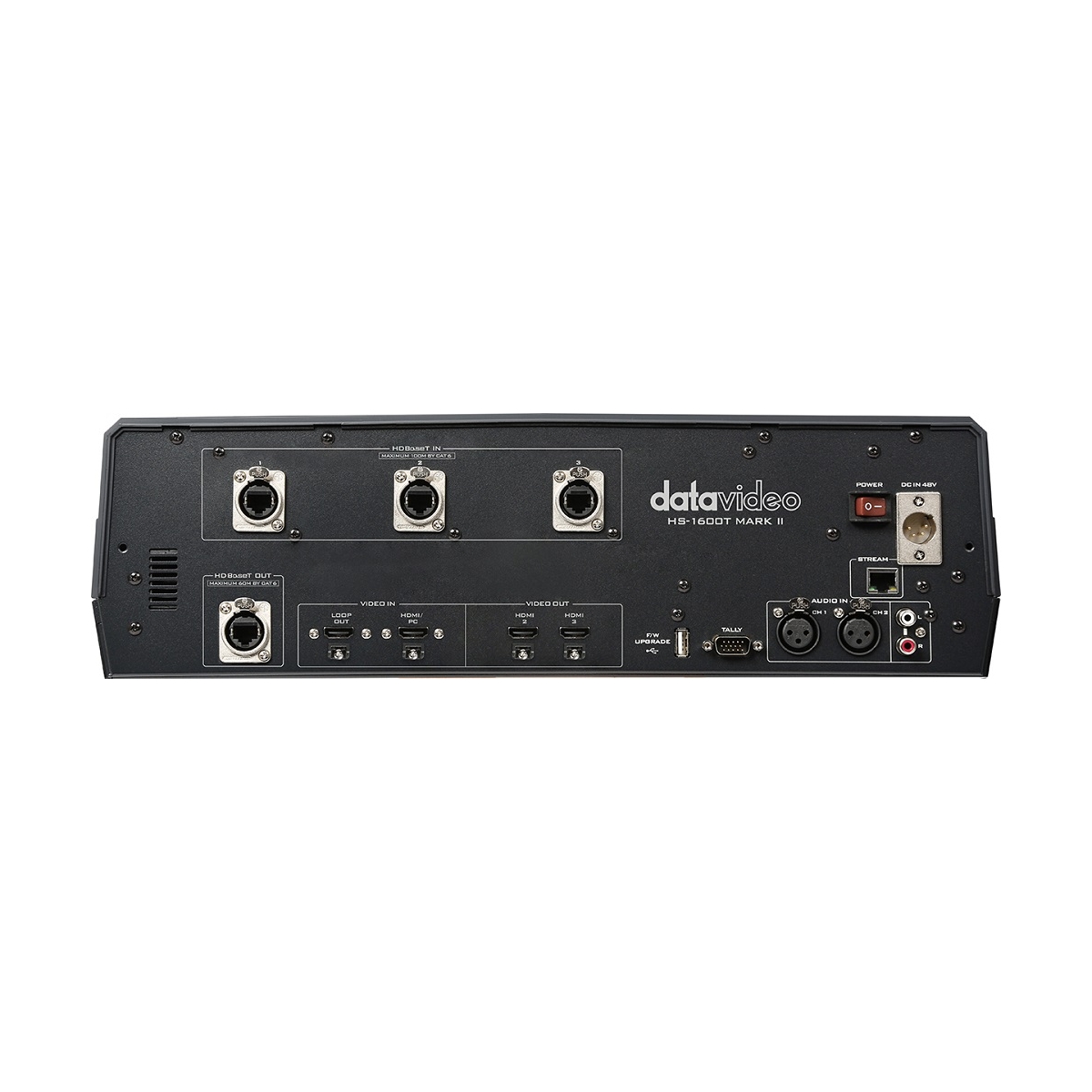

4 video inputs (RJ-45 x 3 + HDMI x 1) and 4 video (HDMI x 3)+HDBaseT outputs
Video Sampling in 4:4:4 10-bit
Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2

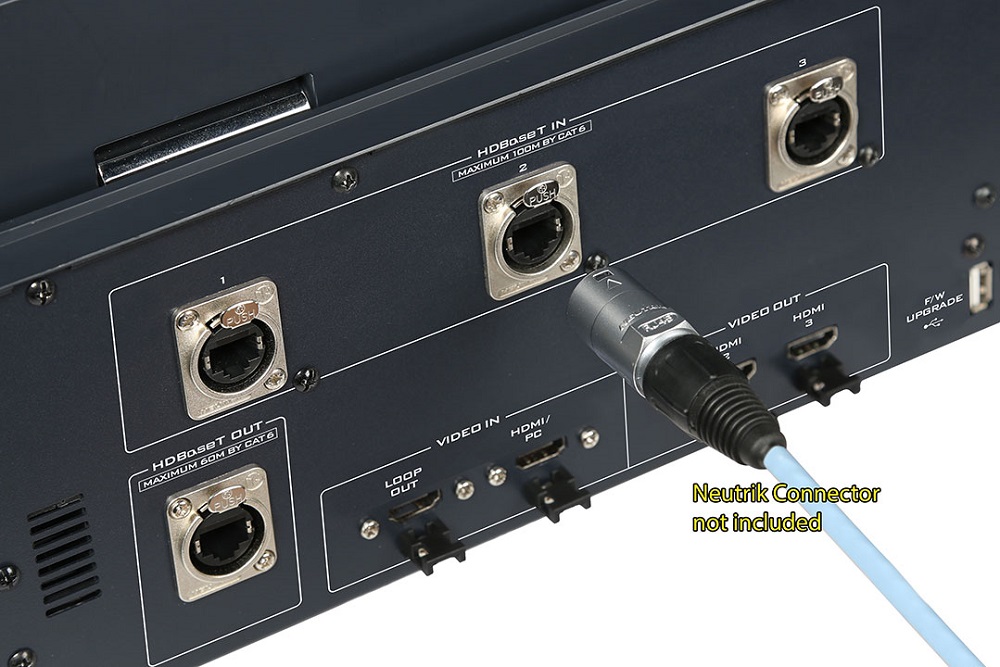

Made with HDBaseT Technology
Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T MARK II is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)

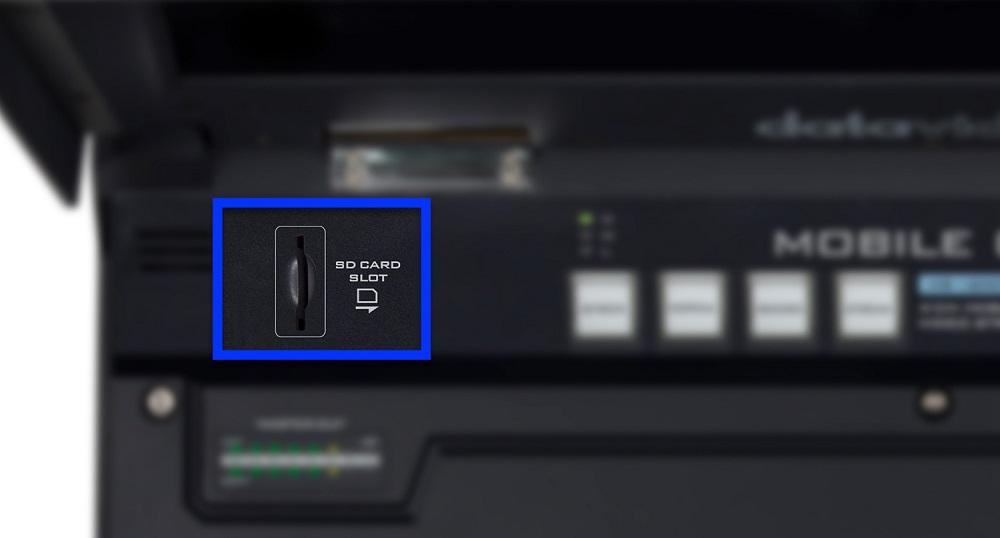

Built-in H.264 recorder for SD cards
The HS-1600T MARK II comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

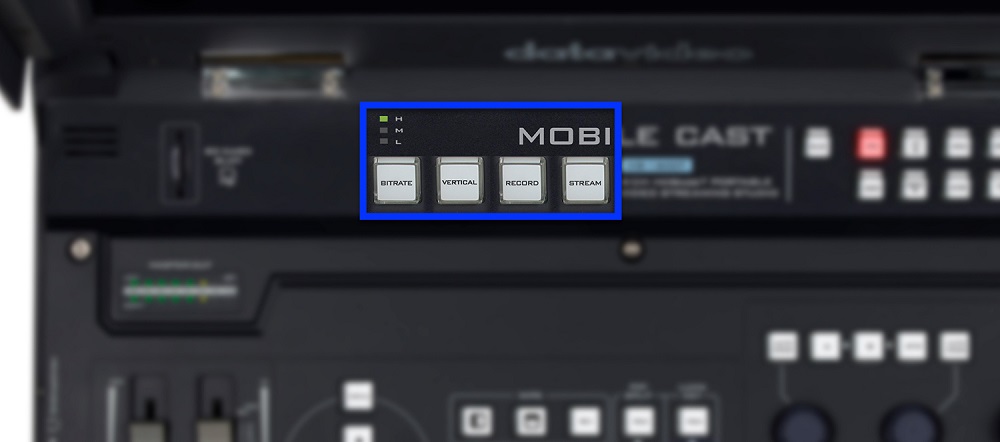

Dual Stream encoder to Facebook Live, YouTube, Twitch, and more
With the built-in H.264 streaming encoder, you can stream your show to two different streaming plateforms virtually any CDN including Facebook, YouTube or Twitch in no time.

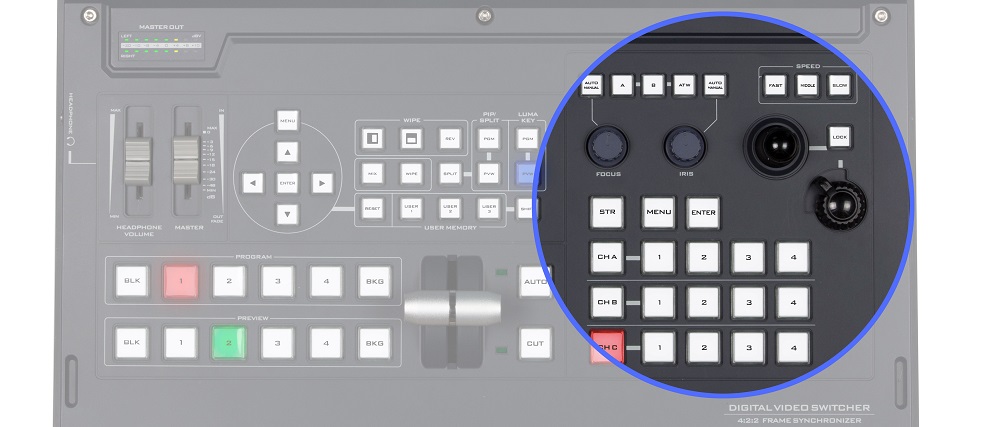

Built-in camera control.
The HS-1600T MARK II's next generation design saves you time, money, and table space with its built-in camera control interface for up to 3 Datavideo PTZ cameras. (Works with PTC-140T and PTC-150TL)

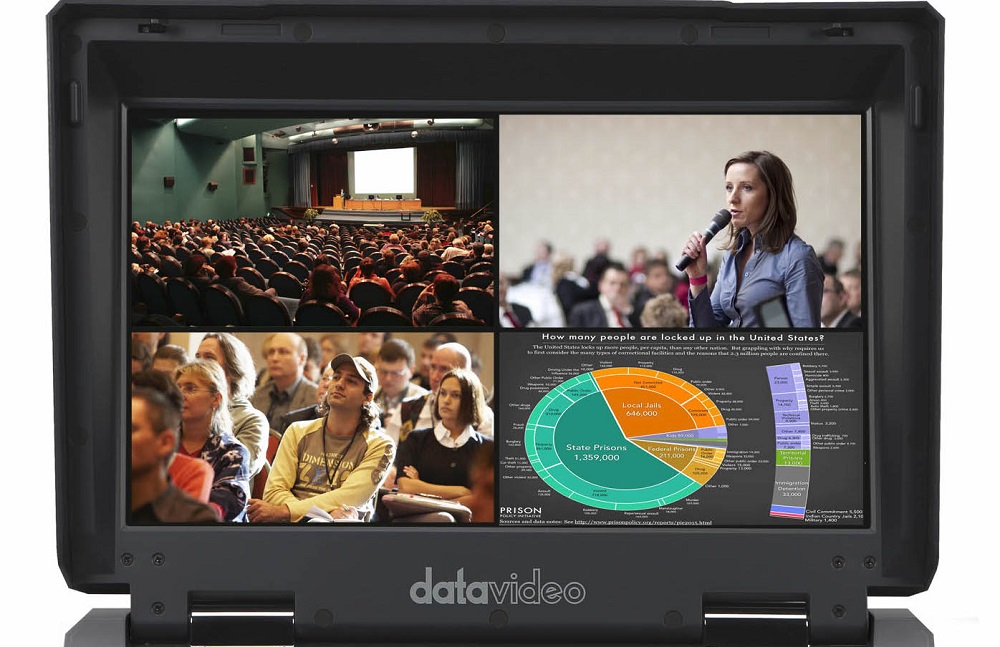

17.3'' LED Backlit Monitor
Built-in Monitor Display. 17.3” HD TFT LED backlit monitor with resolution 1920x1080 pix.
Support SRT streaming protocol, no need to worry about unreliable network environment
Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility. Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently. It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.
Build a reliable SRT live streaming workflow with all Datavideo products.
Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
รายการรุ่นสินค้าที่รองรับ POE ที่ใช้งานร่วมกันได้
ตารางแสดงรุ่นสินค้าที่รองรับ HDBaseT
Specifications
| HS-1600T MKII 4-Channel HD/SD HDBaseT Portable Video Streaming Studio | |
|---|---|
| Video Standard |
HD & SD |
| Video Format |
1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz |
| Input Routable / Crosspoint |
N/A |
| Video Inputs |
3 x HDBaseT 1 x HDMI |
| Computer Graphic Interface |
1 via HDMI |
| Down-converted Output |
Yes |
| Video Outputs |
2 x HDMI PGM 1 x HDBaseT (RJ-45) 1 x Stream Port (RJ-45) |
| Audio Inputs |
2 x Balanced XLR |
| Audio Output |
1x Stereo headphone |
| Digital Embedded Audio Support |
Input 2 channels Output 2 channels |
| Audio Delay Calibration |
N/A |
| A+V Switching |
N/A |
| USK |
1x USK Lumakey support |
| DSK |
N/A |
| Picture in Picture |
1 |
| Logo Insertion |
N/A |
| Built-in Audio Mixer |
4 channels |
| Built-in Monitor Display |
17.3” HD TFT LED Backlit 1920x1080 pixels |
| Built-in Intercom & Tally |
N/A |
| Streaming Video Encode |
H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
| Streaming Audio Encode |
AAC-LC |
| Streaming Protocol |
TS over TCP/UDP (unicast & multicast) |
| Streaming Control |
Web UI for system configuration and control |
| Recording File System |
FAT, exFAT, NTFS |
| Recording File Format |
MP4 |
| Recording Setting Control |
Web UI for system configuration and control |
| Dimension (LxWxH) |
455 x 355 x 134 mm |
| Weight |
17.2 Lbs (7.8 kg), Reinforce Plastic Case |
| Power |
DC 48V, 4.16A |
| Operating Temp. Range |
0~40 °C |
| Optional Accessories |
CB-60/61/62 |
| What's in the Box | |
| Content |
1 x HS-1600T Mark II Product |
