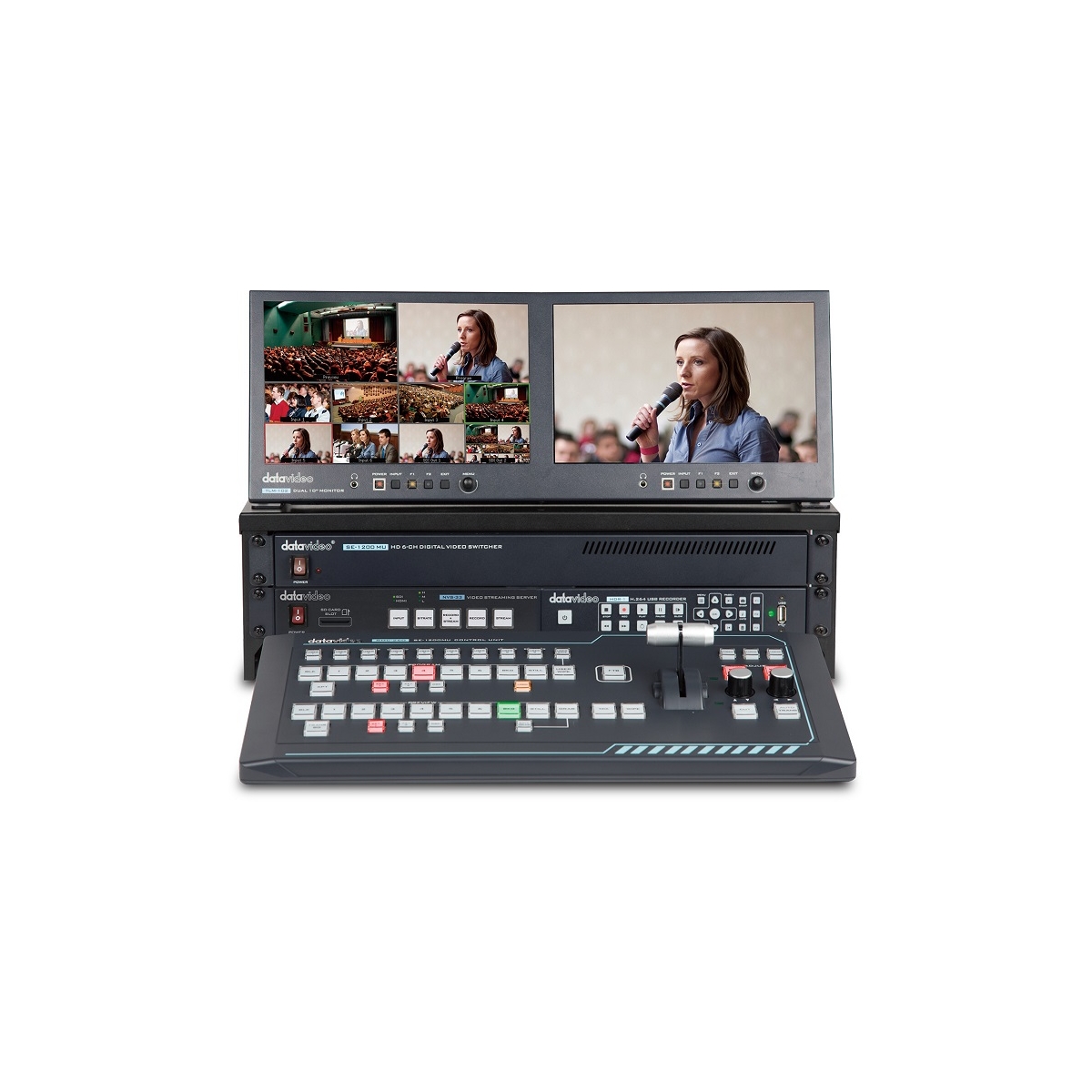

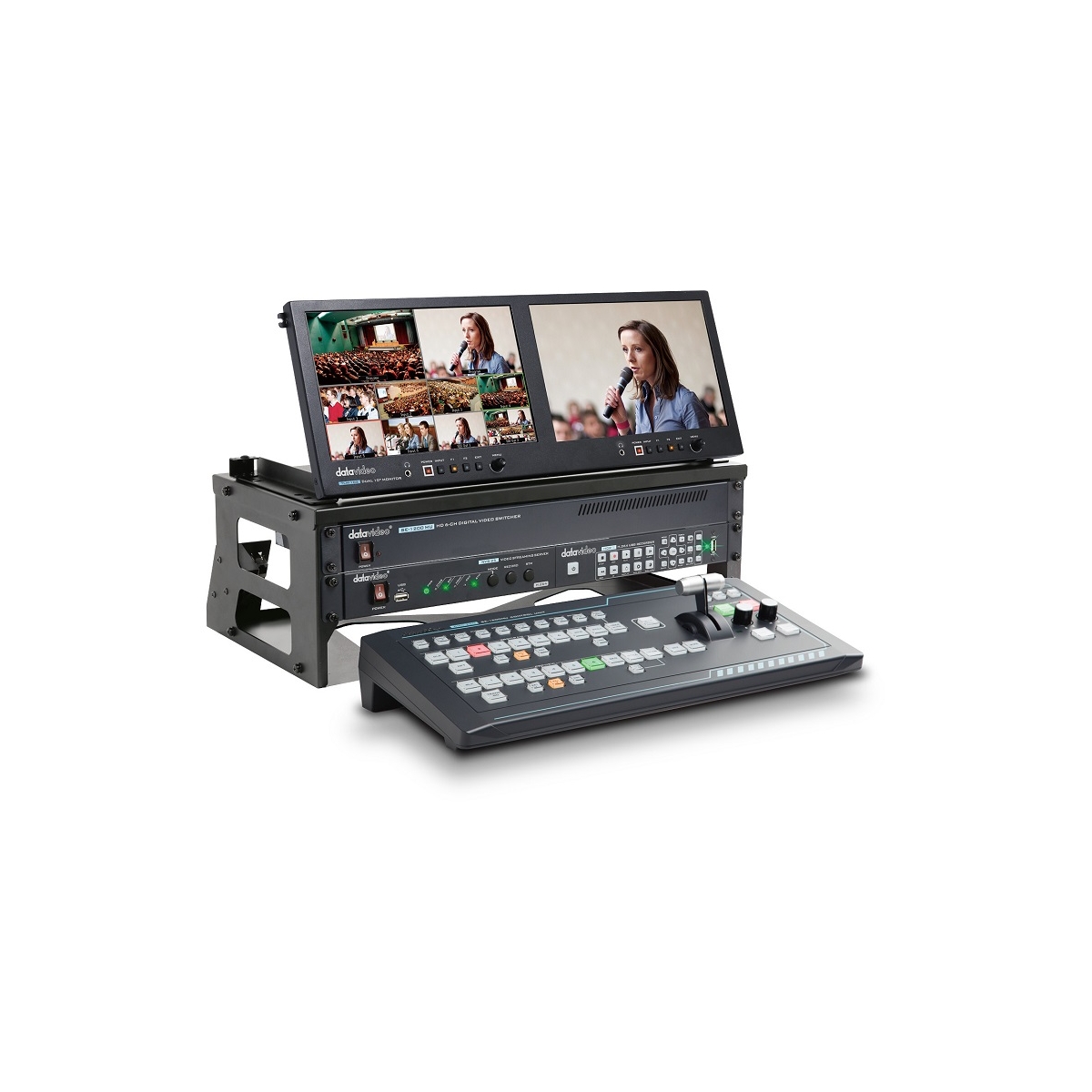

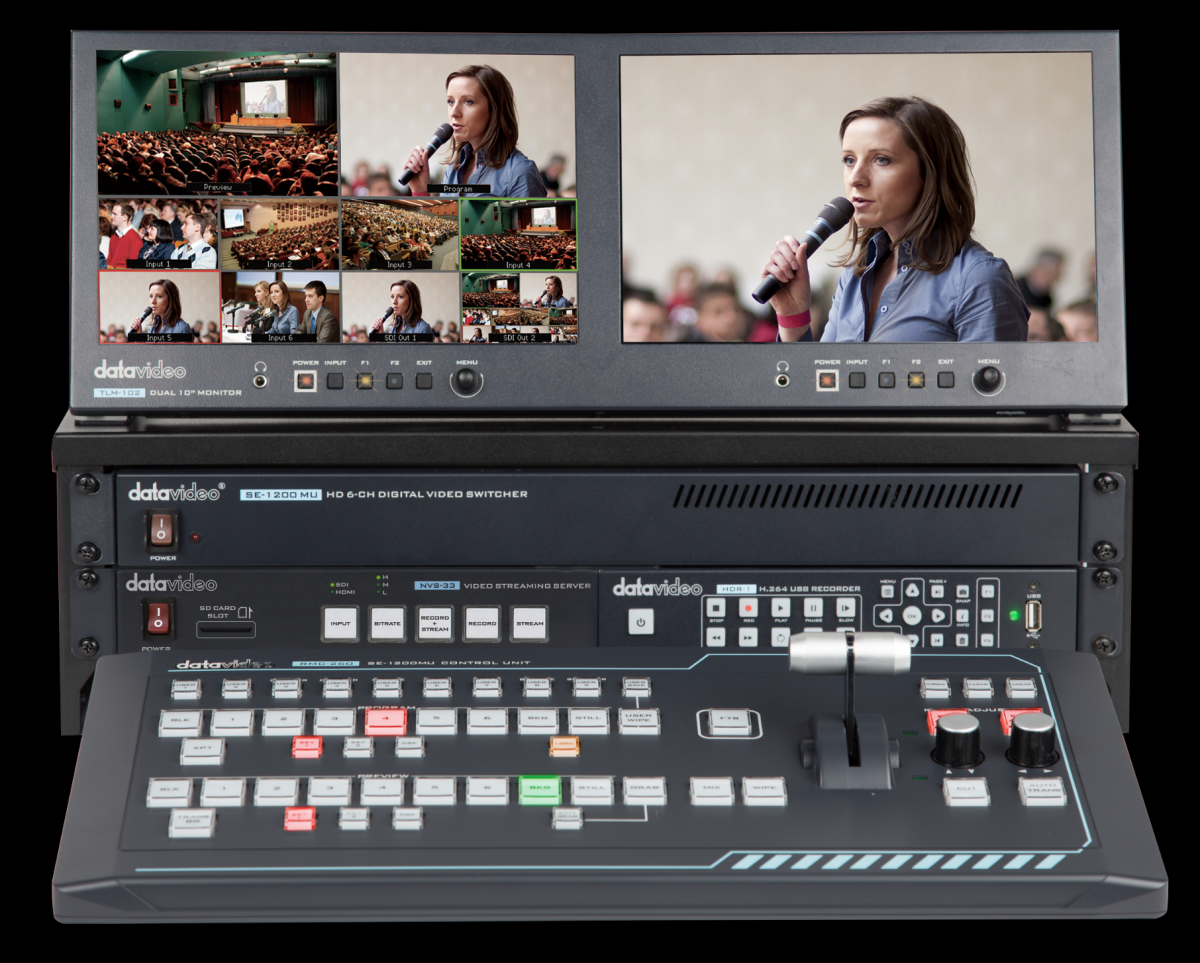

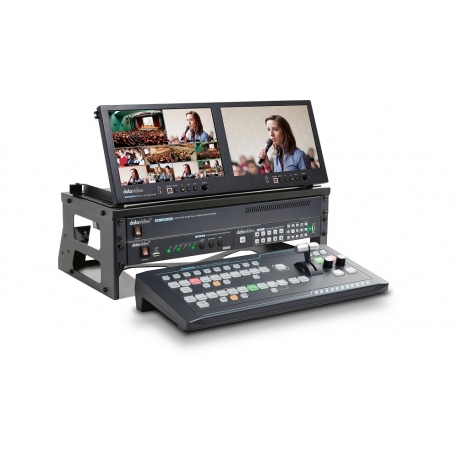

6 Channel HD Portable Video Production Studio
GO 1200 Studio
ชุด HD mobile studio ที่ประกอบไปด้วย 6 CH HD Switcher, Recorder, และ Hardware Streaming ในรูปแบบชุด mobile เคลื่อนย้ายไปใช้งานได้ทุกที่ทุกเวลา
Manual4 in 1 complete medium-sized production solution
Supports 6 channel switching, streaming, recording, and monitoring.
Broadcast-quality video
Advanced features including 2x DSKs and 2x PIPs with dual chromakeyer enhance the overall quality of your video.
Streaming to Facebook Live, YouTube, Twitch, and more
With its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like Facebook, YouTube, Twitch in no time. You can also use Datavideo's own DVS-200 streaming server software to send videos to multple destinations at the same time!

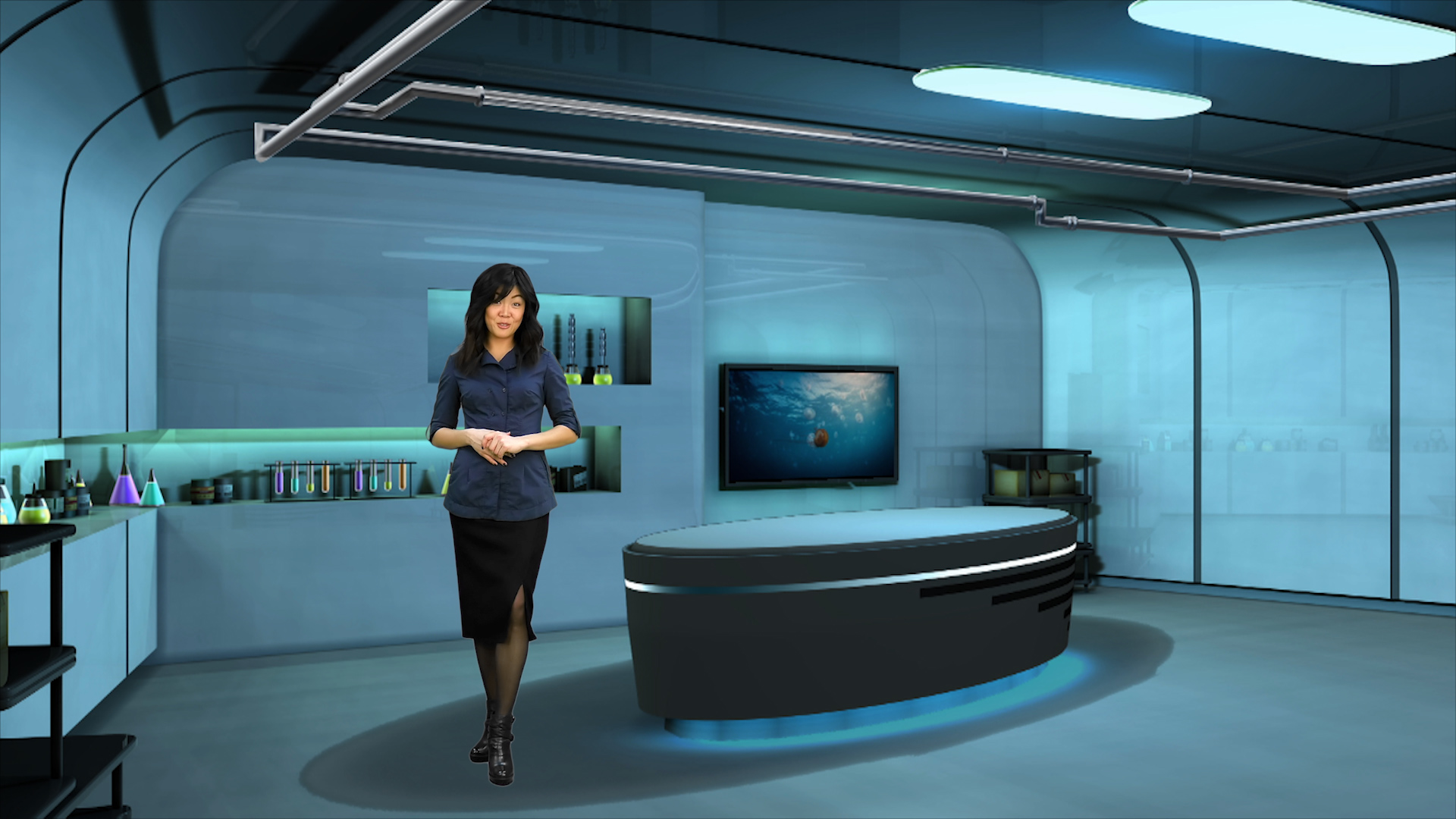

Built-in animations and backgrounds
Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.
Specifications
Switcher
|
Video Standard |
HD |
|
Video Format |
1080i50/59.94/60Hz 720p50/59.94/60Hz |
|
Video Processing |
SDI:4:2:2 HDMI:YUV4:2:2 10bit,RGB:4:4:4 |
|
Video Input |
4x HD-SDI 2x HDMI |
|
Video Output |
1x HDMI |
|
Audio Input |
2x Balanced RCA |
|
Audio Output |
---- |
|
Embedde dAudio Support |
Embedded 2-CH audio otput from XLR input |
|
Chromakey |
2 |
|
USK |
2x USK supports M/E Keyer &P IP |
|
DSK |
2x DSK supports Lumakey & Linearkey (Key/Fill) |
|
Picture in Picture |
1 |
|
Logo Insertion |
---- |
|
Still Store |
500 |
|
Effects |
FTB,Cut,32 Wipe with order |
|
Tally Output |
1x D-sub15pin ,dual color |
|
Built-in Audio Mixer |
---- |
|
Preview Display |
Dual10.1"LCD |
|
Special Features |
Motion JPEG Multi-view streaming(120memorypreset, BGD Transitionon/offoption) Stinger transition |
Streaming
|
Streaming Encode |
H.264/AVC,Main/HighProfile |
|
Streaming Video Bitrate |
Record Only: Up to 16Mbps (1080p50/60) |
|
Streaming Video Rate Mode |
CBR |
|
Streaming Audio Mode |
Stereo/Mono |
|
Streaming Audio Bitrate |
Stereo:64~384Kbps |
|
Streaming Protocols |
TS over TCP/UDP (unicast & multicase) |
|
Network Interface |
1x RJ45 (10/100Mbps Ethernet) |
|
Streaming Recording File Format |
H.264 |
|
Streaming Storage |
SD Card |
Recording
|
Recording Storage Medium |
SD Card |
|
How to Retrieve Recorded Content |
Removable HardDrive, transfer data via USB2.0 |
|
Recording Storage File System |
NTFS,FAT |
|
Recorded FileFormat |
MP4 |
Others
|
Dimension (LxWxH) |
493x253x331(monitor'sup) 493 x 253 x 190 (monitor's down) |
|
Weight |
22kg |
|
Power |
DC12V,83W |
|
Operating Temp.Range |
0~40°C |
|
What's in the Box |
1x GO1200 Studio Product |
