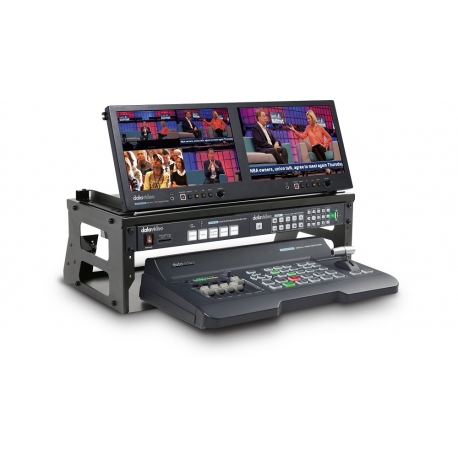

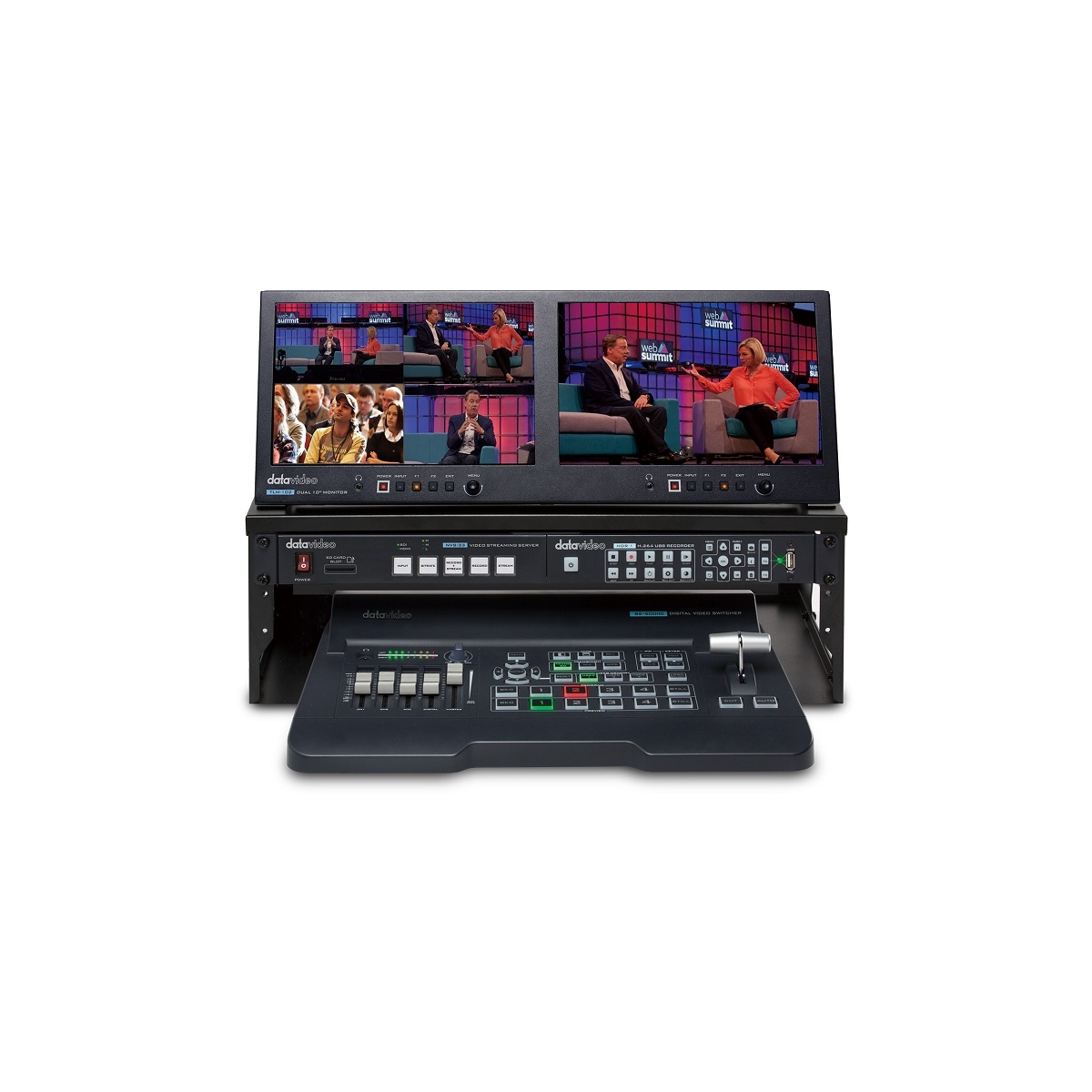

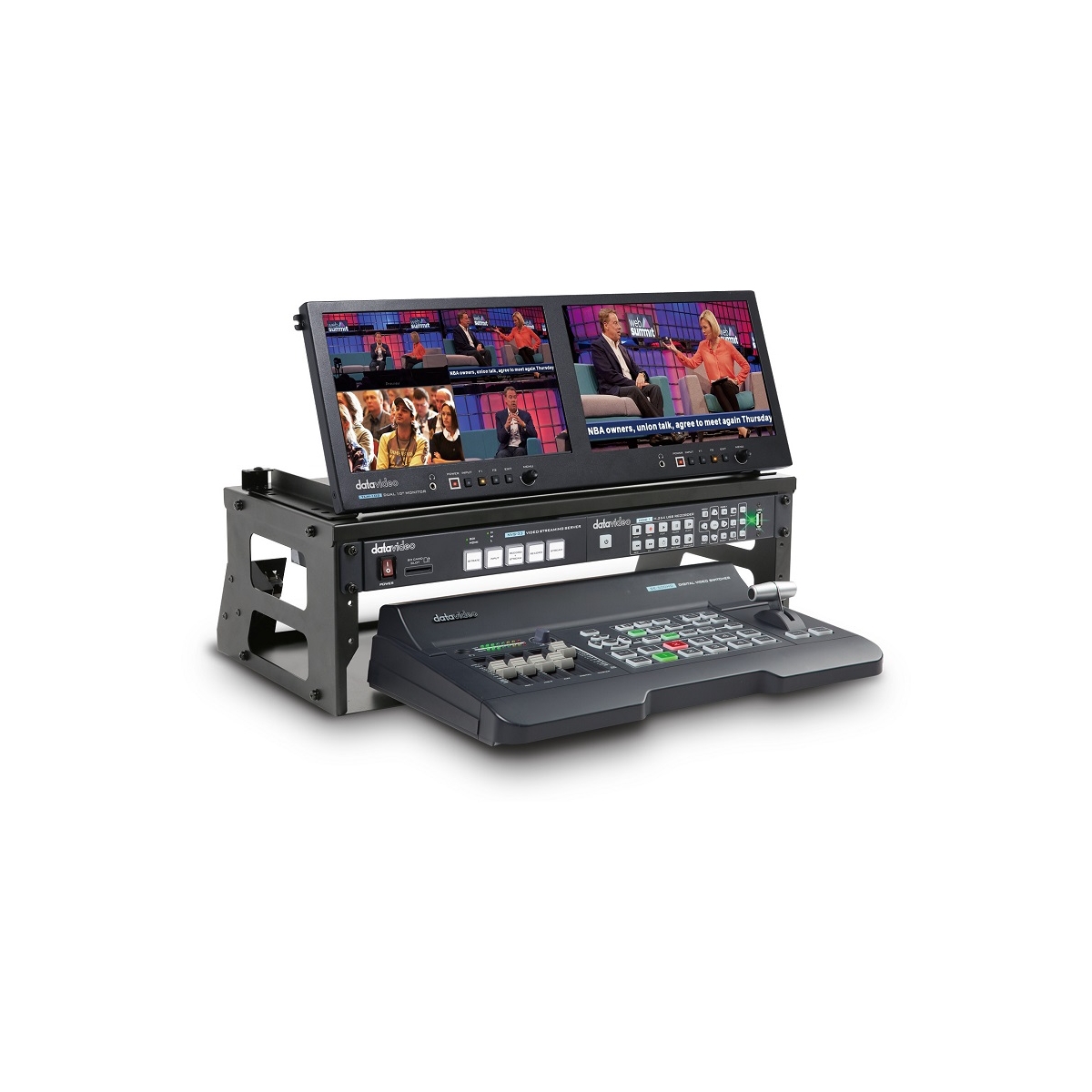

4 Channel HD/SD Portable Video Production Studio
GO 500 Studio

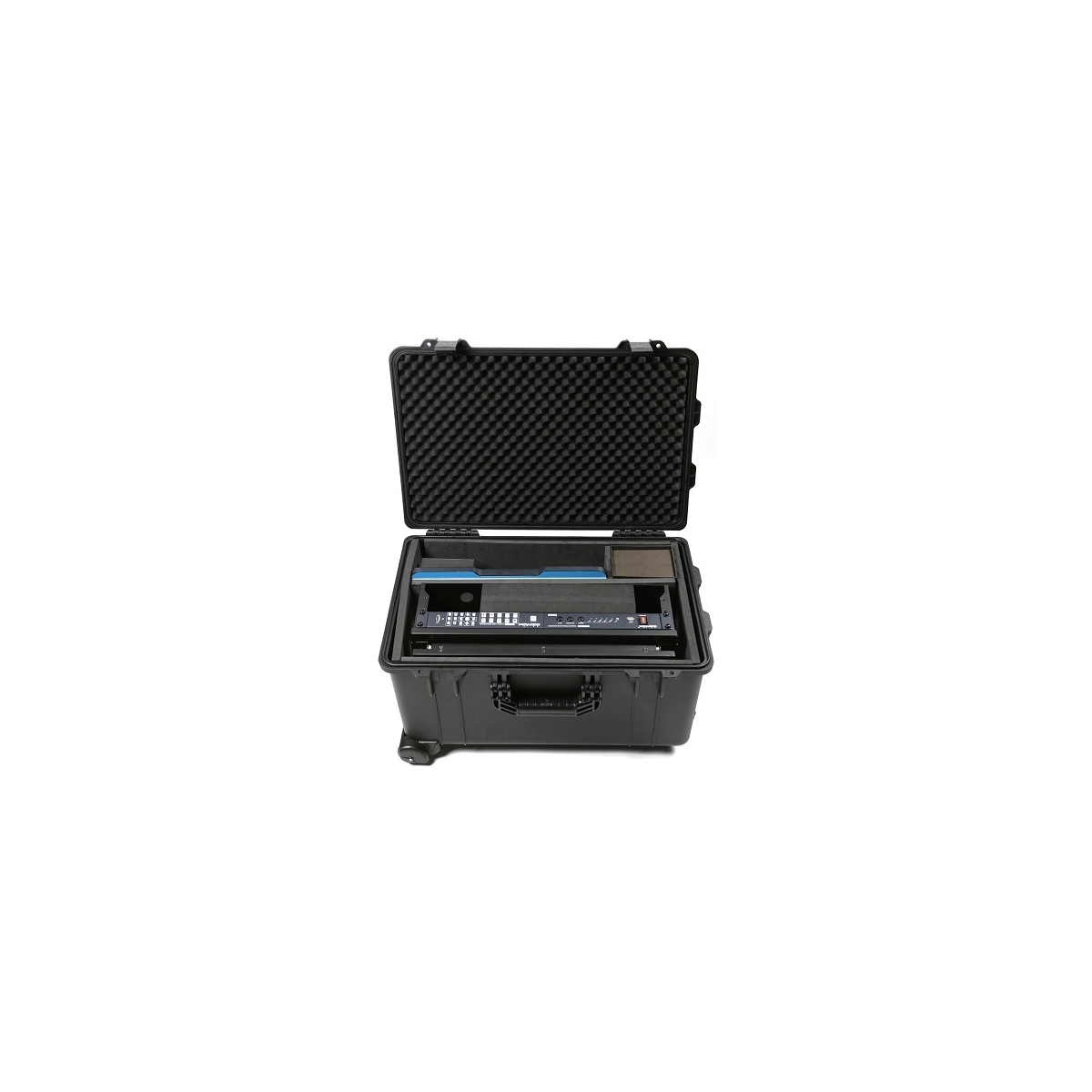

ชุด HD/SD mobile studio ที่ประกอบไปด้วย 4 CH HD Switcher, Recorder, และ Hardware Streaming ในรูปแบบกระเป๋าลาก เคลื่อนย้ายไปใช้งานได้ทุกที่ทุกเวลา

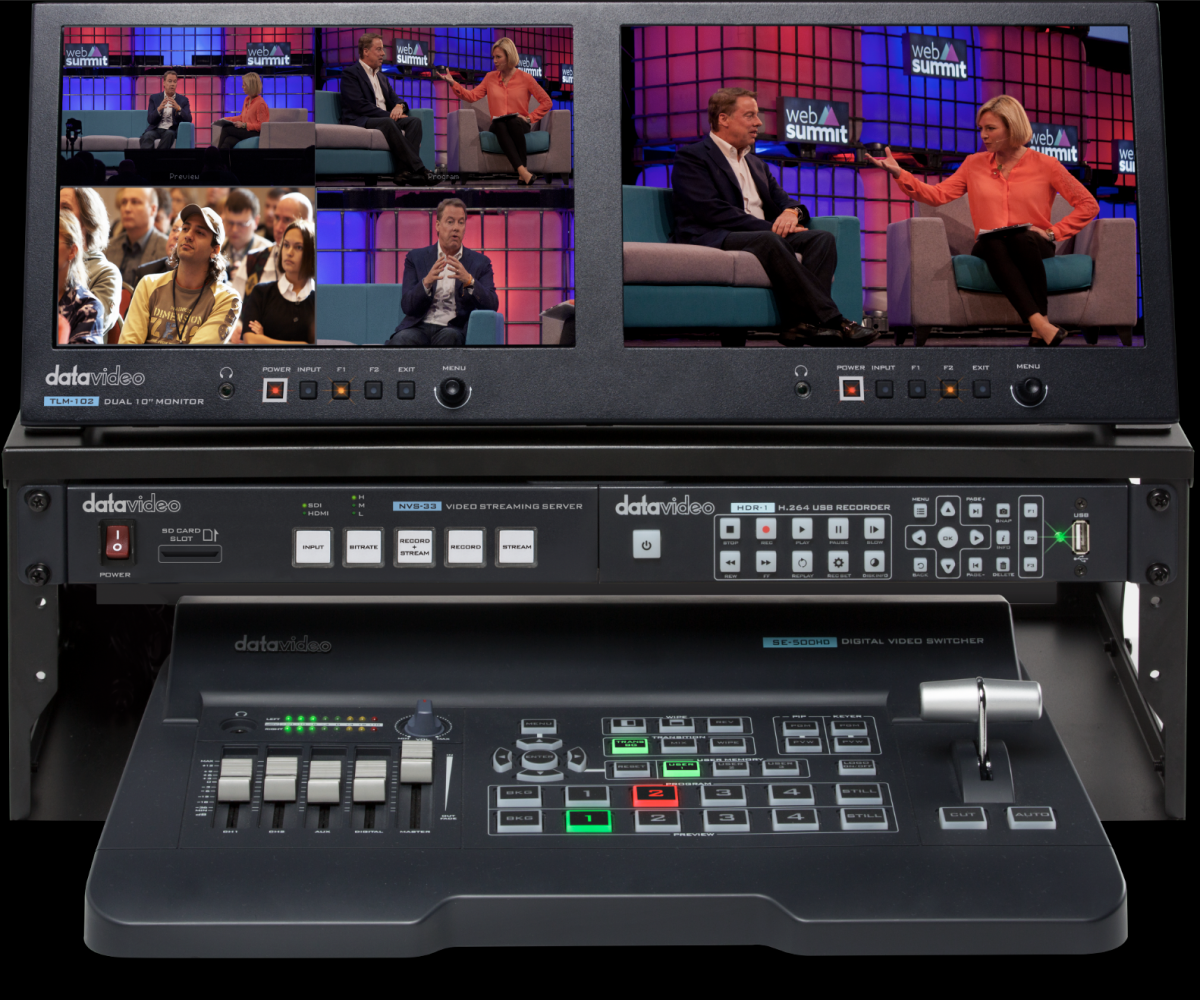

Manual5 in 1 complete small-sized production solution
Suports 4 channel switching, streaming, recording, audio mixing and monitoring.
Supports up to Full HD 1080P
Scale mixed resolution/standards inputs up to 1080p
Streaming to Facebook Live, YouTube, Twitch, and more

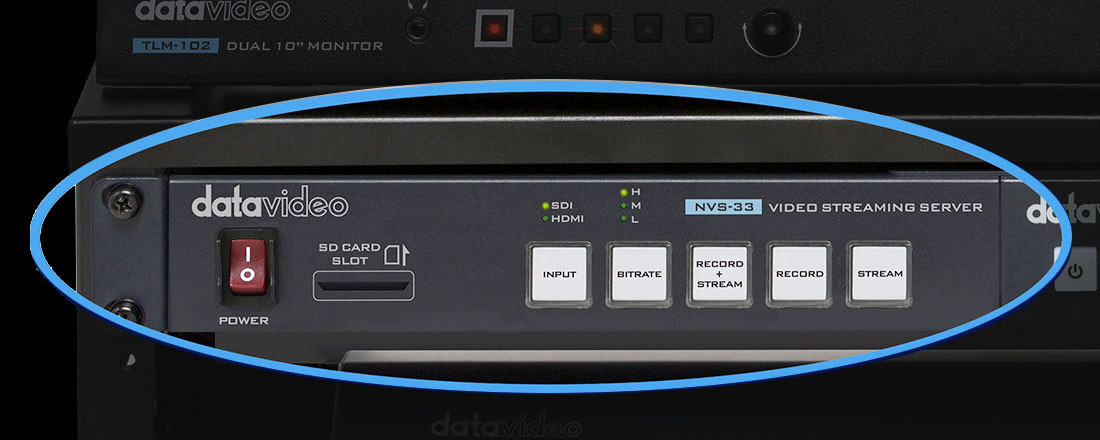

With its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like Facebook, YouTube, Twitch in no time. You can also use Datavideo's own DVS-200 streaming server software to send videos to multple destinations at the same time!

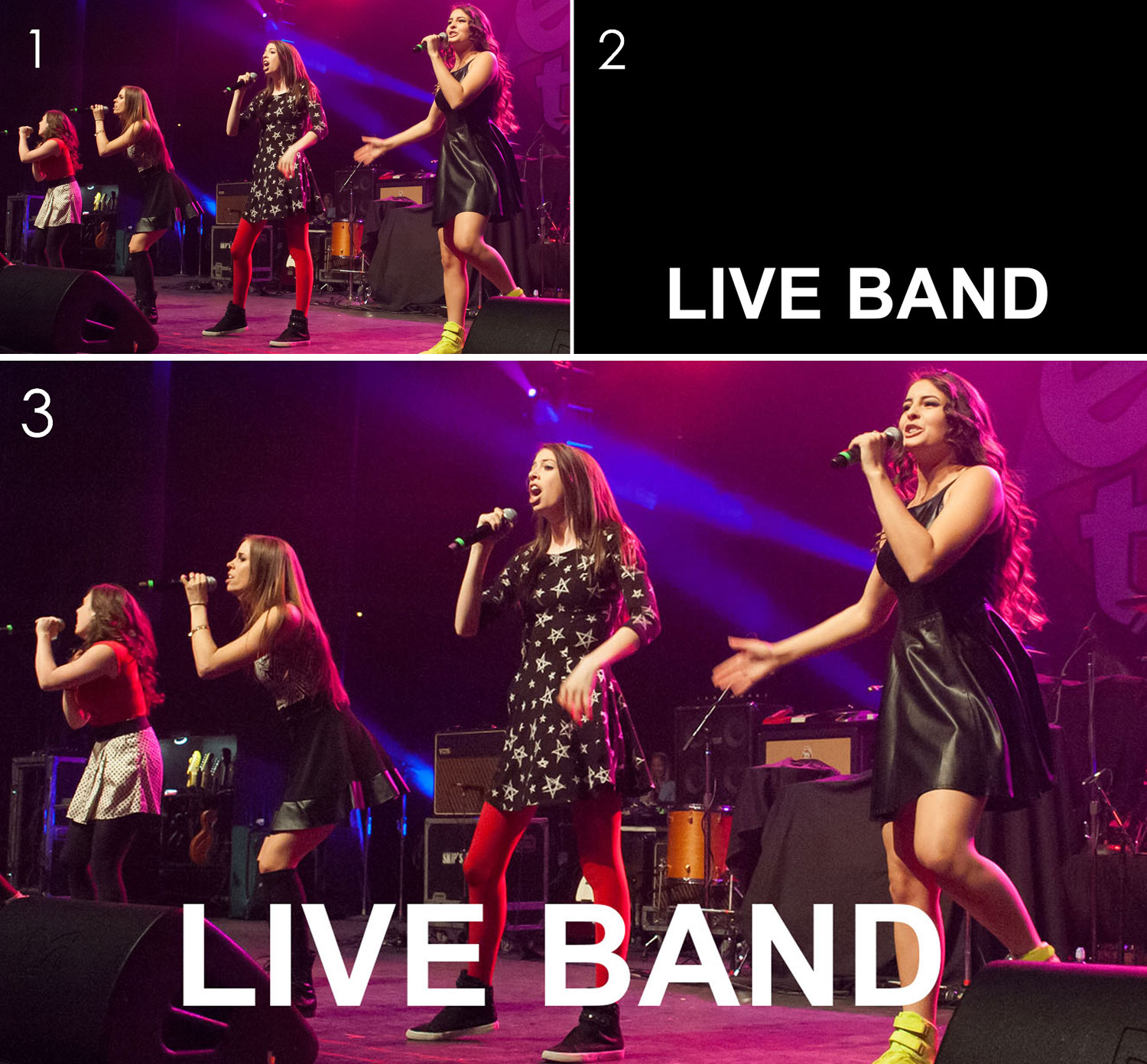

Supports lumakey for titles
With built-in lumakey, user can use PPT to easily create titles by graphic overlays.
Specifications
Switcher
|
Video Standard |
HD&SD |
|
Video Format |
1080p50/59.94/60Hz 1080i50/59.94/60Hz 720p50/59.94/60Hz 576i50Hz 480i59.94Hz |
|
Video Processing |
HDMI:YUV4:4:4 10bit,RGB:4:4:4 |
|

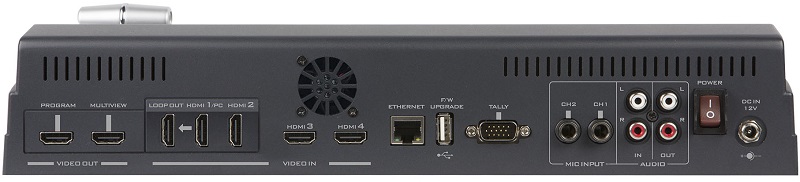

Video Input |
4x HDMI |
|
Video Output |
3x HDMI |
|
Audio Input |
1x Stereo RCA(L/R) |
|
Audio Output |
1x Stereo RCA(L/R) |
|
Embedded Audio Support |
Embedded 2-CH digital/analogue audio |
|
Chromakey |
---- |
|
USK |
Lumakey |
|
DSK |
---- |
|
Picture in Picture |
1 |
|
Logo Insertion |
---- |
|
Still Store |
---- |
|
Effects |
FTB,Cut,Wipe with border |
|
Tally Output |
1x D-sub 15 pin,dualcolor |
|
Built-in Audio Mixer |
Yes |
|
Preview Display |
Dual 10.1"LCD |
|
Special Features |
---- |
Streaming
|
Streaming Encode |
H.264/AVC,Main/HighProfile |
|
Streaming Video Bitrate |
Record Only: Up to 16Mbps (1080p50/60) |
|
Streaming Video Rate Mode |
CBR |
|
Streaming Audio Mode |
Stereo/Mono |
|
Streaming Audio Bitrate |
Stereo:64~384Kbps |
|
Streaming Protocols |
TS over TCP/ UDP (unicast & multicase) |
|
Network Interface |
1x RJ45 (10/100Mbps Ethernet) |
|
Streaming Recording File Format |
H.264 |
|
Streaming Storage |
SD Card |
Recording
|
Recording Storage Medium |
SD Card |
|
How to Retrieve Recorded Content |
Removable HardDrive, transfer data via USB2.0 |
|
Recording Storage File System |
NTFS,FAT |
|
Recorded File Format |
MP4 |
Others
|
Dimension (LxWxH) |
493x253x331(monitor'sup) 493 x 253 x 190 (monitor's down) |
|
Weight |
16kg |
|
Power |
DC12V,83W |
|
Operating Temp. Range |
0~40°C |
|
What's in the Box |
1 x GO 500 Studio Product |
