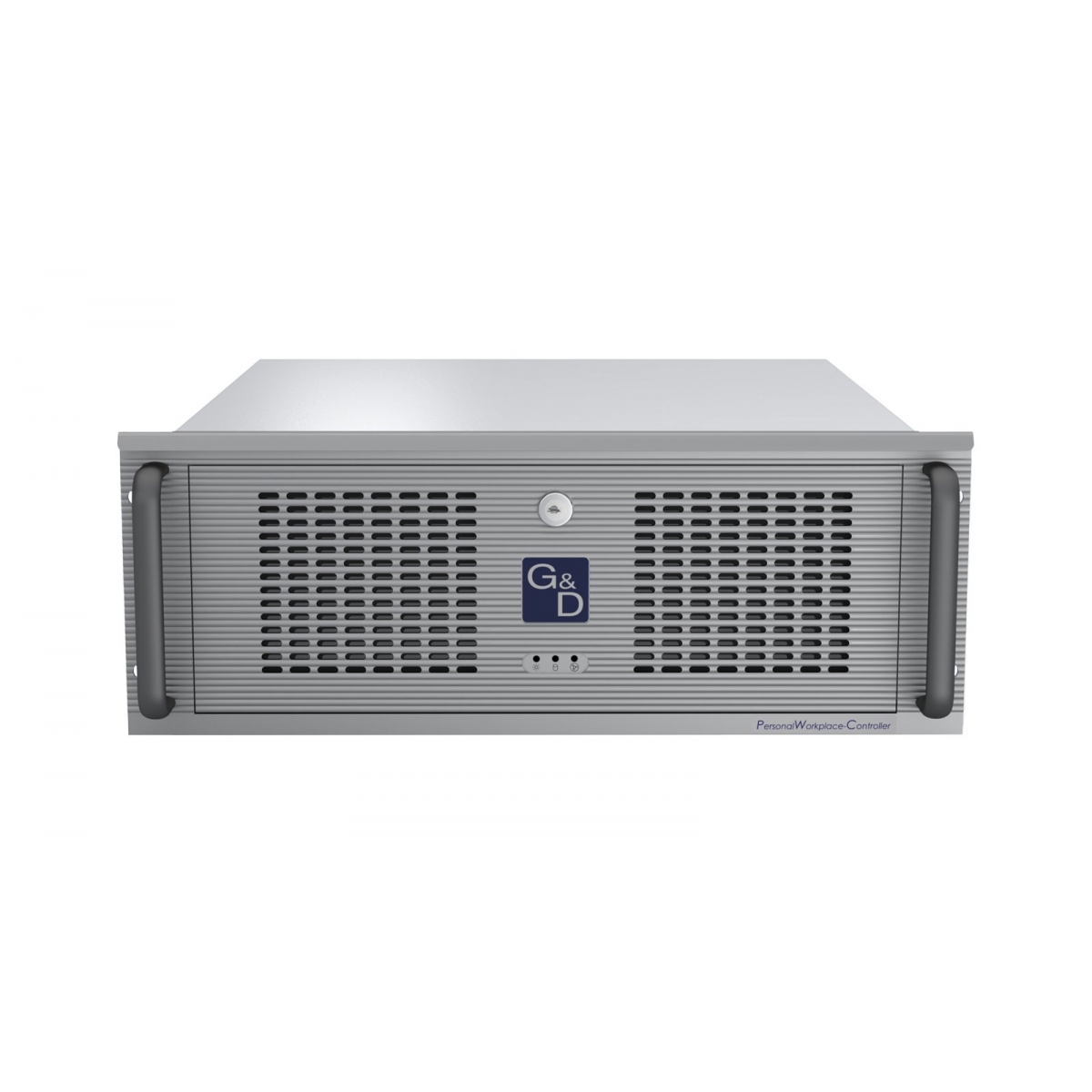

Basic KVM : PersonalWorkplace-Controller
A4000023
- Multiview KVM Controller
- รองรับ 9 HDMI In/5 Out (3 DP, 1 HDMI, 1 DVI)
- จัดวาง Layout ได้อิสระ
- ใส่ Text, รูปภาพ, ไฟล์วิดีโอ และ RTSP, NDI stream in ได้
- ควบคุม Source PC ได้ด้วยคีย์บอร์ด,เม้าส์
- Save/Recall Preset ได้
- Redundant Power supply
รับประกัน 3 ปีเต็ม
The PersonalWorkplace Controller
enables you to simultaneously display and operate several computer signals, virtual sources or KVM workstation modules on one or several monitors. The arrangement of the input signals can be flexibly adapted by the user at any time. In addition to getting a clearly arranged overview of all processes on just one monitor, users can simultaneously and flexibly access all the data they need. This enables the individual design of efficient and ergonomic workplaces with only one mouse and one keyboard.
Features
Video
- Includes one output license for operation in standard or dynamic mode and can be expanded with one additional output license
- Default mode (legacy mode)
- In legacy mode, a maximum of 8MP in 16:9 or 16:10 aspect ratio can be used on virtual or physical output devices with one license
- Any number of physical and/or virtual outputs can be operated as long as they are in the activated MP range.
- Example with an 8MP licence:
1 x 3840 × 2160 or 4 x 1920 × 1080
- Dynamic mode
- In dynamic mode, an 8 MP license is required for each connected monitor/display – regardless of the actual pixel grid used with the monitor/display. A virtual monitor and a mirrored display (mirror mode) also require an individual license.
- One of the advantages of the dynamic mode is that you can use each video output at full bandwidth.
- Instead of the pre-defined resolution (as in legacy mode), the “real” EDID resolutions of the connected monitors are used in this case.
- This way, you can also use modern resolutions such as 5120 × 1440, for example.
- Supported resolutions
- 5120 × 1440 (only in dynamic mode)
- 3840 × 2160
- 2560 × 1600
- 2560 × 1440
- 2048 × 2048 (only in dynamic mode)
- 1920 × 1200
- 1920 × 1080
- Further resolutions possible in dynamic mode
- Supported streaming protocols:
- RTSP
- RTSP HEVC
- WebRTC
- NDI
- YouTube
- Supports mirroring to show output on any display or device (output license required)

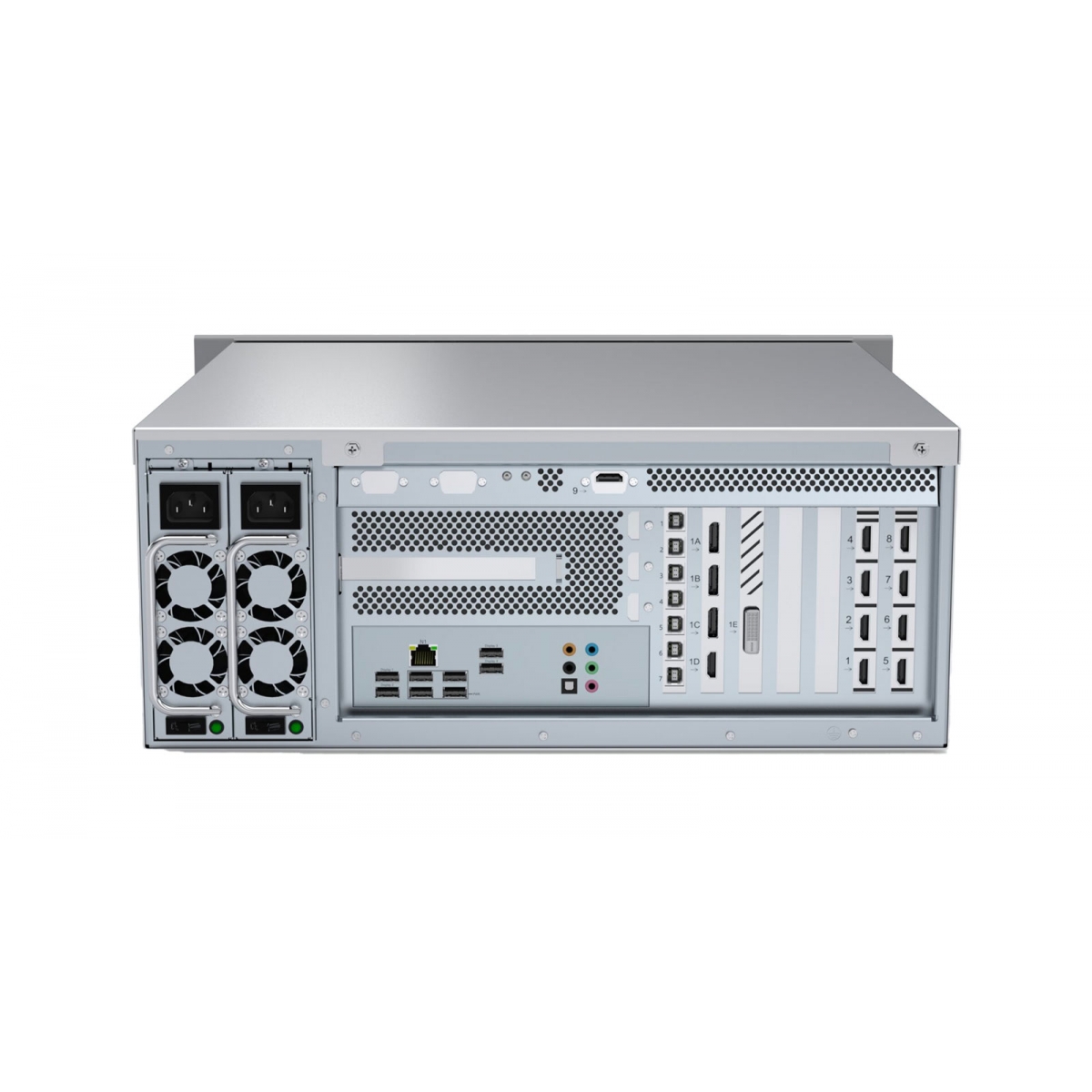

Signals
- 9 HDMI video inputs
- 5 video outputs
available video interfaces: 3 × DisplayPort 1.2, 1 × HDMI 2.0, 1 × DualLink DVI - 7 USB-B ports for keyboard and mouse access
- Network connection
Device
- Internal power pack for main power supply
- Redundant power supply
Operation
- Configuration and administration via on-screen display or API remote control
- Layouts can be arranged flexibly and individually
- Different layouts can be saved and recalled
- For use by up to 4 operators
- Full integration of KVM functionalities
Operation features
- Freestyle Mode
Inputs can be overlapped, scaled and positioned freely - Swap Mode
The positions of the inputs can be exchanged among each other
Expansions
System expansion
- The system can be extended by one additional output license
Technical Data
| General | Product group | KVM-Add-ons |
|---|---|---|
| Number of sources | 9 |
| Input options | USB mouse | yes |
|---|---|---|
| USB keyboard | yes |
| Video input | Format | HDMI 2.0 Singlelink DVI |
|---|---|---|
| Pixel rate | 16 MPixel/s to 550 MPixel/s 16 MPixel/s to 300 MPixel/s 16 MPixel/s to 165 MPixel/s |
|
| Examplary resolutions | 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Refers to input 9 and 18 as well as 19, 20, 21, 22, 23. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. Refers to input 5, 6, 7, 8 and 14, 15, 16, 17 as well as 24, 25, 26. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. |
| Video output | Format | HDMI 2.0 DisplayPort 1.2 DualLink DVI |
|---|---|---|
| Pixel rate | up to 600 MPixel/s up to 330 MPixel/s |
|
| Examplary resolutions | 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. |
| Network | Medium | CAT5 CAT6 CAT7 |
|---|---|---|
| Data rate | 1 GBit/s 100 MBit/s 10 MBit/s |
| Maintenance | Update via | WebIF (Network) |
|---|
| Housing | Material | Steel sheet |
|---|---|---|
| Width | 483 mm | |
| Height | 177 mm | |
| Depth | 450 mm | |
| IP protection class | IP20 |
| Operating conditions | Operating temperature | 5 °C to 40 °C |
|---|---|---|
| Operating air humidity | 10 % to 80 %, non-condensing | |
| Area of application | Interior | |
| Maximum operating altitude | 3000m above sea level | |
| Storage temperature | -20 °C to 70 °C | |
| Storage air humidity | 10 % to 95 %, non-condensing | |
| MTBF | 38900 h at 25°C | |
| Conformities | UL 62368-1 Waste electrical equipment disposal WEEE 2012/19/EU FCC CFR 47 part 15 subpart B cl. A EN62368 - Safety Low Voltage Directive 2014/35/EU EN55024 EMC immunity EN55032 (CISPR 32) - EMC emission EN61000-3-2 - EMC current harmonics EN61000-3-3 - EMC Flicker EMC Directive 2014/30/EU EN61000-6-2 - EMC extended immunity industry |
| Power supply 1 | Input voltage | 90-264 VAC |
|---|---|---|
| Input frequency | 47-63 Hz | |
| Current consumption | 5-2.5 A |
| Power supply 2 | Input voltage | 90-264 VAC |
|---|---|---|
| Input frequency | 47-63 Hz | |
| Current consumption | 5-2.5 A |
