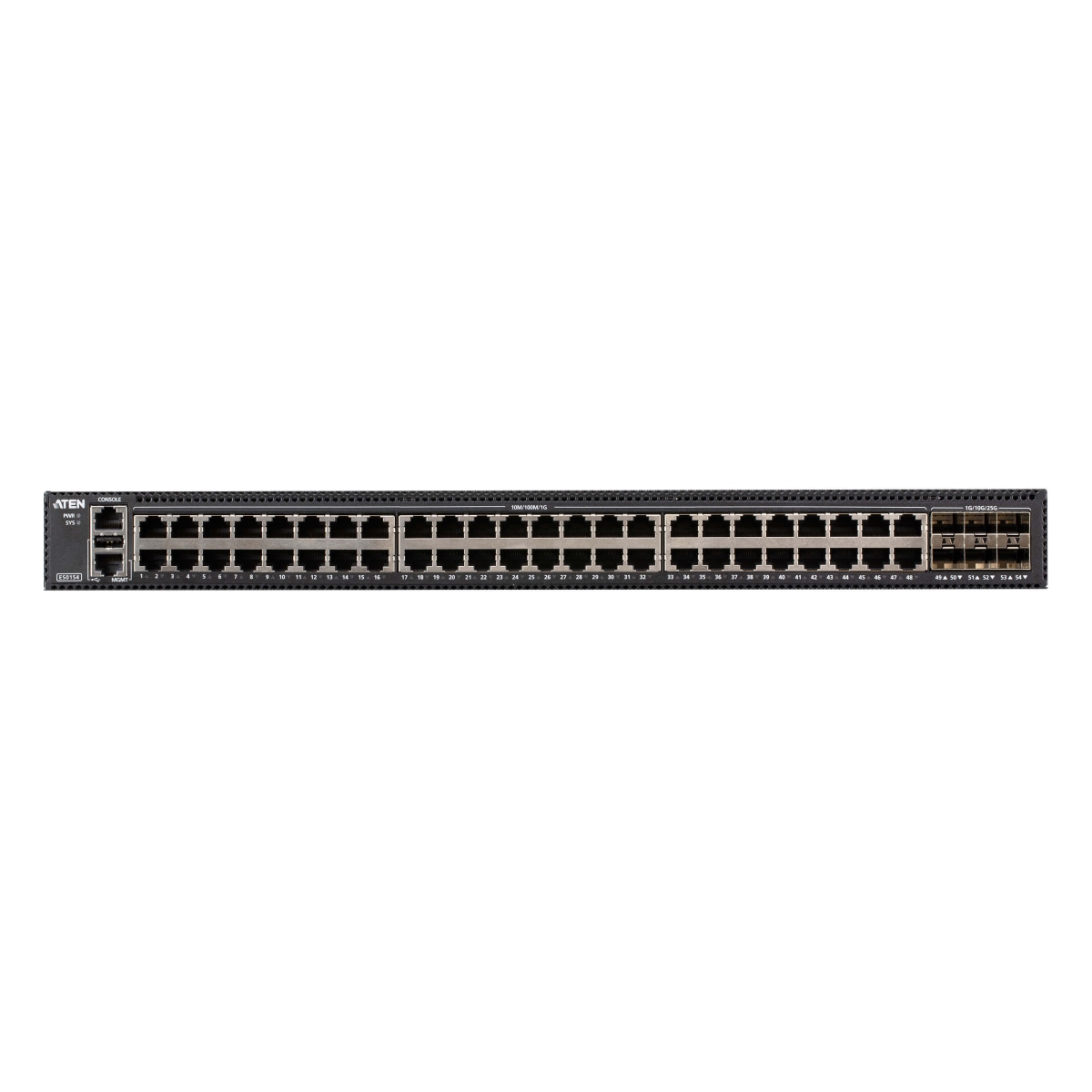

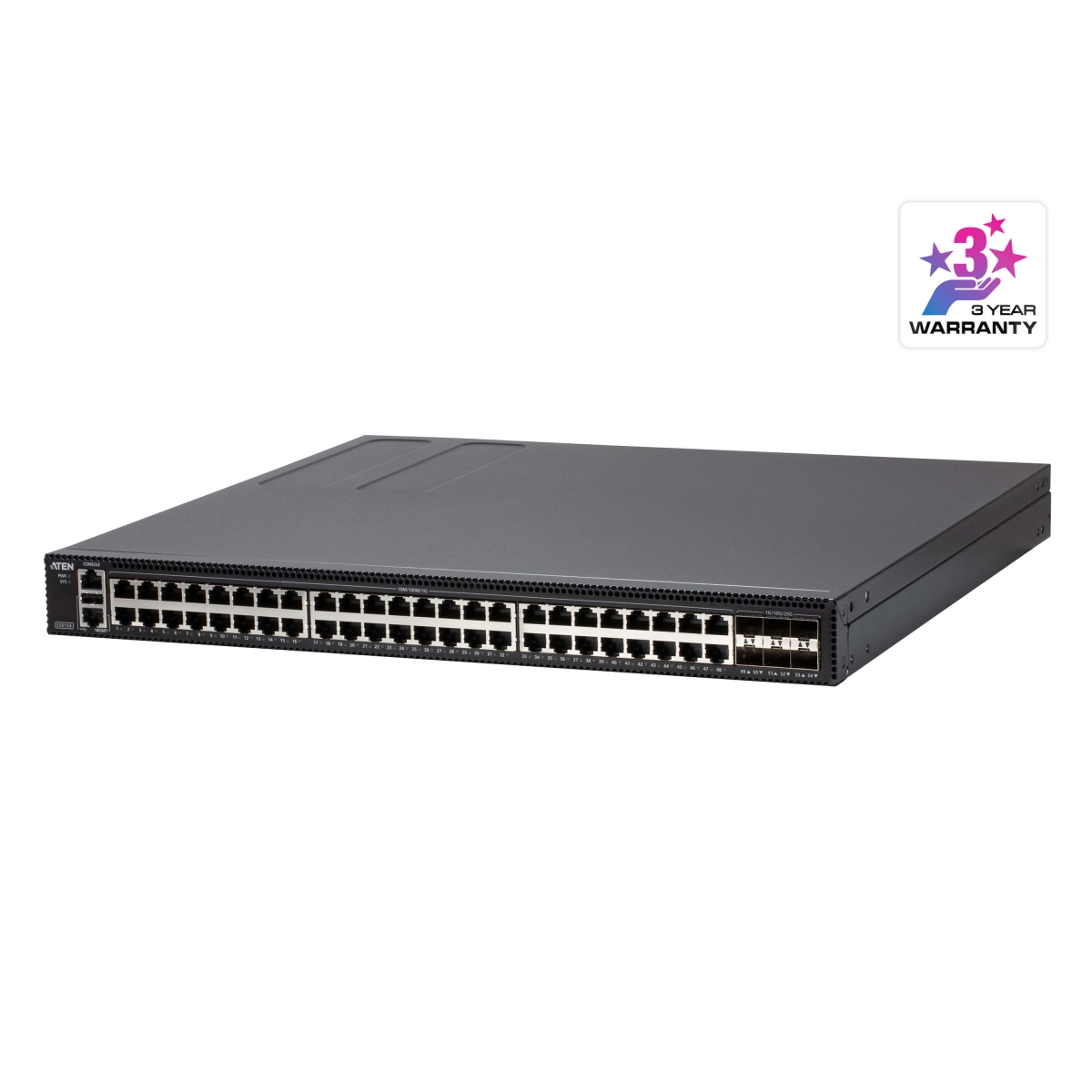

54-Port Layer 2+ Gigabit Ethernet Managed Switch
ES0154
- Supports plug-and-play with KE, VE89 series devices
- Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
- High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times
- Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
รับประกัน 3 ปีเต็ม
Spec sheetThe ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.
The ES0154 delivers 6 (1G/10G/25G) SFP28 and 48 (10M/100M/1G) RJ-45 ports.
Deploying the ES0154 is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154 using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154 serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.
Features
- Supports plug-and-play with KE, VE89 series devices
- Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
- High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times
- Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
- Supports IGMP Snooping Fast Leave
- Supports Flow Control
- Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network
- Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks
- Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability
- Supports IPv4, IPv6
Diagram
Specifications
| Connectors | |
| RJ-45 10/100/1000 Ports | 48 |
| SFP28 Uplink Ports | 6 |
| Console Ports | 1 x RJ45 |
| Remote Console | 1 X RJ45 |
| USB Port | 1 |
| Performance | |
| Switching Capacity | 396 Gbps |
| Forwarding Rate | 295 Mpps |
| Flash Memory | 256 MB |
| DRAM | 1GB |
| MAC Address Table Size | 32K |
| Jumbo Frames | 10 KB |
| Auto-negotiation | Yes |
| Maximum Input Power Rating | 100-240V AC,50-60Hz |
| Power Consumption | 54W (MAX) 177BTU |
| Environmental | |
| Operating Temperature | -5–45°C |
| Storage Temperature | -40–70°C |
| Humidity | 5%–95% RH, Non-condensing |
| Physical Properties | |
| Rack Space | 19" |
| Housing | Metal |
| Weight | 4.68 kg ( 10.32 lb ) |
| Dimensions (L x W x H) | 44.20 x 42.00 x 4.36 cm (17.4 x 16.54 x 1.72 in.) |
| Carton Lot | 1 pc |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package content
- 1x ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch
- 1x power cord
- 1x RJ-45 to DB-9 serial console cable
- 1x grounding wire
- 6x port dust covers
- 1x mounting kit
- 1x user instructions
