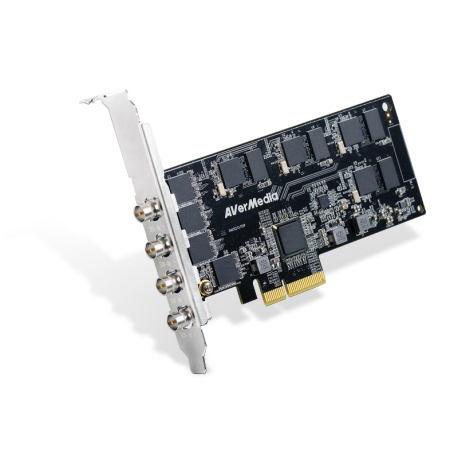

4-CH SDI Full HD HW H.264 PCIe Frame Grabber
CL334-SN
The CL334-SN enables the system to encode without impacting the CPU’s computing power and still provide high quality video. This feature will help balance the CPU loading and will increase the system’s reliability
4-CH SDI Full HD HW H.264 PCIe Frame Grabber
- 1920 x 1080p, 60 fps video streams
- 3G-SDI input
- Mini BNC connector
- PCIe Gen 1 x4
- H.264 hardware encoding
- Windows DirectShow compatible
- Specifically designed SDK
- Application: education, broadcasting
Hardware encoding
Equipped with an advanced H.264 hardware encoder, the CL334-SN enables the system to encode without impacting the CPU’s computing power and still provide high quality video. This feature will help balance the CPU loading and will increase the system’s reliability. As a result, the CL334-SN will significantly reduce the computing efforts on hardware and software allowing the user to focus on other important parts of the application in hand.

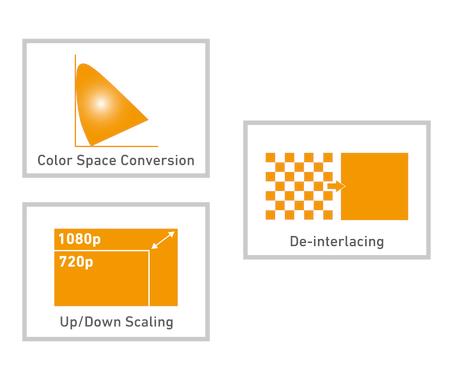

Hardware scaling, de-interlacing, and color space conversion
AVerMedia hardware-based video engine technology implements the most useful video processing functions, including scaling, de-interlacing, and color space conversion. This can significantly help you reduce the computing burden on software and hardware, which allows you to focus on other important parts of your application.
Specification
| Host Interface | PCIe Gen 1 x 4 |
| Audio Interface | SDI embedded audio |
| Audio Format | PCM |
| Audio Sampling Rate | 32KHz, 44.1KHZ, 48KHz |
| Connector Type | Mini BNC |
| Input Interface | Mini BNC |
| Video Format | YUV2 RGB24 RGB32 |
| Color Depth | 8-bit |
| Channel No. | 4 Ch |
| Max. Input Resolution | 1920 x 1080 60fps |
| Max. Capturing Resolution | 1920 x 1080 30fps |
| Input Video Resolution (* It's progressive signal if there is no 'i'.) |
SD-SDI: 720x480@(60i) 720x576@(50i) HD-SDI: 1280x720@(50/60) 1920x1080@(50i/60i/24p/25p/30p) 3G-SDI: 1920x1080@(50p/60p) |
| Capture Resolution (* Capture format won't be interlaced.) |
720x480@(60i) 720x576@(50i) 1280x720@(50/60) 1920x1080@(24p/25p/30p) |
| Encoding Mode | Hardware Encoding (H.264) |
| Multi-Card Support | Yes |
| Supported OS | Windows 7/8.1/10 (32/64 bits)* |
| Form factor | Low Profile |
| Dimension (L x W) | 145 x 68.78 mm |
| Power Consumption | 5W |
| Operating Temperature | 0°C ~ 65°C |
| Operating Humidity | 5% - 80% Relative Humidity |
| Safety Certification | FCC / CE |
