คุณสมบัติ
- เพิ่มพอร์ตต่อ RS-232 2 พอร์ต ผ่านทาง USB
- รองรับ USB Plug-and-Play และ Hot-Swapping feature.
- No IRQ, DMA, I/O address resource required.
- รองรับทั้ง USB1.1 (12Mbps), และ USB2.0
- Serial port มีอัตรการรับ-ส่งข้อมูลที่ 115.2Kbps.
- Built-in 15KV ESD protection
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
- Support Microsoft Windows, Linux, and DOS
hardware

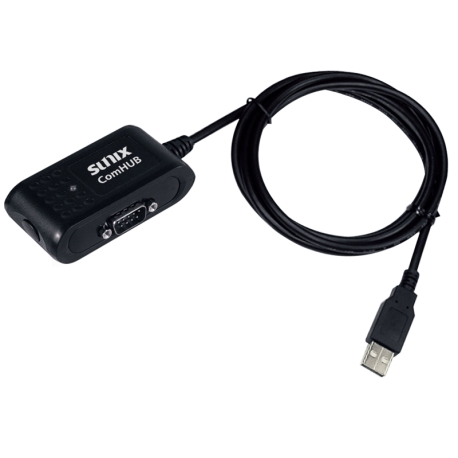

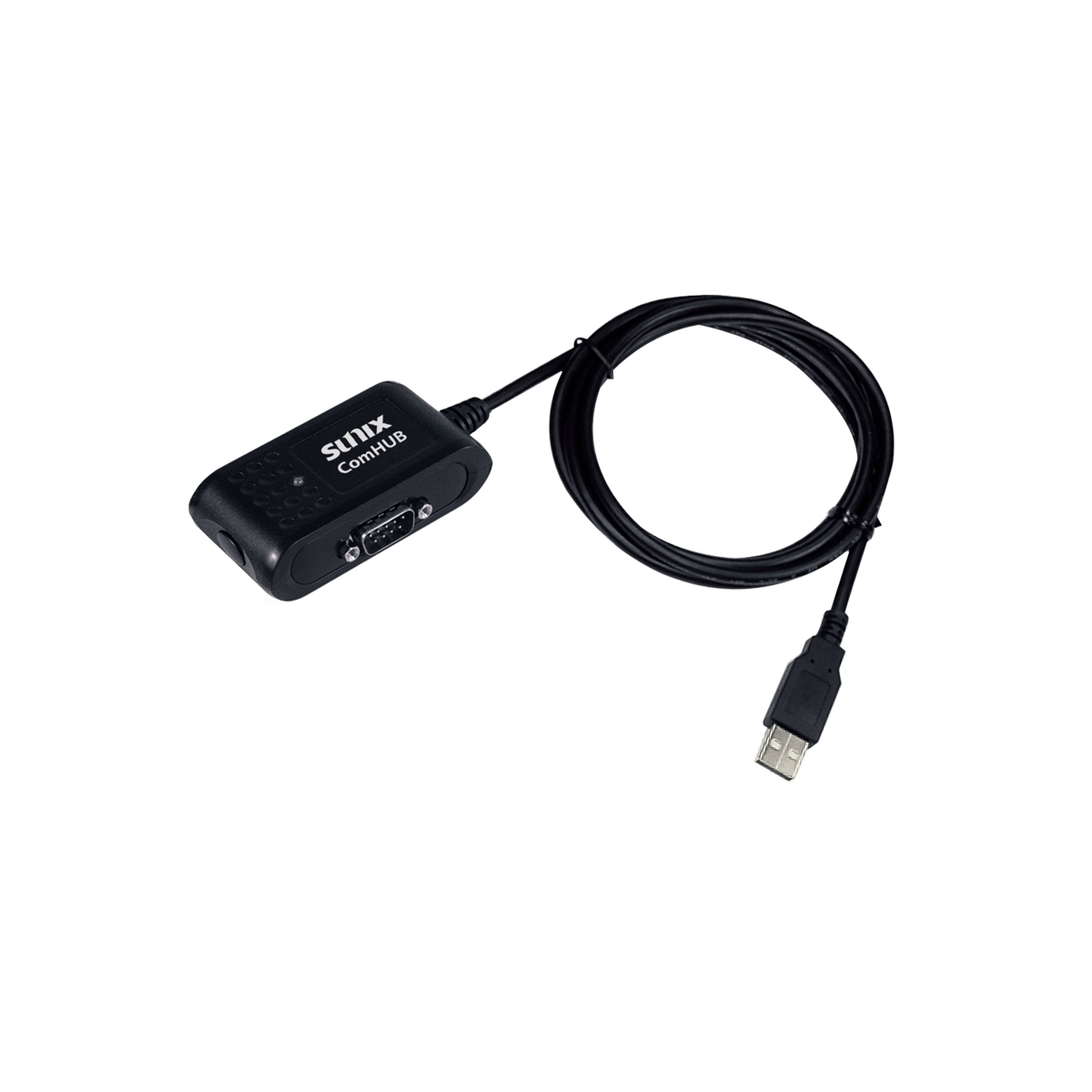

- Type USB to Serial cable
- Chipset Moschip MCS7720
- Interface Universal Serial Bus (USB)
- Mode Hand-Shaking Communication
- UART 16C550 compatible
- Connector DB9M
- Port RS-232 2 Ports
- FIFO 16 byte hardware FIFO
- BAUD RATE 115 Kbps
- OS Support Windows 98SE/ ME/ 2000/ XP/ 2003/ CE/ Linux,and MAC /7 /8
Serial Communication
| Interface |
RS-232 |
| Controller |
Moschip MCS7720 16C550 UART Compatible |
| Bus Interface |
Universal Serial Bus (USB) 2.0 / 1.1 |
| No. of Port |
2-port |
| IRQ & IO |
Assigned by System |
| FIFO |
16 byte (Hardware) |
| Signal |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate |
50 bps to 115.2 Kbps |
| Data bit |
5,6,7,8 |
| Stop bit |
1,1.5,2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS (Hardware) , XON/XOFF(Software) |
| Protection |
15KV ESD protection for each signal Human Body Model (HBM) |
| Board connector |
DB9 Male |
|
|
| Driver Support |
|
| Microsoft |
3.1/95/98/NT/ME/2000/XP/2003/Vista (32/64 bit)/CE5.0/XP Embedded /7 /8 |
| Linux |
Linux 2.4.x |
| MAC |
MAC 10.1, 10.4, 10.5 (Leopard) |
|
|
| Regulatory Approvals |
| Hardware |
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS |
| Software |
Microsoft WHQL Window XP |
|
|
| Environment |
| Operating Temperature |
0 to 60 C ( 32 to 140 F ) |
| Operating Humidity |
5% to 95% RH |
| Storage Temperature |
-20 to 85 C (-4 to 185 F) |
|
|
|
|
| Power |
| Input |
USB Bus-power |
| Consumption |
< 1.0W = 5V x 200mA |
|
| Mechanical |
| Dimension |
75 (W) x 40 (D) x 22 (H) mm |
| Cable Length |
1500mm (5ft) |
| Case |
ABS |
| Weight |
114 5 g |
|
