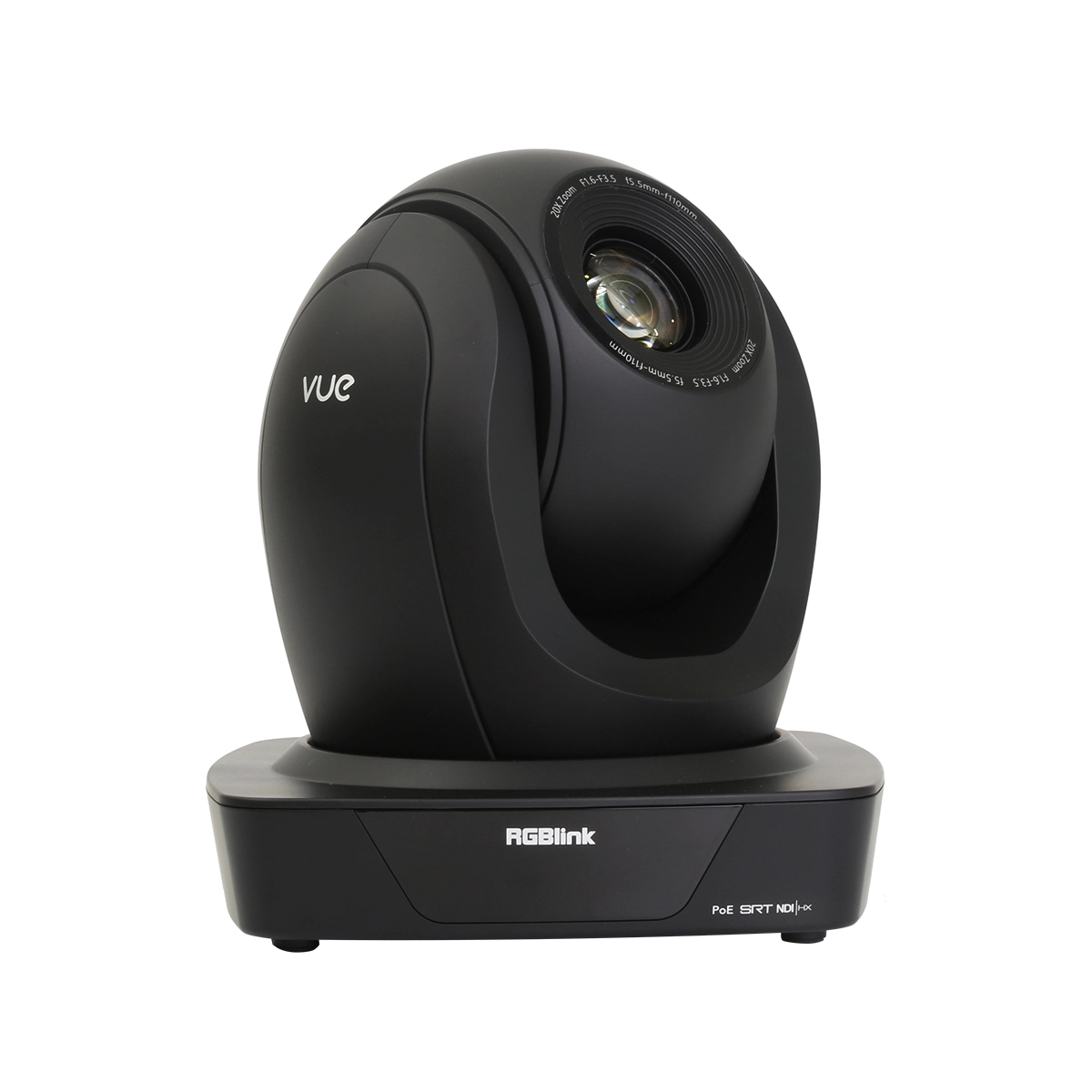

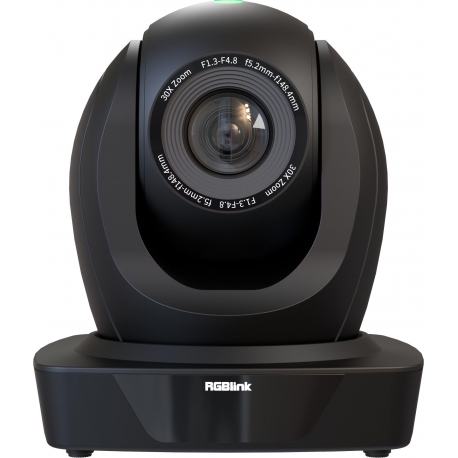

30x Optical Zoom Broadcast Full HD PTZ Camera
RGB30X-POE-TLY
- High speed optical zoom
- Low-Latency SRT Upload to Cloud
- High performance in low light scenarios with Wide Dynamic Range
- Full 1920×1080p HD resolutions up to 60 frames per second
- H.265/H.264 dual stream output adapted to different network environments
- Pan and Tilt Control
- Optional 30X optical zoom
Spec Sheet
Broadcast PTZ Camera
เพิ่มมิติใหม่ในถ่ายวิดีโอนำเสนอด้วยกล้อง RGBlink vue PTZ ที่มาพร้อม ISP image processor ขั้นสูงและเซ็นเซอร์ 2 mega pixel และตัวเลือก Output ที่หลากหลายทั้ง HDMI, SDI แบบ H.264, H.265 รองรับการ Pan, Tilt, Zoom เพื่อจับภาพทุกการเคลื่อนไหว เข้าใกล้มากยิ่งขึ้นด้วยการซูม Digital zoom 10 เท่า พร้อมโฟกัสอัตโนมัติ รองรับการปรับระดับไดนามิก (WDR) และการลดสัญญาณรบกวนแบบไดนามิก 2D/3D (DNR) ทั้งหมดนี้ทำได้ถึง 60fps
vue PTZ มาพร้อมไฟ Tally บอกสถานะที่เป็นเอกลักษณ์ ซึ่งรวมเข้ากับตัวเครื่องเพื่อการรับชมแบบ 360 องศา การออกแบบกล้อง RGBlink vue เป็นนวัตกรรมใหม่ที่เหมาะกับทุกสภาพแวดล้อมการทำงาน

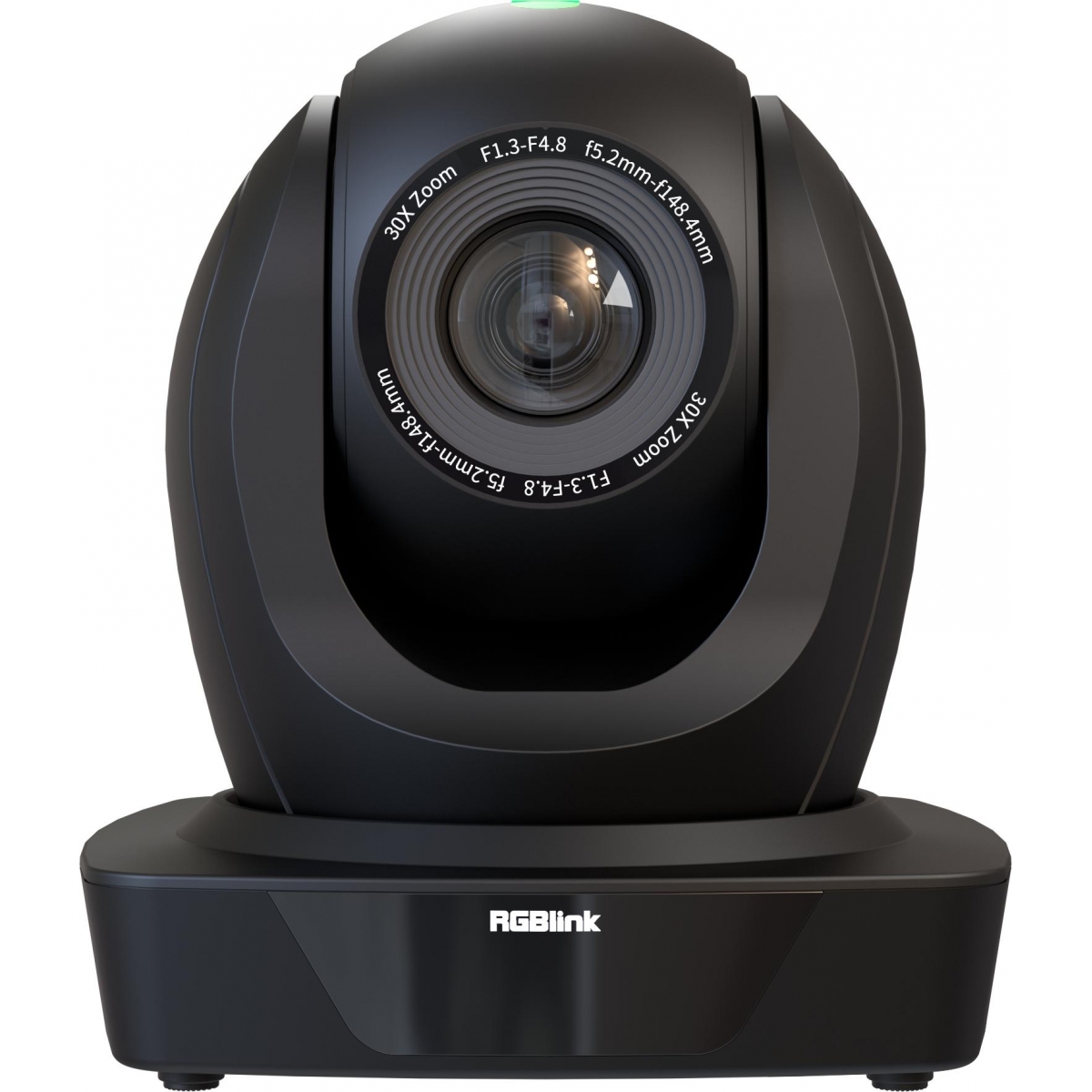

Zoom In
Choose from across three models of optical zoom – 30X, behind which the 2 mega pixel Panasonic sensor and ISP processor offering a further 10X digital zoom to get even closer.

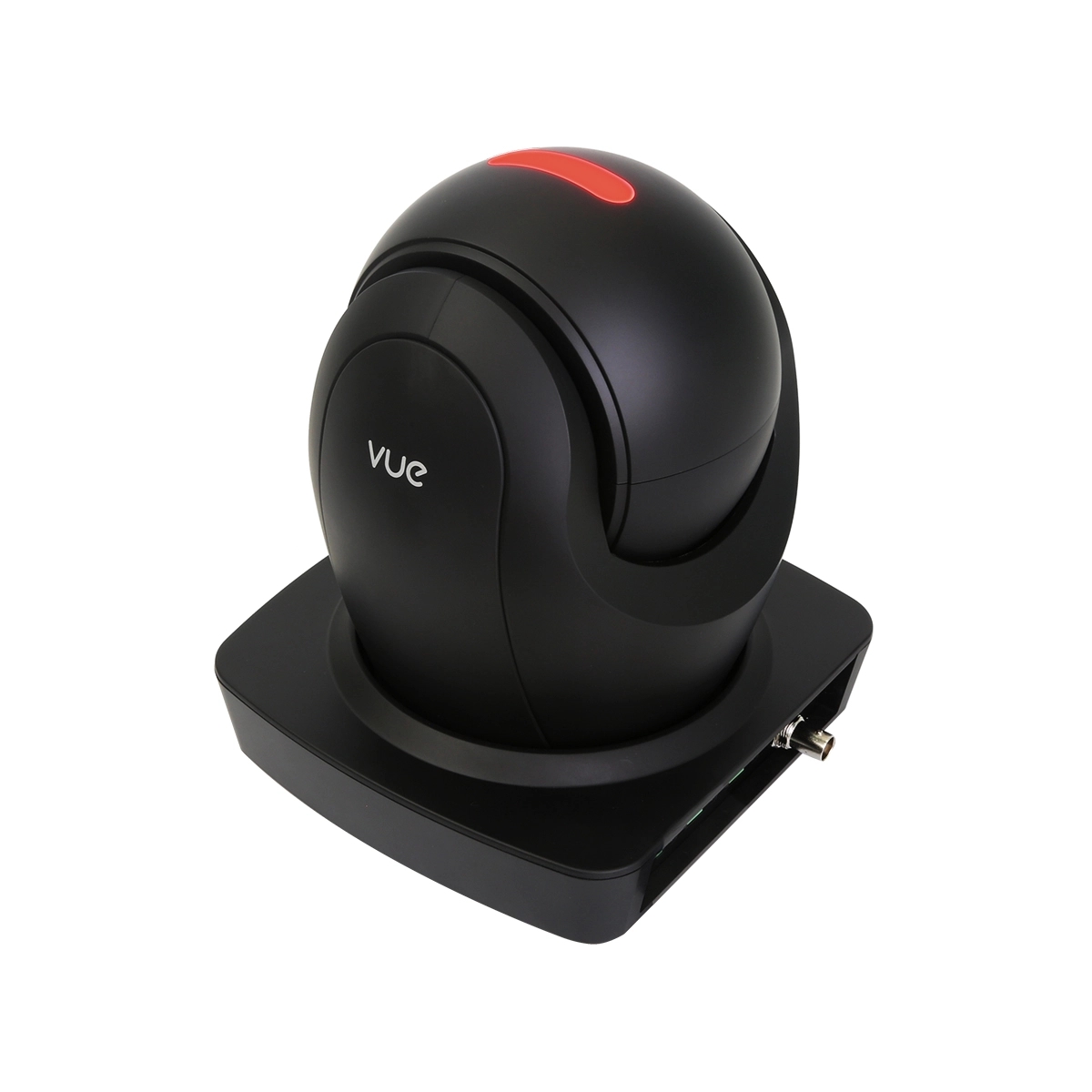

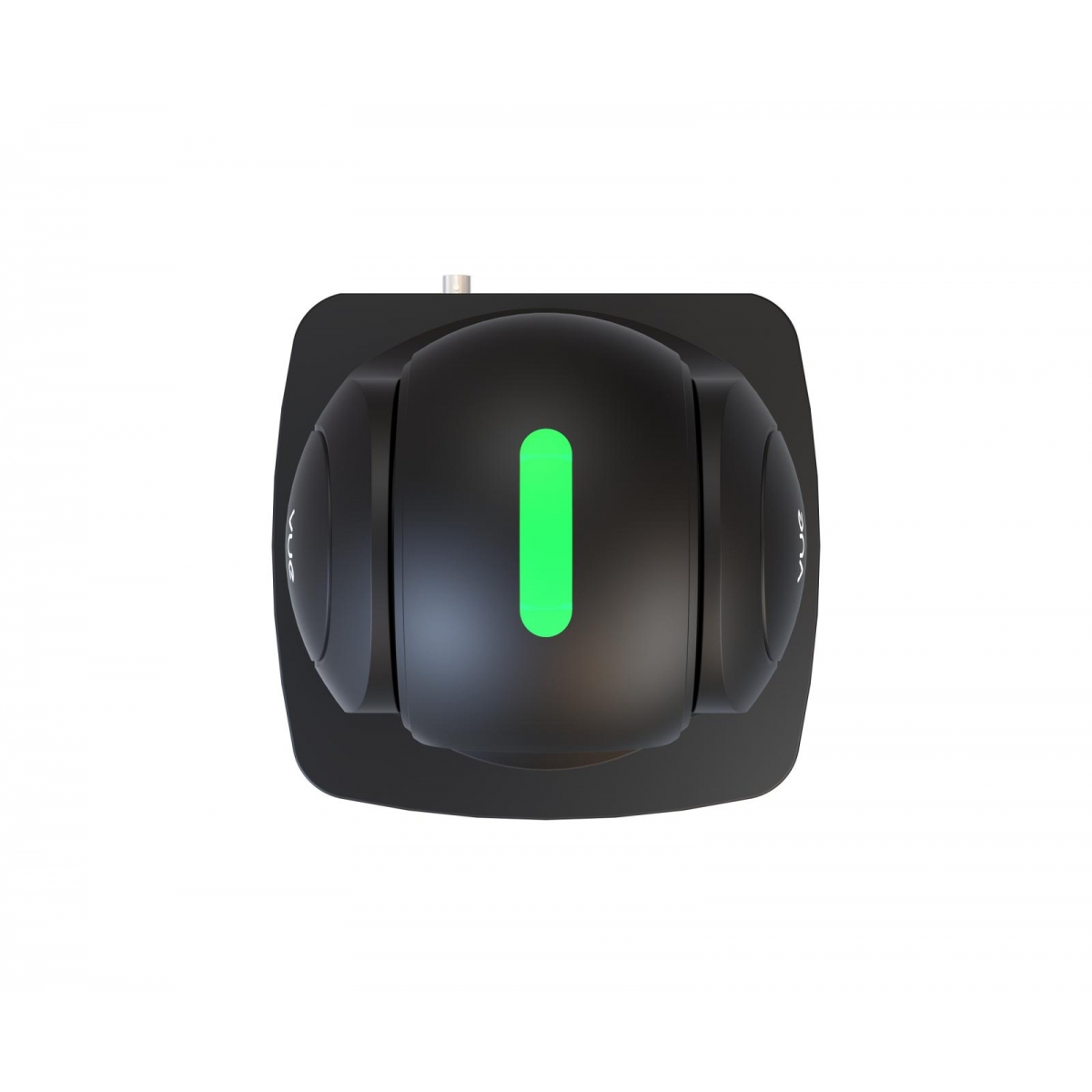

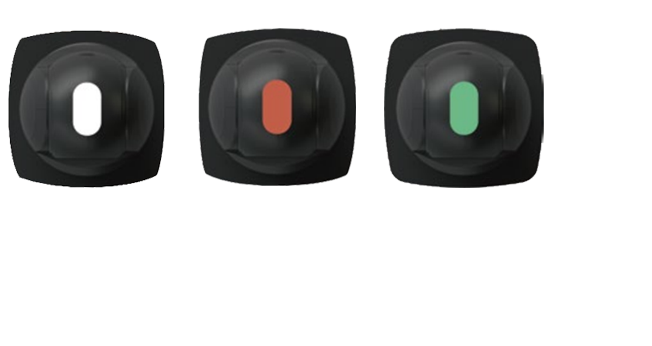

TALLY Crown
Selected view models include the RGBlink vue TALLY Crown indicator light showing clearly stand-by and on-air status of the camera.

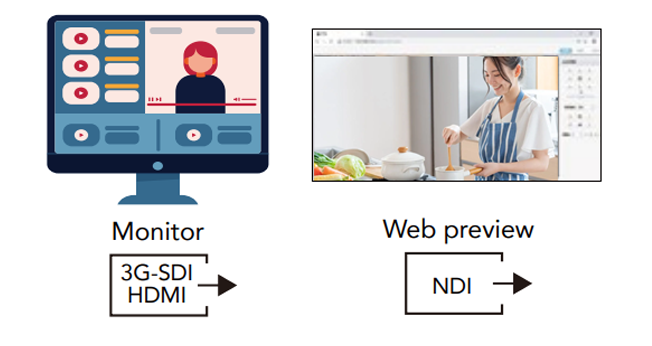

Browser Config & Preview
Connect directly to a vue camera from any browser without the need to install a dedicated app. The web interface allows full configuration of the camera as well as preview of video, operations and control.
Multi-Protocol Support
Choose from across three models of optical zoom – 30X, behind which the 2 mega pixel Panasonic sensor and ISP processor offering a further 10X digital zoom to get even closer.
Set Presets
Set up to 255 presets of positions to be stored on a camera and available for instance recall.
Precise Position Control
High precision micro stepper motor controls to within 0.1 degrees. Reposition the camera and zoom to any position in under 1s, smoothly, accurately and super quietly. Advanced algorithms optimise imaging at every movement for precise blur-free performance.
Remote Control
Connect to vue cameras with industry standard protocols including VISCA and ONVIF.
Power of Convenience
Power vue cameras from supplied PSU or via the ethernet port for selected models connected on PoE enabled networks.
Audio In
All vue models include 3.5mm mini-jack input, allowing Line level inputs to be inserted to all outgoing video signals including embedded on HDMI, SDI and other IP codecs.
PTZ Park
Unique feature allowing for a camera to be set with lens down for protection and storage - parked for movement or transport.
ข้อมูลจำเพาะ

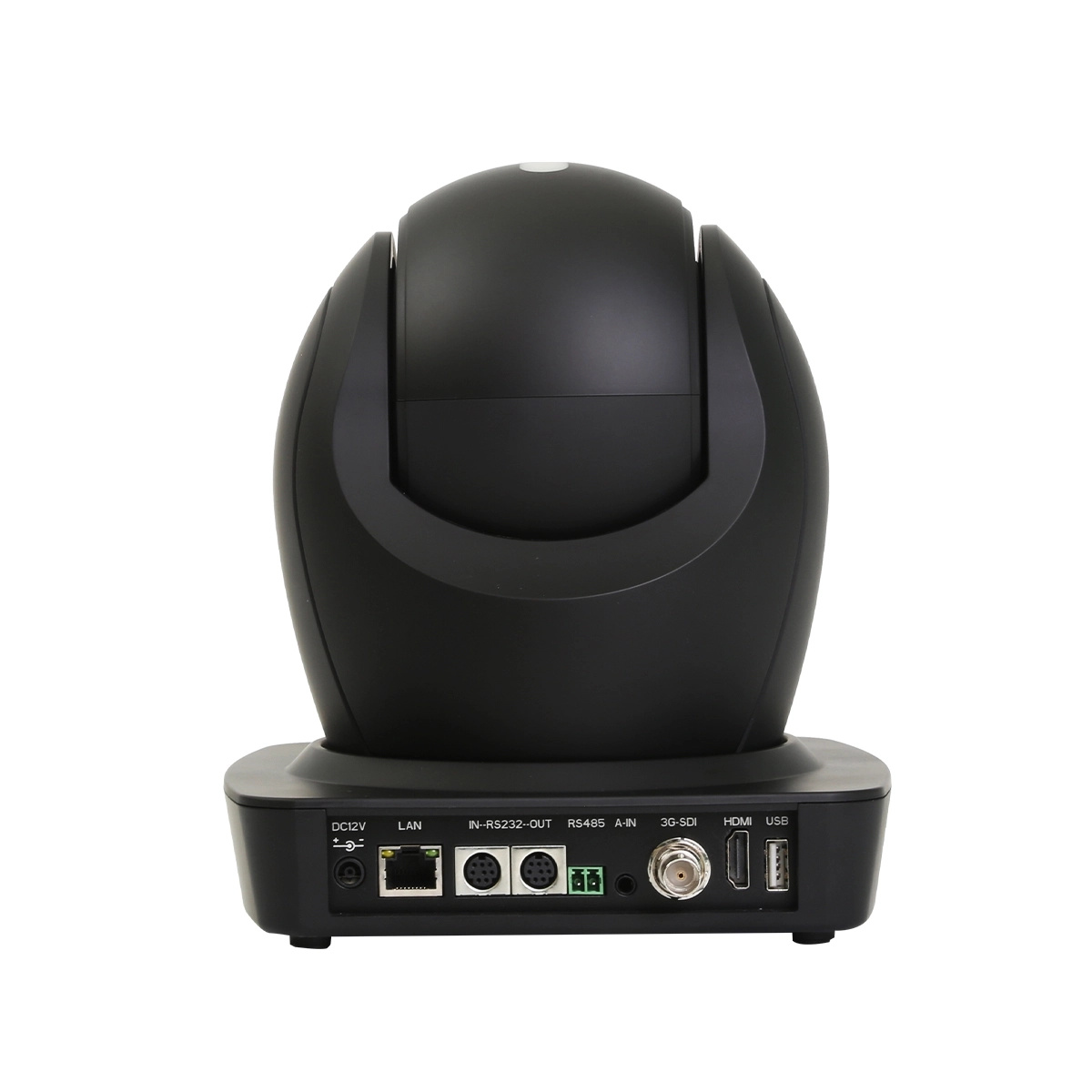

| Interface | Output | 3G SDI HDMI USB LAN |
1xBNC 1xHDMI-A 1xUSB-A 1xRJ45 |
| Audio | IN | 1x3.5mm Stereo Jack | |
| Control | RS232 IN/OUT | 2xDIN8 | |
| RS485 | 1x4pin Terminal | ||
| Power | 1xDC12V Jack | ||
| Performance | Camera | 30X | |
| Optical Zoom | f＝5.2～148.4mm | ||
| View Angle | 2.14°～58.1° | ||
| AV | F1.3 ～ F4.8 | ||
| Digital Zoom | 10X | ||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||
| Focus | Auto/Manual | ||
| Aperture/Electronic Shutter | Auto/Manual | ||
| BLC | ON/OFF | ||
| WDR | OFF/Dynamic Level Adjustment | ||
| Video Adjustment | Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve | ||
| SNR | >55dB | ||
| Effective Pixels | 2.07m,16:9 | ||
| Pan-and-Tilt Parameter | Pan/Tilt Movement | -170°～+170°/'-30°～+90° | |
| Pan/Tilt Control Speed | 0.1～60°/S；0.1～30°/S | ||
| Preset Speed/Quantity | Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control) | ||
| 360° TALLY | full 360° view of TALLY | ||
| Audio Compression Format | AAC | MP3 | G.711A | ||
| Video Compression Format | H.264 | H.265 | Dual Streaming Output | ||
| Output Resolutions | 720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60 | ||
| Control Protocol | VISCA | Pelco-D | Pelco-P | ||
| Baud Rate(bps) | 115200 | 9600 | 4800 | 2400bps | ||
| Network Protocol | RTSP | RTMP | SRT | ONVIF | ||
| Supported Standards | SDI | SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI | |
| Power | Input Voltage | DC12V/1.5A | |
| Max Power | 12W | ||
| Environment | Temperature | -10℃～50℃ | |
| Humidity | 20%～80% | ||
| Physical | Weight | Net | 1.7kg |
| Dimension | Net | 180mm(front)×188mm(side)×198mm(height) | |
อุปกรณ์ในกล่อง
- Power Adapter × 1
- RS232 Serial Port Line × 1
- Remote Control
