VW884

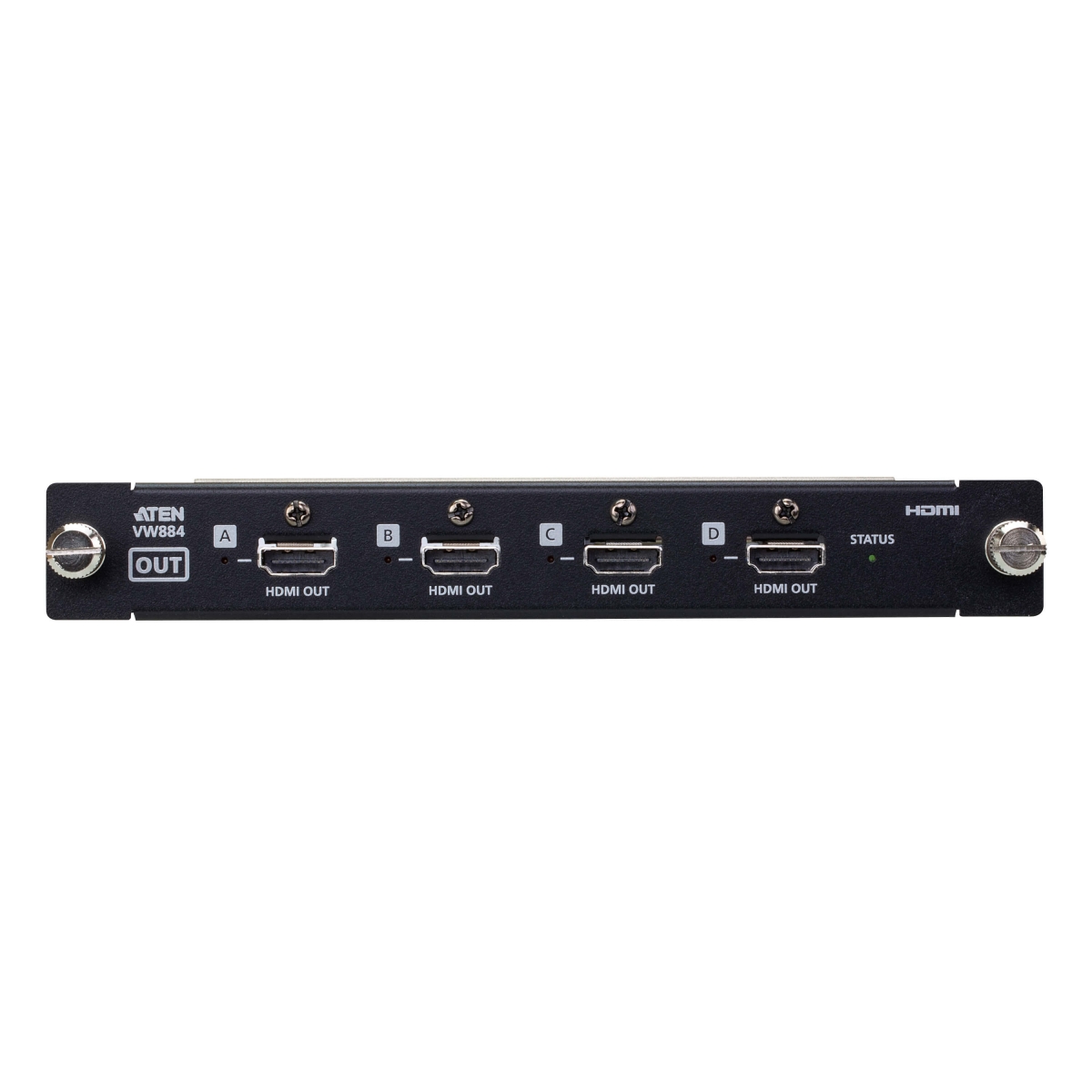

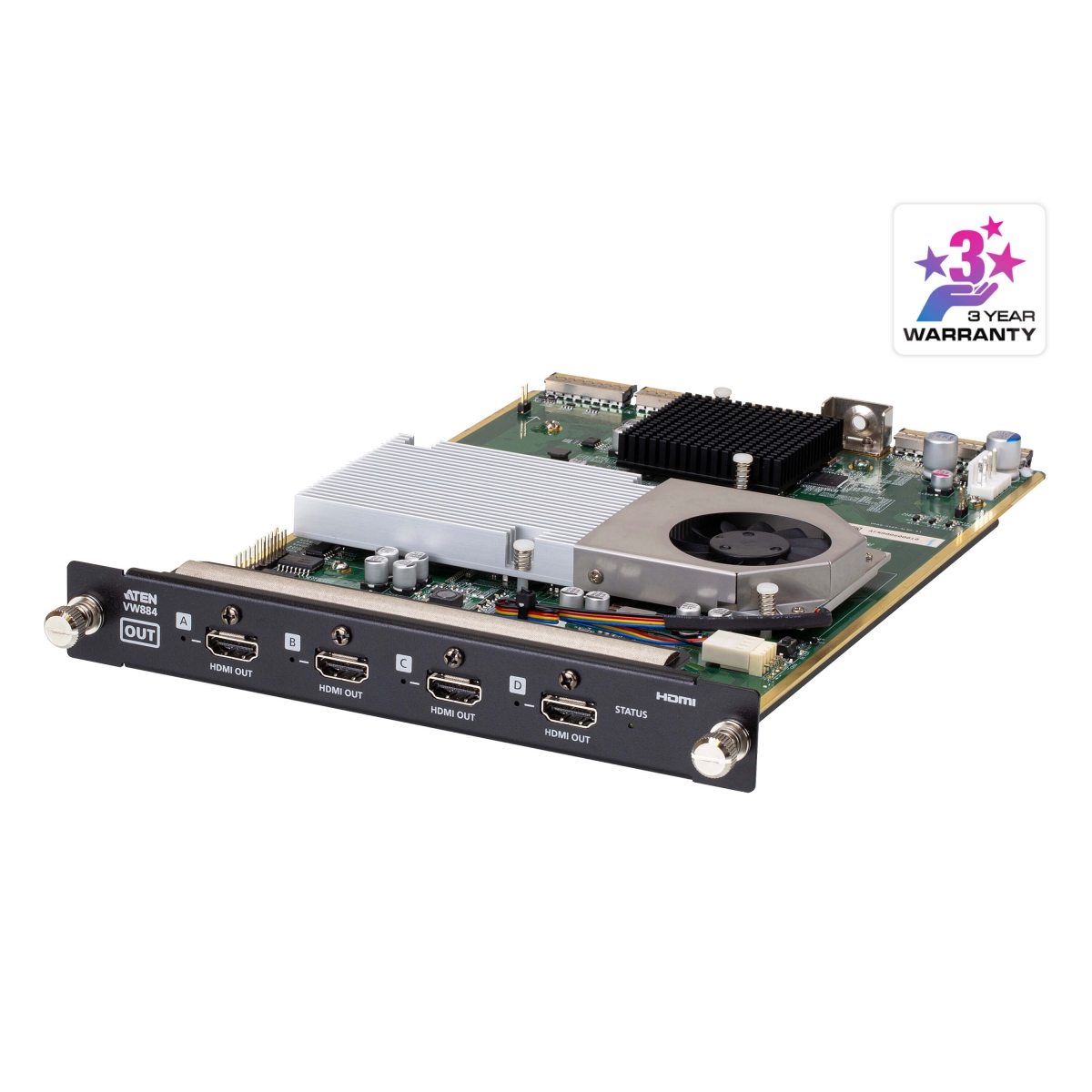

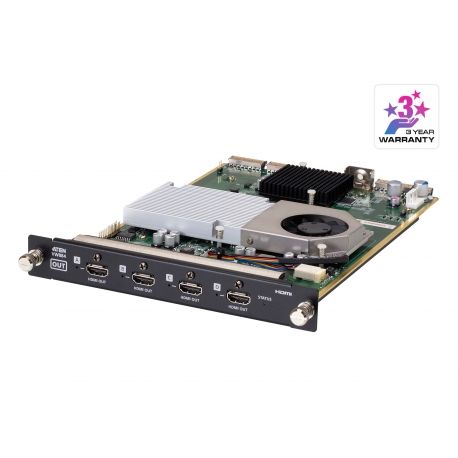

VW884 is a 4-port 4K HDMI output board built to work with VW3620 Modular Video Wall Processor to enable routing of 4 HDMI signals to 4 displays, meeting the increasingly stringent video wall requirements in mission-critical applications. With the support for Seamless Switch™, the VW884 allows real-time video switching and stable signal transmission. The EDID Expert™ technology enables the selection of optimum EDID settings for smooth power-up, high quality display and use of the best video resolutions across different screens. A True 4K scaler is built into VM884 to handle different video resolutions. In addition, the VW884 supports hot-swappable installation to give system integrators great flexibility and efficiency for maintenance.

| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | Up to 5.0m |
| Video | |
| Max. Data Rate | 18.0 Gbps (6.0 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | 4096x2160/3840x2160@60Hz (4:4:4) |
| Power Consumption | 54.72W:257BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.92 kg ( 2.03 lb ) |
| Dimensions (L x W x H) | 19.30 x 27.10 x 27.40 cm (7.6 x 10.67 x 10.79 in.) |
| Carton Lot | 4 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Input Resolutions | 1280 x 720 @ 24/25/30/50/60 Hz |
| 1920 x 1080 @ 24/25/30/50/60 Hz | |
| 2560 x 1080 @ 24/25/30/50/60 Hz | |
| 3840 x 2160p @ 24/25/30/50/60 Hz | |
| 3840 x 2160p @ 24/25/30/50/60 Hz (YUV422 12bit) | |
| 4096 x 2160p @ 24/25/30/50/60 Hz | |
| 4096 x 2160p @ 24/25/30/50/60 Hz (YUV422 12bit) |
