VW784
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

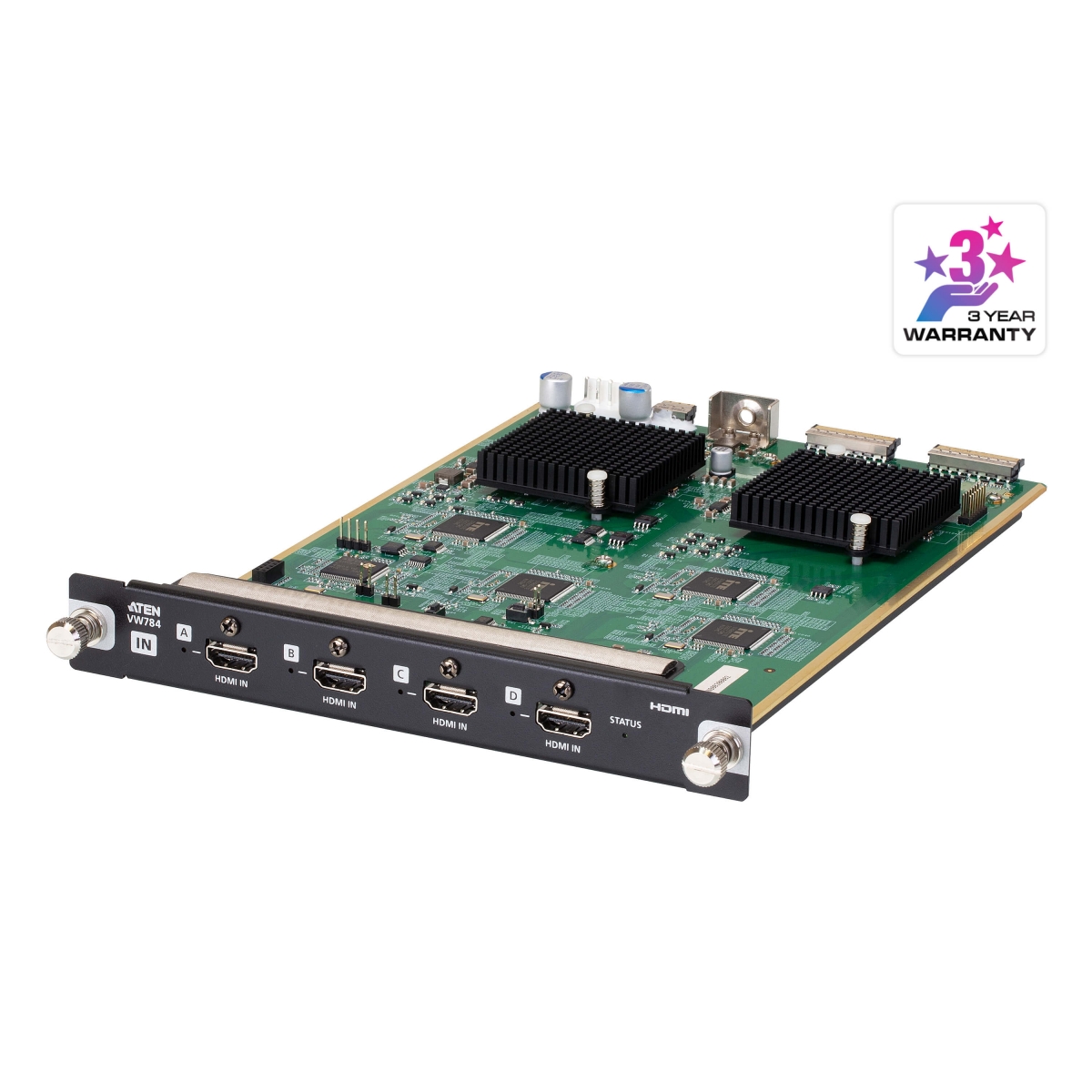

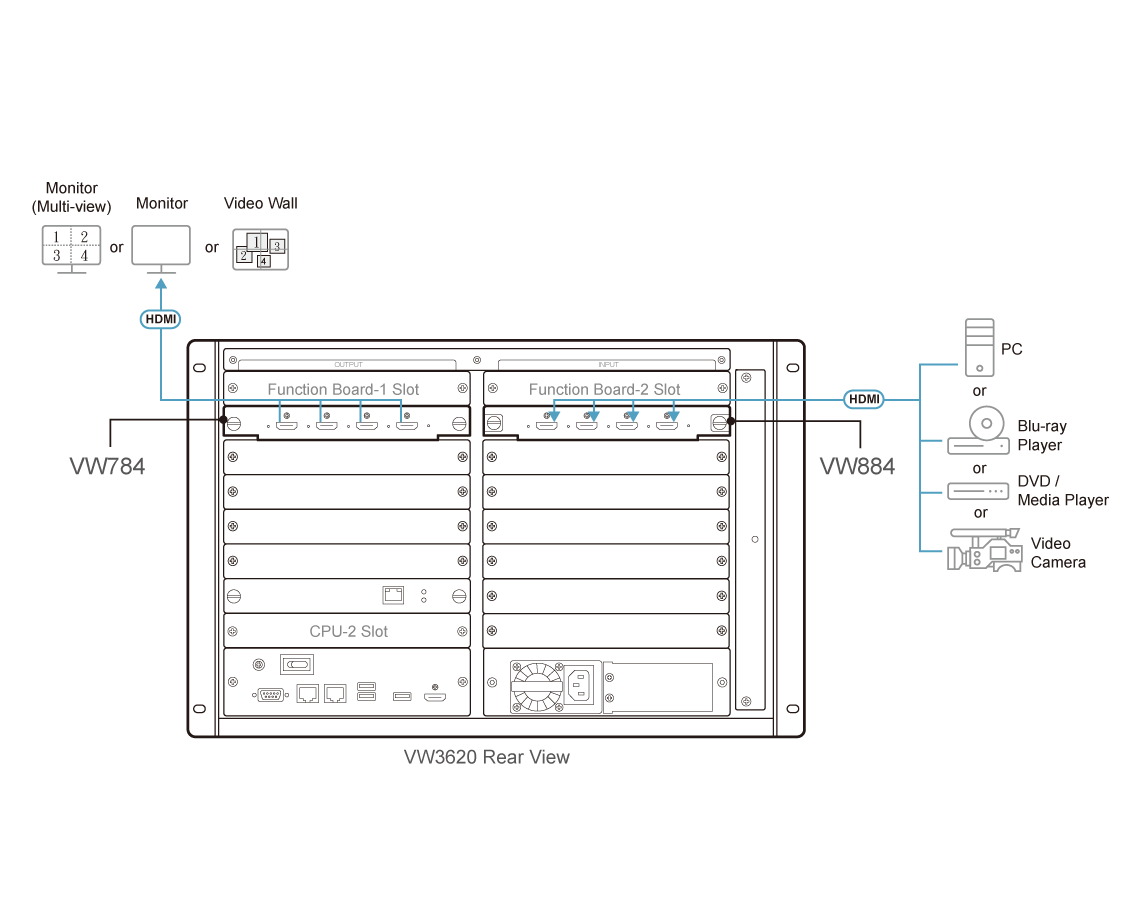

VW784 is a 4-port 4K HDMI input board built to work with VW3620 Modular Video Wall Processor to take 4 HDMI sources, meeting the increasingly stringent video wall requirements in mission-critical applications. With the support for Seamless Switch™, the VW784 allows real-time video switching and stable signal transmission. The EDID Expert™ technology enables the selection of optimum EDID settings for smooth power-up, high quality display and use of the best video resolutions across different screens. In addition, the VW784 supports hot-swappable installation to give system integrators great flexibility and efficiency for maintenance.

| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | Up to 3m |
| Video | |
| Max. Data Rate | 18.0 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) |
| HDCP 2.2 Compatible | |
| Consumer Electronics Control (CEC) | |
| Max. Resolution | 4096x2160/3840x2160@60Hz (4:4:4) |
| Power Consumption | 17.71W:83BTU/h |
| Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
|
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.73 kg ( 1.61 lb ) |
| Dimensions (L x W x H) | 19.30 x 27.10 x 2.74 cm |
| (7.6 x 10.67 x 1.08 in.) | |
| Carton Lot | 4 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Input Resolutions | 640 x 480 @ 60/67/72/75 Hz | 720p 60 Hz |
| 720 x 400 @ 70 Hz | 1080i 60 Hz | |
| 800 x 600 @ 56/60/72/75 Hz | 640 x 480 60Hz (4:3) | |
| 1024 x 768 @ 60/70/75 Hz | 576p 50 Hz (4:3)/(16:9) | |
| 1280 x 800 @ 60 Hz | 720p 50 Hz | |
| 1280 x 1024 @ 60/75 Hz | 1080i 50 Hz | |
| 1400 x 1050 @ 60 Hz | 1080p 50 Hz | |
| 1440 x 900 @ 60 Hz | 1080p 24/25/30 Hz | |
| 1600 x 1200 @ 60 Hz | 3840 x 2160p @ 24/25/30 Hz | |
| 1680 x 1050 @ 60 Hz | 4096 x 2160p @ 24/25/30 Hz | |
| 1920 x 1080 @ 60 Hz | ||
| 1920 x 1200 @ 60 Hz | ||
| 1920 x 1200 @ 60 Hz (Reduced Blanking) | ||
| 1080p @ 60 Hz | ||
| 480p @ 60 Hz (4:3)/(16:9) |
คมชัดสูง: 4K@60 (4:4:4) รายละเอียดแม่นยำ สีสันสมจริง ลื่นไหล: เทคโนโลยี FPGA และ FrameSync ภาพไม่ฉีกขาด ดีเลย์ต่ำมาก ยืดหยุ่น: ปรับแต่งเลย์เอาต์หน้าจอได้อิสระทันที คุมง่าย: ปรับค่าและดูตัวอย่างผ่าน WebGUI หรือ HDMI ได้แบบเรียลไทม์ เสถียร: โมดูลสำรองถอดเปลี่ยนได้ทันที รองรับการทำงาน 24/7
video wall controller processor modular design ที่รองรับ 36 in 20 out จัดวาง layout ได้อิสระ ผ่าน Web GUI เพียงคลิกลากวาง รองรับ 4K60 4:4:4 ใส่ภาพพื้นหลัง, ข้อความวิ่ง, โลโก้ และ วันเวลาได้ รองรับ custom resolution สำหรับ LED application รองรับ IP camera input (VW754)
Output board สำหรับ VW3620, VW1608 มีช่อง HDMI output 4 ช่อง รองรับ 4K60 4:2:0 และ 4K30 4:4:4 รองรับ HDR, HDR+ และ Dolby Vision
ถอดรหัสสตรีมกล้อง IP (H.265/H.264) ได้สูงสุด 4K@60Hz (4 ช่อง) หรือ 64x SD / 36x 720p พร้อมกันอย่างราบรื่น สตรีมที่ถอดรหัสแล้วสามารถ จัดวางตำแหน่งได้อย่างอิสระ ในหน้าต่างเอาต์พุตใดก็ได้บนอุปกรณ์ VW3620, VW1608 รองรับ ONVIF Profile S และ โปรโตคอล RTSP เพื่อการรวมเข้ากับระบบกล้อง IP และ NVR ทั่วไปได้ทันที
