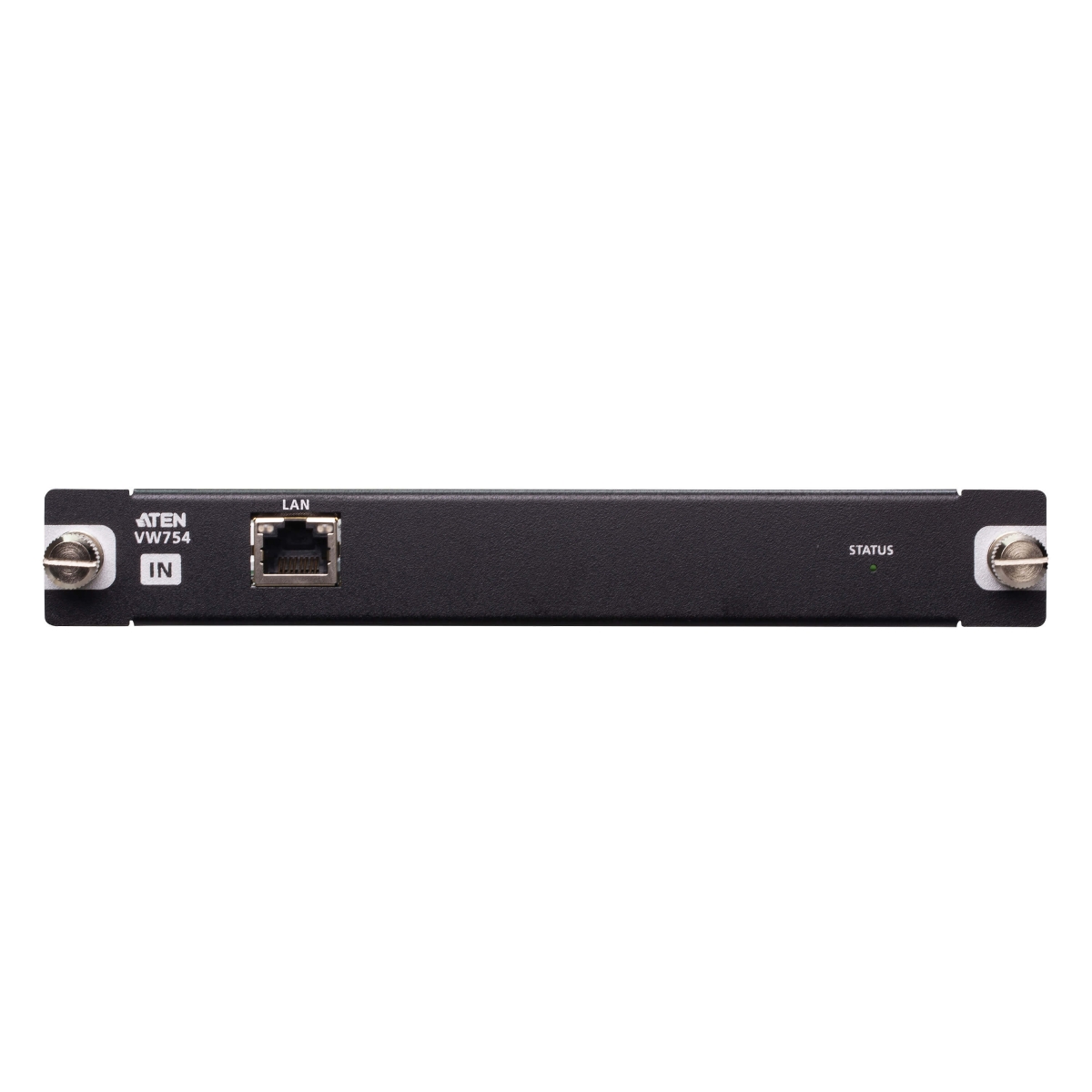

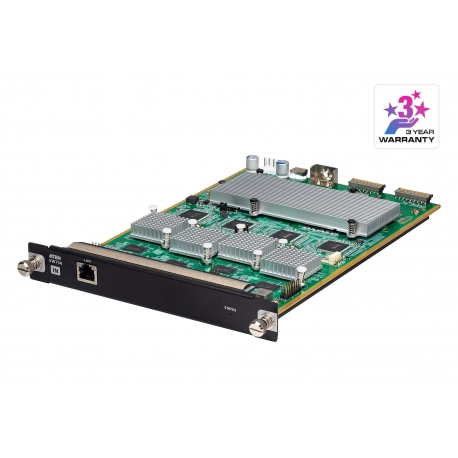

4-Channel 4K H.265 IP Stream Decoder Input Card
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
VW754 ถูกสร้างมาเพื่อทำงานร่วมกับ VW3620 Modular Video Wall Processor ของ ATEN โดยเฉพาะ สามารถรับสตรีม H.265/H.264 จากกล้อง IP หรือเครื่องบันทึกวิดีโอเครือข่าย (NVRs) ได้อย่างราบรื่น และ ถอดรหัส (decodes) ได้สูงสุด สี่ช่องสัญญาณพร้อมกันที่ความละเอียด 4K @ 60 Hz
สตรีมที่ถอดรหัสแล้วแต่ละรายการสามารถ กำหนดไปยังช่องสัญญาณเอาต์พุต ที่ต้องการภายในการตั้งค่าของ VW3620 ได้* VW754 อำนวยความสะดวกในการ รวมระบบเข้ากับระบบวิดีโอที่ใช้ IP ทั่วไปได้อย่างราบรื่น เนื่องจากการรองรับมาตรฐาน ONVIF Profile S และการรองรับโปรโตคอล RTSP
ความสามารถในการถอดเปลี่ยนอุปกรณ์ขณะเครื่องทำงาน (Hot swap capability) ช่วยเพิ่มความยืดหยุ่นเมื่อต้องมีการบำรุงรักษา โดยเฉพาะอย่างยิ่งในการตั้งค่าที่มีความสำคัญสูงที่ต้องการการทำงานต่อเนื่องตลอดเวลา (constant uptime) คุณสมบัติเด่นเหล่านี้ทำให้ VW754 เป็นตัวเลือกที่เหมาะสมอย่างยิ่งสำหรับ สถานการณ์ที่มีความสำคัญต่อภารกิจ (mission-critical scenarios) ที่เกี่ยวข้องกับกล้อง IP หลายตัว เพื่อปรับปรุงการรับรู้สถานการณ์ (situational awareness) และประสิทธิภาพในการตัดสินใจ เช่น ห้องควบคุมการเฝ้าระวัง, ศูนย์บัญชาการ, สถานที่ขนส่ง, และแม้แต่สภาพแวดล้อมทางทหารและรัฐบาล
หมายเหตุ: สามารถติดตั้งการ์ดสตรีมมิ่ง VW754 ได้สูงสุดห้าการ์ด
| Video Input | |
| Interfaces | 1× RJ45 (10/100/1000 Mbps) |
| Video Compression | H.265, H.264 over RTSP, Onvif |
| Video | |
| Max. Data Rate | <= 25Mbps |
| Max. Resolution | 3840x2160@60Hz (4:2:0) |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Power Consumption | 26.24W:123BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.83 kg ( 1.83 lb ) |
| Dimensions (L x W x H) | 19.30 x 27.12 x 2.74 cm (7.6 x 10.68 x 1.08 in.) |
| Carton Lot | 4 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Input Resolutions | 4K@60 |
| 1080P | |
| 720P | |
| 540P |
