KE8900SR
KE8900SR (ตัวรับ) คือ HDMI KVM Over IP Receiver ที่ช่วยให้คุณขยายสัญญาณคอมฯ เซิร์ฟเวอร์ ได้ไกล 100m และ สามารถเชื่อมต่อผ่าน Gigabit Switch L2/L3 ได้หรือ Fiber Network ได้
รองรับการควบคุมผ่าน iPad ด้วย KE Link App เมื่อซื้อ CCKM Licenses
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

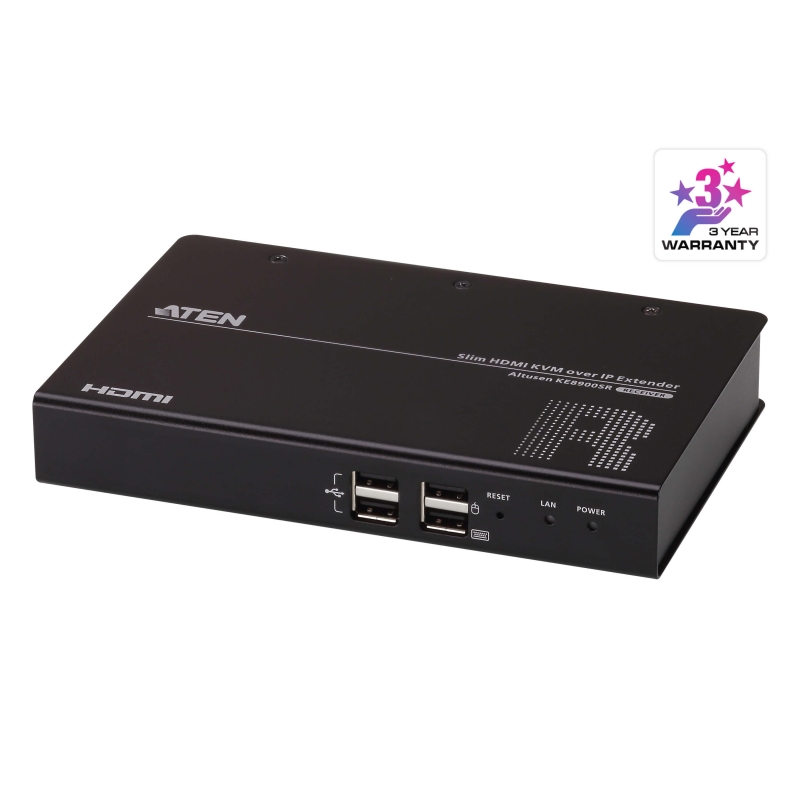

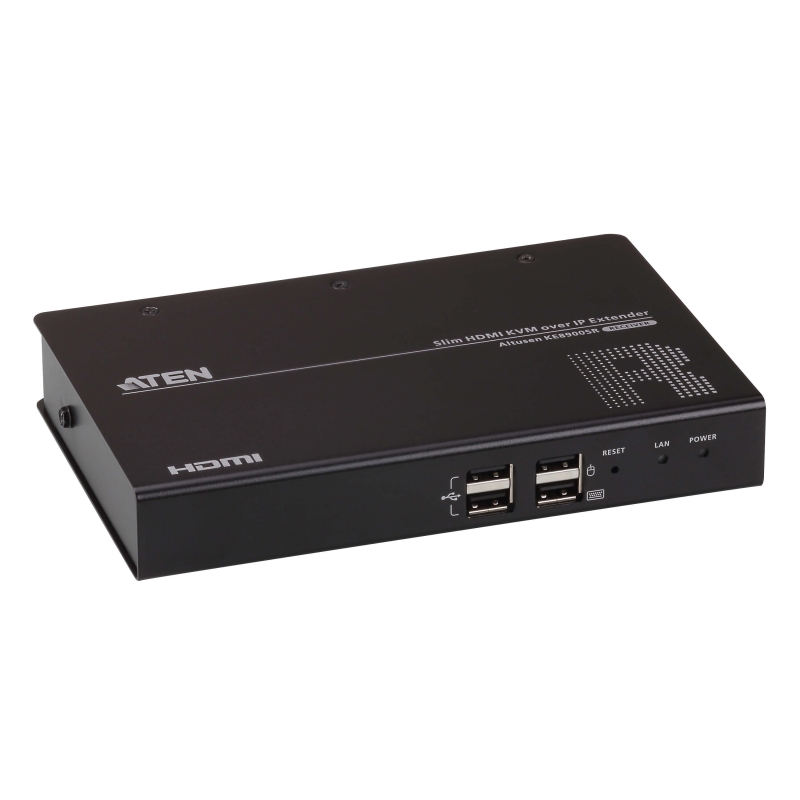

Slim HDMI Single Display KVM over IP Receiver
KE8900SR (ตัวรับ) คือ HDMI KVM Over IP Receiver ที่ช่วยให้คุณขยายสัญญาณคอมฯ เซิร์ฟเวอร์ ได้ไกล 100m และ สามารถเชื่อมต่อผ่าน Gigabit Switch L2/L3 ได้หรือ Fiber Network ได้
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
KVM Over IP Matrix System Implementation Guide
KE8900SR Slim HDMI KVM over IP Extender เป็นอุปกรณ์รับสัญญาณ (Receiver) แบบ IP ประสิทธิภาพสูง ขนาดกะทัดรัดและคุ้มค่า ช่วยให้สามารถเข้าถึงระบบคอมพิวเตอร์จากคอนโซล USB ระยะไกล ได้แก่ แป้นพิมพ์ USB, เมาส์ USB และจอภาพ HDMI ผ่านเครือข่ายอินทราเน็ต (Intranet) ทำให้ผู้ใช้สามารถติดตั้งคอมพิวเตอร์ไว้ในสภาพแวดล้อมที่มีความปลอดภัยและควบคุมอุณหภูมิ ซึ่งแยกออกจากพื้นที่ทำงานของผู้ใช้ได้ โดย Extender ทุกรุ่นสามารถจับคู่ใช้งานร่วมกับ Receiver หรือ Transmitter รุ่นใดก็ได้ใน KE Series* เพื่อให้ได้โซลูชันที่คุ้มค่าและอยู่ภายใต้งบประมาณที่กำหนด
KE8900SR รองรับเอาต์พุตจอภาพ HDMI จำนวน 1 จอ โดย Receiver รองรับความละเอียดวิดีโอสูงสุด 1920 x 1200 @ 60 Hz และให้คุณภาพวิดีโอที่ราบรื่นและแทบไม่สูญเสียรายละเอียดของภาพ (Visually Lossless) ด้วยค่าหน่วงต่ำ (Low Latency) นอกจากนี้ Extender ยังรองรับฟังก์ชัน Virtual Media และคำสั่งแบบอนุกรม RS-232 Serial Commands
KE8900SR สามารถติดตั้งบนโต๊ะ ยึดติดผนัง หรือบริเวณด้านหลังตู้ Rack ได้ด้วยดีไซน์ 0U Rack Mount ที่ช่วยประหยัดพื้นที่ นอกจากนี้ KE8900S ยังสามารถใช้งานเป็น Extender แบบ Point-to-Point / Point-to-Multipoint / Multipoint-to-Point หรือรวมเข้ากับระบบ KVM over IP Matrix System (Multipoint-to-Multipoint) เมื่อใช้งานร่วมกับ KVM over IP Matrix Manager (CCKM) เพื่อรองรับการใช้งานที่ยืดหยุ่นมากขึ้นในสภาพแวดล้อมการทำงานที่แตกต่างกัน
KVM over IP Extender รองรับการกำหนดค่าหลายรูปแบบ เช่น Local OSD ของ Receiver, CCKM หรือเมนูข้อความ RS-232 / Telnet นอกจากนี้ KVM over IP Extender ยังมีคุณสมบัติด้านความปลอดภัยที่เพิ่มขึ้น เช่น รองรับการเข้ารหัส AES เพื่อรักษาความปลอดภัยในการส่งข้อมูล Video / Keyboard / Mouse / USB รวมถึงรองรับการยืนยันตัวตนของผู้ใช้ผ่าน RADIUS / LDAP / AD หรือ Remote User Authentication เพื่อเพิ่มความปลอดภัยในการเชื่อมต่อ
เมื่อใช้งานร่วมกับ CCKM KVM over IP Extender จะรองรับฟังก์ชันขั้นสูงเพิ่มเติม เช่น Boundless Switching, Fast Switching, Video Wall, Multi Display, Profile Scheduling และ Auto Detection ของ KE Series Extender ทั้งหมดที่อยู่ใน Subnet เดียวกัน เพื่อให้สามารถติดตั้งหรือกำหนดค่าได้อย่างรวดเร็ว รวมถึงรองรับการยืนยันตัวตนและการกำหนดสิทธิ์ด้วย Username / Password Authentication and Authorization โปรดดูรายละเอียดเพิ่มเติมจากหน้าเว็บ CCKM
เมื่อใช้งานโดยไม่มีระบบจัดการแบบรวมศูนย์ CCKM KVM over IP Extender จะมี Slim Matrix Mode ซึ่งรองรับการเชื่อมต่ออุปกรณ์ KE6900ST / KE8900ST / KE9900ST สูงสุด 12 เครื่อง เข้ากับ Receiver (Rx) ได้ไม่จำกัดจำนวน หมายความว่าสามารถใช้ IP ได้สูงสุด 12 IP สำหรับกำหนดเป็น Transmitter
ไม่ว่าผู้ใช้จะดำเนินการกำหนดค่า ตรวจสอบ ดูแลระบบ ควบคุม หรือขยายการเข้าถึงคอมพิวเตอร์ ระบบ KVM over IP Matrix System สามารถปรับใช้งานให้เหมาะกับสภาพแวดล้อมการทำงานและรูปแบบ Workstation ที่หลากหลาย รวมถึงสามารถนำไปใช้งานในระบบ Broadcasting, Control Center, Multimedia, Manufacturing และอุตสาหกรรมอื่น ๆ ที่ต้องการการขยายระบบแบบ Matrix


| Connectors | |
| Virtual Media | 2 x USB Type A Female (Black) |

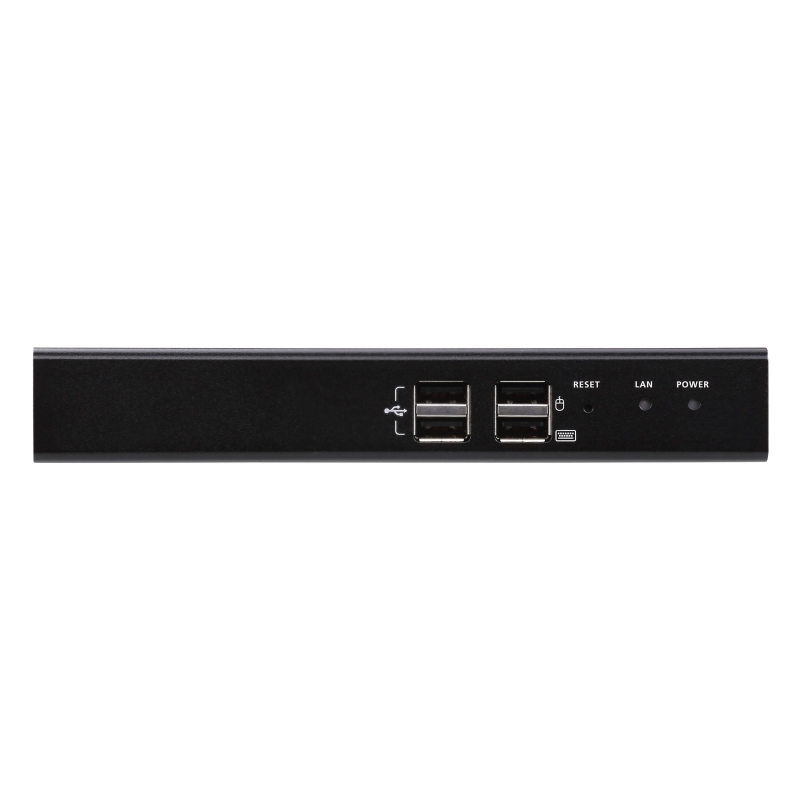

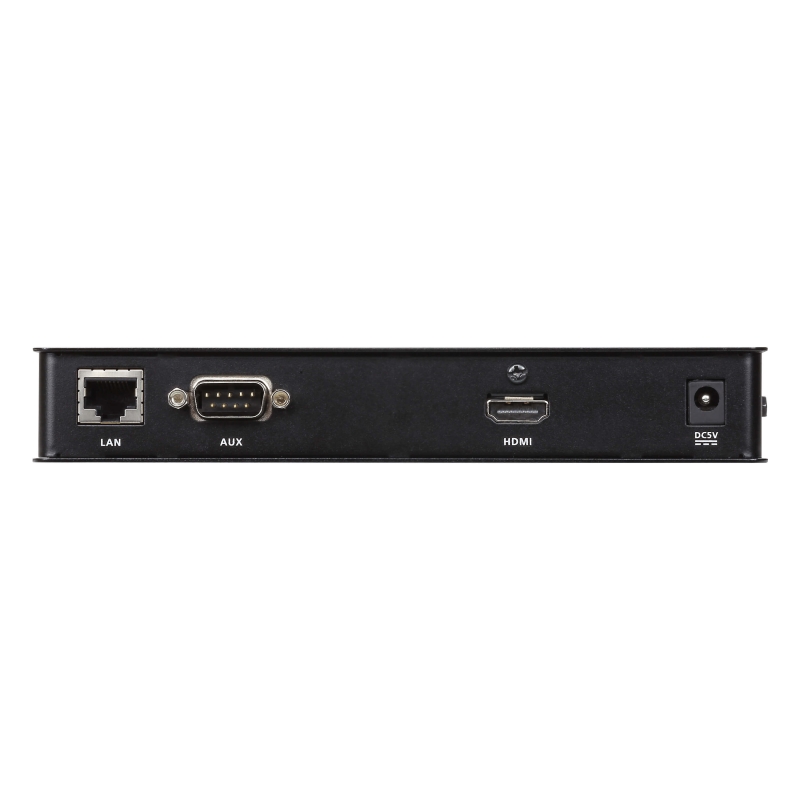

| Console Ports | 2 x USB Type A Female (Black) 1 x HDMI Female (Black) 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) |
| LAN Ports | 1 x RJ-45 (Black) |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| LEDs | |
| 10/100/1000 Mbps | 1 (10: Orange / 100: Orange & Green / 1000: Green) |
| Power | 1 (Blue) |
| Emulation | |
| Keyboard / Mouse | USB |
| Power Consumption | DC5V:4.35W:46BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Video Resolution | Up to 1920 x 1200 @ 60Hz |
| Latency | < 48ms |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–95% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.75 x 2.87 cm (7.17 x 4.63 x 1.13 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
