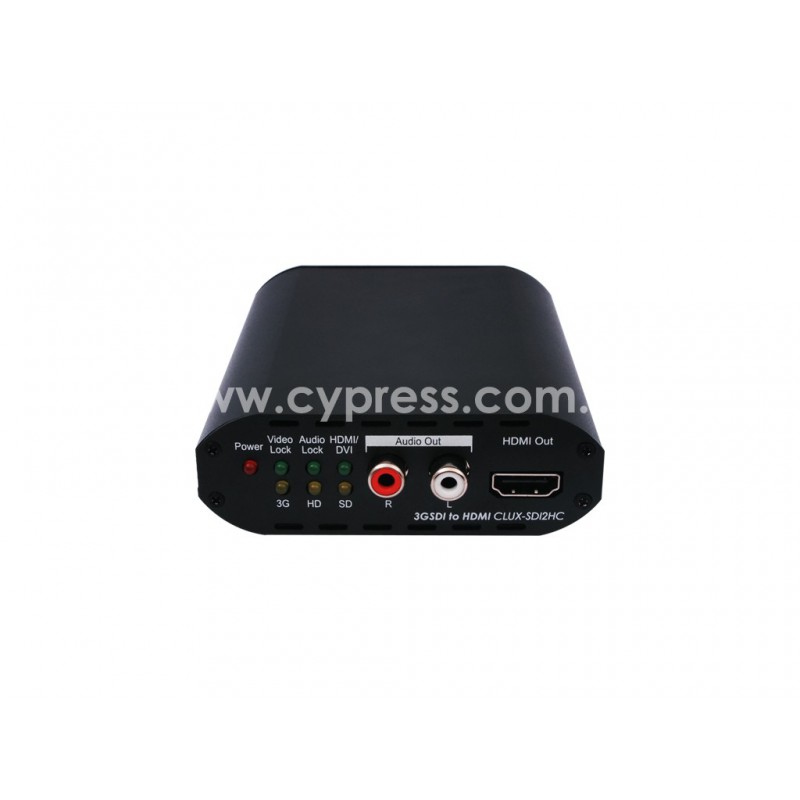

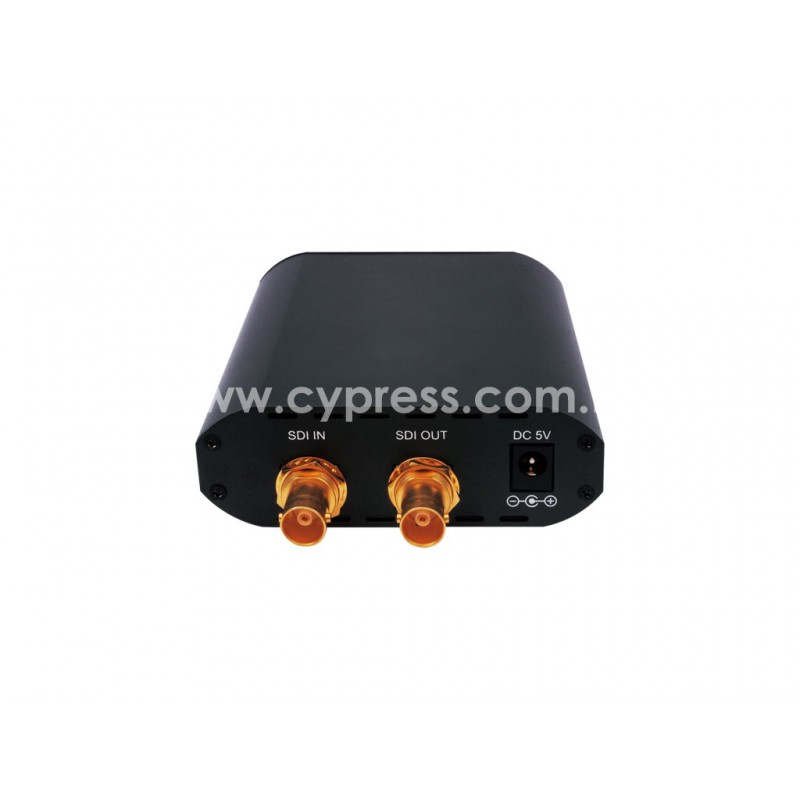

SDI to HDMI Converter
CLUX-SDI2HC
The SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display.
ManualThe SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loopthrough 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI displays.
- Connect to multiple displays by linking one 3G SDI Extender to another through its SDI output port. When connected to another 3G SDI Extender, you can broadcast a signal to two HDMI displays and one SDI display, or connect to another Extender to provide more connections and a longer operating distance
- Convert 3G SDI to HDMI
FEATURES
- Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
- Supports HDMI and SDI (bypass) output simultaneously
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Supports SDI input/output distance up to 100M (3G-SDI), 200M (HD-SDI), or 300M (SD-SDI)
- Converts SDI signal to HDMI:
- SD-SDI (SMPTE 259M-C) → 480i/576i
- HD-SDI (SMPTE 292M) → 720p@50/59.94/60, 1080i@50/59.94/60
- 3G-SDI (SMPTE 424M/425M-AB) → 1080p@23.98/24/25/29.97/30/50/59.94/60, 1080psF@23.98/24/25/29.97/30
- Supports SDI input modes:
- SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
- HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
- 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Equalized and re-clocked loop output
- Alternative audio output to coaxial and analog 2CH
- Integrated audio de-embedder for up to 8 channels of 48 kHz audio
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
