Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@50/60Hz (4:4:4)

Color Space

RGB, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

8-bit, 10-bit, 12-bit

HDMI Audio Formats (Pass-through)

LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Coax Audio Formats

LPCM 2.0, Dolby Digital / Plus, DTS 5.1

L/R Audio Formats

PCM2.0

HDR formats

HDR10,HDR10+,Dolby Vision, HLG

ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

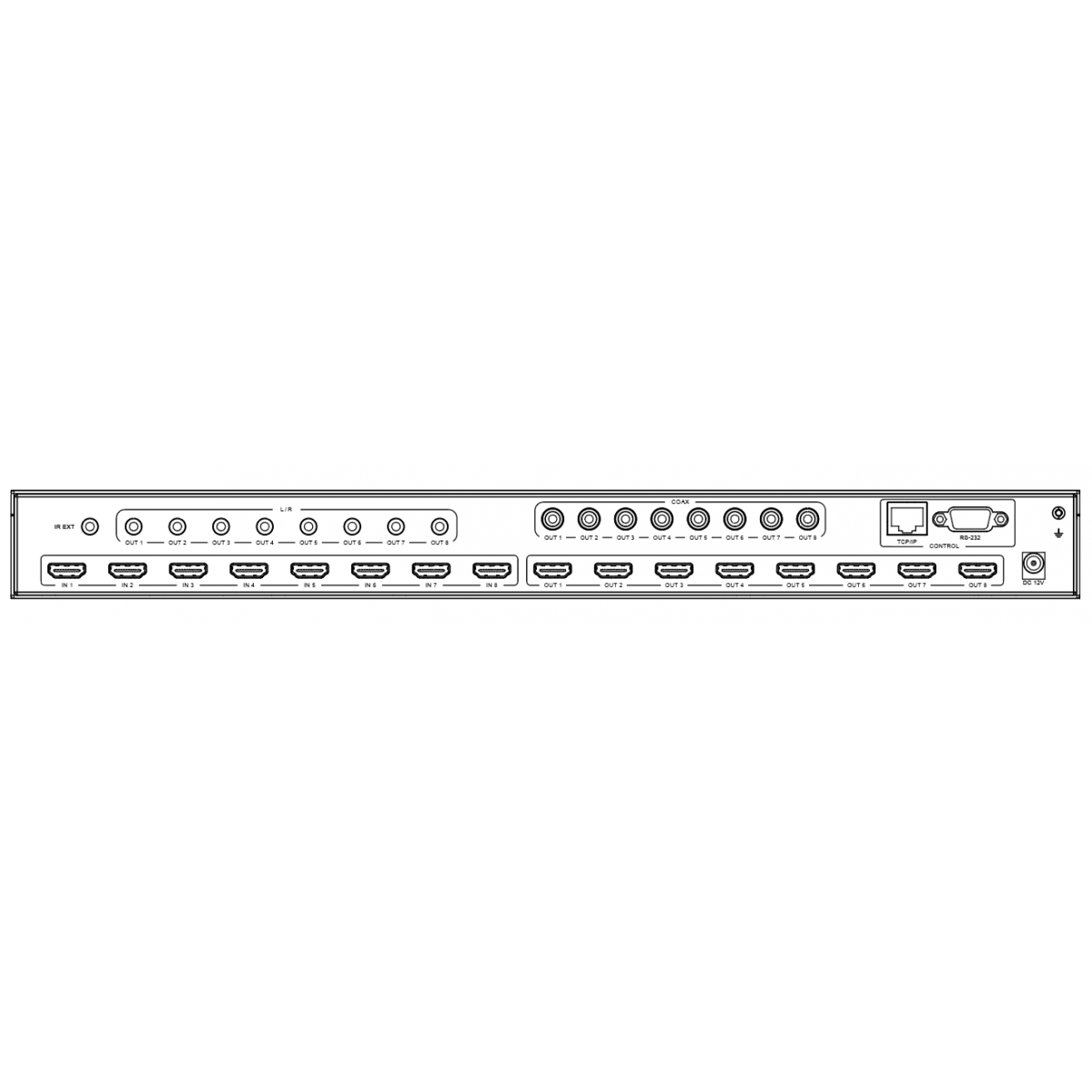

Connection

Input Ports

8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack]

Output Ports

8×HDMI Type A [19-pin female] 8×Coax Audio (RCA)

8×L/R Audio [3.5mm Stereo Mini-jack]

Control Ports

1×TCP/IP [RJ45]

1×RS-232 [D-Sub 9]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

440mm (W)×200mm (D)×44.5mm (H)

Weight

2.8kg

Power Supply

Input: AC 100 - 240V 50/60Hz

Output: DC 12V/5A (US/EU standard, CE/FCC/ULcertified)

Power Consumption

43W

Operating Temperature

-10°C ~ 45°C / 14°F ~ 113°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Resolution / Cable length

4K60 -

Feet / Meters

4K30 -

Feet / Meters

1080P60 -

Feet / Meters

HDMI IN / OUT

16ft / 5M

32ft / 10M

50ft / 15M

The use of “Premium High Speed HDMI” cable is highly recommended.
