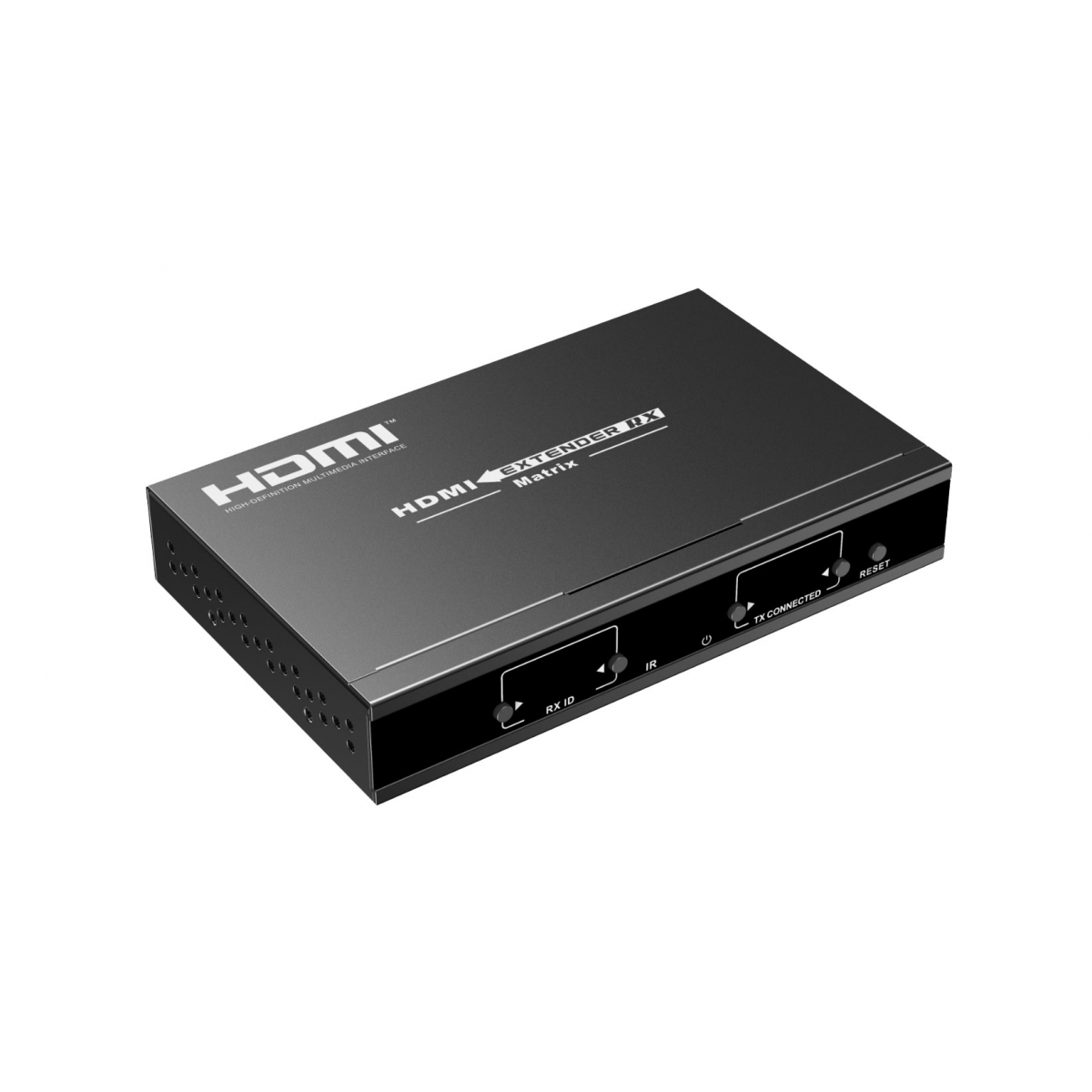

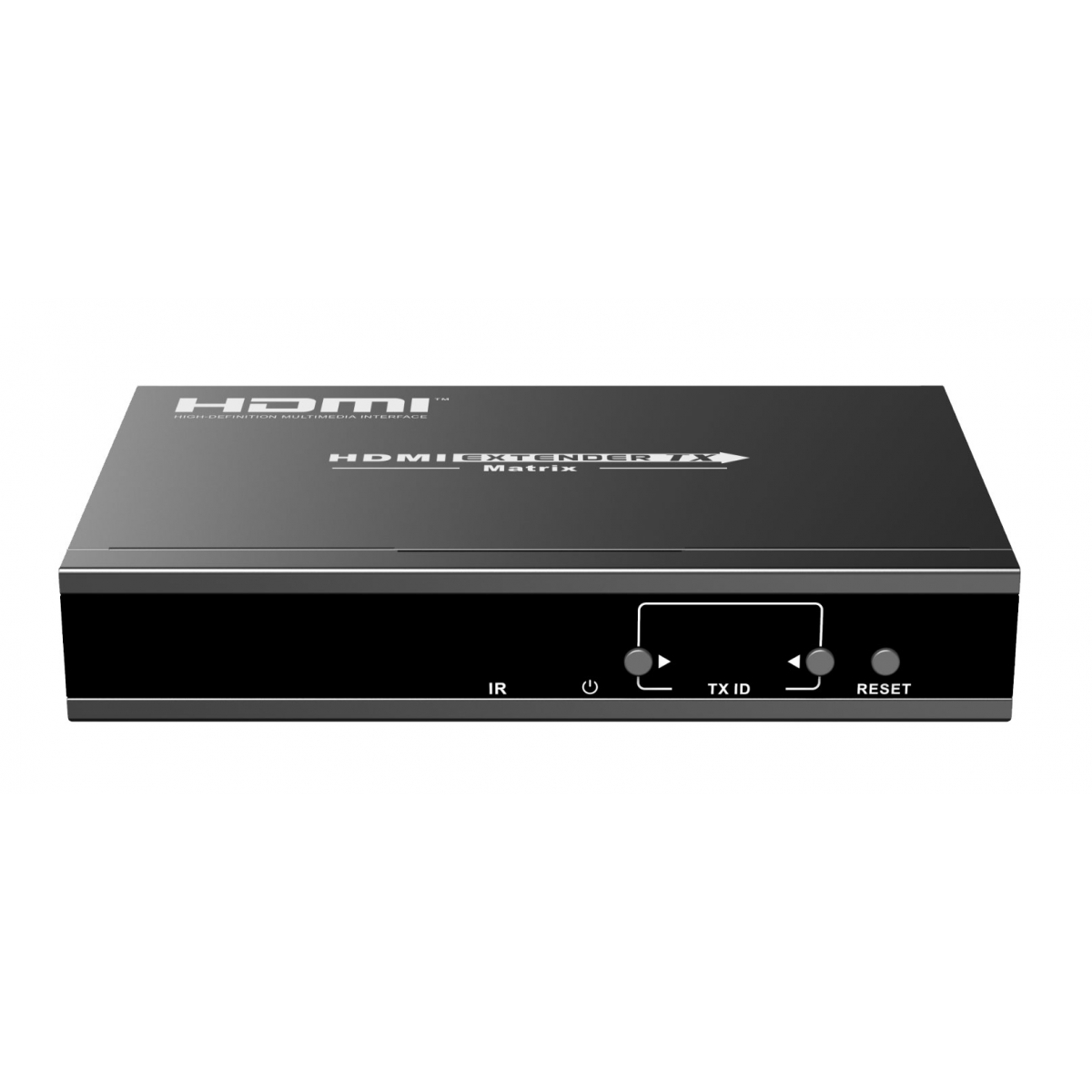

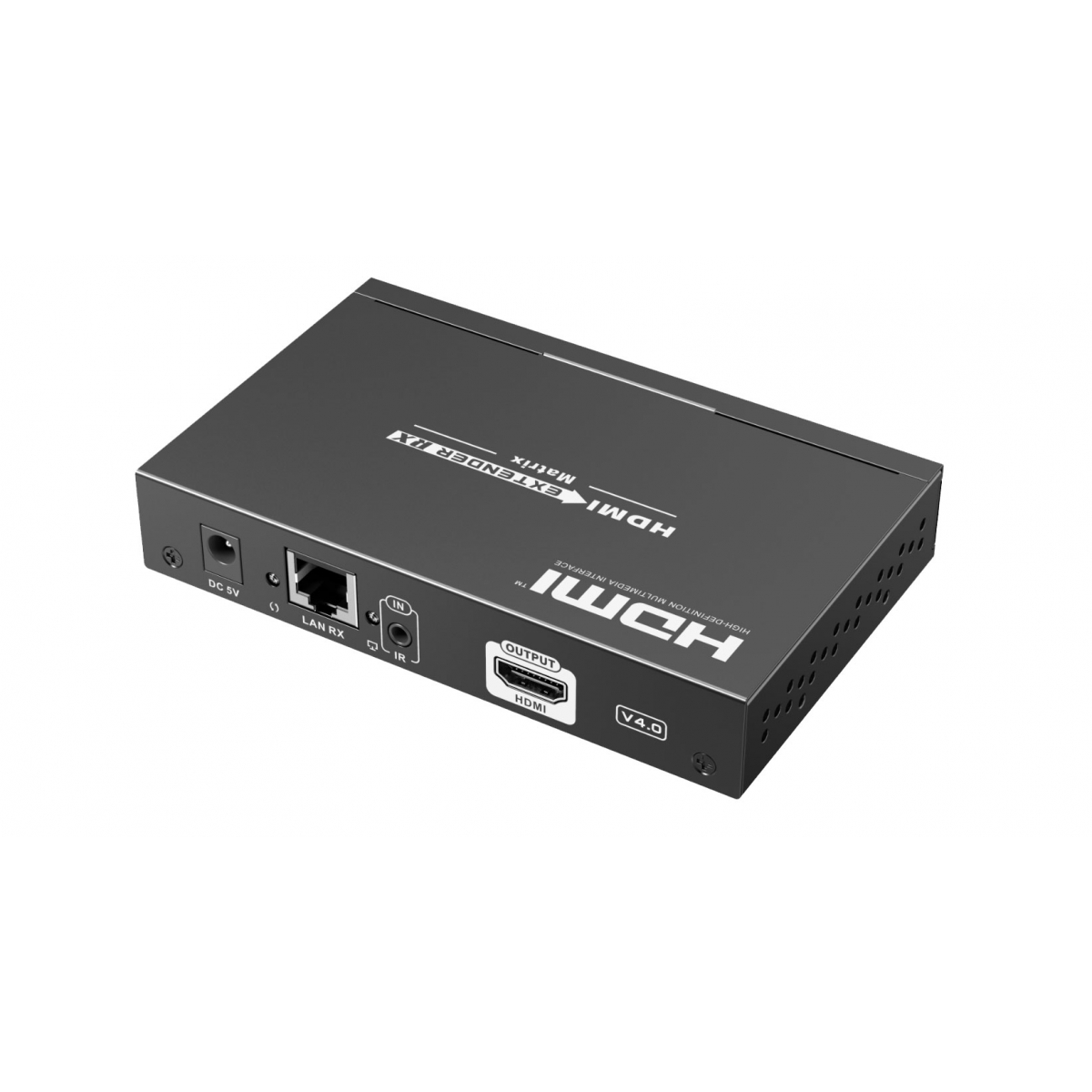

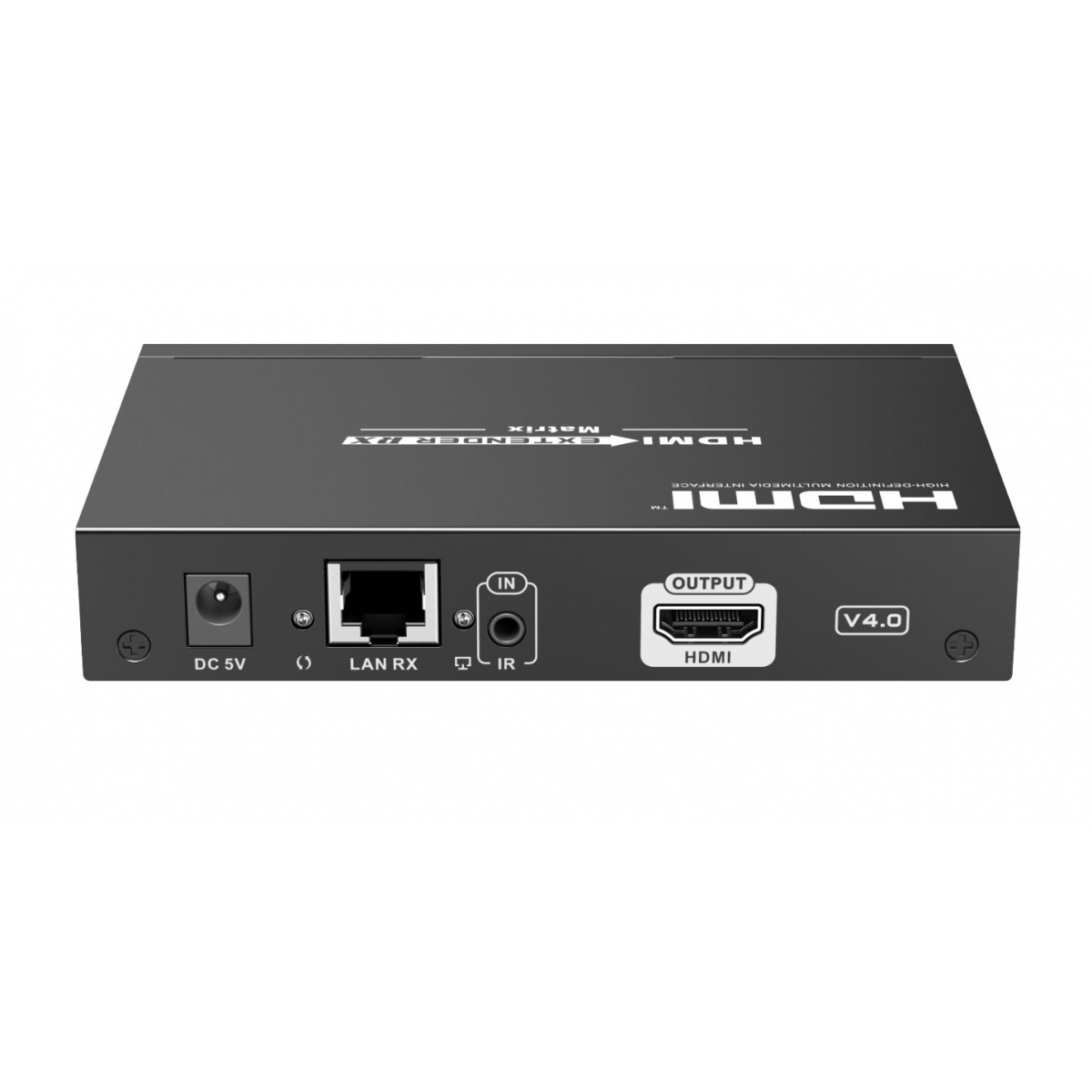

LE-HMX120BR
HDMI matrix extender ตัวรับ ขยายสัญญาณ ระยะไกล 120ม. ผ่านสายแลนเส้นเดียว รองรับความละเอียด 1080p@60Hz full HD
ควรใช้สาย CAT6 600MHz ขึ้นไป ไม่รองรับการใช้ร่วมกับสาย CAT5/CAT5e
แบบ Matrix

แบบ 1 : 1

| Item | Specification |
| HDMI signal | HDMI1.3,compliant to HDCP |
| Network bandwidth | 18Mbps |
| Supported resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Audio Format | PCM |
| TMDS signal | 0.7-1.2Vp-p |
| DDC signal | 5Vp-p |
| Remote control | Support |
| IR pass-back | Supports 20~60KHz IR devices |
| Matrix configuration | Up to 100 source signals can be connected and switched to infinite output |
| Power supply | 5V/2A |
| Power consumption | RX<4W |
| Weight | RX250g |
| Protection | Lightning Protection Surge Protection ESD protection |
| Dimensions (LxWxH) | 133.8x83.8x23.8mm |
| Working temperature | 0~60°C |
| Storage temperature | -20~7(TC |
| Relative humidity | 0~95%(no condensation) |
| Color | Black |
